Metric Cable Glands Hygienic

HYGIENIC SERIES

Made in AISI 303L stainless steel, hygienic glands are a definite solution against dirt and germs. They are the only glands tested according to FDA and EHEDG standards. Also available in EMC version.

Metric Cable Glands Hygienic · Delvalle BoxDelvalle Box
Metric Cable Glands Hygienic · Delvalle BoxDelvalle Box

This product has the following certificates

  • Logo EMC · Delvalle Box
  • Logo IP68 · Delvalle Box
  • Logo IP69K · Delvalle Box
  • Logo Chemical resistant · Delvalle Box
  • Logo Corrosion resistant · Delvalle Box

Description

Hygienic glands are fit for passing, pressing and fixing cables between two compartments such as junction boxes, electric enclosures or any cabinet where protection against dust, dirt or water is required.
With a wide variety and the best quality on the market, we offer customized solutions for each case. We can just send you the glands, or even fixing them on your enclosure at your request.


Made in stainless steel, hygienic glands are a definite solution against dirt and germs. They are the only glands tested according to FDA and EDHG standards. We have the widest range from M12 to M25 and the highest quality.



Discover the advantages

Smooth nish prevents harmful microorganisms sticking to the surface.
No threads are exposed.
Cleaning of cable glands is easier, faster and less expensive compared to traditional stainless steel cable glands.
Reliable strain relief due to strain relief element separated from grommet.
Suitable for high pressure steam cleaning.

Regulations

  • Protection:
    • IP68 (5 bar, 30 min) according EN 60529
    • IP69K extend IEC 60529
  • Temperature resistance:
    • -20°C to +100°C
    • -40°C to +150°C short time

Applications

Delvalle stainless steel hygienic glands are employed in those areas where cleanness and hygiene are essential. Preventing an accumulation of dirt is vital in:

  • Manufacturing and packaging of food and pharmaceuticals
  • Clean room technology
  • Biotechnology
  • Chemical industry
Metric Cable Glands Hygienic · Delvalle Box

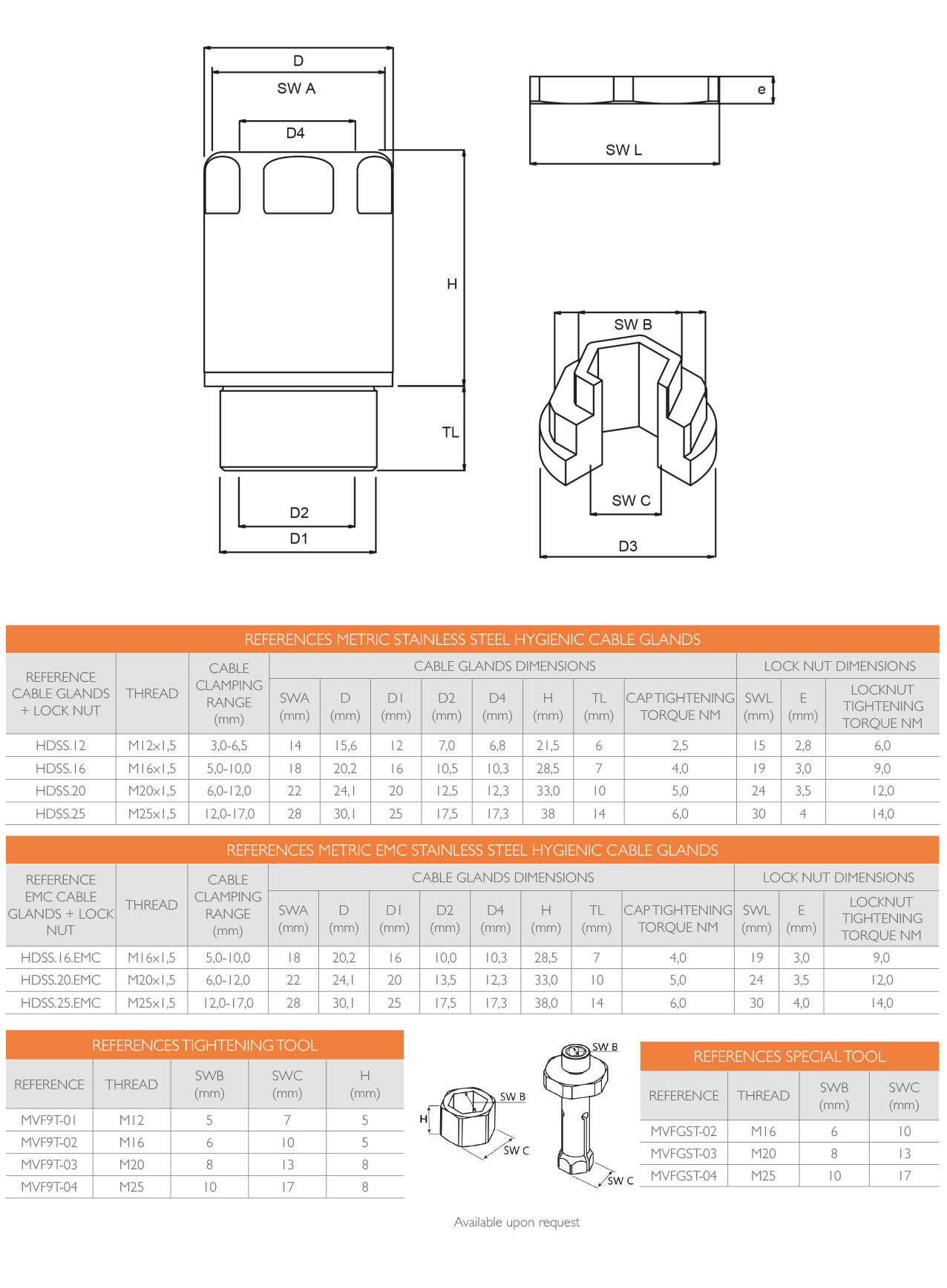

Sketches
