Metric Polyamide Plug IP68

Metric polyamide plug IP68 are suitable for blocking the passage between two compartments and provide pressure balance between the inside and the outside. They enable to expand the box in the future: junction boxes, electrical boxes or devices that require tightness against the dust, dirt or water.

Stock of plugs. Fast delivery all over Europe, ... IP68. Call us now and save money!

Metric Polyamide Plug IP68 · Delvalle BoxDelvalle Box
Metric Polyamide Plug IP68 · Delvalle BoxDelvalle Box
Metric Polyamide Plug IP68 · Delvalle BoxDelvalle Box
Metric Polyamide Plug IP68 · Delvalle BoxDelvalle Box

This product has the following certificates

  • Logo CE · Delvalle Box
  • Logo IP68 · Delvalle Box
  • Logo ROHS · Delvalle Box
  • Logo 2 year · Delvalle Box
  • Logo Chemical resistant · Delvalle Box
  • Logo Corrosion resistant · Delvalle Box
  • Logo Easy to clean · Delvalle Box
  • Logo Scrach resistant · Delvalle Box
  • Logo Temperature resistant · Delvalle Box
  • Logo Waterproof · Delvalle Box

Description

Metric polyamide plug IP68 are suitable for blocking the passage between two compartments and provide pressure balance between the inside and the outside. They enable to expand the box in the future: junction boxes, electrical boxes or devices that require tightness against the dust, dirt or water.

  • Material: Polyamide PA66
  • Thread:
    • Metric
    • PG
  • Sealing ring: NBR
  • Polyamide lock nut included
  •  Protection: IP68
  • Temperature resistance:
    • -40°C to +100°C
    • -40°C to +120°C short time
  • Color: Black RAL 9005



Discover the advantages

Polyamide plugs are manufactured with a semi-crystalline thermoplastic that has good mechanical strength and high impact strength.
These plugs have good sliding behavior and good wear resistance; they are resistant to aging under high temperatures and for extended periods of time. They also offer high strength and rigidity, even at low temperatures.
They resist intrinsic ignition and have excellent dielectric properties and chemical resistance. High resistance to chemical materials like gasoline and fat at the best price.

Regulations

  • Protection: IP68
  • Temperature resistance:
    • -40°C to +100°C
    • -40°C to +120°C short time

Applications

  • Road signage
  • Food and beverage
  • Renewable energy
  • Machinery
  • Airports
  • Railway
  • Maritime
  • Electricity
  • Nuclear & thermal power
  • Urban equipment
  • Pharmaceutic and medical

Custom Made Solutions
We offer multiple solutions

Metric Polyamide Plug IP68 · Delvalle Box
Do you need solutions?
2020 product catalogues
  • Thread:
    • Metric
    • PG
Metric Polyamide Plug IP68 · Delvalle Box

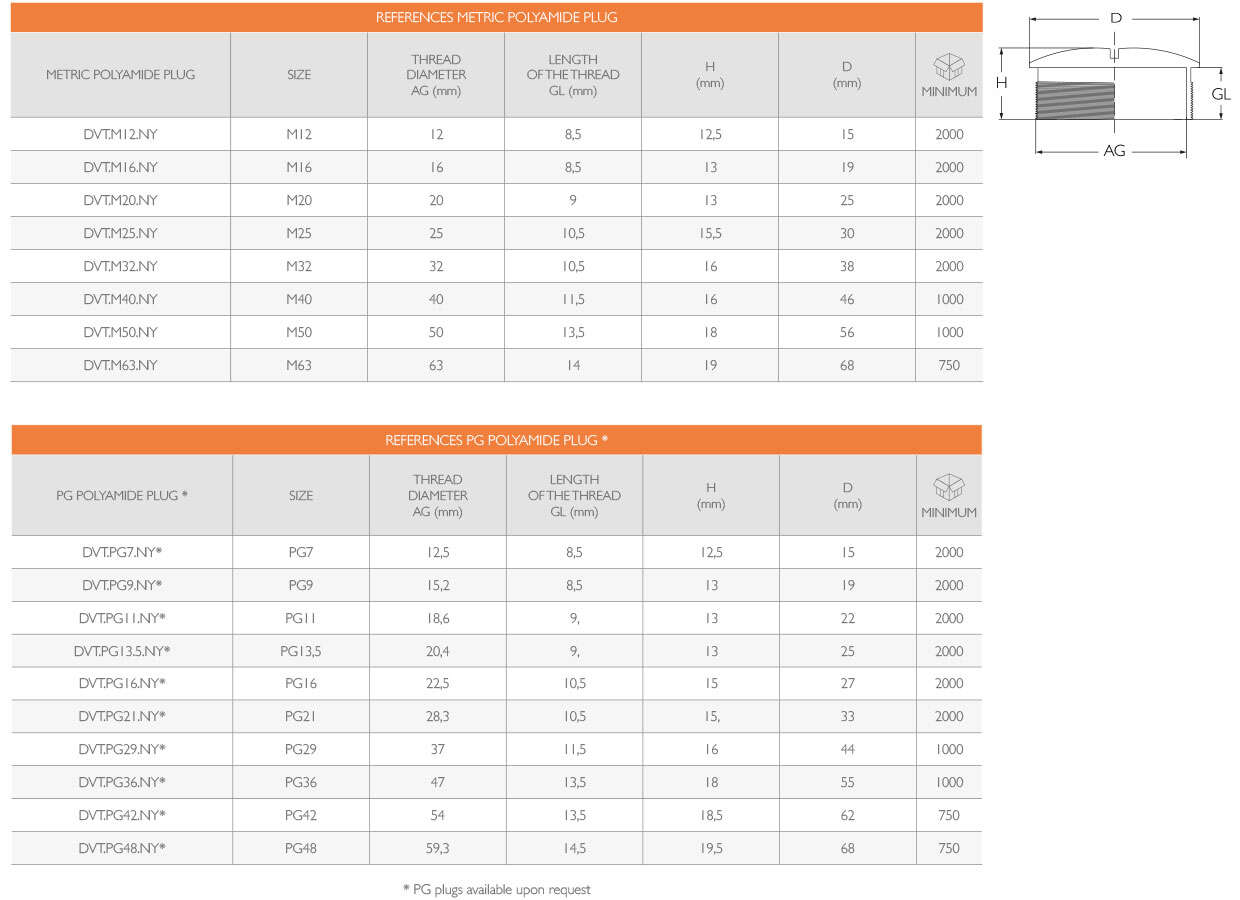

Sketches

BLUEPRINT AND DIMENSIONS · Delvalle Box
