Resistance Heaters Nema UL for Enclosures

Max Series

Resistance Heaters UL for electrical enclosures

Temperature variations inside control cabinets and housings, especially when installed outside, lead to condensation of water and consequently to malfunction and corrosion. Through the use of enclosure heaters, temperature variations can be reduced and condensation of water avoided.

Resistance Heaters Nema UL for Enclosures · Delvalle BoxDelvalle Box
Resistance Heaters Nema UL for Enclosures · Delvalle BoxDelvalle Box

Description

Temperature variations inside control cabinets and housings, especially when installed outside, lead to condensation of water and consequently to malfunction and corrosion. Through the use of enclosure heaters, temperature variations can be reduced and condensation of water avoided.

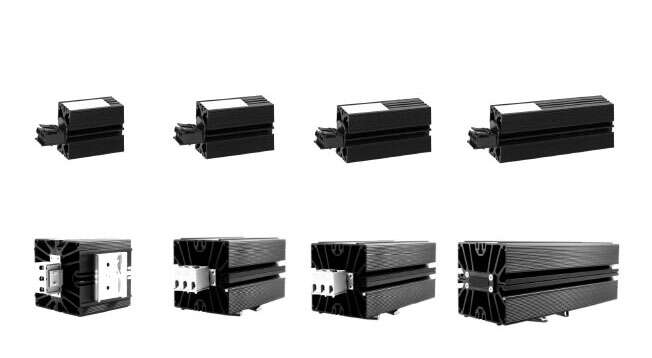

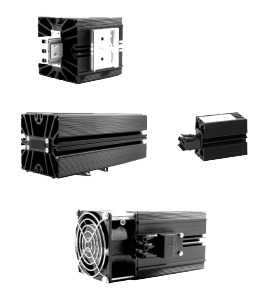

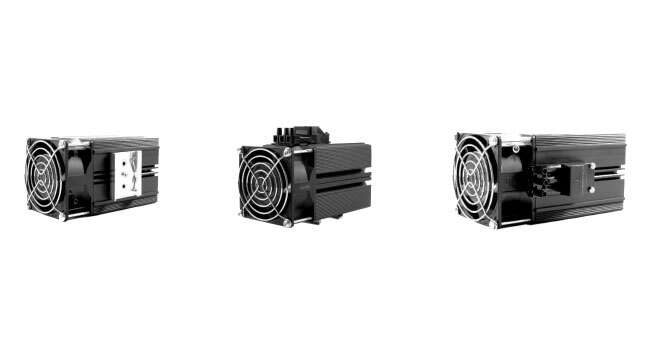

The heaters are equipped with a PTC heating elements and are self-regulating, operate without temperature control and have a thermal output that varies only little over a wide voltage range. An optimum heat dissipation is achieved through profiled aluminum housings with small dimensions. Heaters for thermal outputs of 130W to 1000W are equipped with fans in order to produce an air circulation.

Discover the advantages

Self-regulating PTC.
Simple and quick mounting in DIN 35mm.
Attachment with clip on mounting rail.
Optimized profile with improved heating power and smaller surface temperature.
Alternative for voltage ranges 12-24v or 110-240V.

Regulations

UL approved.
• Built under directive 2006/95/CE low voltaje.

Applications

Enclosure heaters are used in traffic light, traffic monitoring systems, ticket machines, crane systems, telecommunication systems as well as in machines for foodstuff industry.

Custom Made Solutions
We offer multiple solutions

Resistance Heaters Nema UL for Enclosures · Delvalle Box
Do you need solutions?
2018 product catalogues

Resistance Heaters UL for electrical enclosures Options

Resistance Heaters Nema UL for Enclosures · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
MVRC0010ULRESISTENCIA CALEFACTORA UL SERIE MAX803060MVRC0010UL
MVRC0020ULRESISTENCIA CALEFACTORA UL SERIE MAX1003060MVRC0020UL
MVRC0030ULRESISTENCIA CALEFACTORA UL SERIE MAX1203060MVRC0030UL
MVRC0045ULRESISTENCIA CALEFACTORA UL SERIE MAX1703060MVRC0045UL
MVRC0060ULRESISTENCIA CALEFACTORA UL SERIE MAX1053083MVRC0060UL
MVRC0075ULRESISTENCIA CALEFACTORA UL SERIE MAX1553083MVRC0075UL
MVRC0100ULRESISTENCIA CALEFACTORA UL SERIE MAX1853083MVRC0100UL
MVRC0150ULRESISTENCIA CALEFACTORA UL SERIE MAX2453083MVRC0150UL
MVRC0130ULRESISTENCIA CALEFACTORA UL SERIE MAX15580110MVRC0130UL
MVRC0250ULRESISTENCIA CALEFACTORA UL SERIE MAX15580110MVRC0250UL
MVRC0400ULRESISTENCIA CALEFACTORA UL SERIE MAX23580110MVRC0400UL
