Temperature and Humidity Smart Sensor

The temperature and humidity compact smart sensor Delvalle electronically records temperature and humidity and converts the measured data into a standardized analog 4-20 mA or a digital IO-Link signal. The converted value signals can be utilized or further processed by a control or monitoring unit. The smart sensor is suitable for installation inside and outside the enclosure, even in harsh environmental conditions as can be found in the wind power industry: in shielded outdoor areas and exposed to vibrations.

Temperature and Humidity Smart Sensor · Delvalle BoxDelvalle Box

Description

The temperature and humidity compact smart sensor Delvalle electronically records temperature and humidity and converts the measured data into a standardized analog 4-20 mA or a digital IO-Link signal. The converted value signals can be utilized or further processed by a control or monitoring unit. The smart sensor is suitable for installation inside and outside the enclosure, even in harsh environmental conditions as can be found in the wind power industry: in shielded outdoor areas and exposed to vibrations.

  • Measuring signals analog (4-20 mA)/digital (IO-Link): temperature, humidity events, diagnosis, device data.
  • Max. reaction time: 3 min.
  • Load resistance (external): 500 (4-20mA only).
  • Connection: M12 round plug connector, IEC 61076-2-101, 4-pin. A-coded, shielded.
  • Electrical protection: reverse-polarity, short circuit, overvoltage protection.
  • Mounting: clip for 35 mm DIN rail, EN 60715 and screw fixing M5.
  • Casing: plastic according to UL94 V-0, light grey.
  • Dimensions: 140x40x38mm.
  • Weight: approx. 50g.
  • Fitting position: vertical (connection on top).
  • Storage temperature: -40 to +85°C.
  • Operating / Storage humidity: max. 90% RH (non-condensing).
  • Protection type / Protection class: IP20 sensor only IP57) / III (SELV).
  • Protection class IP20 (sensor only IP57) / III (SELV).
  • Approvals: VDE and UL File Nº E500143 (acc. to IEC 61010-1 / DIN EN 61010-1).
Temperature and Humidity Smart Sensor · Delvalle Box

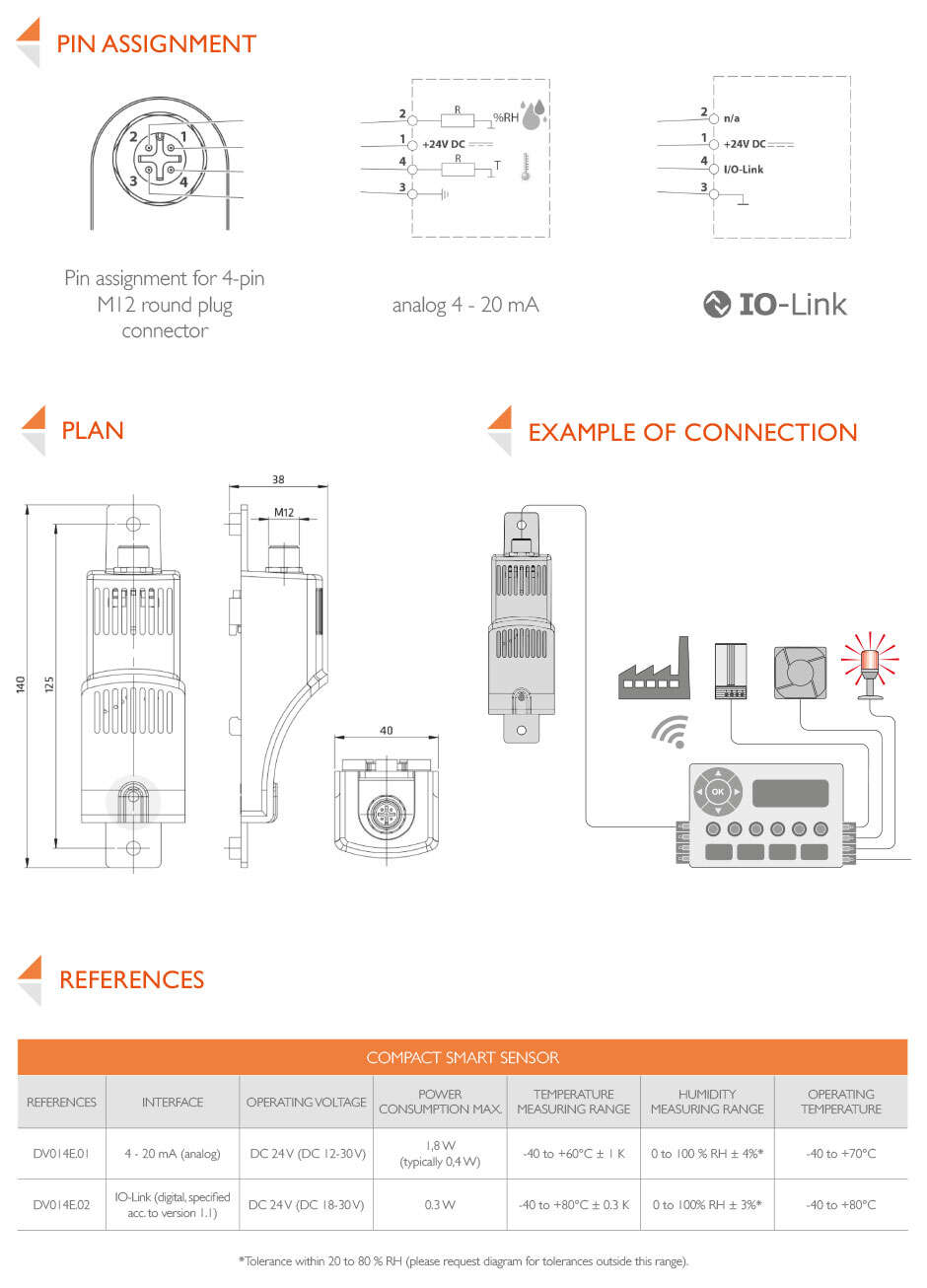

Sketches

PLANS AND REFERENCES · Delvalle Box
