Spacing insulators for electrical enclosures

SPACING

La solución perfecta para aislar la placa de montaje respeto al armario eléctrico, Adecuados para separar el cuerpo de la placa de montaje en el interior de armarios eléctricos pudiendo trabajar con tensiones de hasta 1200-1500 V y pudiendo soportar cortocircuitos.

Spacing insulators for electrical enclosures · Delvalle BoxDelvalle Box

This product has the following certificates

  • Logo CE · Delvalle Box

Description

The spacing insulators for enclosures are intended for indoor installation in electrical equipment, distribution, industry and ship - building. The insulator body is made of high - quality thermo - setting plastic material - polyester reinforced with berglass 20%.This material is tropic and termite resistant. Material of the insulator body has leakage current resistance - CTI > 600 to standard IEC 60112 and level ammability V0. The connection parts are zinc - plated steel female - threads which enables easy mounting. Electrical characteristics are in accordance with standards IEC 62231, IEC60168 and IEC 60660.

Discover the advantages

Red colour: RAL3002
With threaded metal insert: M (ISO)
Halogen and silicone free
Operating temperature: -40°C +130°C
Distortion temperature: C° > 200
Dielectric constant: 4 – 5
Arc resistance: sec > 180
Water absorption: % < 0,3
Fire proof: V0
Relevant standards: ASTM-UL / ISO – IEC 60439

Regulations

Isolation:
- Polyester reinforced with berglass 20%
- Self-extinguishing: V0-UL94
- Colour: Red RAL 3031
Threaded insert:
- Galvanised steel
Finished product:
- Rated voltage: 1000 V AC/1500 V DC
- Working temperature: -40°C to 130°C

Applications

For electrical enclosures

Custom Made Solutions
We offer multiple solutions

Spacing insulators for electrical enclosures · Delvalle Box
Do you need solutions?
2020 product catalogues
Customers also bought:
Locks · Delvalle BoxDelvalle Box
Depending on the enclosure and its use, we look for the best closure suited to the customer’s...
Clear Glass Door · Delvalle BoxDelvalle Box
All our cabinets are available with transparent exterior and interior doors for perfect vision of...
Spacing insulators for electrical enclosures · Delvalle Box

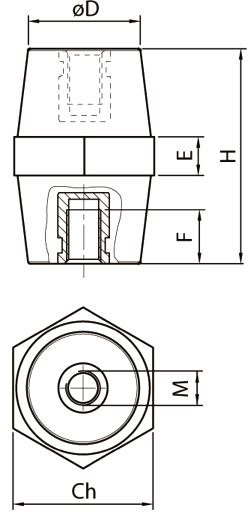

Sketches

Spacing insulators for electrical enclosures · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
MVV30308Spacing insulators for electrical enclosures302626MVV30308
MVV35320Spacing insulators for electrical enclosures352929MVV35320
