EMC Cable Entry Seals for Enclosures & Cabinets Roxtec

Delvalle is a Roxtec authorized instalator & distributor.

Factory trained and committed to offering the highest level of service and installation support to our customers.

Roxtec cable and pipe seals ensure safety, efficiency and operational reliability.

Our system protects the electrical enclosures life and assets against risks caused by, for example, fire, gas, water, dust, and pests and the EMC product family adds electrical safety and protection against electromagnetic interference and lightning strikes.

EMC Cable Entry Seals for Enclosures & Cabinets Roxtec · Delvalle BoxDelvalle Box

Description

Roxtec cable and pipe seals ensure safety, efficiency and operational reliability. Our system protects life and assets against risks caused by, for example, fire, gas, water, dust, and pests – and the EMC product family adds electrical safety and protection against electromagnetic interference and lightning strikes. The system is approved by all major classification societies and used in many industries and applications.

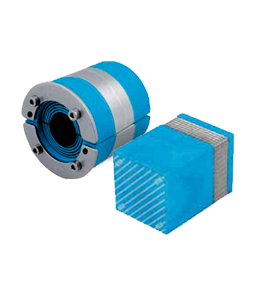

Flexible and easy to use. Our invention for adaptability, Multidiameter™, is a solution based on sealing modules with removable layers. It allows for a perfect sealing, every time, regardless of the outside dimension of the cable or pipe. We also offer design services and instal-lation training onsite, and we keep our solutions easily available – wherever you operate.

Two main product groups. Frames, round seals and modules in product Group RM EMC are mainly based on 60 mm (2.362") standard depth. They are used for sealing of cables and pipes in walls, floors, bulk-heads and decks. Frames, seals and modules in product Group CM EMC are based on the depth of 30 or 40 mm (1.181"/1.575") and are used for cables in cabinets and enclosures. We can also provide customized sealing solutions for applications where the standard system does not fit directly.



Achieve all the safety and security you need

  • Logo CE · Delvalle Box
    CE
  • Logo EMC · Delvalle Box
    EMC
  • Logo FM Aprobed · Delvalle Box
    FM Aprobed
  • Logo UL NEMA 1 · Delvalle Box
    UL NEMA 1

Discover the advantages

Patented solution Multidiameter
Electrical protection against electromagnetic interference and electric shock.
We also offer customized sealing solutions.

Regulations

Certifying authorities: DNV-GL, Lloyd´s Register, ABS, UL, CSA, FM, Bureau Veritas,
Test Labs: Global lightning, Saab, SP inspection

Applications

If the application uses an armored cable, electrical safety must be considered meaning that a BG system is recommended.
If the cables are shielded it is more likely an EMI application where the ES or PE system should be used.
With the ES system, waveguide techniques can be applied when non-metallic fiber optic cables and plastic pipes or hoses run through an ES system into shielded environments.

Custom Made Solutions
We offer multiple solutions

EMC Cable Entry Seals for Enclosures & Cabinets Roxtec · Delvalle Box
Do you need solutions?
2017 product catalogues
  • Roxtec Modules
  • Roxtec frames and seals
  • Roxtec rectangular frames
  • Roxtec round frames and seals
  • Roxtec assembly parts
Customize this product with the following components:
EMC Electric Cabinets Luxor · Delvalle BoxDelvalle Box
EMC enclosures with an EPDM conductive gasket between frame and contact surface, ensure a perfect...
EMC Electric Cabinets Tribeca · Delvalle BoxDelvalle Box
EMC enclosures with an EPDM conductive gasket between frame and contact surface, ensure a perfect...
EMC filter fans IP54-55 PRIUS · Delvalle BoxDelvalle Box
EMC fan with fitted filter and EMC conductive gasket. High performance, low power, and silent...

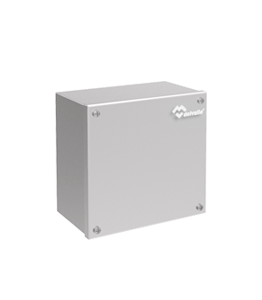

EMC Terminal Push Button Boxes Geo · Delvalle BoxDelvalle Box
 EMC Terminal Push Button Boxes GEO...
Metric EMC Nickel Plated Cable Glands IP68 · Delvalle BoxDelvalle Box
Metric EMC nickel plated cable glands IP68 are made of stainless steel AISI 304 and allow...
Metric EMC Stainless Steel Cable Glands IP68 · Delvalle BoxDelvalle Box
Metric EMC stainless steel cable glands IP68 are made of stainless steel AISI 304 and allow...
Outdoor Rack EMC IP55 19 Storm · Delvalle BoxDelvalle Box
Outdoor telecom 19" rack cabinet Storm Series enclosure EMC, designed to be placed in...

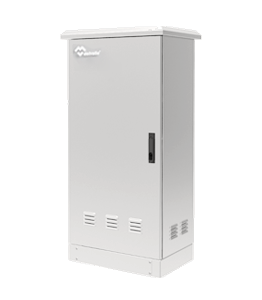

Outdoor Tornado EMC Series IP55 Rack · Delvalle BoxDelvalle Box
EMC enclosures with an EPDM conductive gasket between frame and contact surface, ensure a perfect...
EMC Cable Entry Seals for Enclosures & Cabinets Roxtec · Delvalle Box

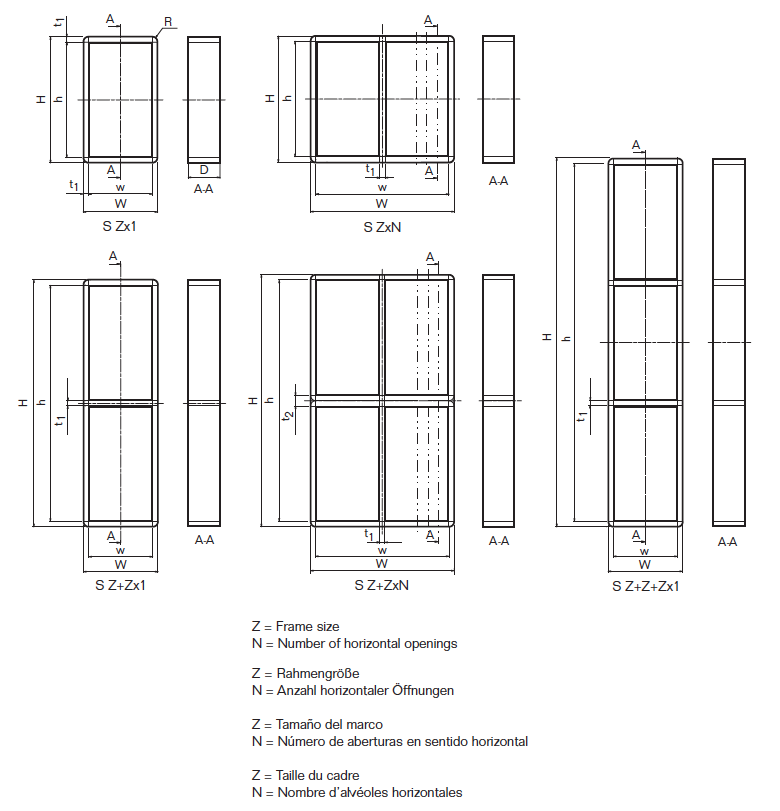

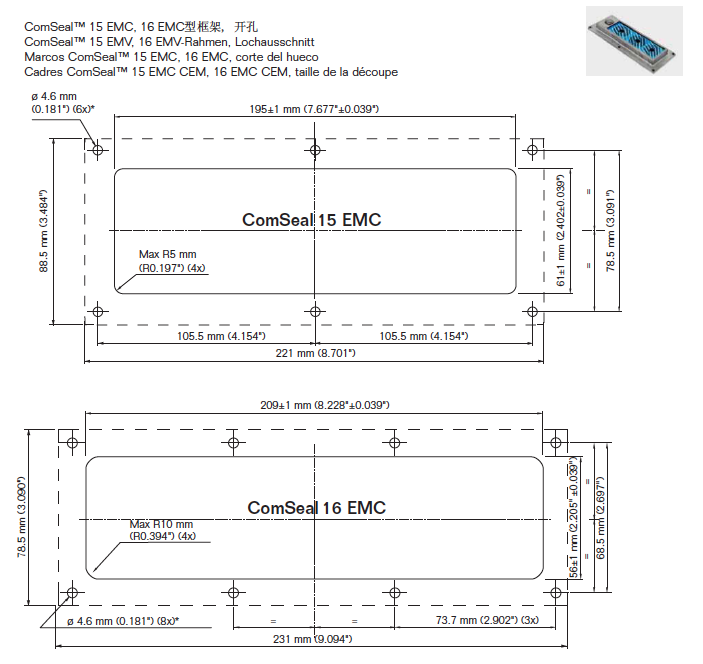

Sketches

EMC Cable Entry Seals for Enclosures & Cabinets Roxtec · Delvalle Box
EMC Cable Entry Seals for Enclosures & Cabinets Roxtec · Delvalle Box
