Metric Cable Glands IP69K

Metric stainless steel cable glands stainless steel AISI 304, AISI 316 or nickel plated IP69K, are suitable for the passage, compression and wire binding between two compartments, such as junction boxes or devices requiring sealing.

This product has the following certificates

  • Logo IP69K · Delvalle Box
  • Logo Chemical resistant · Delvalle Box
  • Logo Corrosion resistant · Delvalle Box
  • Logo Scrach resistant · Delvalle Box
  • Logo Temperature resistant · Delvalle Box
  • Logo Waterproof · Delvalle Box

Description

Metric stainless steel cable glands stainless steel AISI 304, AISI 316 or nickel plated IP69K, are suitable for the passage, compression and wire binding between two compartments, such as junction boxes or devices requiring sealing.

  • Material:
    • Stainless steel AISI 304
    • Stainless steel AISI 316
    • Nickel plated
  • Thread: Metric
  • Sealing ring: NBR
  • Stainless steel or nickel plated lock nut included
  • Protection: IP69K
  • Temperature resistance:
    • -40°C to +100°C
    • -40°C to +120°C short time
  • Supports: Water, dust, salt, acids, alcohol and oils

Regulations

  • Protection: IP69K
  • Temperature resistance:
    • -40°C to +100°C
    • -40°C to +120°C short time

Applications

• Road signage
• Food and beverage
• Renewable energy
• Machinery
• Airports
• Railway

• Maritime
• Electricity
• Nuclear & thermal power
• Urban equipment
• Pharmaceutic and medical

Custom Made Solutions
We offer multiple solutions

Metric Cable Glands IP69K · Delvalle Box
Do you need solutions?
2025 product catalogues
  • Material:
    • Stainless steel AISI 304
    • Stainless steel AISI 316
    • Nickel plated
Metric Cable Glands IP69K · Delvalle Box

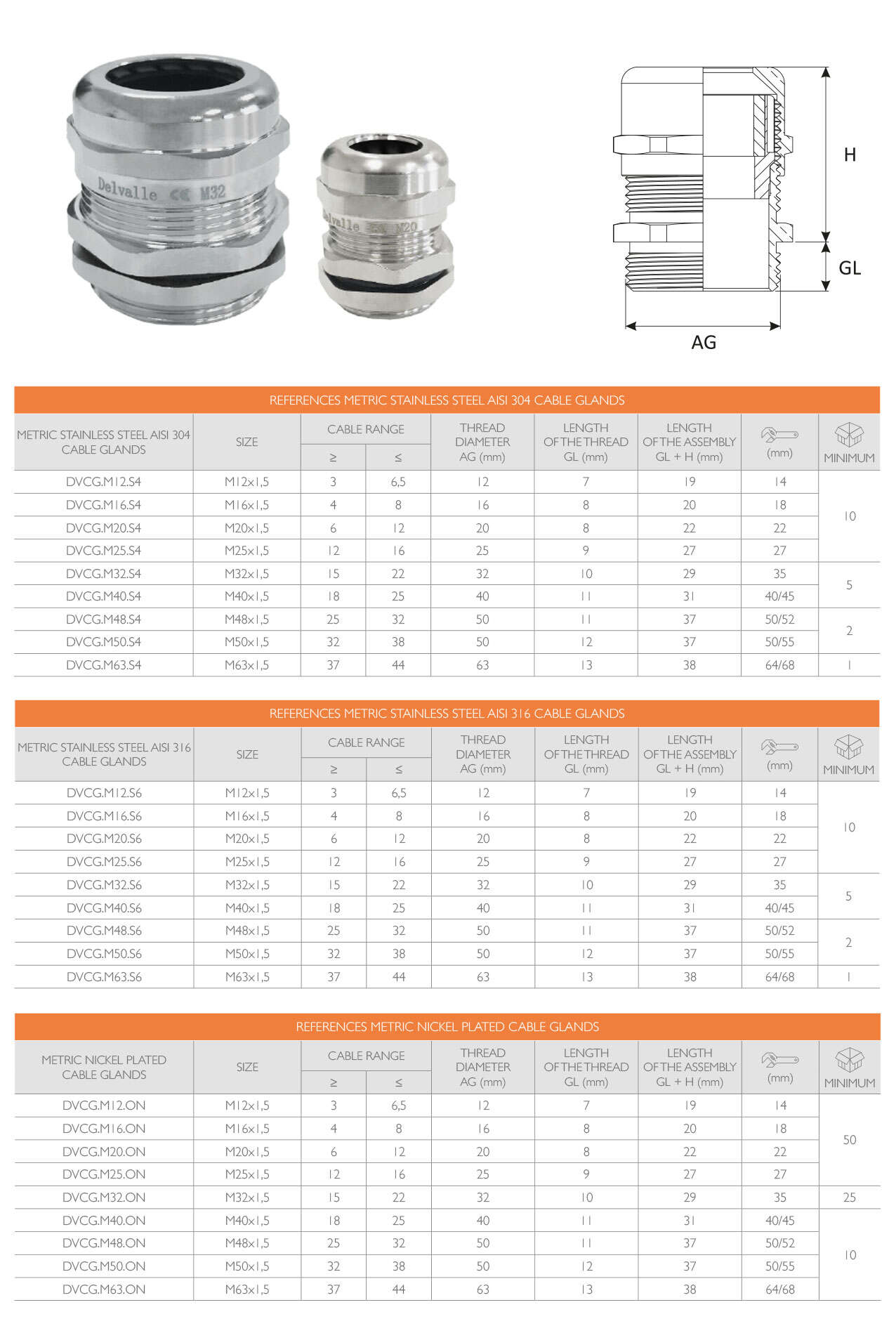

Sketches
