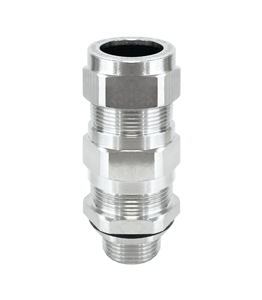

Cable Glands Atex Armoured Ex d/e IP68

Cable glands armoured nickel plated and stainless steel IP66 - IP68 Atex Delvalle are used for passing, holding and compressing cables between two compartments such as junction boxes, Atex cabinets, electrical boxes or devices requiring sealing against dust.

Download Product
Cable Glands Atex Armoured Ex d/e IP68 · Delvalle BoxDelvalle Box
Cable Glands Atex Armoured Ex d/e IP68 · Delvalle BoxDelvalle Box
Cable Glands Atex Armoured Ex d/e IP68 · Delvalle BoxDelvalle Box

Description

Cable glands armoured IP66 - IP68 Atex made by Atex Delvalle are used for passing, holding and compressing cables between two compartments such as junction boxes, Atex cabinets, electrical boxes or devices requiring sealing against dust.

Material:

  • Nickel plated
  • Stainless steel AISI303L
  • Stainless steel AISI304L
  • Stainless steel AISI316L

O-ring: NBR or silicone (optional)

Thread:

  • Entry
  • Conic

Achieve all the safety and security you need

  • Logo CE · Delvalle Box
    CE
  • Logo IEC EX · Delvalle Box
    IEC EX
  • Logo IP68 · Delvalle Box
    IP68

Regulations

Normative and marking:

  • II 2G Exd/e IIC Gb II 1D Ex ta IIIC Da I M2 Exd/e I Mb
  • EN  60079-0:2009,  60079-1:2007, 60079-31:2009

Protection class: EN 60529 IP66 / IP68
Application area:

  • Zones 1, 2, 21 and 22
  • Group Gas IIA, IIB and IIC

Custom Made Solutions
We offer multiple solutions

Cable Glands Atex Armoured Ex d/e IP68 · Delvalle Box
Do you need solutions?
Delvalle Box has the solution
2020 product catalogues
Download Zone

Material:

  • Nickel plated
  • Stainless steel AISI303L
  • Stainless steel AISI304L
  • Stainless steel AISI316L

O-ring: NBR or silicone (optional)

Thread:

  • Entry
  • Conic
Cable Glands Atex Armoured Ex d/e IP68 · Delvalle Box

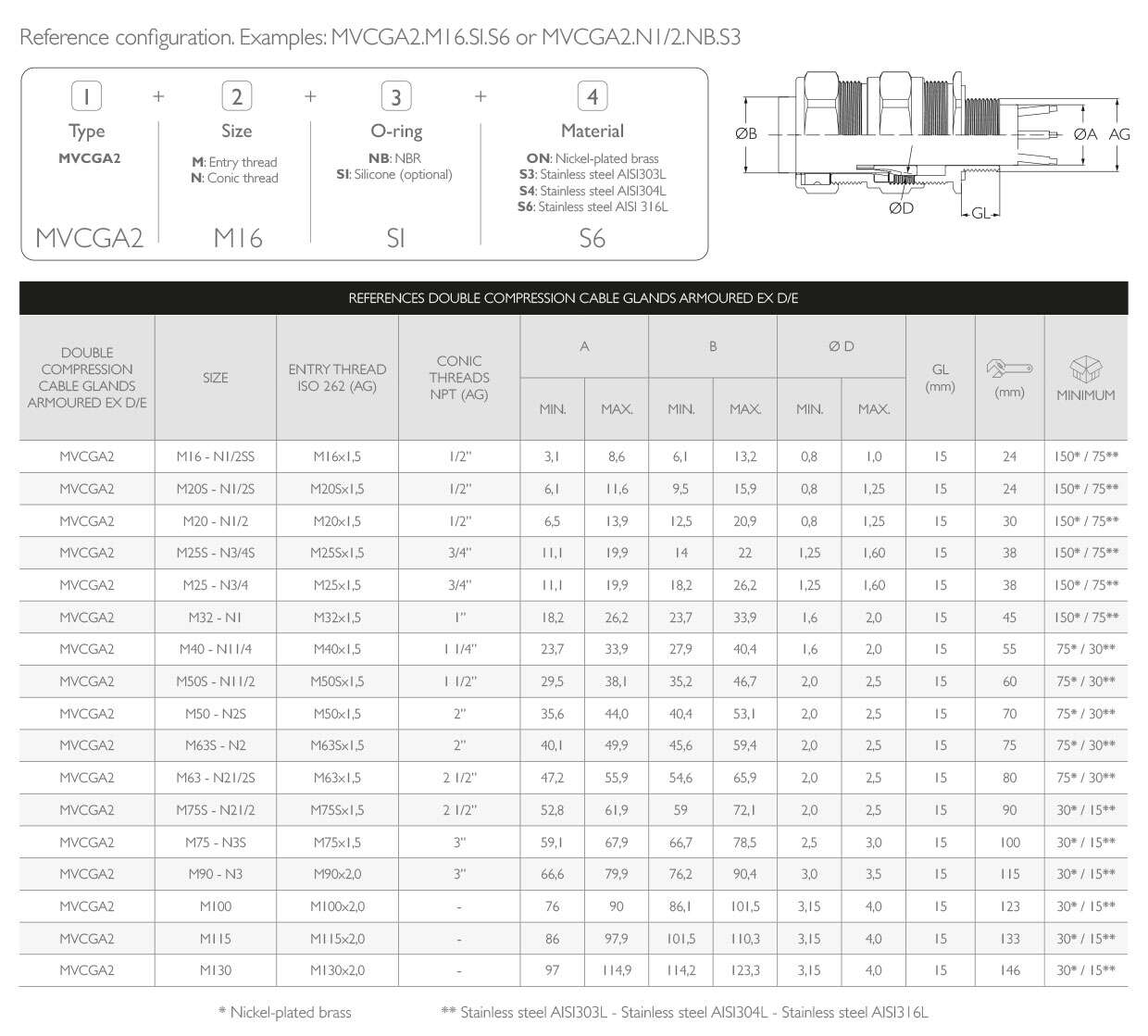

Sketches
