Double compression cable glands armoured atex Ex d/e IP68

Double compression cable glands nickel plated and stainless steel Atex Ex d/e IP66 – IP68 made by Atex Delvalle are used for passing, holding and compressing cables between two compartments, such as junction boxes, cabinets, electrical boxes or devices requiring sealing against dust, gas.

Order it now and save money!

Technical Downloads Product

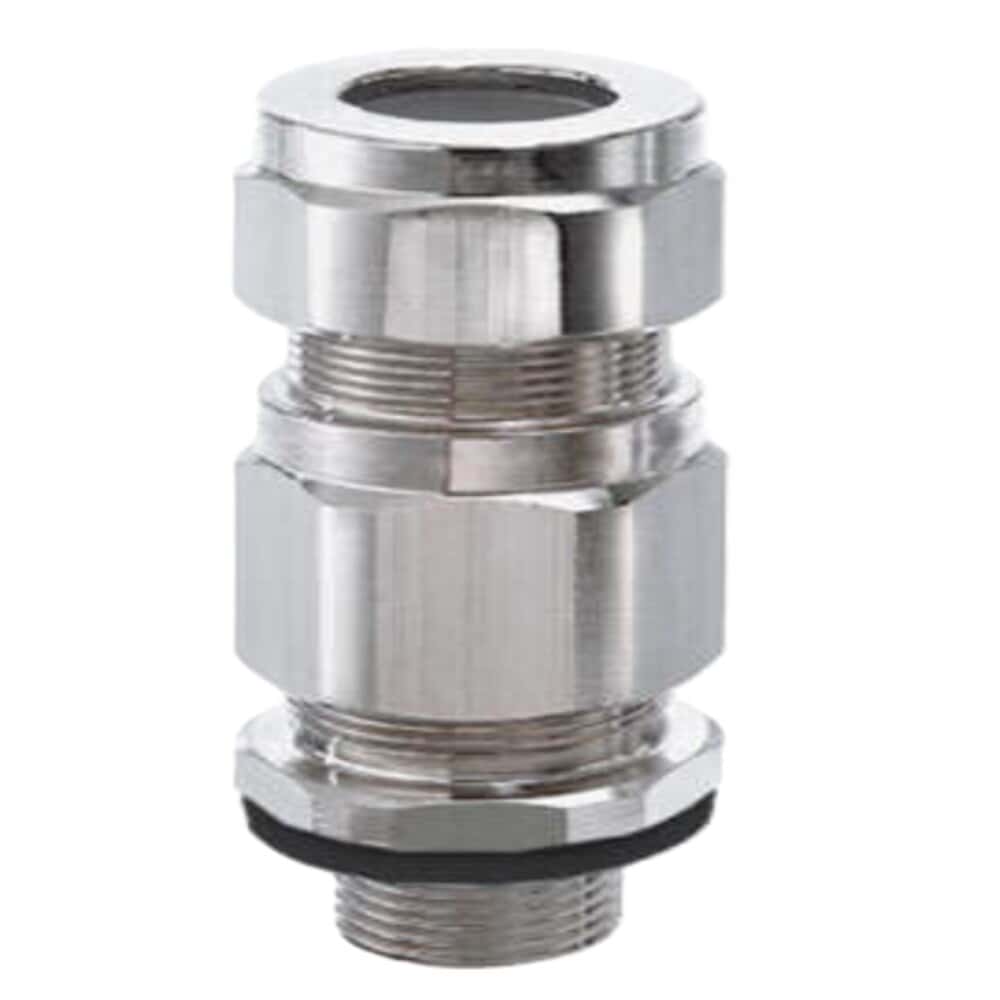

Double compression cable glands armoured atex Ex d/e IP68: main view of the product

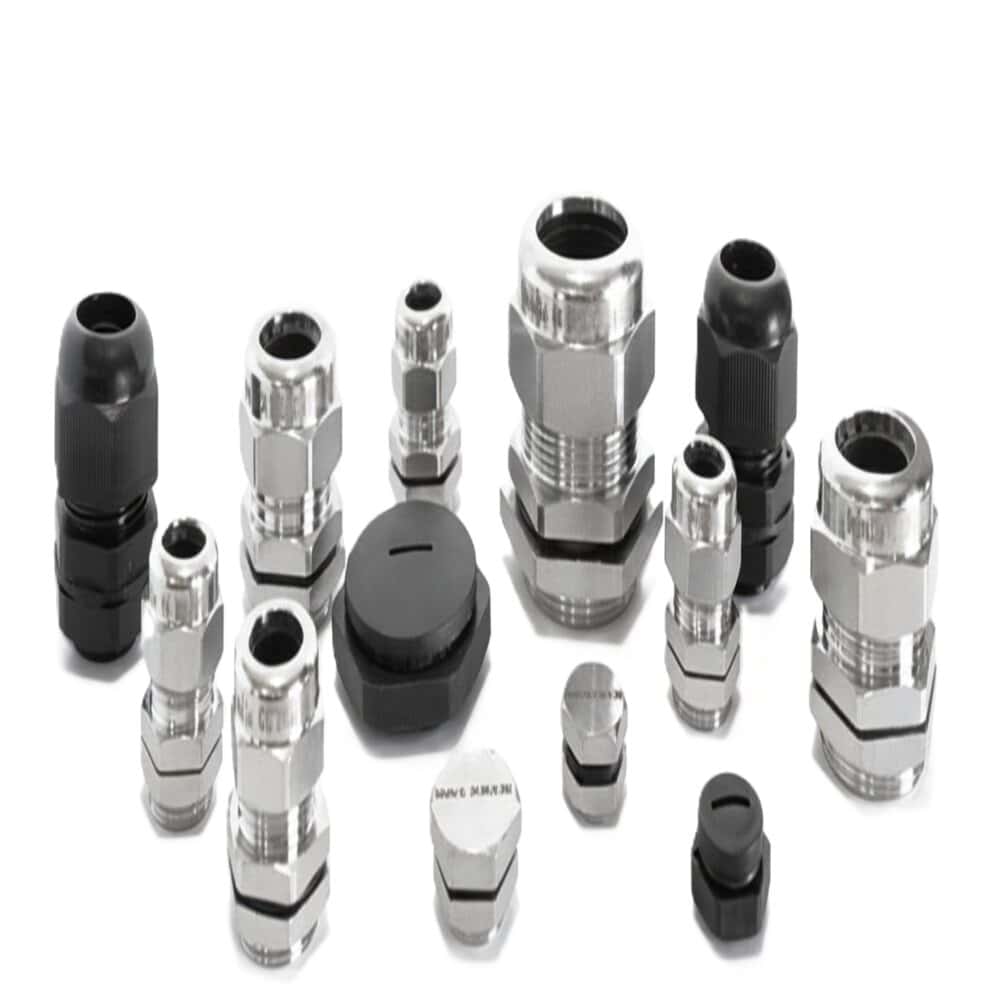

Double compression cable glands armoured atex Ex d/e IP68: detail view of the product
Material: AISI 304 stainless steel, AISI 316 stainless steel, nickel-plated brass.
Gasket material: NBR or Silicone (optional)
English: Threads: Cylindrical Conical
Allows the passage and securing of cables between two compartments.
IE P 21 ATEX 0966X
II 2G Exd/e IIC Gb II 1D Ex ta IIIC Da I M2 Exd/e I Mb
EN 60079-0:2009, 60079-1:2007, 60079-31:2009
Protection rating: EN 60529 IP66 / IP68.
Zones 1, 2, 21, and 22.
Gas Group IIA, IIB, and IIC.
