Console Riviera IP69K

Riviera Console Series IP69K, elegant, functional consoles manufactured in nely polished AISI 304L, EN14306 stainless steel, easily accessed, with a design which allows for IP55 protection in two doors and IP66 for one door maximum resistance of IK10.
Top door with shock absorbers which make opening easier, with dismountable bottom and hidden hinges throughout It comes with a galvanized mounting plate.
Its drainage channels ensure liquids don’t come into contact with the polyverthone joint sealings. Front door opening to 130º making easy access.

Console Riviera IP69K · Delvalle BoxDelvalle Box
Console Riviera IP69K · Delvalle BoxDelvalle Box

This product has the following certificates

  • Logo IP69K · Delvalle Box
  • Logo UL NEMA 1 · Delvalle Box
  • Logo UL NEMA 3R · Delvalle Box
  • Logo UL NEMA 4X · Delvalle Box
  • Logo 10 year anti-corrosion · Delvalle Box
  • Logo 5 year mechanical parts · Delvalle Box
  • Logo Chemical resistant · Delvalle Box
  • Logo Corrosion resistant · Delvalle Box
  • Logo Scrach resistant · Delvalle Box
  • Logo Temperature resistant · Delvalle Box
  • Logo Waterproof · Delvalle Box

Description

Riviera Console Series IP69K, elegant, functional consoles manufactured in  nely polished AISI 304L, EN14306 stainless steel, easily accessed, with a design which allows for IP55 protection in two doors and IP66 for one door maximum resistance of IK10.
Top door with shock absorbers which make opening easier, with dismountable bottom and hidden hinges throughout It comes with a galvanized mounting plate.
Its drainage channels ensure liquids don’t come into contact with the polyverthone joint sealings. Front door opening to 130º making easy access.

Discover the advantages

Spacious assembly area giving great accessibility.
Great external strength.
Door opens to 130°.
Standard quarter-turn double bit fasteners.
Perfect sealing thanks to gaskets used in the joints.
Great versatility, enables its use in almost any eld.
Delvalle supplies any measurements required including custom built holes and cut outs both for the door and enclosure.
Wide variety of accessories.
Top door with shock absorbers.
Front door opens to 130°.
Total accessibility.
Stainless steel AISI 304L or AISI 316L.

Regulations

  • From IP55 to IP66 Norm IEC EN 62208 EN 60529.
  • DIN 40050-9 - IP69K.
  • DIN EN ISO 14159 Machine safety – hygiene requirements pertaining to the design of machinery.
  • Machinery Directive 2006/42/EC. Food machinery and cosmetic or pharmaceutic production.
  • EHEDG Guideline Hygienic Design doc.13 machinery for open processes.
  • DIN EN 1672-2:2006 for food industry machinery.
  • Maximum IK10 resistance Norm IEC 62208 and EN 50102.
  • Our electrical panels are built to CE standards 2014/35/UE.
  • Comply with rules on materials intended to come into contact with food EC 1935/2004.
  • RoHs compliant.
  • Maximum voltage 1000V.
  • Temperature resistant: -40°C +100°C (short time +160°C).
  • Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Applications

Oficially approved for food, chemical, pharmaceutical, transformer and telecommunication industries for use both inside and outside, due to its advantages of high resistance to chemical agents and its durability.

Custom Made Solutions
We offer multiple solutions

Console Riviera IP69K · Delvalle Box
Do you need solutions?
2020 product catalogues
  • Custom made based on your needs.
  • Plinths/base.
  • All types of ventilation and temperature control.
  • Cable entry cover in front door.
  • Metal leg or wheels.
  • Transparent polycarbonate or tempered glass door (no IP69K).
  • Manufactured in stainless steel AISI 316L.
  • Mounting plate insulator (bakelite) or stainless steel.
  • EMC version according to 2014/30/UE of electromagnetic compatibility.
  • Option painted galvanized steel finish in RAL 7035 or another color.
Customers also bought:
Metric Polyamide Cable Glands IP68 · Delvalle BoxDelvalle Box
Metric polyamide PA66 cable glands IP68 are suitable for the passage, compression and wire binding...
PG Polyamide Cable Glands IP68 · Delvalle BoxDelvalle Box
PG polyamide PA66 cable glands IP68 are suitable for the passage, compression and wire binding...
Metric Stainless Steel Cable Glands AISI316L · Delvalle BoxDelvalle Box
Metric stainless steel cable glands stainless steel AISI 304 and AISI 316 IP68, are suitable for...
Metric Stainless Steel Cable Glands IP68 · Delvalle BoxDelvalle Box
Metric stainless steel cable glands IP68 are made of stainless steel AISI 304 and AISI 316, are...
Metric Nickel Plated Cable Glands IP68 · Delvalle BoxDelvalle Box
Metric nickel plated cable glands IP68 are suitable for the passage, compression and wire binding...
Metric Cable Glands Hygienic IP69K · Delvalle BoxDelvalle Box
Hygienic glands IP69K are fit for passing, pressing and fixing cables between two compartments such...
Metric Cable Glands IP69K · Delvalle BoxDelvalle Box
Metric stainless steel cable glands stainless steel AISI 304, AISI 316 or nickel plated IP69K, are...
Console Riviera IP69K · Delvalle Box

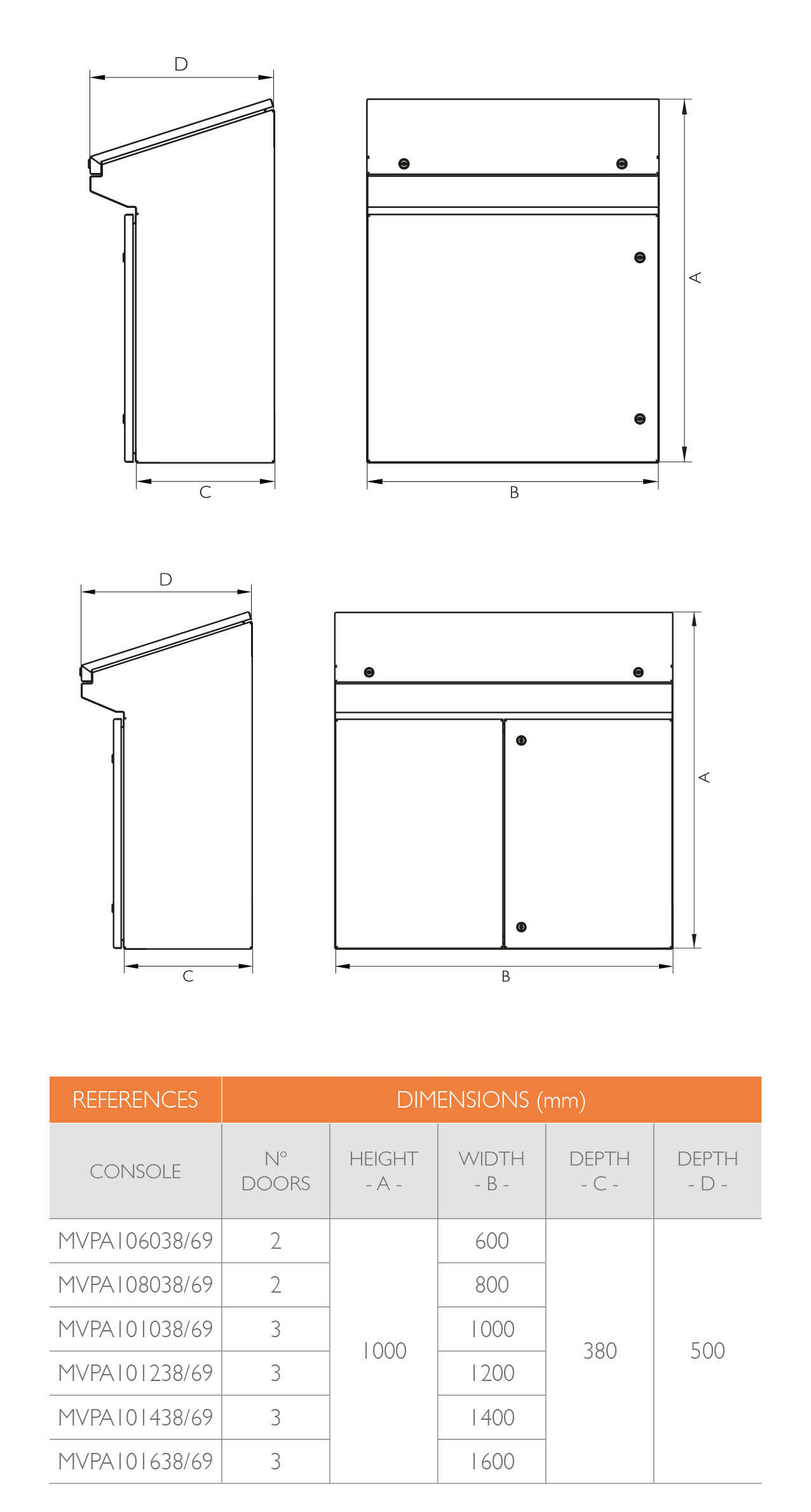

Sketches
