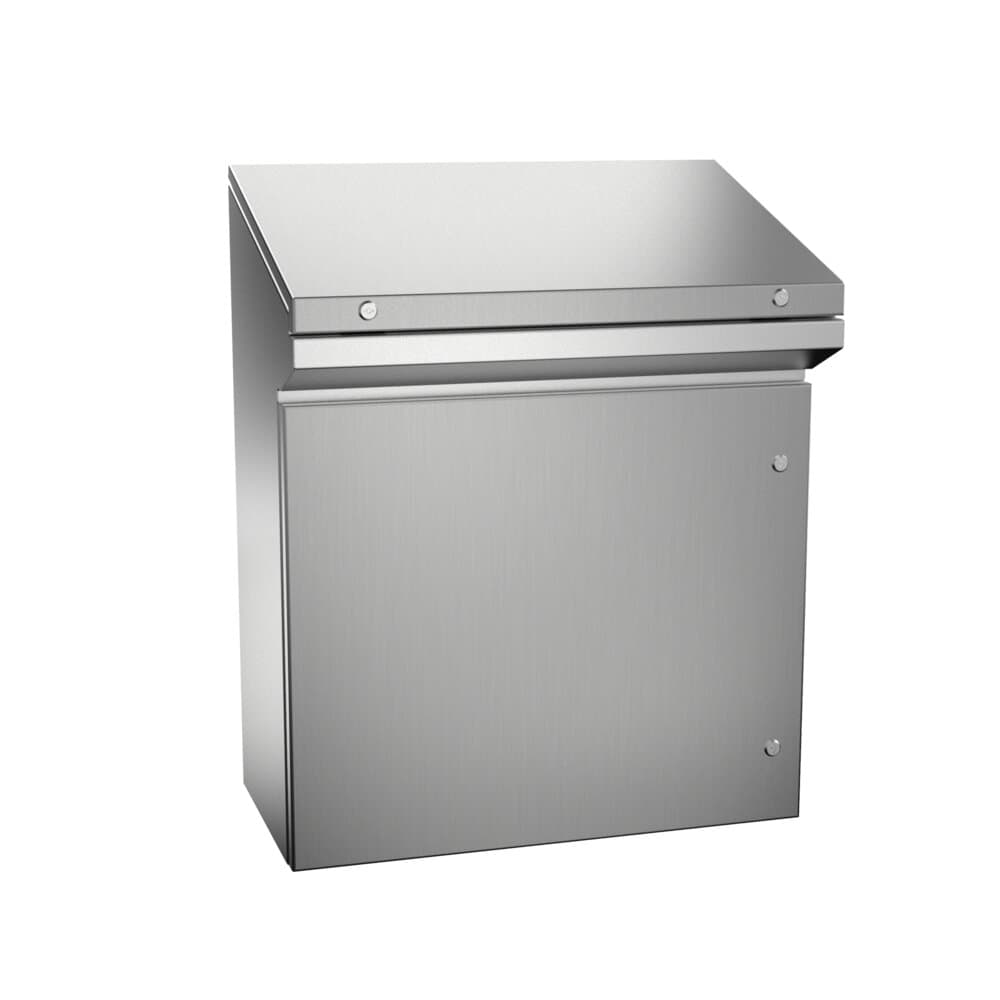

Console riviera IP6K9K

Riviera Console Series IP6K9K, elegant, functional consoles manufactured in nely polished AISI 304L, EN14306 stainless steel, easily accessed, with a design which allows for IP55 protection in two doors and IP66 for one door maximum resistance of IK10.

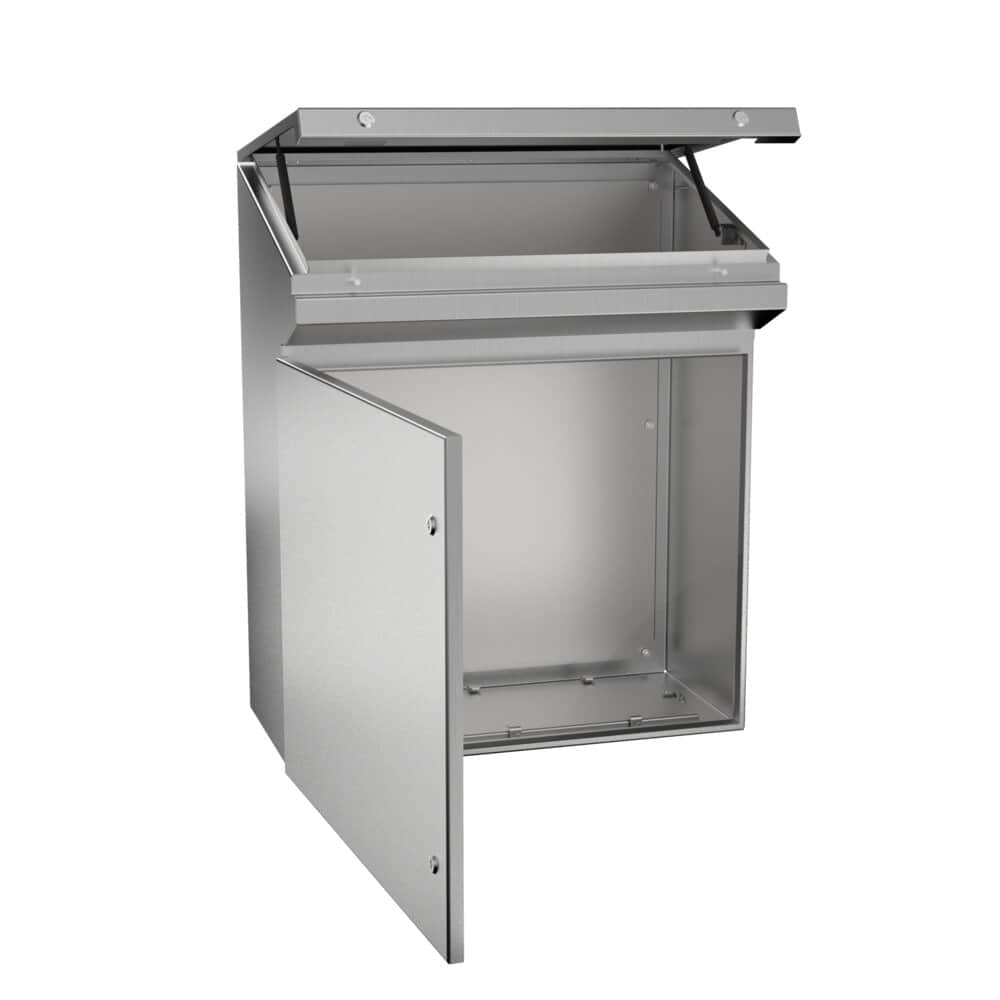

Top door with shock absorbers which make opening easier, with dismountable bottom and hidden hinges throughout It comes with a galvanized mounting plate.
Its drainage channels ensure liquids don’t come into contact with the polyverthone joint sealings. Front door opening to 130º making easy access.

TECHNICAL DATA
Minimum Measurements A=100-1200mm   B=600-1600mm   P=380-380mm
Maximum Double Door Measurements A=1000mm   B=1600mm   P=380mm
Body Thickness 1.5 mm | 15/10 mm
0.059 " | 16 Gauge
Door Opening 130 °
Door Type Blind door
Opening Type Swivel with concealed hinges
Closing System Double-bit quarter-turn locks
Material AISI 304L/AISI 316L
FinishPainted RAL 7035
Plate Material Galvanized
Sealing Gasket Polyurethane
Working Temperature -40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage 1000 V
ALTERNATIVE OPTIONS
Alternative Materials AISI 316L, Galvanized, Aluminum
Alternative Door Door with polycarbonate panel, Door with safety glass
Interior Plate Material Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets silicone (-60°C to +180°C), EMC
Kickboards
All Types of Ventilation and Air Conditioning
Fixed Metal Legs or Wheels
In stainless steel AISI 316L EN 14404
EMC Version according to EEC 2014/30/EU Electromagnetic Compatibility Standard
Possibility of manufacture in galvanized steel sheet painted in RAL 7035 or another color on demand
Ample mounting space and high accessibility
Great robustness of the assembly
Wide Door Opening
Standard with double bit lock
Perfect watertightness due to the gaskets used in the joints
Great versatility, so it can be applied in almost any field
Delvalle manufactures any size on request that suits your needs, including holes, channels, and shapes, both on the door and the enclosure
In AISI 304L or AISI 316L stainless steel
Strength and durability
Wide variety of accessories
Overhead door with dampers
Specially designed for the food, chemical, pharmaceutical industries, transformation centers, telecommunications, and outdoor use due to its durability and resistance advantages
IP66(W) protection rating for cabinets
ISO 20653
IK10 protection rating according to IEC 62262 standard
Low Voltage Directive 2014/35/EU
Food Contact Material Compliance
RoHS directive compliance
Voltage withstand capacity of cabinets
Delvalle cabinets silicone gaskets temperature resistance

REFERENCES

DIMENSIONS (mm)

STAINLESS STEEL

AISI 304L

STAINLESS STEEL

AISI 316L

HEIGHT

-A-

WIDTH

-B-

DEPTH

-C-

MVRI6060

MVRI6060316

1000

600

300

MVRI8060

MVRI8060316

1000

800

300

MVRI1060

MVRI1060316

1000

1000

300

MVRI1260

MVRI1260316

1000

1200

300

Croquis:

croquis del producto
