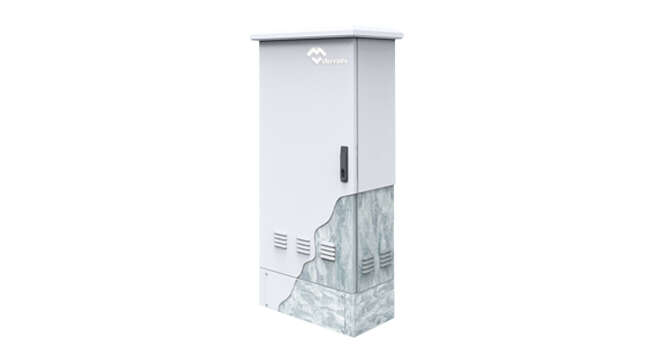

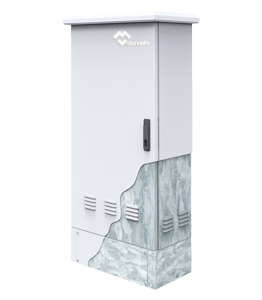

TORNADO Series specially designed for outdoor weather system: heat insulated double wall, autoventilated for better protection of electronics, servers, CCTV, telecommunications, voice, data, fiber optic, etc.. Ideal to protect electronic equipment against temperature changes.
| Minimum Measurements | A=1185-2060mm B=600-800mm P=800-600mm |
|---|---|
| Maximum Double Door Measurements | A=1835mm B=1350mm P=800mm |
| Minimum Plate Measurements | A=965-1840mm |
| Minimum Plate Measurements | B=530-730mm |
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Type | Blind door |
| Opening Type | Swivel with concealed hinges |
| Closing System | Rotary handle |
| Material | Painted galvanized steel |
| Finish | Painted RAL 7035 |
| Sealing Gasket | Polyurethane |
| Working Temperature | -40°C a +100°C (reducida exposición +160ºC) |
| Maximum Voltage | 1000 V |
| Interior Plate Material | Insulating mounting plate (Bakelite), Stainless steel mounting plate, Galvanized mounting plate |
|---|---|
| Alternative Gaskets | silicone (-60°C to +180°C) |
|
REFERENCES 1 DOOR |
DIMENSIONS (mm) |
|||||
|
REFERENCE |
RACK UNITS (U) |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
MACHINABLE AREA |
|
|
DOOR |
SIDE |
|||||
|
TRG126060 |
20 U |
1185 |
600 |
600 |
905×430 |
925×515 |
|
TRG126080 |
20 U |
1185 |
600 |
800 |
905×430 |
925×715 |
|
TRG128060 |
20 U |
1185 |
800 |
600 |
905×630 |
925×515 |
|
TRG128080 |
20 U |
1185 |
800 |
800 |
905×630 |
925×715 |
|
TRG146060 |
25 U |
1385 |
600 |
600 |
1105×430 |
1125×515 |
|
TRG146080 |
25 U |
1385 |
600 |
800 |
1105×430 |
1125×715 |
|
TRG148060 |
25 U |
1385 |
800 |
600 |
1105×630 |
1125×515 |
|
TRG148080 |
25 U |
1385 |
800 |
800 |
1105×630 |
1125×715 |
|
TRG166060 |
30 U |
1585 |
600 |
600 |
1305×430 |
1325×515 |
|
TRG166080 |
30 U |
1585 |
600 |
800 |
1305×430 |
1325×715 |
|
TRG168060 |
30 U |
1585 |
800 |
600 |
1305×630 |
1325×515 |
|
TRG168080 |
30 U |
1585 |
800 |
800 |
1305×630 |
1325×715 |
|
TRG196060 |
35 U |
1885 |
600 |
600 |
1555×430 |
1575×515 |
|
TRG196080 |
35 U |
1885 |
600 |
800 |
1555×430 |
1575×715 |
|
TRG198060 |
35 U |
1885 |
800 |
600 |
1555×630 |
1575×515 |
|
TRG198080 |
35 U |
1885 |
800 |
800 |
1555×630 |
1575×715 |
|
TRG206060 |
40 U |
2060 |
600 |
600 |
1780×430 |
1800×515 |
|
TRG206080 |
40 U |
2060 |
600 |
800 |
1780×430 |
1800×715 |
|
TRG208060 |
40 U |
2060 |
800 |
600 |
1780×630 |
1800×515 |
|
TRG208080 |
40 U |
2060 |
800 |
800 |
1780×630 |
1800×715 |
|
REFERENCES 2 DOORS |
DIMENSIONS (mm) |
|||
|
REFERENCE |
RACK UNITS (U) |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
|
TRG121360D |
20 U |
1160 |
1350 |
600 |
|
TRG121380D |
20 U |
1160 |
1350 |
800 |
|
TRG141360D |
25 U |
1385 |
1350 |
600 |
|
TRG141380D |
25 U |
1385 |
1350 |
800 |
|
TRG161360D |
30 U |
1610 |
1350 |
600 |
|
TRG161380D |
30 U |
1610 |
1350 |
800 |
|
TRG181360D |
35 U |
1835 |
1350 |
600 |
|
TRG181380D |
35 U |
1835 |
1350 |
800 |

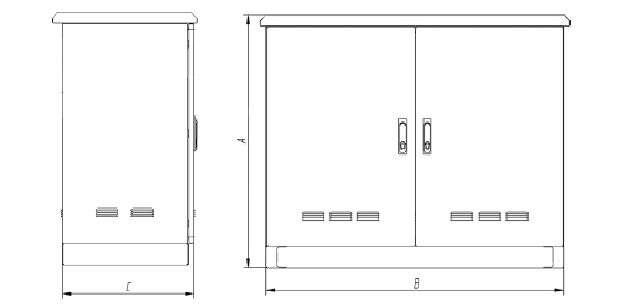

Croquis:
