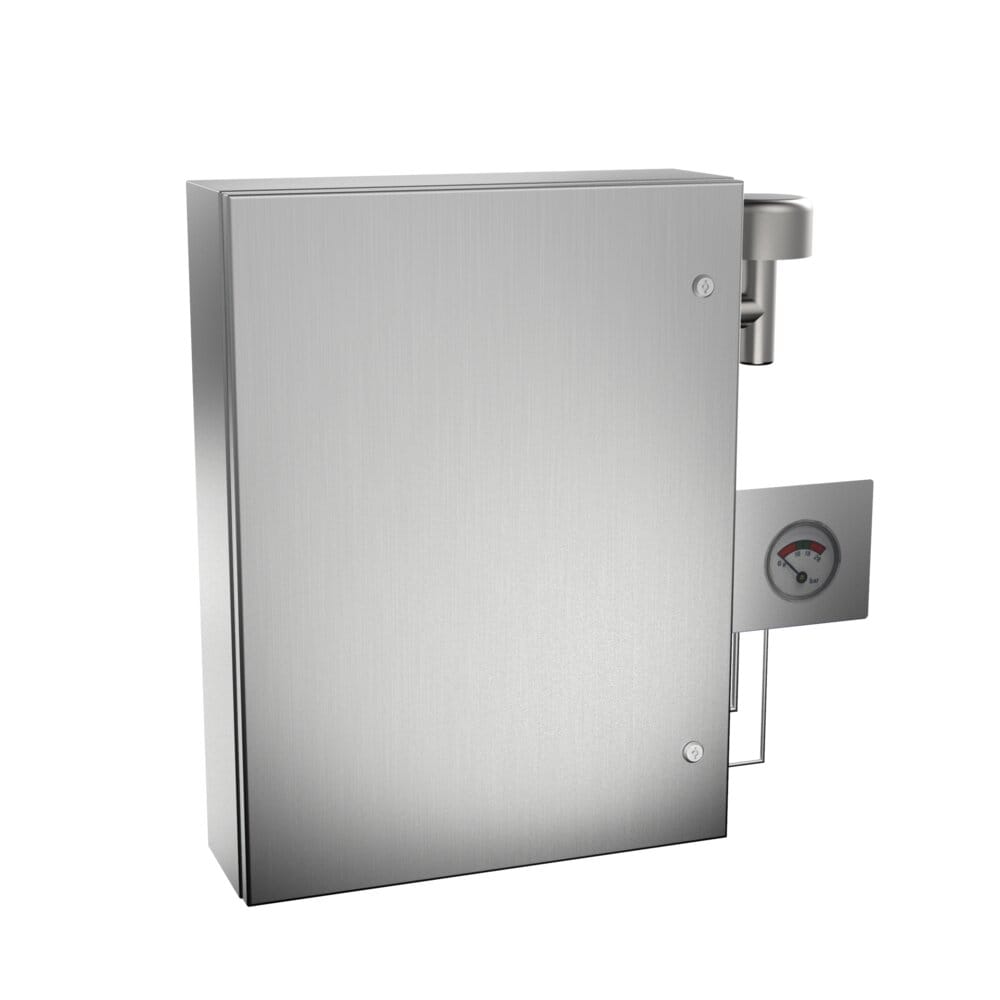

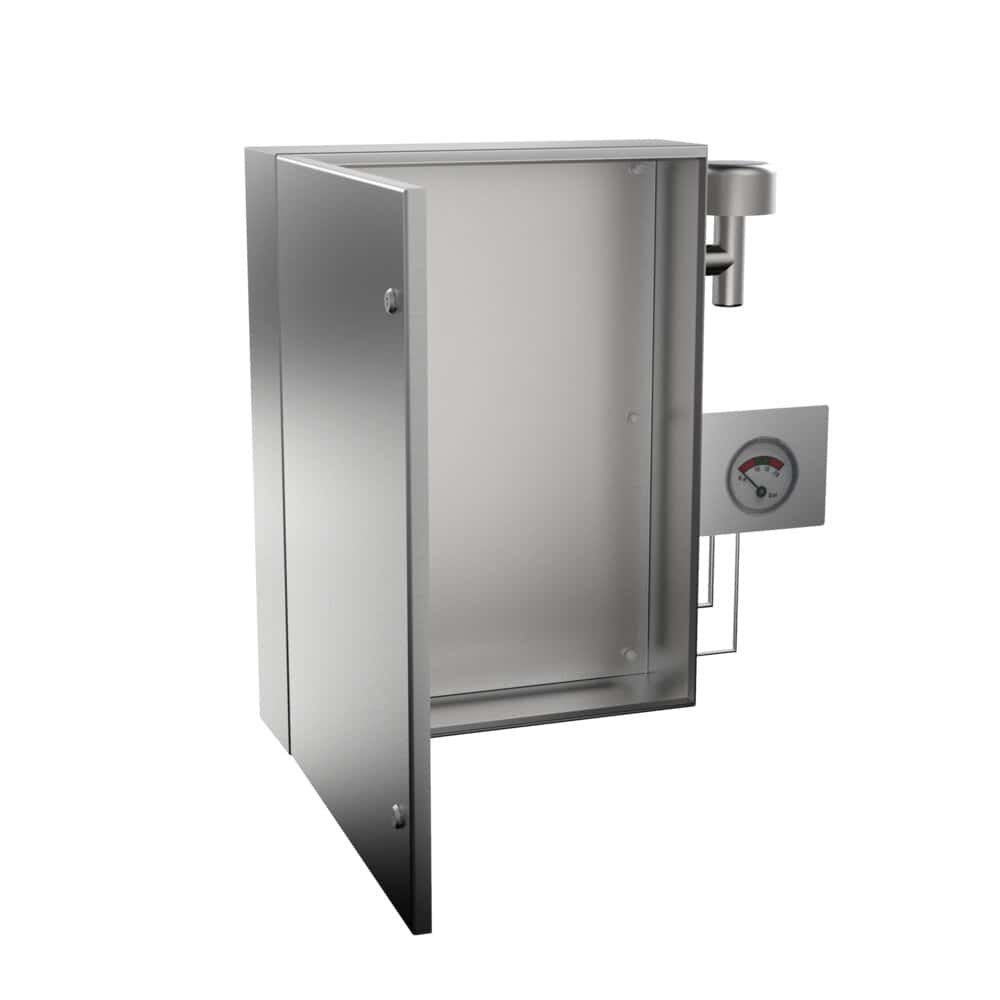

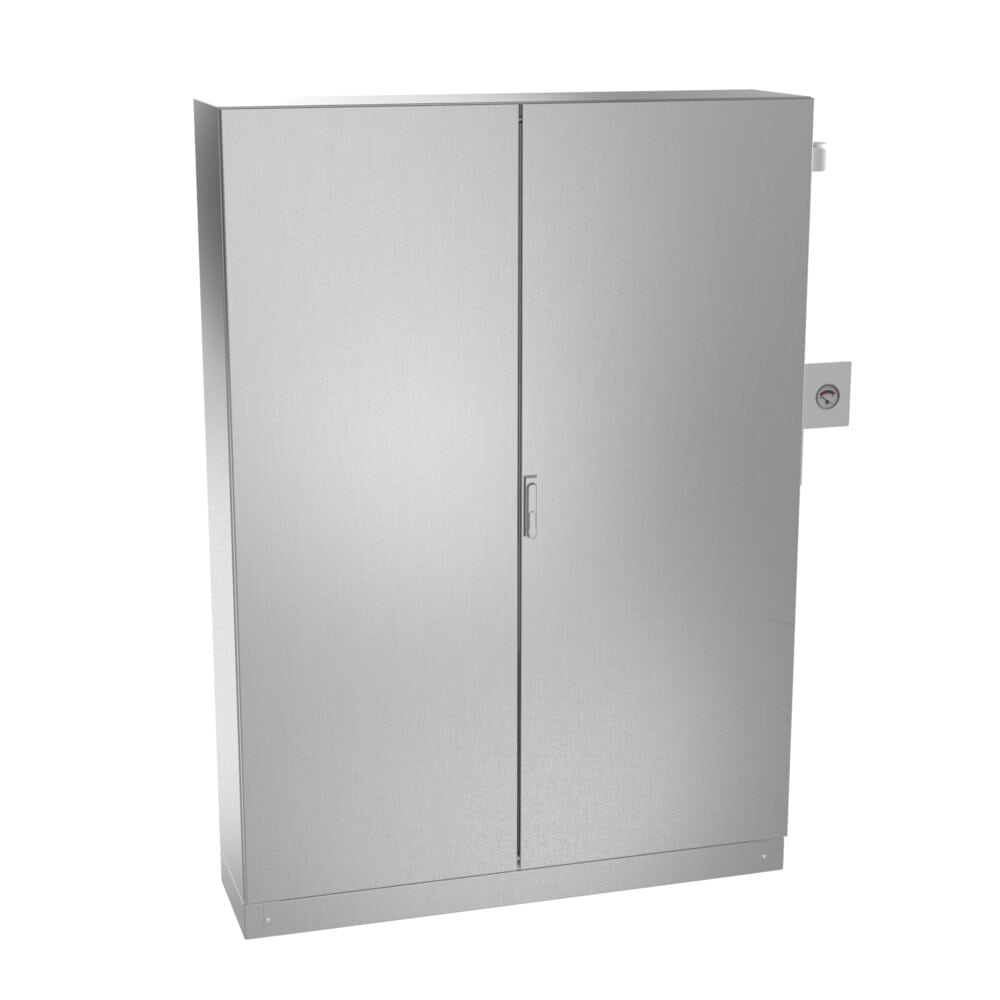

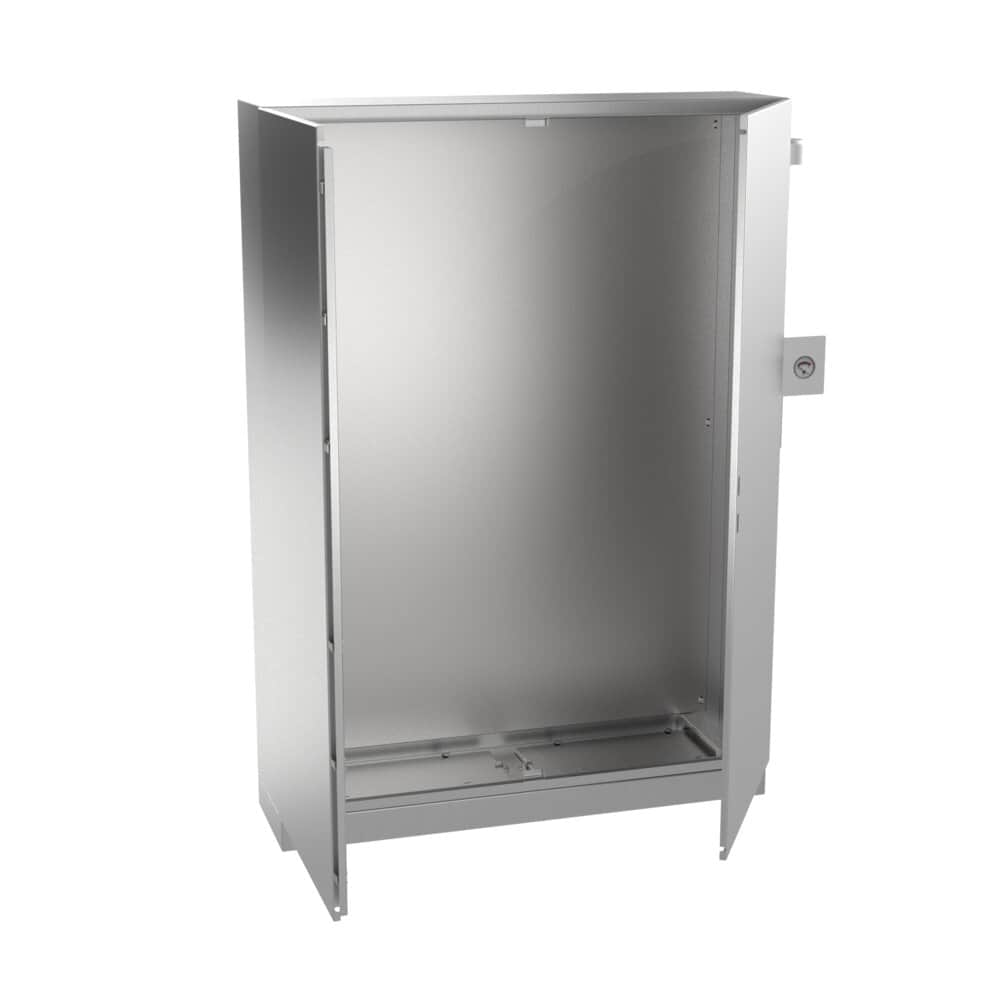

The Dusty pressurization Series is designed for environments full of dirt, airborne dust, and for installation in corrosive environments. Our enclosures system AISI 304 or 316 with the pressurization system prevents the damages to the electrical components produced by the gases or environmental powder. This is an economic system, 100 % reliable.
| Minimum Measurements | A=300-2000mm B=200-1000mm P=155-500mm |
|---|---|
| Maximum Double Door Measurements | A=2000mm B=1600mm P=500mm |
| Minimum Plate Measurements | A=265-1870mm |
| Minimum Plate Measurements | B=145-1470mm |
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Type | Blind door |
| Opening Type | Swivel with concealed hinges |
| Closing System | Rotary handle, Double-bit quarter-turn locks |
| Useful Depth | 152-475 mm |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Plate Material | Galvanized |
| Sealing Gasket | Polyurethane |
| Working Temperature | -40°C a +100°C (reducida exposición +160ºC) |
| Maximum Voltage | 1000 V |
| Alternative Materials | AISI 316L |
|---|---|
| Interior Plate Material | Insulating mounting plate (Bakelite), Stainless steel mounting plate |
