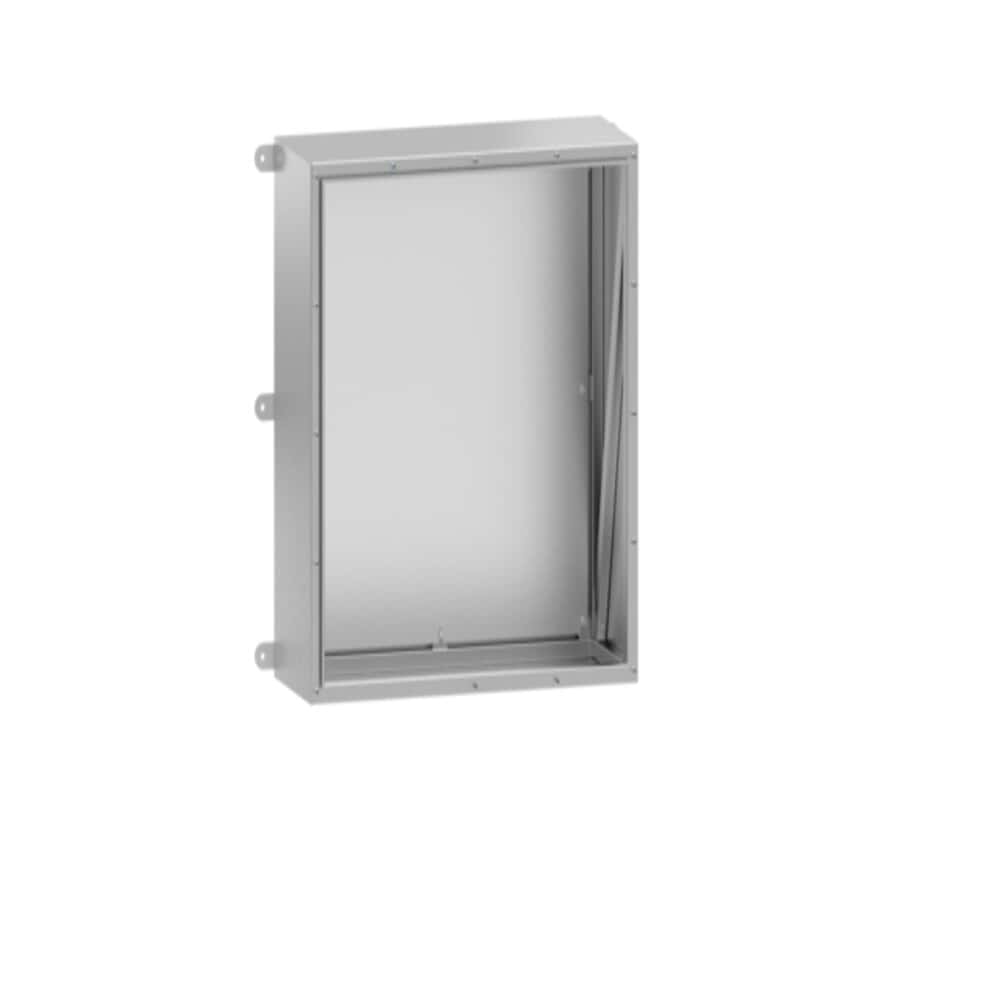

Electrical box resistant to seismic threats, manufactured in AISI 304L stainless steel (EN 1.4306), with a polished finish and protection degree IP55 or IP66. Its reinforced design, with internal structures and high-resistance hinges, allows it to support large loads both on the enclosure and the doors, ensuring the safe installation of high-weight electrical equipment.
|
REFERENCES |
DIMENSIONS (mm) |
||||
|
SOLID COVER (x) |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
MACHINING AREA |
PLATE DIMENSIONS -FxG- |
|
MVCB0909080 |
90 |
90 |
80 |
66×66 |
60×70 |
|
MVCB149080 |
140 |
90 |
80 |
116×66 |
110×70 |
|
MVCB209080 |
200 |
90 |
80 |
176×66 |
170×70 |
|
MVCB269012 |
260 |
90 |
120 |
236×66 |
230×70 |
|
MVCB289080 |
280 |
90 |
80 |
256×66 |
250×70 |
|
MVCB101612 |
100 |
160 |
120 |
76×136 |
70×140 |
|
MVCB161612 |
160 |
160 |
120 |
136×136 |
130×140 |
|
MVCB202012 |
200 |
200 |
120 |
176×176 |
170×180 |
|
MVCB202515 |
200 |
250 |
150 |
176×226 |
170×230 |
|
MVCB252515 |
250 |
250 |
150 |
226×226 |
220×230 |
|
MVCB203015 |
200 |
300 |
150 |
176×276 |
170×280 |
|
MVCB303015 |
300 |
300 |
150 |
276×276 |
270×280 |
|
MVCB304015 |
300 |
400 |
150 |
276×376 |
270×380 |
|
MVCB404015 |
400 |
400 |
150 |
376×376 |
370×380 |
