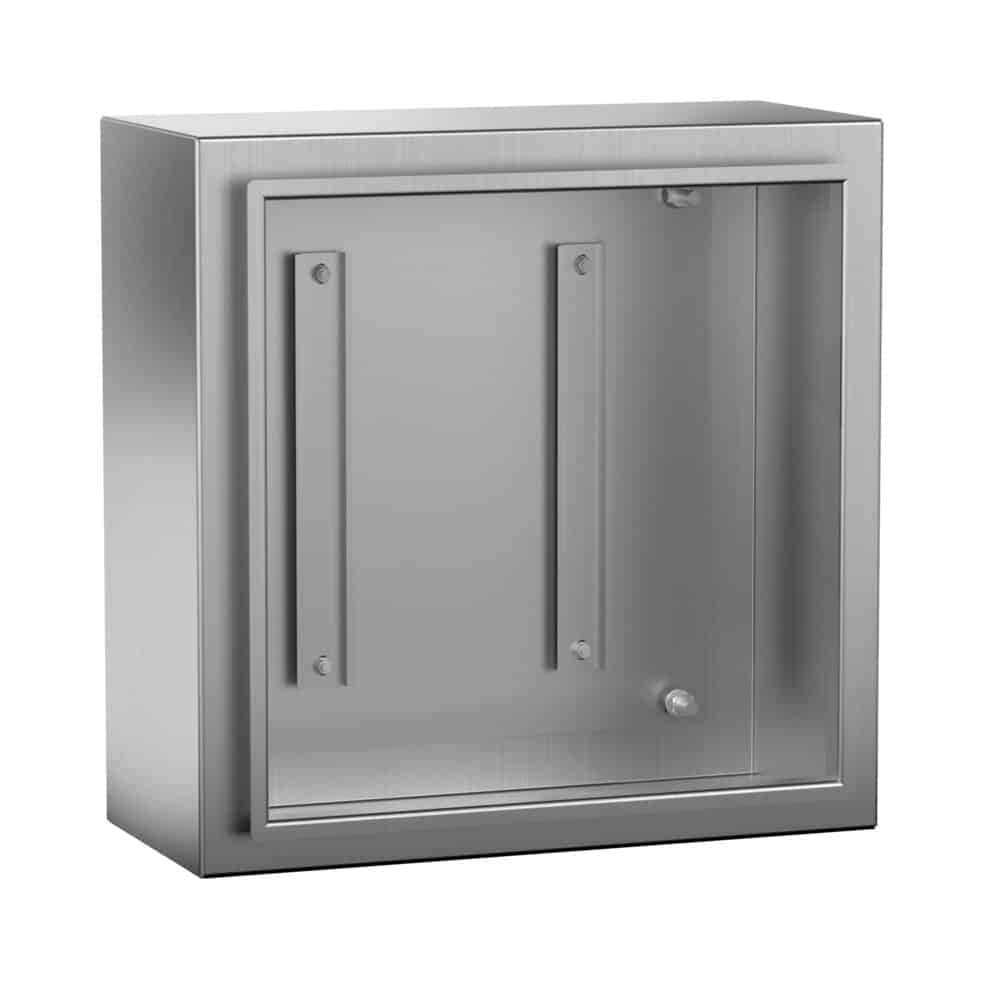

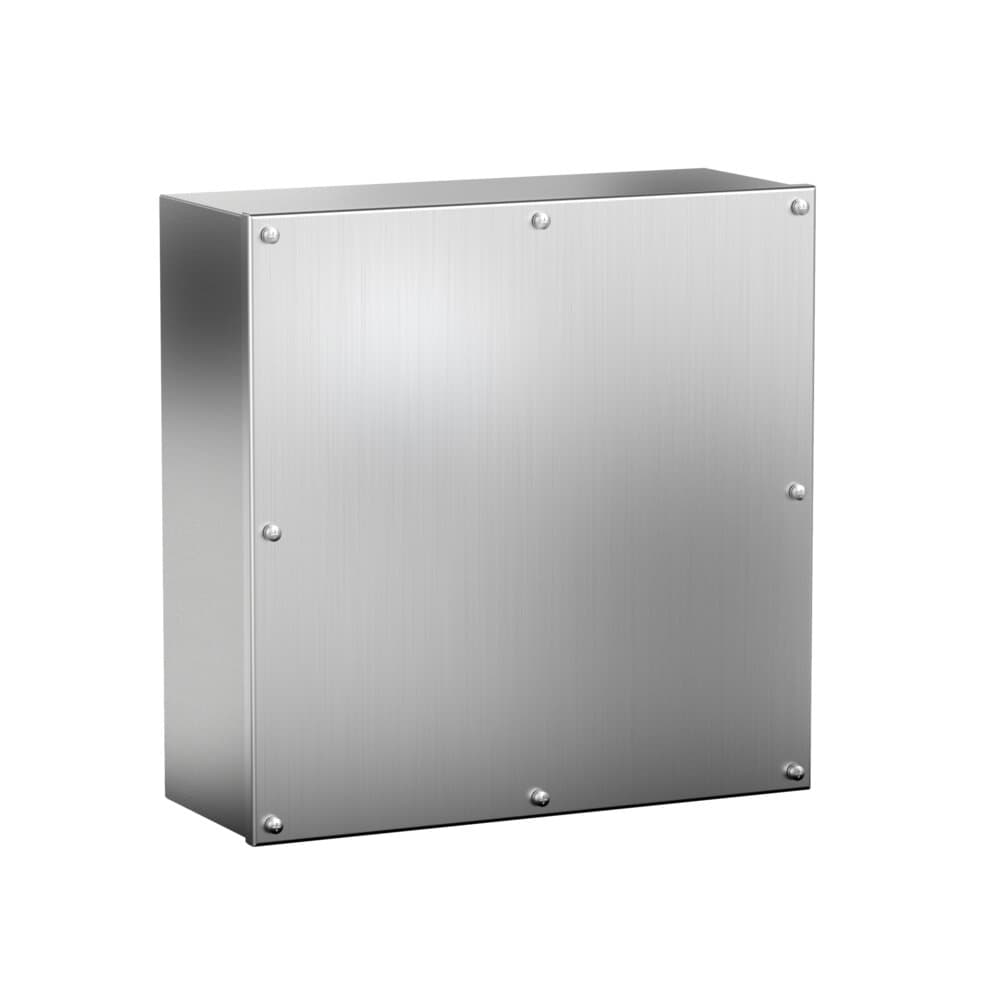

Geo Series junction, terminal, or push-button boxes are waterproof, elegant, and functional, manufactured in RAL 7035 painted steel and available in various dimensions. These junction and/or terminal boxes are designed with all the specific features and advantages to facilitate assembly and installation. The covers are opened using screws for placement.
| Minimum Measurements | A=90-1000mm B=90-100mm P=80-1000mm |
|---|---|
| Minimum Plate Measurements | A=60-370mm |
| Minimum Plate Measurements | B=70-380mm |
| Body Thickness | 1.2 mm | 12/10 mm 0.0472 " | 18 Gauge |
| Door Type | Blind door |
| Opening Type | Screwed |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Plate Material | Galvanized |
| Sealing Gasket | Polyurethane |
| Working Temperature | -40°C a +100°C (reducida exposición +160ºC) |
| Maximum Voltage | 1000 V |
| Alternative Materials | AISI 316L, Galvanized, Aluminum |
|---|---|
| Alternative Finishes | Painted RAL 7035 |
| Alternative Door | Door with polycarbonate panel, Door with safety glass |
| Interior Plate Material | Insulating mounting plate (Bakelite), Stainless steel mounting plate |
| Alternative Gaskets | silicone (-60°C to +180°C), EMC |
| Machinable Area | 48x48-358x358 |
|
REFERENCES |
DIMENSIONS (mm) |
||||
|
SOLID DOOR (x) |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
WEIGHT (Kg) |
VOLUME (m³) |
|
MVCBH909080 |
90 |
90 |
80 |
0.68 |
0.001 |
|
MVCBH149080 |
140 |
90 |
80 |
1.12 |
0.002 |
|
MVCBH209080 |
200 |
90 |
80 |
1.29 |
0.003 |
|
MVCBH269012 |
260 |
90 |
120 |
3.75 |
0.011 |
|
MVCBH101612 |
100 |
160 |
120 |
1.29 |
0.003 |
|
MVCBH161612 |
160 |
160 |
120 |
1.75 |
0.004 |
|
MVCBH202012 |
200 |
200 |
120 |
2.53 |
0.006 |
|
MVCBH202518 |
200 |
250 |
150 |
3.25 |
0.009 |
|
MVCBH252515 |
250 |
250 |
150 |
3.87 |
0.012 |
|
MVCBH203015 |
200 |
300 |
150 |
3.75 |
0.011 |
|
MVCB303015 |
300 |
300 |
150 |
5.16 |
0.016 |
|
MVCBH304015 |
300 |
400 |
150 |
6.64 |
0.022 |
|
MVCBH404015 |
400 |
400 |
150 |
8.41 |
0.028 |
* Geo IP66 Terminal Box Design – 20mm Plate to Back Separation
