High temperature resistant cabinet

We design and manufacture electrical cabinets built for environments with extreme temperature conditions, ranging from high heat (+250ºC) to very low temperatures (-60ºC). They are engineered to withstand high humidity levels or extremely dry conditions, ensuring long-lasting protection and reliable operation of electrical and electronic components for many years.

Technical Downloads Product

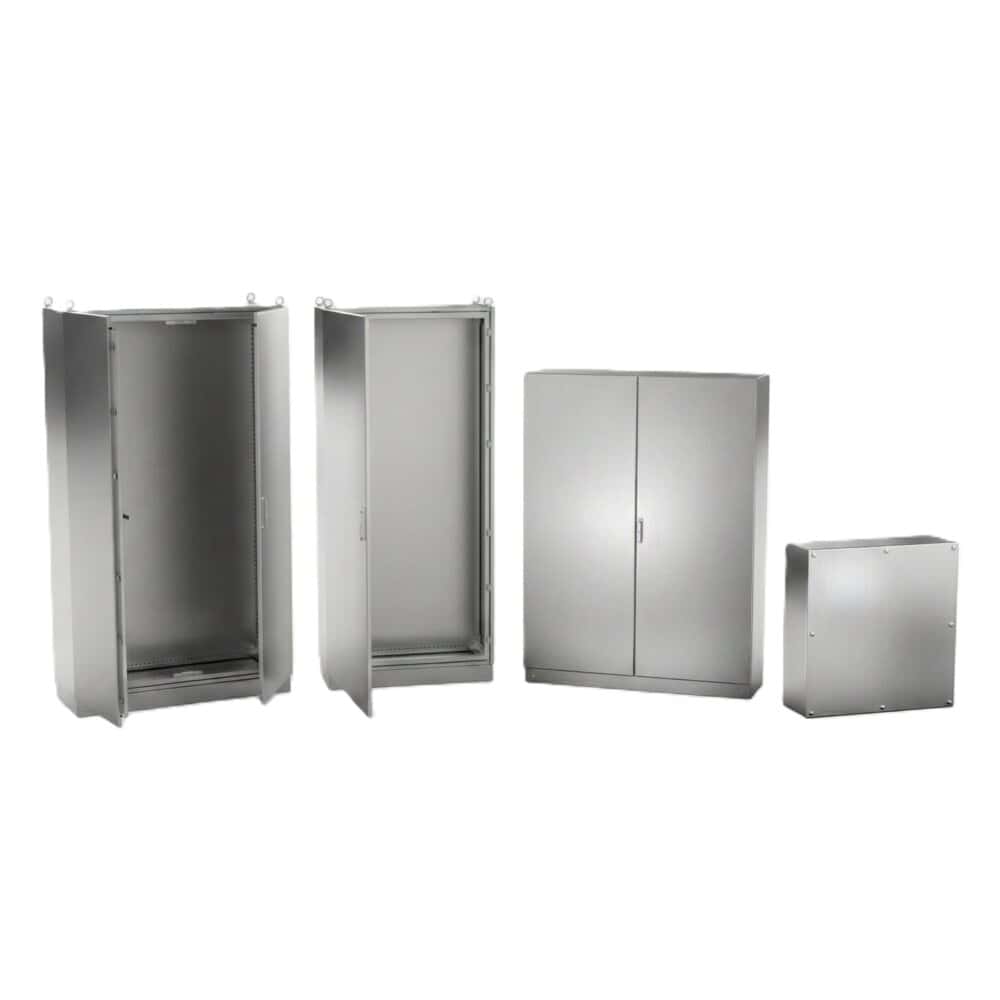

High temperature resistant cabinet: main view of the product
Sizes and Custom Designs
Opening via screws or hinged door.
Wall Boxes
AISI 304L or AISI 316L (marine)
IP67 or IP69K under IEC 60529 Standard
We recommend the use of our stainless steel IP68 cable glands for cable entry
At Delvalle we create a fireproof solution for boxes and cabinets, which protects internal electrical components during a fire of up to 1,093 °C for 30 minutes
Our cabinet has excellent resistance to ozone, oxidation, UV light, cosmic and ionizing radiation, weathering in general:
Optimum performance in adverse temperature conditions
Silicone gasket resistant from -60ºC to +250ºC
Maximum service temperature +230ºC
Intermittent max temperature +250ºC
Minimum Operating Temperature -60ºC
Brittleness Temperature -80°C - ASTM D746
Anticorrosion, manufactured in AISI 304L stainless steel
Anticorrosive, made of AISI 316L stainless steel (marine)
Tunnels
Maritime Environments
Desert Areas
Petrochemical
Military zones
Gas measurement in high temperature areas
Delvalle cabinets with IP66(W) certification
IK10 protection rating for cabinets
Our Luxor electrical panels are built according to the 2014/35/EU Low Voltage CE Directives.
UL NEMA 4X, 12, 3R, and 1 standards
IP68 characteristics according to IEC EN 62208 and EN 60529 standards. Submersible at 1 meter depth for 7 consecutive days.
IK10 impact resistance according to IEC 62208 and EN 50102 standards.
Cabinets made from AISI 316 stainless steel with corrosion resistance
RoHS directive compliance
FAR 25/JAR 25/CS 25 Appendix F, Part 1, (a)(1)(iv) and (a)(1)(v) horizontal flammability tests.
WRAS scheme compliance
EC Regulation 1935/2004
FDA (Food & Drug Administration). CFR 21. num.177.2600
