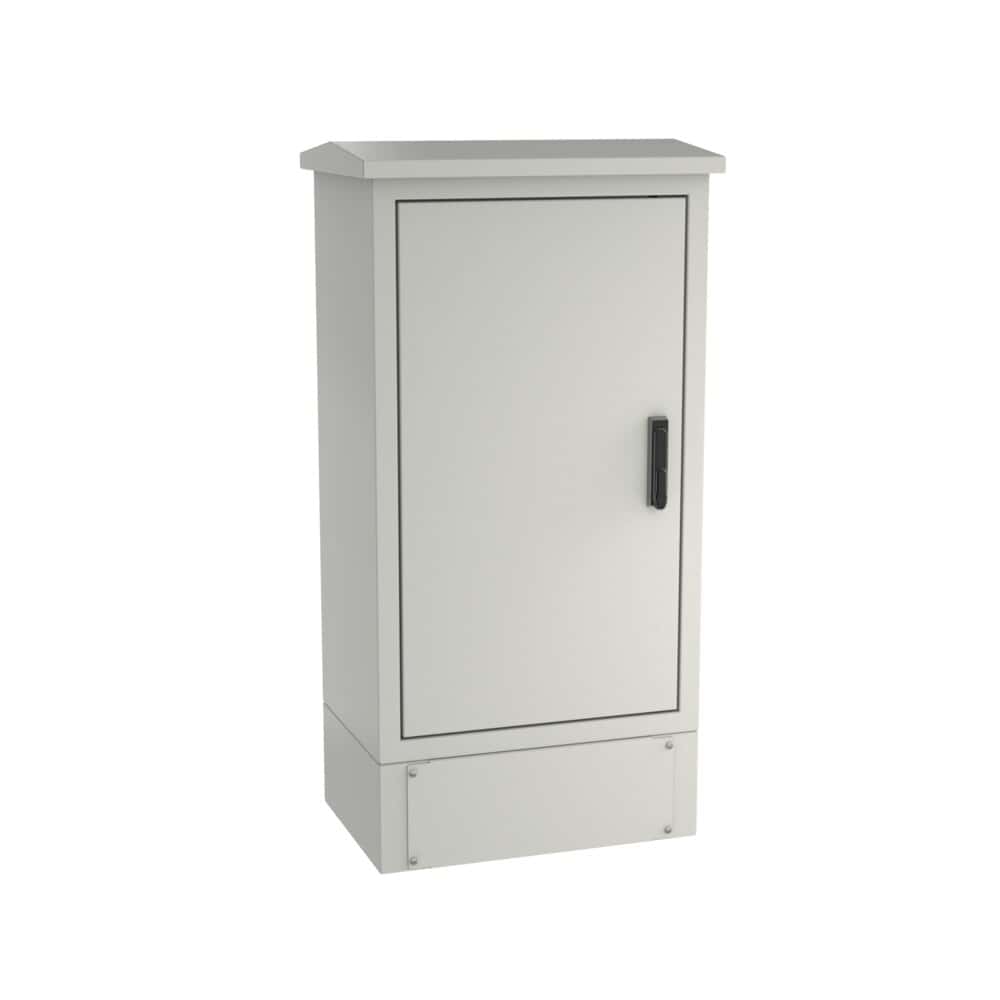

Painted steel enclosures

At Delvalle we make available all possible options for its facilities in the open. For these environments, stainless steel is definitely the most

📄 Technical specificationspainted steel enclosures

LUXOR Series Painted Galvanized Wall-Mounted Electrical Cabinet IP66

TRIBECA Series. Compact Galvanized Electrical Cabinet IP65-66

TITAN Series. Modular Painted Galvanized Cabinet IP55-66

GEO Series. Painted Galvanized Steel Terminal Boxes IP66

TROPICO Series. Painted Galvanized Outdoor Cabinet

TORNADO Series. Outdoor double-wall galvanized painted rack IP66

ROAD Series

For those trying to choose the most suitable cabinet, it can be useful to understand the differences between a galvanized cabinet and a painted carbon steel cabinet

Galvanized enclosures. Galvanizing is the process of applying a protective layer of zinc to steel in order to prevent rusting.

Painted carbon steel cabinets

Cost and drawbacks of painting outdoor electrical cabinets

Specially designed for installation in outdoor environments where weather conditions are adverse, such as in the maritime sector, or for public lighting applications.

Protection Ratings for Cabinets

UL NEMA 1, 3R, 4, and 12 standards

IK10 protection rating according to IEC 62262 standard

IEC 62208

Voltage withstand capacity of cabinets

Delvalle cabinets silicone gaskets temperature resistance

REFERENCES 1 DOOR			DIMENSIONS (mm)
SOLID DOOR (x)	POLYCARBONATE DOOR (not IP69K)	POLYCARBONATE DOOR + INNER DOOR (not IP69K)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	WEIGHT (Kg)	VOLUME (m³)
MVGB302015	MVGB302015T	MVGB302015TC	300	200	155	4,65	0,01
MVGB383015	MVGB383015T	MVGB383015TC	380	300	155	7,68	0,02
MVGB383021	MVGB383021T	MVGB383021TC	380	300	210	8,57	0,03
MVGB404021	MVGB404021T	MVGB404021TC	400	400	210	11,12	0,04
MVGB504021	MVGB504021T	MVGB504021TC	500	400	210	13,51	0,05
MVGB505021	MVGB505021T	MVGB505021TC	500	500	210	16,2	0,06
MVGB604021	MVGB604021T	MVGB604021TC	600	400	210	15,74	0,06
MVGB605021	MVGB605021T	MVGB605021TC	600	500	210	18,88	0,07
MVGB606021	MVGB606021T	MVGB606021TC	600	600	210	22	0,08
MVGB606030	MVGB606030T	MVGB606030TC	600	600	300	22	0,08
MVGB705021	MVGB705021T	MVGB705021TC	700	500	210	31,35	0,16
MVGB806030	MVGB806030T	MVGB806030TC	800	600	300	41,5	0,21
MVGB808030	MVGB808030T	MVGB808030TC	800	800	300	50,69	0,26
MVGB108030	MVGB108030T	MVGB108030TC	1000	800	300	59,47	0,31
MVGB101030	MVGB101030T	MVGB101030TC	1000	1000	300	61,17	0,32
MVGB128030	MVGB128030T	MVGB128030TC	1200	800	300	83,86	0,46
MVGB121030	MVGB121030T	MVGB121030TC	1200	1000	300	71,7	0,39
MVGB121230	MVGB121230T	MVGB121230TC	1200	1200	300	71,59	0,39

REFERENCES 2 DOORS	DIMENSIONS (mm)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-
MVGB501025D	500	1000	250
MVGB501035D	500	1000	350
MVGB606030D	600	600	300
MVGB608020D	600	800	200
MVGB701030D	700	1000	300
MVGB806030D	800	600	300
MVGB808030D	800	800	300
MVGB168040D	800	1600	400
MVGB108030D	1000	800	300
MVGB101030D	1000	1000	300
MVGB101230D	1000	1200	300
MVGB128030D	1200	800	300
MVGB121030D	1200	1000	300
MVGB121040D	1200	1000	400
MVGB121230D	1200	1200	300
MVGB121240D	1200	1200	400
MVGB161240D	1600	1200	400
