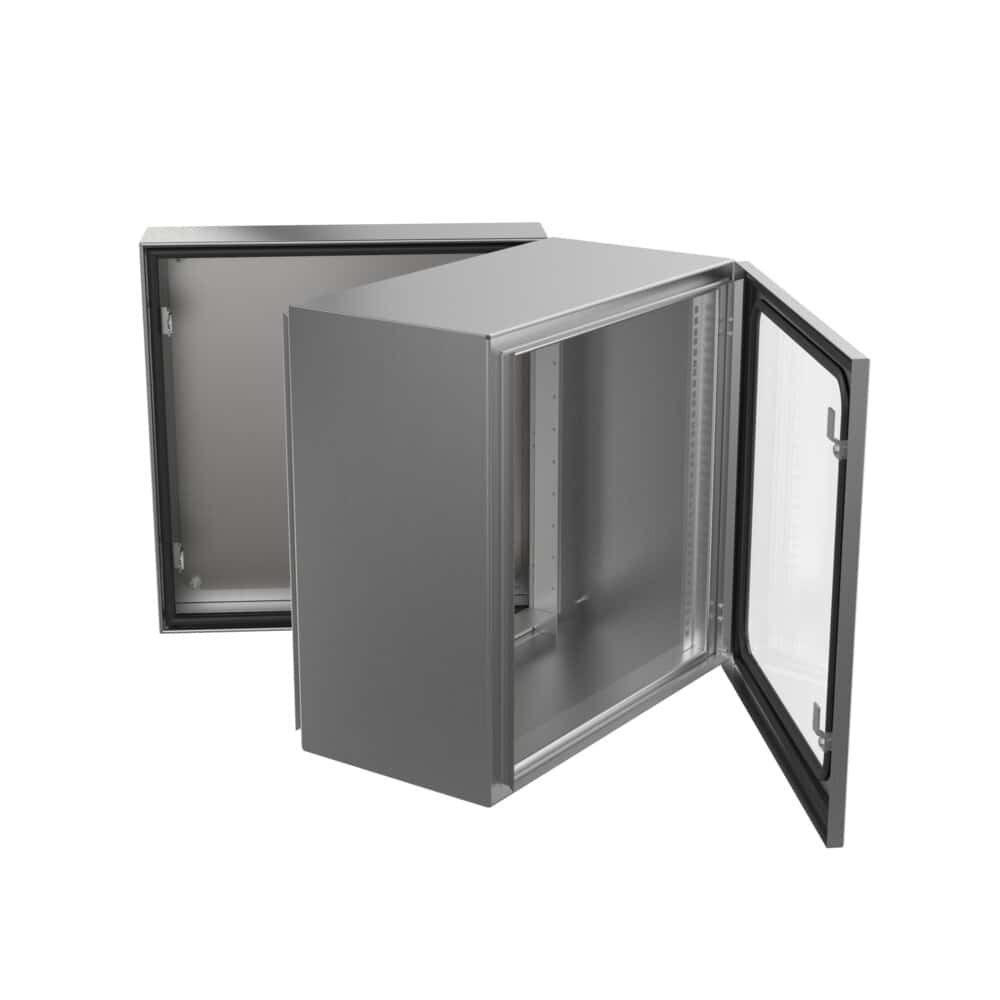

Divided body stainless steel cabinet painted in RAL 7032 or 7035 with three bodies ideal for electronic components and 19“ rack

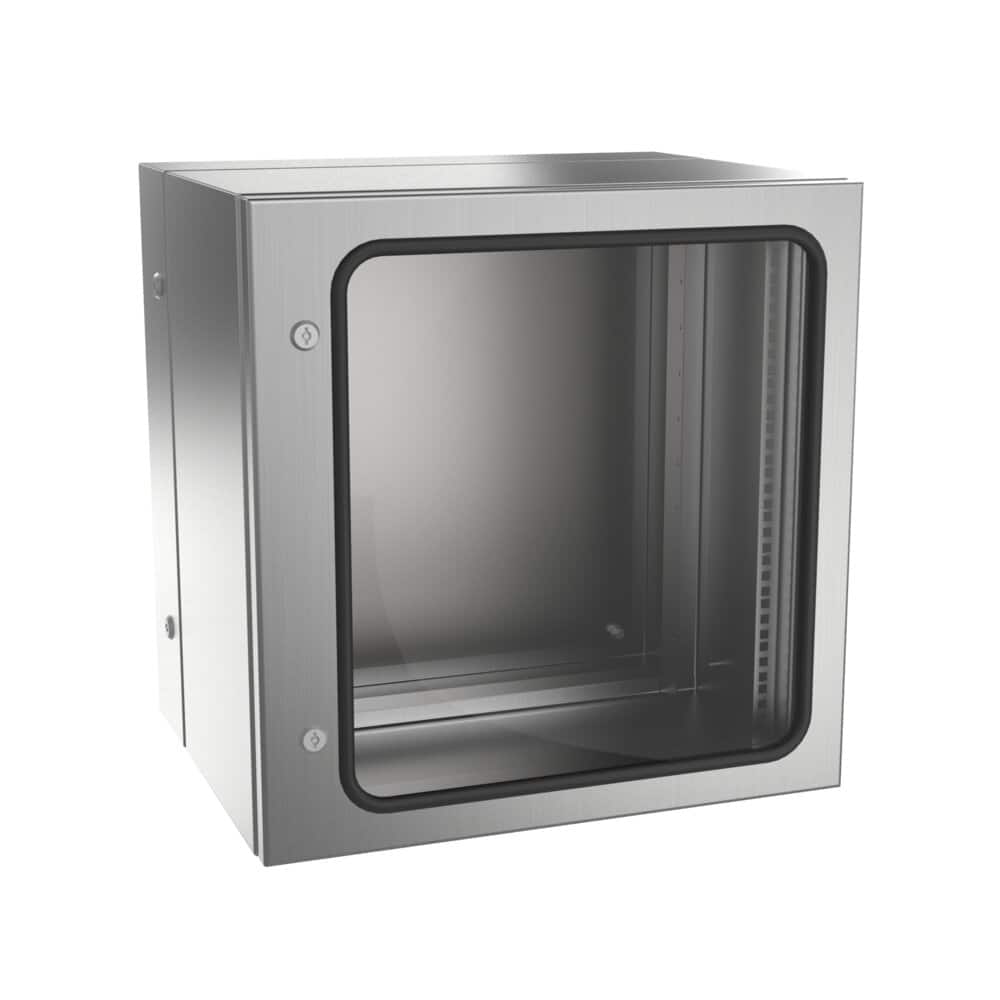

Fitted with transparent door (Tempered glass or polycarbonate) with an open front and rear to facilitate the assembly of components.
Standard models available from 3UA to 15UA. Taller and larger cabinet sizes available, thus increasing the number of UAS.
Built in compliance with CE regulations.
| Minimum Measurements | A=212-746mm B=600-600mm P=320-390mm |
|---|---|
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Type | Blind door, Door with polycarbonate panel |
| Opening Type | Swivel with concealed hinges |
| Closing System | Double-bit quarter-turn locks |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Sealing Gasket | EMC |
| Alternative Materials | AISI 316L |
|---|
|
REFERENCES |
DIMENSIONS (mm) |
||||
|
SOLID DOOR |
POLYCARBONATE DOOR |
B |
C |
D |
U's |
|
MVAE602149 |
MVAE602149T |
212 |
490 |
320 |
3UA |
|
MVAE603449 |
MVAE603449T |
345 |
490 |
320 |
6UA |
|
MVAE604749 |
MVAE604749T |
478 |
490 |
320 |
9UA |
|
MVAE606149 |
MVAE606149T |
612 |
490 |
320 |
12UA |
|
MVAE607449 |
MVAE607449T |
746 |
490 |
320 |
15UA |
|
MVAE602139 |
MVAE602139T |
212 |
390 |
220 |
3UA |
|
MVAE603439 |
MVAE603439T |
345 |
390 |
220 |
6UA |
|
MVAE604739 |
MVAE604739T |
478 |
390 |
220 |
9UA |
|
MVAE606139 |
MVAE606139T |
612 |
390 |
220 |
12UA |
|
MVAE607439 |
MVAE607439T |
746 |
390 |
220 |
15UA |
Croquis:
