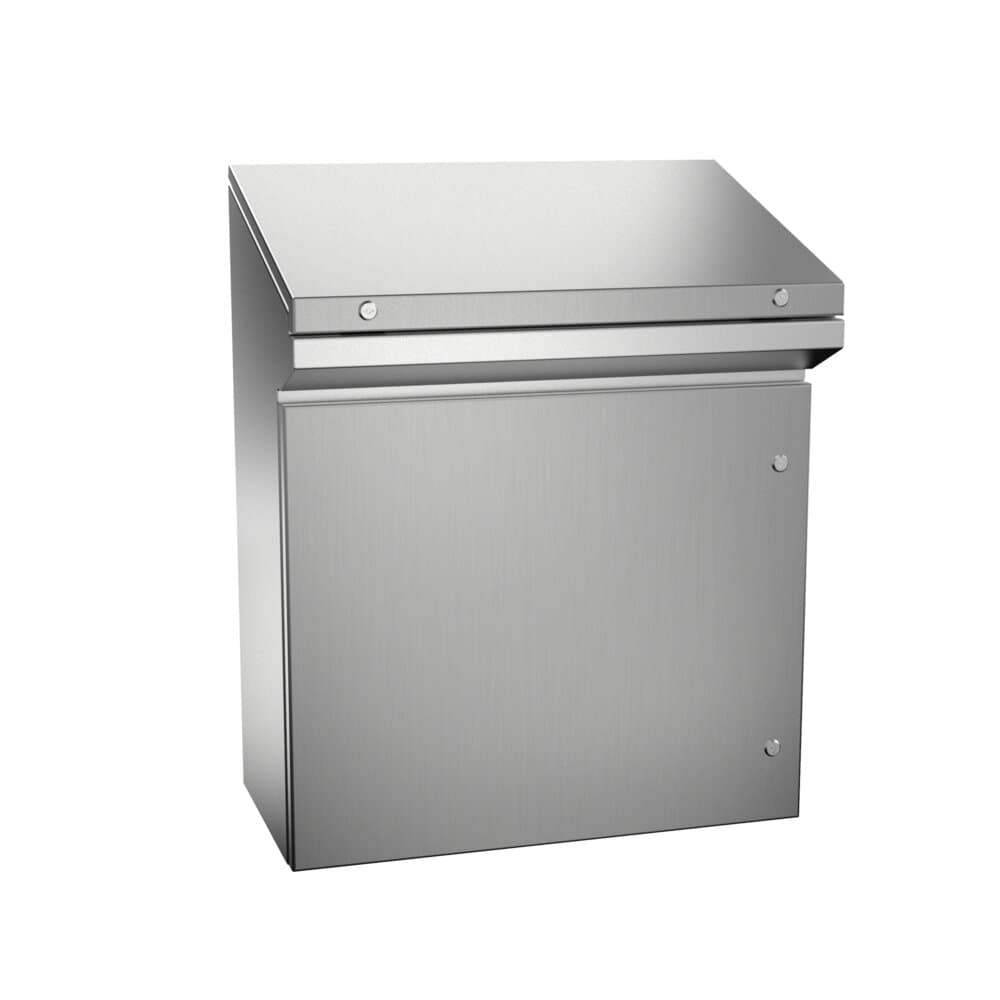

Riviera IP66 console.

SERIE RIVIERA IP66

The Riviera Series console provides easy access for the operator and is manufactured in painted steel. Its design ensures IP66 sealing (for single doors, IP55 for double doors) and maximum IK10 resistance. The upper door is equipped with gas struts to facilitate opening and retention, the bottom is removable, and the hinges throughout the entire assembly are hidden.

TECHNICAL DATA
Minimum Measurements A=1000-100mm   B=600-800mm   P=500-500mm
Maximum Double Door Measurements A=1000mm   B=1600mm   P=500mm
Body Thickness 1.5 mm | 15/10 mm
0.059 " | 16 Gauge
Door Opening 130 °
Door Type Blind door
Opening Type Swivel with concealed hinges
Closing System Double-bit quarter-turn locks
Material AISI 304L/AISI 316L
FinishSatin finish
Plate Material Galvanized
Sealing Gasket Polyurethane
Working Temperature -40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage 1000 V
ALTERNATIVE OPTIONS
Alternative Materials AISI 316L, Galvanized, Aluminum
Alternative Finishes Painted RAL 7035
Alternative Door Door with polycarbonate panel, Door with safety glass
Interior Plate Material Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets silicone (-60°C to +180°C), EMC
Made to Measure According to Your Needs
Kickboards
All Types of Ventilation and Air Conditioning
Fixed Metal Legs or Wheels
Textured paint finish with other RAL colors on request
Electromagnetic protection EMC gasket between frame and contact surfaces. Ensuring a perfect electrical connection. CEE Standard 89/336
Ample mounting space and high accessibility
Great robustness of the assembly
Wide Door Opening
Standard with double bit lock
Perfect watertightness due to the gaskets used in the joints
Great versatility, so it can be applied in almost any field
Delvalle manufactures any size on request that suits your needs, including holes, channels, and shapes, both on the door and the enclosure
Specially designed to provide maximum flexibility in its use. Thanks to this, it can be seen in machine controls, due to its ease of handling, control systems...
IP66 Protection Rating for Cabinets
IK10 Protection Rating
Low Voltage Directive 2006/95/EC
Voltage withstand capacity of cabinets
Delvalle cabinets silicone gaskets temperature resistance

2-DOOR REFERENCES

DIMENSIONS (mm)

SOLID DOOR

(x)

HEIGHT

-A-

WIDTH

-B-

DEPTH

-C-

USABLE

DEPTH -D-

MVPH106038

1000

600

380

500

MVPH108038

1000

800

380

500

3-DOOR REFERENCES

DIMENSIONS (mm)

SOLID DOOR

(x)

HEIGHT

-A-

WIDTH

-B-

DEPTH

-C-

USABLE

DEPTH -D-

MVPH101038

1000

1000

380

500

MVPH101238

1000

1200

380

500

MVPH101438

1000

1400

380

500

MVPH101638

1000

1600

380

500

Croquis:
