SEISMIC STAINLESS STEEL CABINET

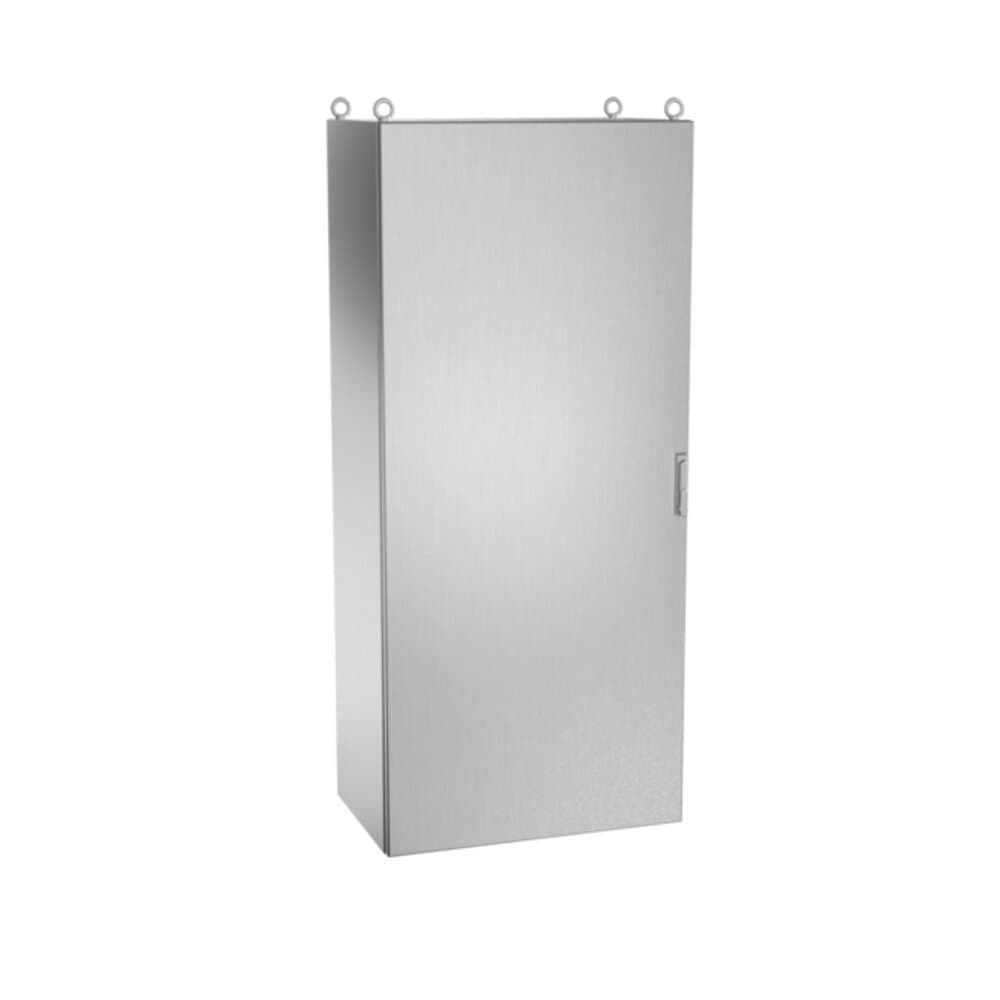

Electrical cabinet resistant to seismic threats, manufactured in AISI 304L stainless steel (EN 1.4306), with a polished finish and protection degree IP55 or IP66.

SEISMIC STAINLESS STEEL CABINET: detail view of the product

📄 Technical specificationsseismic stainless steel cabinet

Rack system

Protection rating IP69K enclosures

Made to Measure According to Your Needs

It is recommended to install a baseboard

All Types of Ventilation and Air Conditioning

Painted Steel

EMC Version according to EEC 2014/30/EU Electromagnetic Compatibility Standard

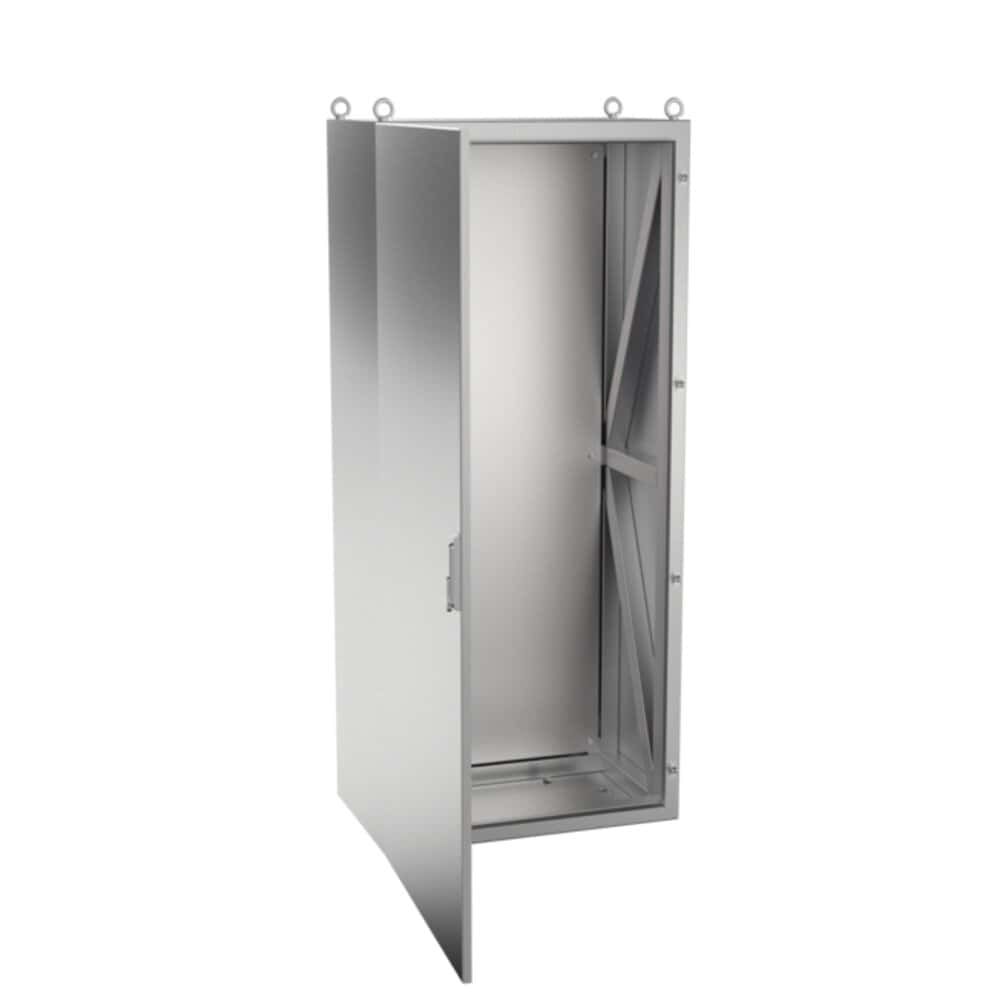

Spacious interior and great accessibility

Great robustness of the assembly

Standard with lever lock made of stainless steel

Door opening at 120°. Standard opening to the left, specify if desired to the right

Delvalle manufactures any size made to order to suit your needs, including holes, channels, shapes, both on the door and on the enclosure

Maximum distributed load 1000 kg

Specially designed for areas subjected to high seismic stress or constant vibrations

1-DOOR REFERENCES	DIMENSIONS (mm)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USABLE DEPTH -D-	MACHINING AREA		PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USABLE DEPTH -D-	DOOR	SIDE	PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
HDT166040S	1600	600	400	1447×500	375.5	1424×487.8	1564.8×344	1520×490	72.4	0.38
HDT168040S	1600	800	400	1447×700	375.5	1424×687.8	1564.8×344	1520×690	95.2	0.51
HDT186040S	1800	600	400	1647×500	375.5	1624×487.8	1764.8×344	1720×490	81.5	0.43
HDT188040S	1800	800	400	1647×700	375.5	1624×687.8	1764.8×344	1720×690	106.8	0.58
HDT206040S	2000	600	400	1847×500	375.5	1824×487.8	1964.8×344	1920×490	90.2	0.48
HDT208040S	2000	800	400	1847×700	375.5	1824×687.8	1964.8×344	1920×690	118.5	0.64

2-DOOR REFERENCES	DIMENSIONS (mm)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USABLE DEPTH -D-	MACHINING AREA		PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USABLE DEPTH -D-	DOOR	SIDE	PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
HDT161040S/2	1600	1000	400	1447×900	375.5	1424×438 (x2)	1564.8×344	1520×440 (x2)	125.4	0.64
HDT181040S/2	1800	1000	400	1647×900	375.5	1624×438 (x2)	1764.8×344	1720×440 (x2)	140.8	0.72
HDT201040S/2	2000	1000	400	1847×900	375.5	1824×438 (x2)	1964.8×344	1920×440 (x2)	156.2	0.80
HDT201240S/2	2000	1200	400	1847×1100	375.5	1824×538 (x2)	1964.8×344	1920×540 (x2)	182.5	0.96
