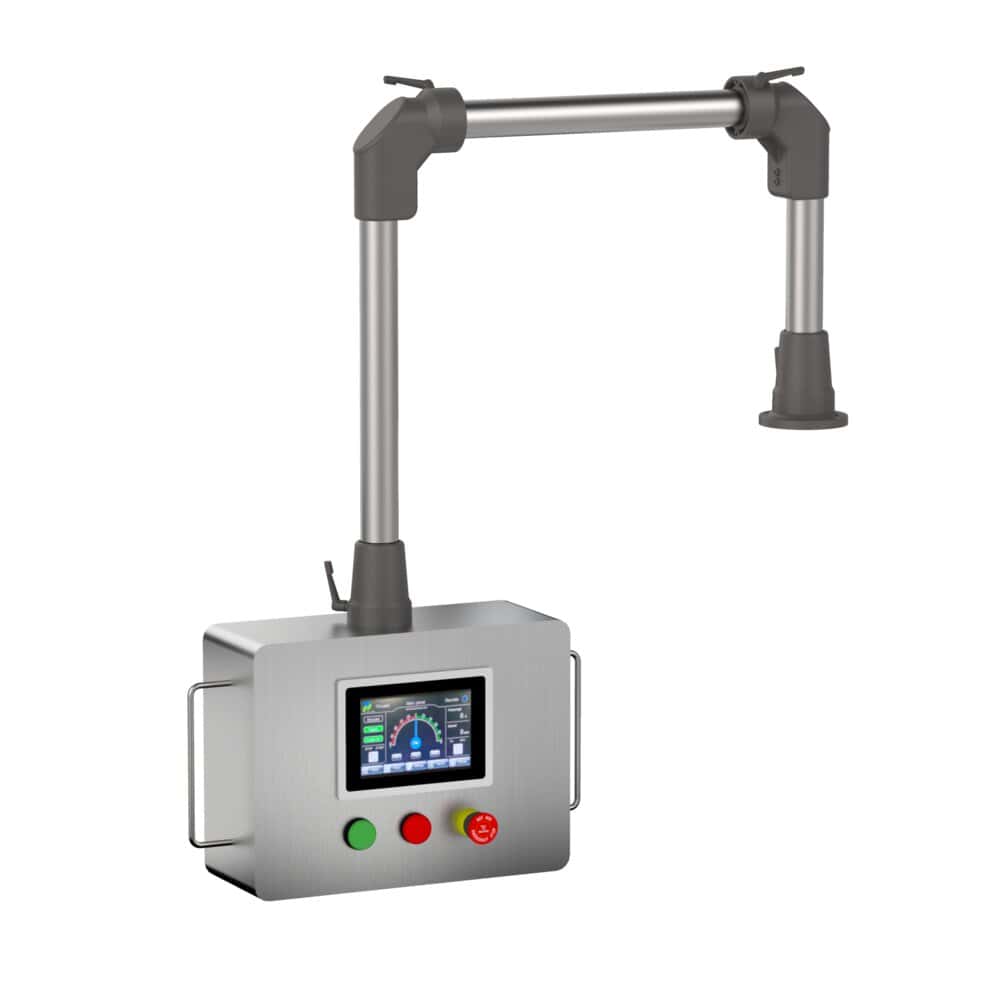

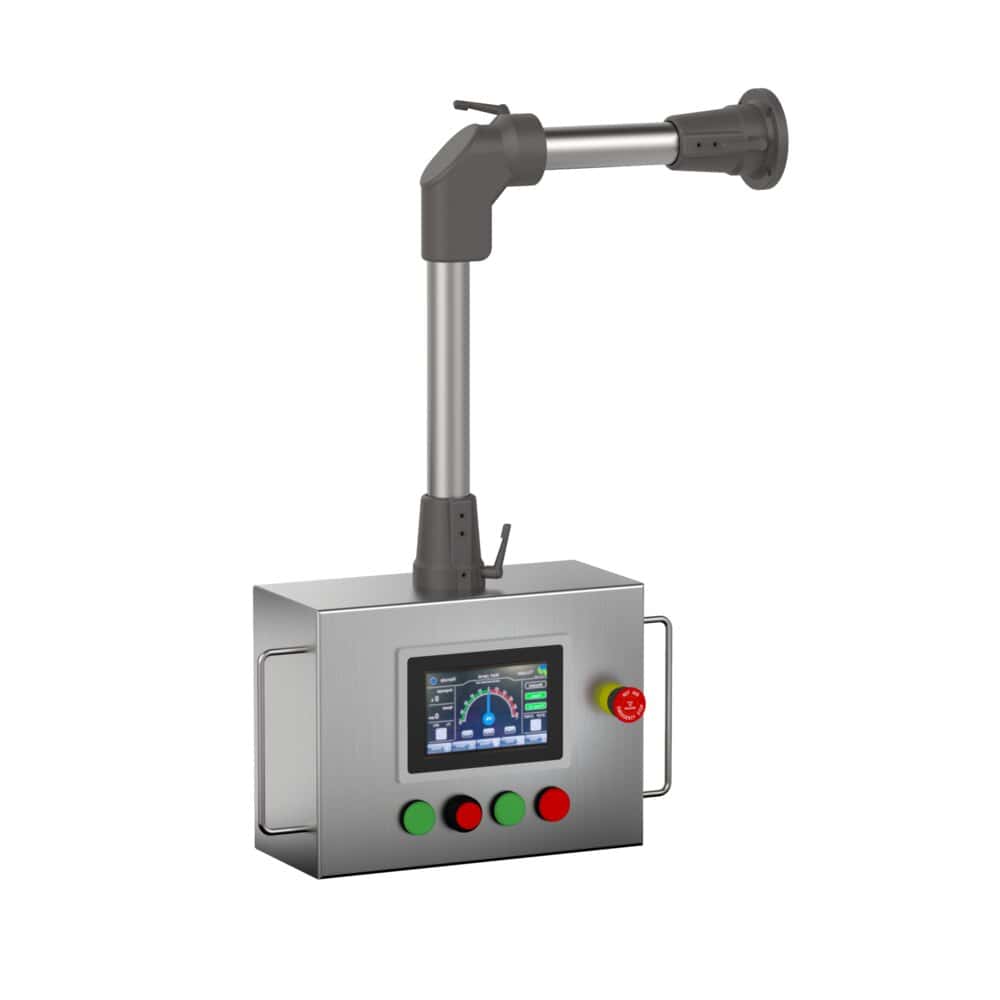

Support arm systems for the human/machine interface HMI. Control arm for operator boxes, both elegant and functional, AISI 304L stainless steel manufactured with strong rotating arm and IP66 protection for placing screens, push buttons, switches and computers at the foot of the machine.
Designed for Industry 4.0.
Get Your Free estimate Today!
| Minimum Measurements | A=230-600mm B=330-380mm P=160-160mm |
|---|---|
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Type | Blind door |
| Opening Type | Screwed |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Sealing Gasket | Polyurethane |
| Alternative Materials | AISI 316L |
|---|---|
| Alternative Door | Door with polycarbonate panel, Door with safety glass |
| Alternative Gaskets | EMC |
|
REFERENCES |
DIMENSIONS (mm) |
||
|
SOLID DOOR (x) |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
|
MVCR233316A |
230 |
330 |
160 |
|
MVCR332316A |
330 |
230 |
160 |
|
MVCR324316A |
320 |
430 |
160 |
|
MVCR433216A |
430 |
320 |
160 |
|
MVCR404016A |
400 |
400 |
160 |
|
MVCR386016A |
380 |
600 |
160 |
|
MVCR603816A |
600 |
380 |
160 |
* Cobra Series Design IP66 Model A: Square corners
|
REFERENCES |
DIMENSIONS (mm) |
||
|
SOLID DOOR (x) |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
|
MVCR233316B |
230 |
330 |
160 |
|
MVCR332316B |
330 |
230 |
160 |
|
MVCR324316B |
320 |
430 |
160 |
|
MVCR433216B |
430 |
320 |
160 |
|
MVCR404016B |
400 |
400 |
160 |
|
MVCR386016B |
380 |
600 |
160 |
|
MVCR603816B |
600 |
380 |
160 |
* Cobra Series Design IP66 Model B: Rounded corners

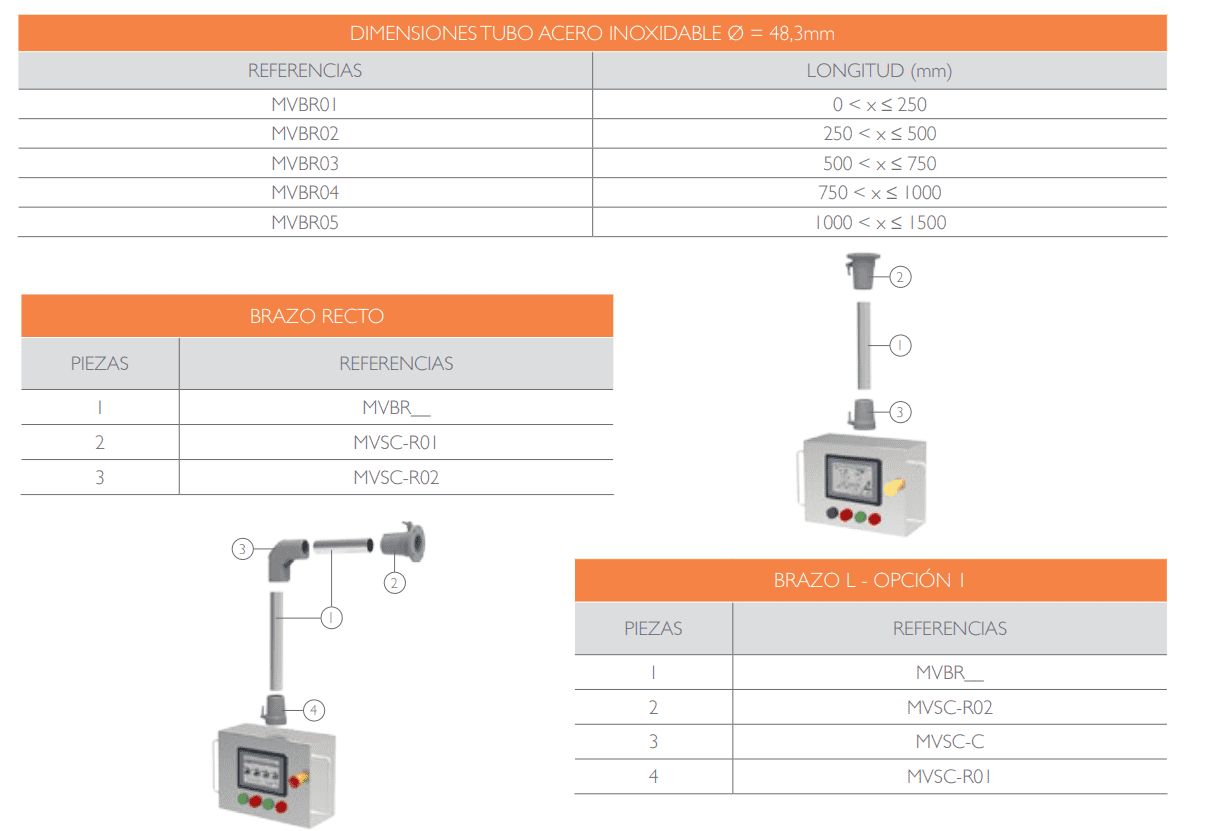

Croquis:
