Stainless steel dismountable console atrium IP66

SERIE ATRIUM IP66

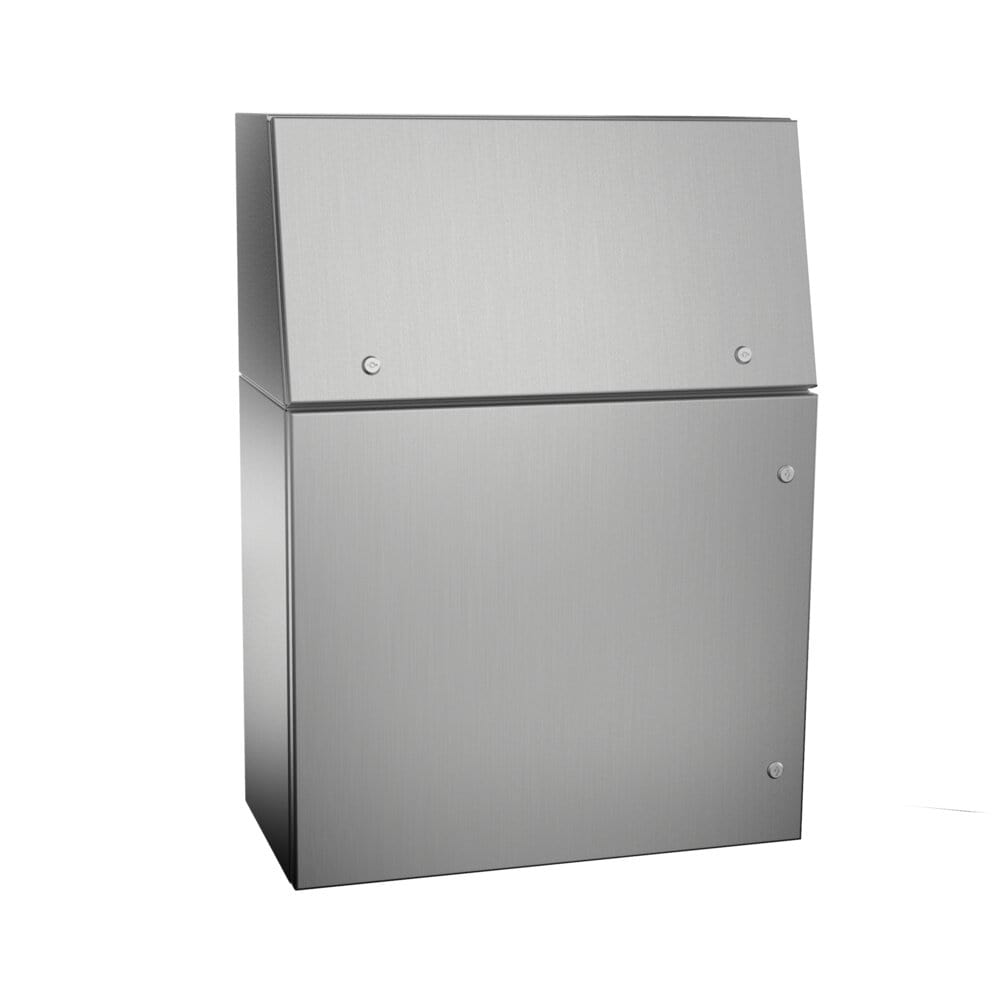

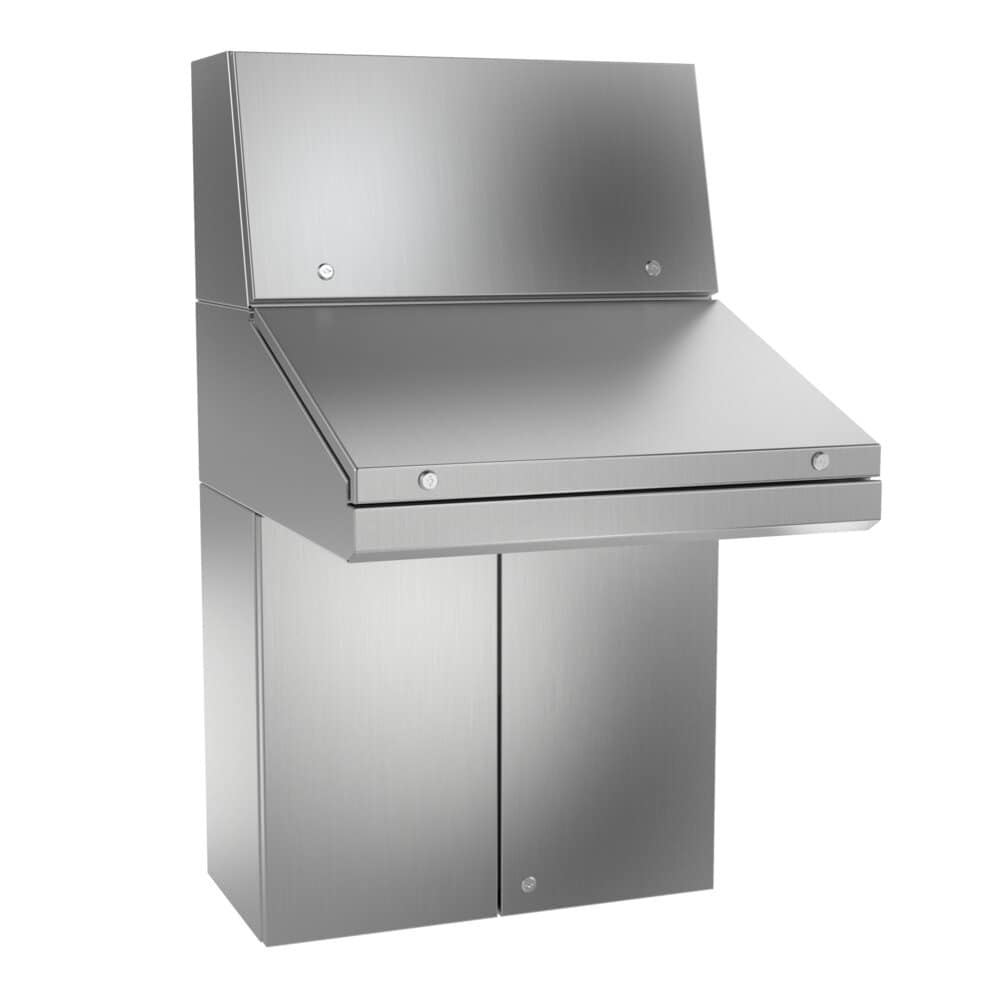

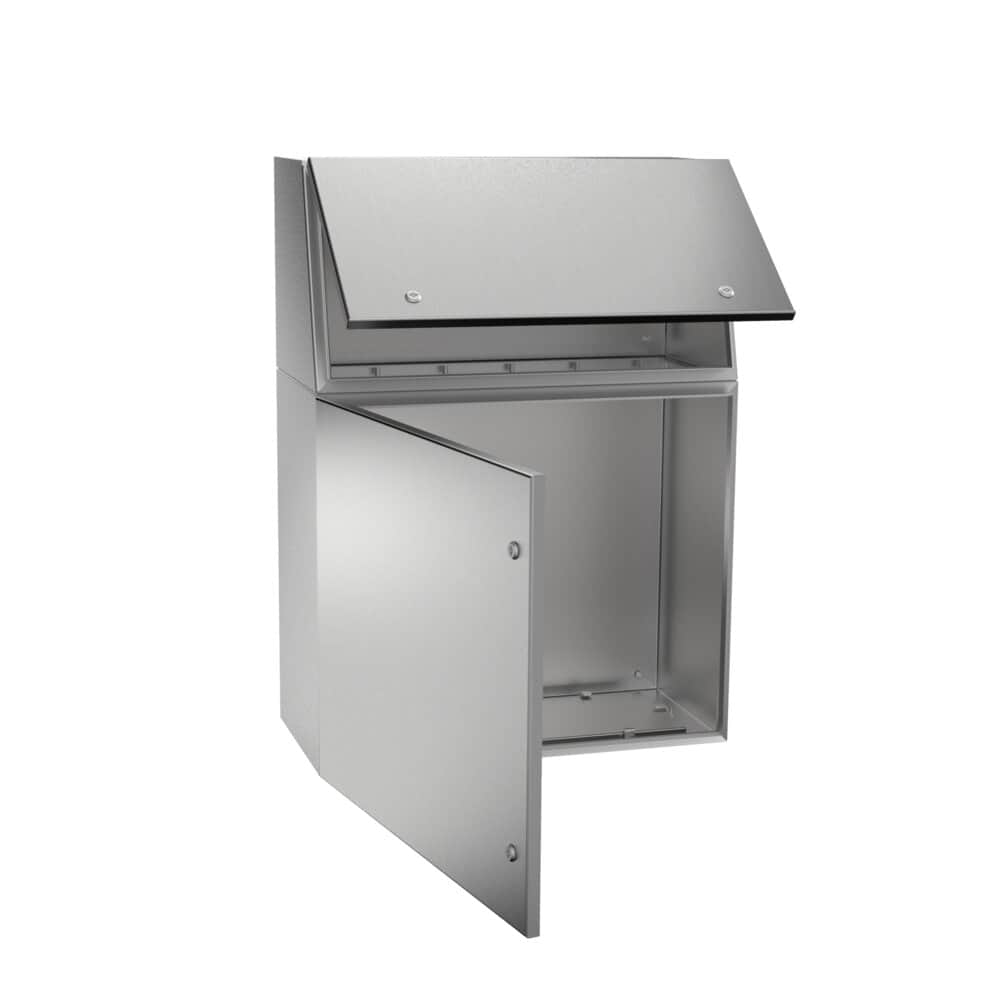

Dismountable Atrium Series console, elegant and functional, made up of 3 parts so as to choose what best suits the need in each installation. Easily accessible for the operator. Manufacturated in stainless steel, with a design allowing IP66 (one door, IP55 two doors) and maximum resistance of IK10.

TECHNICAL DATA
Minimum Measurements A=1100-1414mm   B=600-1600mm   P=380-918mm
Body Thickness 1.5 mm | 15/10 mm
0.059 " | 16 Gauge
Door Opening 130 °
Door Type Blind door
Opening Type Swivel with concealed hinges
Closing System Double-bit quarter-turn locks
Material AISI 304L/AISI 316L
FinishSatin finish
Plate Material Galvanized
Sealing Gasket Polyurethane
Working Temperature -40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage 1000 V
ALTERNATIVE OPTIONS
Alternative Materials AISI 316L, Galvanized, Aluminum
Alternative Finishes Painted RAL 7035
Alternative Door Door with polycarbonate panel, Door with safety glass
Interior Plate Material Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets silicone (-60°C to +180°C), EMC
Made to Measure According to Your Needs
Up to IP69K - DIN 40050-9
Kickboards
Fixed Metal Legs or Wheels
In stainless steel AISI 316L EN 14404
EMC Version according to EEC 2014/30/EU Electromagnetic Compatibility Standard
Ample mounting space and high accessibility
Great robustness of the assembly
Wide Door Opening
Standard with double bit lock
Perfect watertightness due to the gaskets used in the joints
High versatility, so it can be applied to almost any environment
Delvalle makes to order any size to suit your needs, including holes, shaped channels, both in the door and in the enclosure.
Specially designed to provide maximum flexibility in its use. Thanks to this, it can be seen in machine controls, due to its ease of handling, control systems...
Protección según estándar IEC EN 60529
IK10 protection rating according to IEC 62262 standard
Low Voltage Directive 2014/35/EU
Food Contact Material Compliance
Voltage withstand capacity of cabinets
Delvalle cabinets silicone gaskets temperature resistance

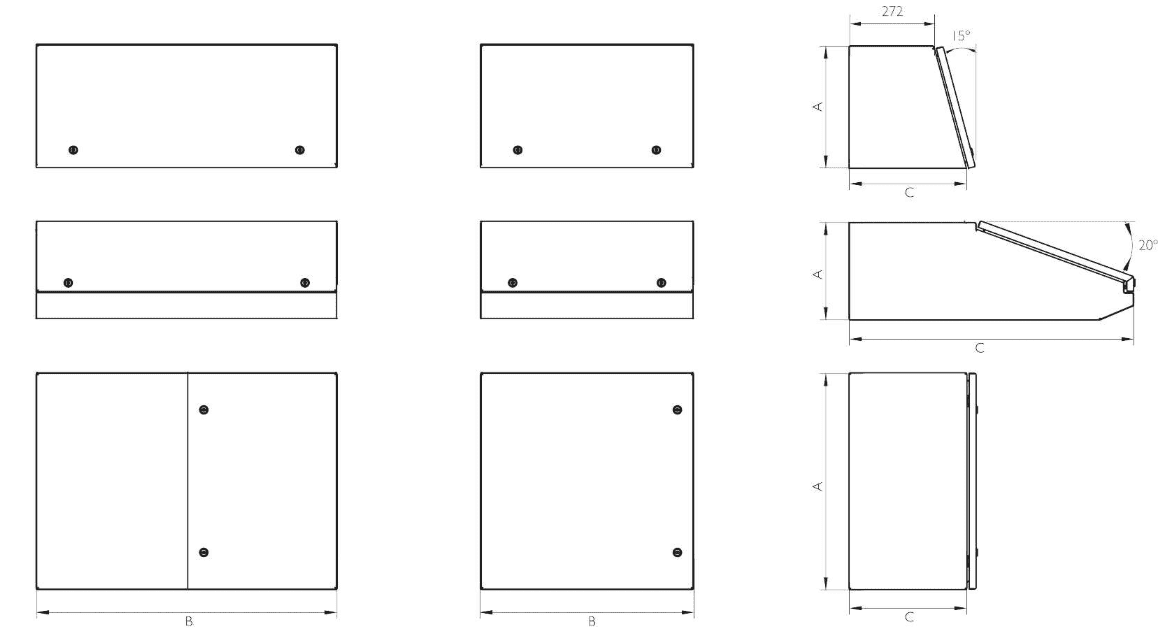

Croquis:

croquis del producto
