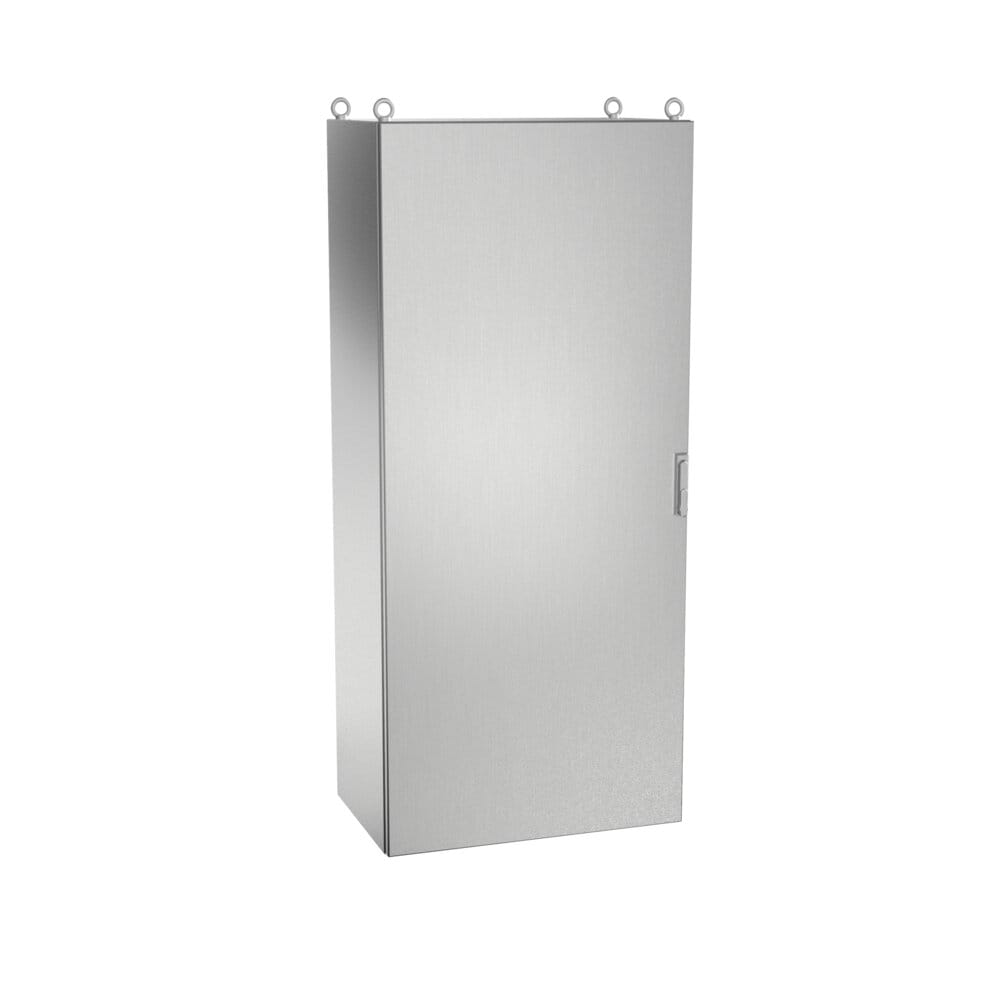

Seismic enclosure IP66

Seismic reinforced enclosure, single or double door, manufactured in stainless steel AISI 304L – EN 1.4306 finely polished, to IP55 or IP66.

Protect equipment in any environment, regardless of geographic location. The use of seismic-rated enclosures is recommended in areas where earthquake activity or excessive vibration is possible.

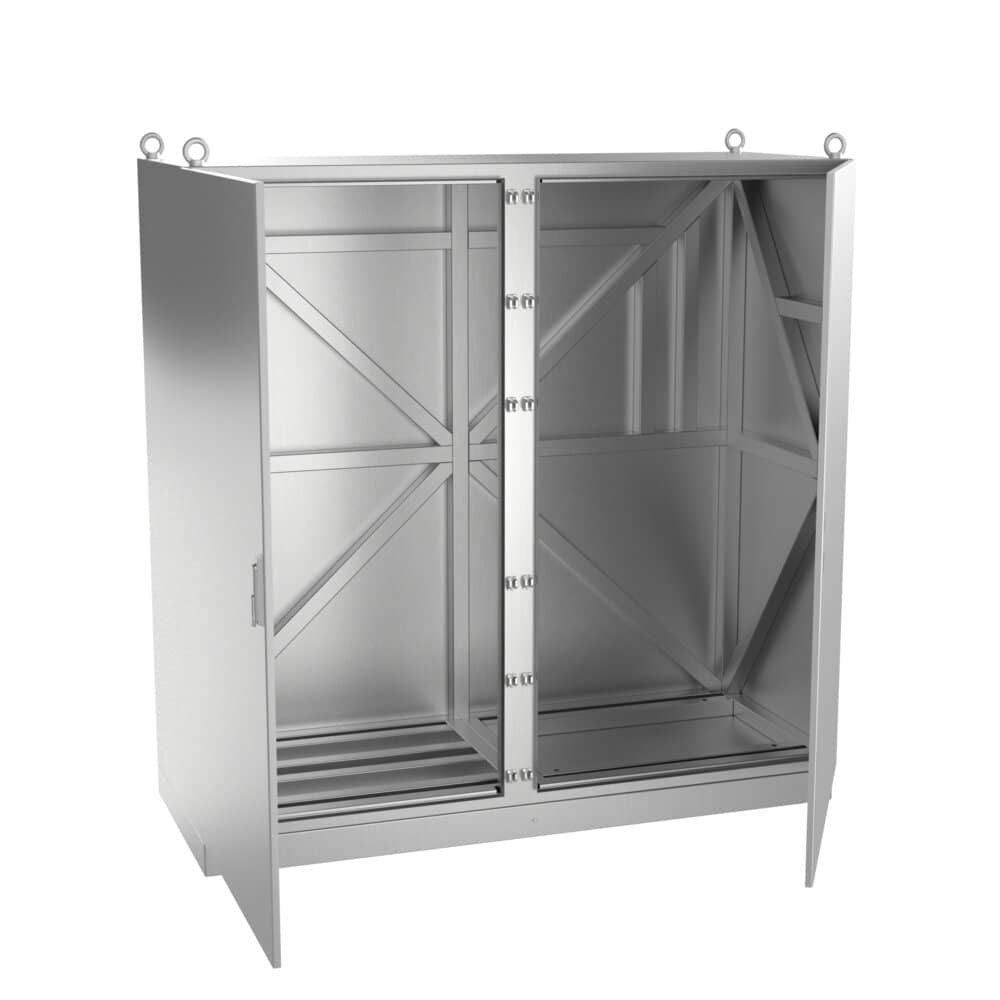

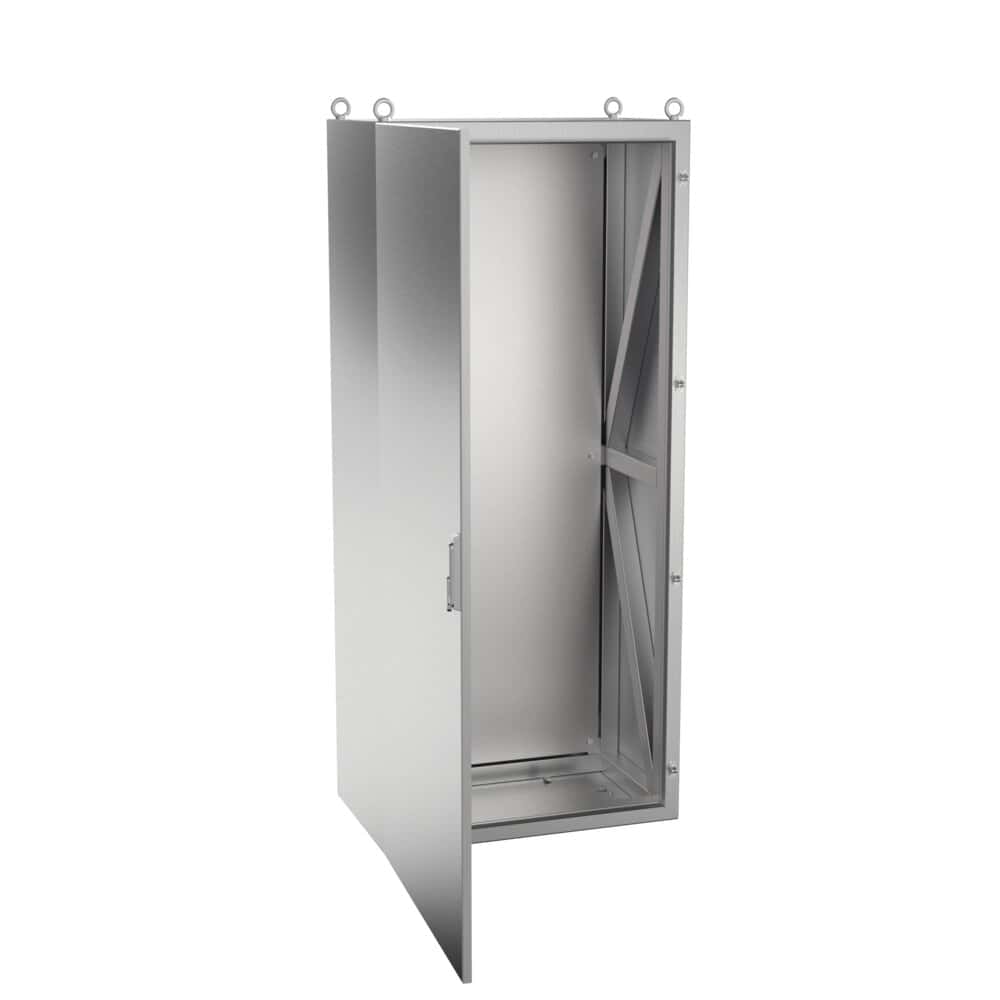

The design with structural reinforcements and special hinges on high resistance doors, allows our reinforced electrical cabinets to resist large weights both on the structure and on the doors, whilst also housing heavy elements inside. prueba

TECHNICAL DATA
Minimum Measurements A=1650-2000mm   B=600-1000mm   P=1540-500mm

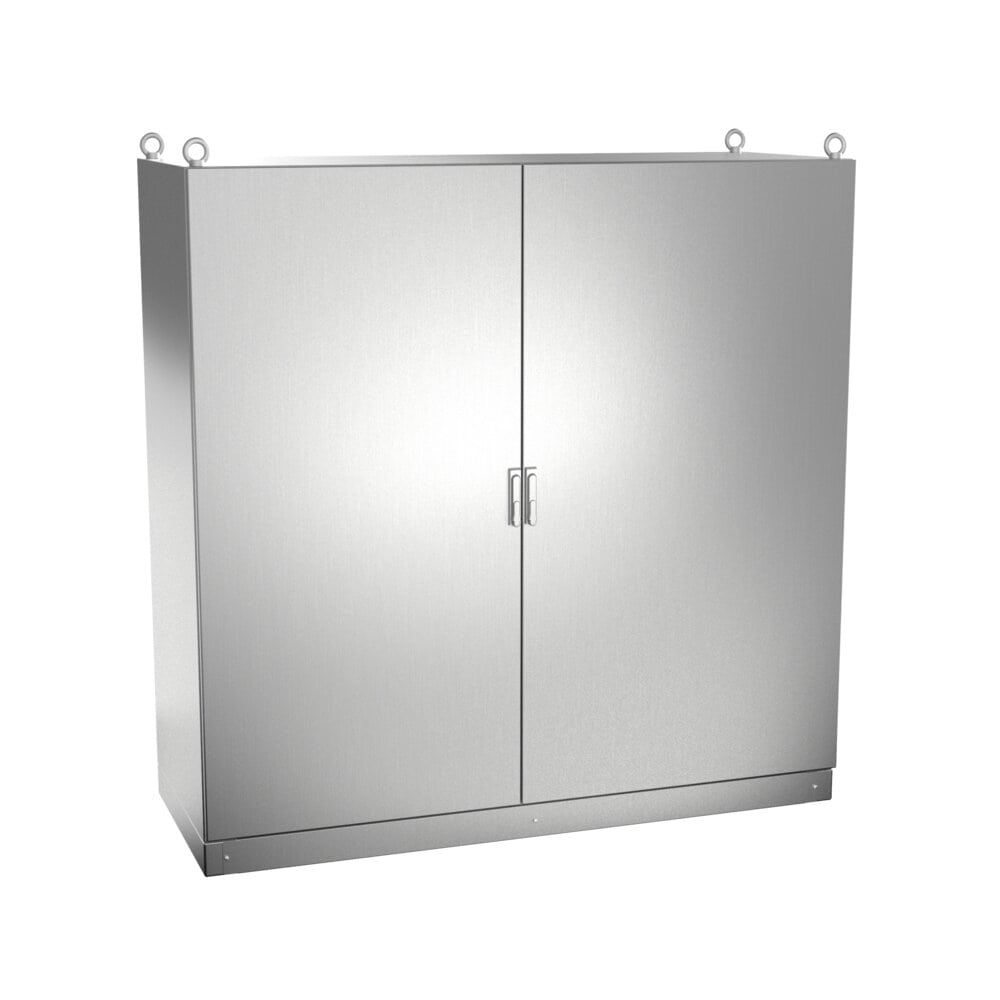

Maximum Double Door Measurements A=2000mm   B=1600mm   P=500mm
Minimum Plate Measurements A=1520-1870mm
Minimum Plate Measurements B=1070-1470mm
Body Thickness 1.5 mm | 15/10 mm
0.059 " | 16 Gauge
Door Opening 120 °
Door Type Blind door
Opening Type Swivel with concealed hinges
Closing System Rotary handle
Useful Depth 375-475 mm
Material AISI 304L/AISI 316L
FinishSatin finish
Plate Material Galvanized
Sealing Gasket Polyurethane
Working Temperature -40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage 1000 V
ALTERNATIVE OPTIONS
Alternative Materials AISI 316L, Galvanized
Alternative Finishes Painted RAL 7035
Interior Plate Material Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets silicone (-60°C to +180°C), EMC
Rack system
Up to IP69K - DIN 40050-9
Made to Measure According to Your Needs
It is recommended to install a baseboard
All Types of Ventilation and Air Conditioning
Manufacturing in Painted Galvanized Steel
In stainless steel AISI 316L EN 14404
EMC Version according to EEC 2014/30/EU Electromagnetic Compatibility Standard
Specially designed for areas subjected to high seismic stress or constant vibrations
Nuclear Power Plants
Petrochemical Sectors
IEEE STD 693
DIN EN/IEC 60068-3-3
Certificado de calificación sísmica para gabinetes
UNE EN 60068-3-3
IEEE-344 Standard Compliance for Delvalle Cabinets
Requirements of the Nuclear Safety Council for Cabinets
