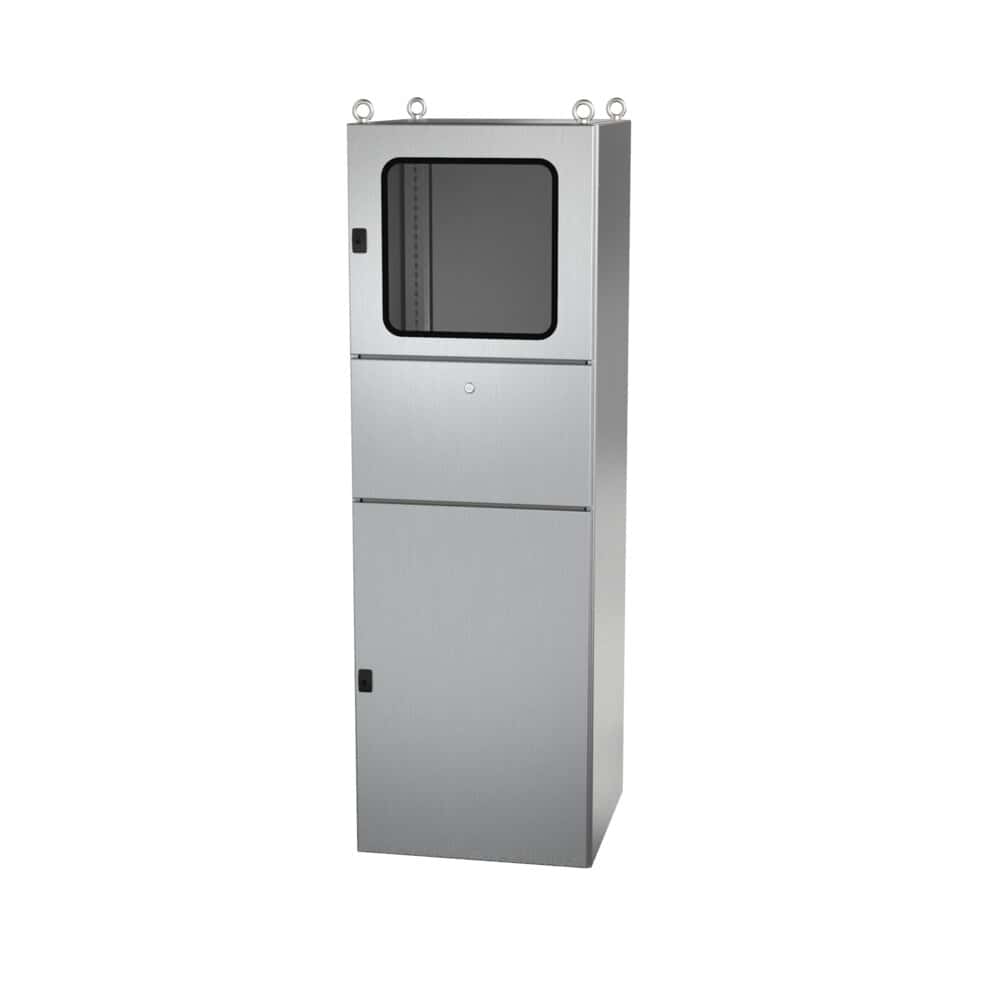

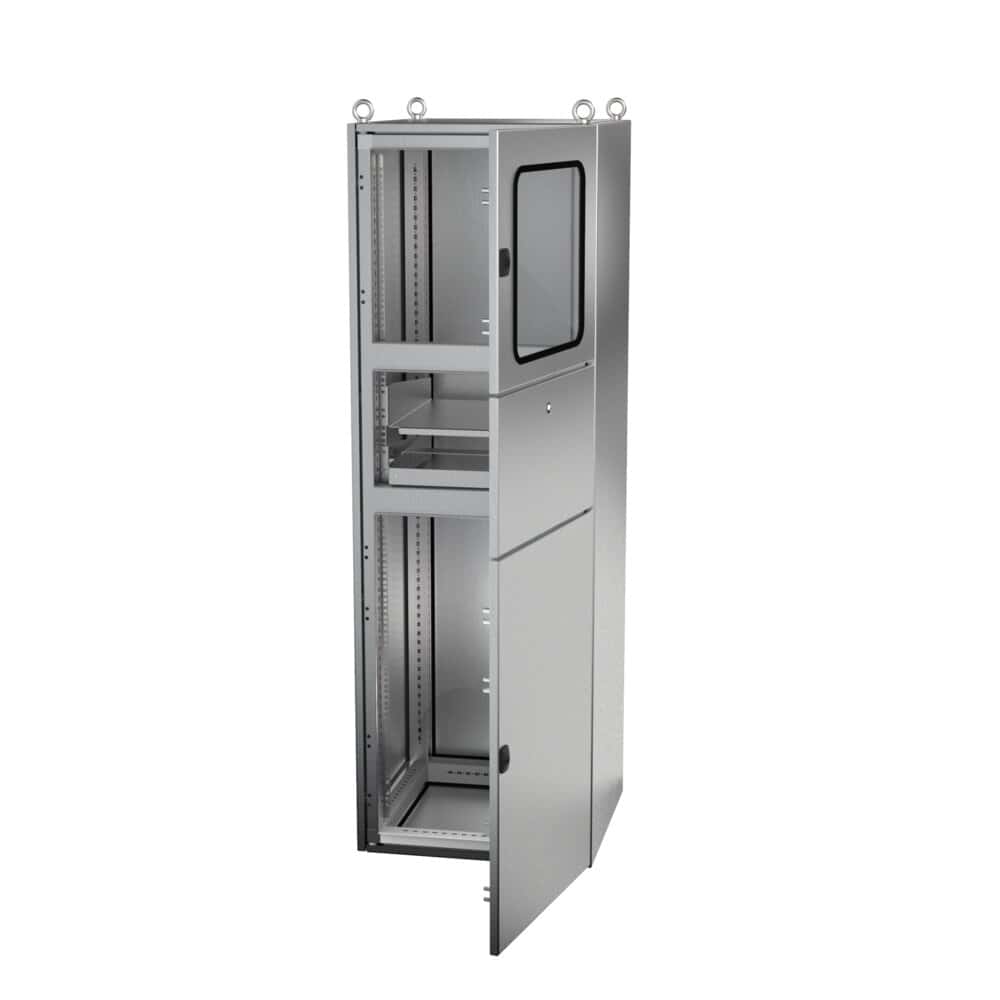

Workstation HMI´s Stainless Steel Computer Enclosure IP65, designed for industrial environments subject to dust, dirt and moisture, manufactured made in stainless steel AISI 304L. Gives protection and storage for equipment used in manufacturing, computers and peripherals, without skimping on design and functionality.
| Minimum Measurements | A=1810-2010mm B=600-600mm P=620-620mm |
|---|---|
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Type | Blind door, Door with polycarbonate panel, Door with safety glass |
| Opening Type | Swivel with concealed hinges |
| Closing System | Double-bit quarter-turn locks |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Sealing Gasket | Polyurethane |
| Alternative Materials | AISI 316L |
|---|---|
| Alternative Door | Blind door, Door with polycarbonate panel, Door with safety glass |
| Interior Plate Material | Insulating mounting plate (Bakelite), Galvanized mounting plate, Stainless steel mounting plate |
|
REFERENCES |
DIMENSIONS (mm) |
||
|
SOLID DOOR (x) |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
|
MVAG186060 |
1810 |
600 |
620 |
|
MVAG206060 |
2010 |
600 |
620 |
|
MVAN656035 |
650 |
600 |
350 |
* PC Workstation HMI Design IP65 Stainless Steel AISI 304L

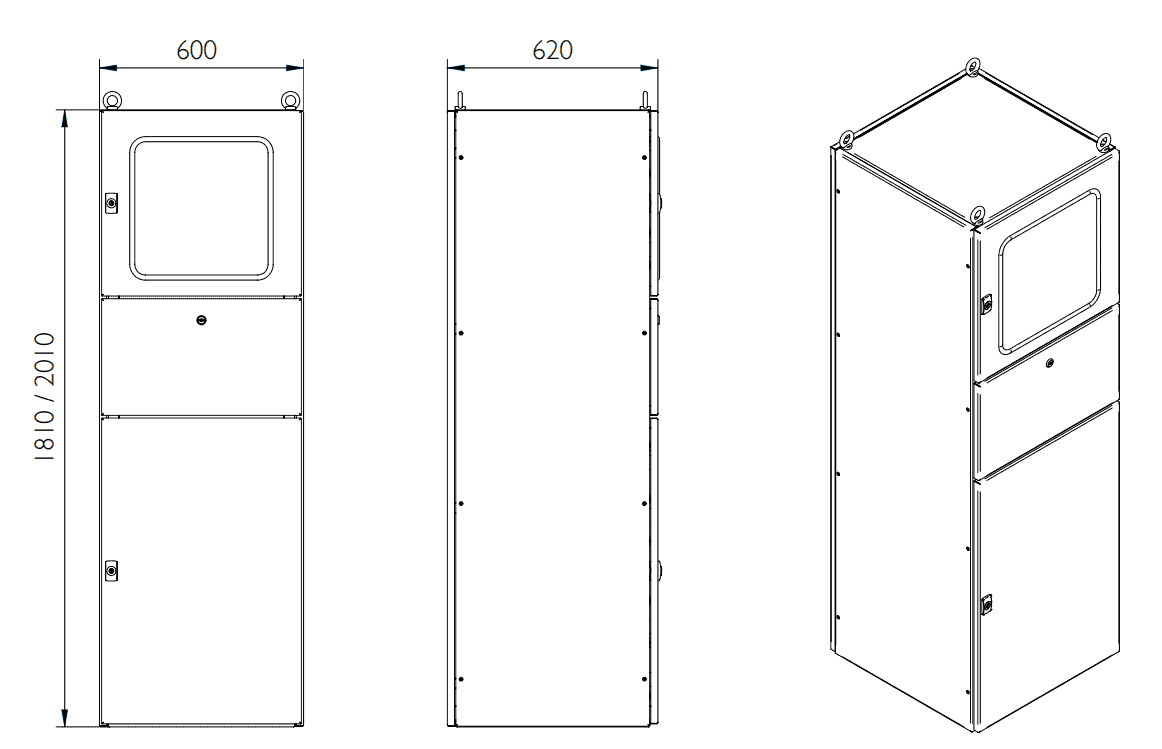

Croquis:
