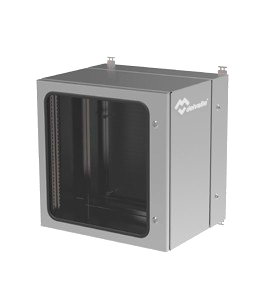

Rack Enclosure Split Body

Divided body stainless steel cabinet painted in RAL 7032 or 7035 with three bodies ideal for electronic components and 19“ rack
Fitted with transparent door (Tempered glass or polycarbonate) with an open front and rear to facilitate the assembly of components.
Standard models available from 3UA to 15UA. Taller and larger cabinet sizes available, thus increasing the number of UAS.
Built in compliance with CE regulations.

Rack Enclosure Split Body · Delvalle Box
Rack Enclosure Split Body · Delvalle Box
Rack Enclosure Split Body · Delvalle Box
Rack Enclosure Split Body · Delvalle Box

This product has the following certificates

  • Logo CE · Delvalle Box
  • Logo IK10 · Delvalle Box
  • Logo IP55 · Delvalle Box
  • Logo UL NEMA 4X · Delvalle Box
  • Logo 10 year anti-corrosion · Delvalle Box
  • Logo 5 year mechanical parts · Delvalle Box
  • Logo Chemical resistant · Delvalle Box
  • Logo Corrosion resistant · Delvalle Box
  • Logo Easy to clean · Delvalle Box
  • Logo Scrach resistant · Delvalle Box
  • Logo Temperature resistant · Delvalle Box
  • Logo Waterproof · Delvalle Box

Description

Divided body stainless steel cabinet painted in Ral 7032 or 7035 with three bodies ideal for electronic components and 19“ rack.
Fitted with transparent door (Tempered glass or polycarbonate) with an open front and rear to facilitate the assembly of components.

Standard models available from 3UA to 15UA. Taller and larger cabinet sizes available, thus increasing the number of UAS. Built in compliance with CE regulations.



Discover the advantages

Customised to your measurements.
Painted in any Ral colour.
Safety glass door.
Manufactured in stainless steel AISI 304 or  316, EN- 14401.
EMC protection joint between the frame and the contact surfaces, ensuring perfect electrical connection. CEE 89/336 standard.

Regulations

  • To IP55 Norm IEC 60529.
  • AISI 316, EN-14401.
  • Normative 2014/30/UE.
  • Fixing of Equipment DIN 41494 and IEC 297 (for 19 ").
  • Fixing of IEC 917 Equipment (for ETSI or Metric 515m / m).
  • Electromagnetic protection IEC TS 61587-3 (optional).
  • Electromagnetic compatibility EMC and RFI (optional).
  • Meets normative IEC 61969 Metal structures for electronic equipment in the open air.

Applications

Use in weather stations
Telecommunications
Telephony
• Optical fiber
Video surveillance,...

Custom Made Solutions
We offer multiple solutions

Rack Enclosure Split Body · Delvalle Box
Do you need solutions?
2021 product catalogues

• Ventilation KIT (Fan, resistance heating and dual thermostat).

Customers also bought:
Filter Fan Stainless Steel  with Casing Prius IP55 · Delvalle BoxDelvalle Box
Built-in filter fan IP55 with special filtering with stainless steel asing, high performance, low...
Rack Enclosure Split Body · Delvalle Box

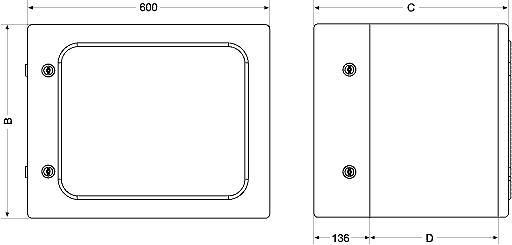

Sketches

Rack Enclosure Split Body · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
MVAE602149Blind door212600490MVAE602149
MVAE603449Blind door345600490MVAE603449
MVAE604749Blind door478600490MVAE604749
MVAE606149Blind door612600490MVAE606149
MVAE607449Blind door746600490MVAE607449
MVAE602139Blind door212600390MVAE602139
MVAE603439Blind door345600390MVAE603439
MVAE604739Blind door478600390MVAE604739
MVAE606139Blind door612600390MVAE606139
MVAE607439Blind door746600390MVAE607439
MVAE602149TPolycarbonate door212600490MVAE602149T
MVAE603449TPolycarbonate door345600490MVAE603449T
MVAE604749TPolycarbonate door478600320MVAE604749T
MVAE606149TPolycarbonate door612600490MVAE606149T
MVAE607449TPolycarbonate door746600490MVAE607449T
MVAE602139TPolycarbonate door212600390MVAE602139T
MVAE603439TPolycarbonate door345600390MVAE603439T
MVAE604739TPolycarbonate door478600390MVAE604739T
MVAE606139TPolycarbonate door612600390MVAE606139T
MVAE607439TPolycarbonate door746600390MVAE607439T
