Support Arm System

COBRA SERIES

Support Arm Systems for the human/machine interface HMI

Control Arm for Operator boxes, both elegant and functional, AISI 304L stainless steel manufactured with strong rotating arm and IP66 protection for placing screens, push buttons, switches, and computers at the foot of the machine.

Designed for Industry 4.0

Get Your Free estimate Today

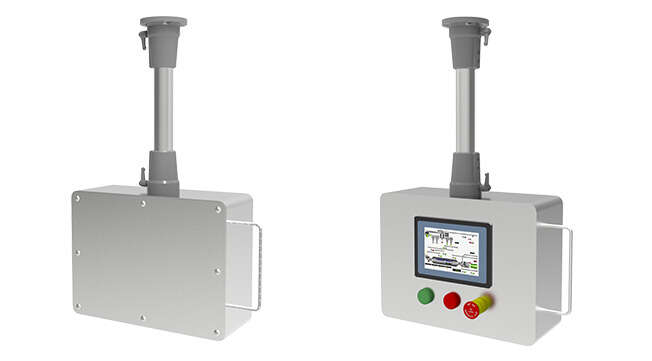

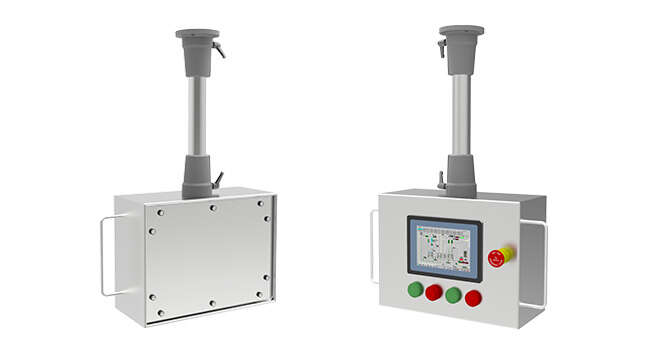

Support Arm System · Delvalle BoxDelvalle Box
Support Arm System · Delvalle BoxDelvalle Box
Support Arm System · Delvalle BoxDelvalle Box
Support Arm System · Delvalle BoxDelvalle Box
Support Arm System · Delvalle BoxDelvalle Box

Description



The control boxes (or operating terminals) combine design with functionality and versatility.
They are used to install screens, pushbuttons, computers and HMI, which are placed at machine-level operation. This way you have a better handling of the machine.
They have a strong stainless steel pipes system, with rotating elements made in cast aluminum (high resistance RAL 9011). They enable the panel to be placed on the position required by the controller.

Control boxes are completely made in A304L stainless steel, with the option of A316L stainless steel AISI 316L for the most demanding areas.

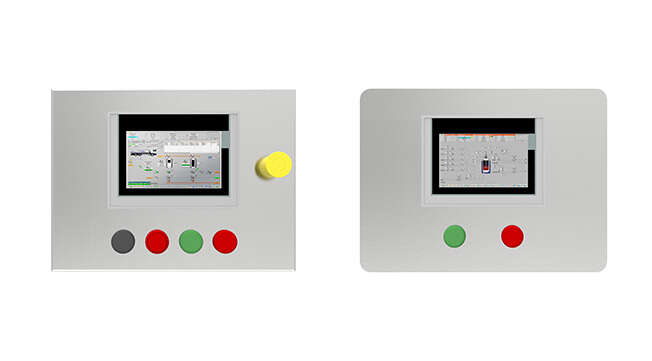

Boxes can be manufactured in two models: square corners (model A) and rounded corners (model B).
Control boxes have an easily removable lid with thickness of 2mm that allows access inside the box.

Achieve all the safety and security you need

  • Logo EMC · Delvalle Box
    EMC
  • Logo IK10 · Delvalle Box
    IK10
  • Logo IP66 · Delvalle Box
    IP66
  • Logo ROHS · Delvalle Box
    ROHS
  • Logo 10 year anti-corrosion · Delvalle Box
    10 year anti-corrosion
  • Logo 5 year mechanical parts · Delvalle Box
    5 year mechanical parts
  • Logo Corrosion resistant · Delvalle Box
    Corrosion resistant
  • Logo Waterproof · Delvalle Box
    Waterproof

Discover the advantages

Easy installation of components on both types (A and B).
Strength, resistance and a long lifespan.
IP66 protection thanks to the injected gasket on the lid.
Option of manufacturing it in A316L stainless steel, to get a higher protection against corrosion.
High mobility thanks to the arm-support system.
Custom-made manufacturing: every size available and the option to make the holes to install the components.

Regulations

  • Up to IP66 (W) according to IEC 60529.
  • IK10 impact resistance according to IEC 62262.
  • Manufactured according to directive 2014/35/UE.
  • Manufactured according to RoHS standard.

Applications

Control boxes are designed to install screens, HMI, pushbuttons, and any element needed for an easier handling of the machine. They are placed at machine-level operation thanks to the arm-support system.
Easy handling of machines for the food, pharma and packaging industries.

Custom Made Solutions
We offer multiple solutions

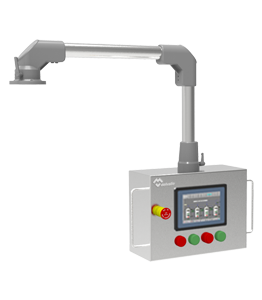

Support Arm System · Delvalle Box
Do you need solutions?
2020 product catalogues
  • Manufacturing in A316L stainless steel (EN 1.4404).
  • Up to IP69K -DIN 40050-9.
  • Two models: square corners and rounded corners.
  • Blind lid, transparent lid (polycarbonate) or transparent lid (tempered glass).
  • Supports for an easy movement of the box.

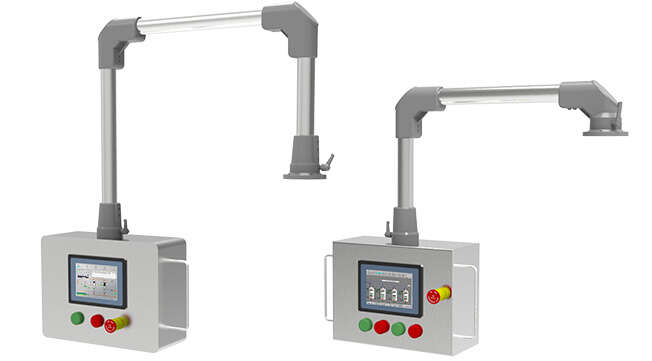

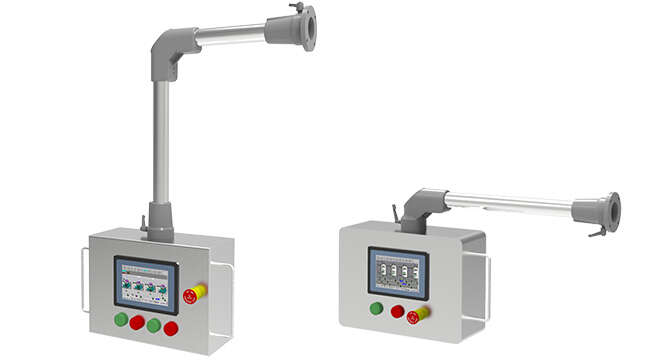

  • Arm-support system: straight arm, L-shaped, U-shaped and Z-shaped.
  • Option of manufacturing the box on a stainless steel pedestal.
  • Option of locks: frontal locks or side locks (only available in the square-corner type, model A).
  • EMC version according to 2014/30/UE of electromagnetic compatibility.
Customers also bought:
Locks · Delvalle BoxDelvalle Box
Depending on the enclosure and its use, we look for the best closure suited to the customer’s...
Assembly Frame · Delvalle BoxDelvalle Box
Chassis modular cabinets. Used to divide the front of the cabinets into several sections for quick...
Thermal Insulation for Electrical Panels TermoTisa · Delvalle Box
Delvalle I+D deparment has specially designed the insulating TermoTisa X100, in 15mm polyurethane...
Cable Entry Cover · Delvalle BoxDelvalle Box
Ideal accessory supplement, removable to make holes comfortably to suit your needs, and fitted so...
Clear Glass Door · Delvalle BoxDelvalle Box
All our cabinets are available with transparent exterior and interior doors for perfect vision of...

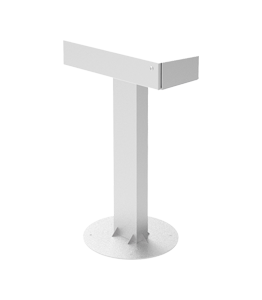

Pedestal Stands · Delvalle BoxDelvalle Box
