Stainless Steel Instrument Enclosures

Rambo Series

Stainless Steel Instrument Enclosures Rambo series is a specifically designed for “High Integrity Pressure Protection System” applications and “Safety Instrumented System”.

 Is a two-part instrument Enclosure with a diagonal opening, providing very easy access to field equipment for maintenance.

The engineering department of Delvalle is constructing and engineering solutions based upon customer specification.

The main function of the Modular Manifold is to permanently ensure the continuity of information between the process fluid and the pressure sensors.

Opened · Delvalle BoxDelvalle Box
Valvebox · Delvalle BoxDelvalle Box

This product has the following certificates

  • Logo CE · Delvalle Box
  • Logo IK10 · Delvalle Box
  • Logo IP66 · Delvalle Box
  • Logo ROHS · Delvalle Box
  • Logo 10 year anti-corrosion · Delvalle Box
  • Logo 5 year mechanical parts · Delvalle Box
  • Logo Anti grafiti option · Delvalle Box
  • Logo Chemical resistant · Delvalle Box
  • Logo Corrosion resistant · Delvalle Box
  • Logo Easy to clean · Delvalle Box
  • Logo Scrach resistant · Delvalle Box
  • Logo Temperature resistant · Delvalle Box
  • Logo Waterproof · Delvalle Box

Description

Stainless Steel Instrument Enclosures Rambo series is a specifically designed for “High Integrity Pressure Protection System” applications and “Safety Instrumented System”.

The engineering department of Delvalle is constructing and engineering solutions based upon customer specification.

The main function of the Modular Manifold is to permanently ensure the continuity of information between the process fluid and the pressure sensors.

 Is a two-part enclosure with a diagonal opening, providing very easy access to field equipment for maintenance.

Tube entry is typically made via the rear or the base. There are three sizes, each of which may be installed vertically or horizontally.

When vertically mounted, sizes range from 87 to 190 liters / 3.3 ft³ to 6.6 ft. ³.

Including diverse branches of connectors, cable-glands, terminal junction boxes, heaters, thermostats, etc.

Discover the advantages

Cost reduction for the construction of a high-pressure installation.
Protection of the line from overpressure.
Reduction of pollutant emissions into the atmosphere due to high-pressure lines.
Until IP66. Protected from dust that may harm equipment. Protection against low pressure water jets.
10 years anticorrosive guarantee and 5 years mechanical parts guarantee.

Regulations

  • IP66 Norm IEC EN 62208 and EN 60529
  • Maximum IK10 resistance Norm IEC62208 and IEC 62262.
  • Manufactured following EU low voltage ruling 2014/35/UE
  • Materials intended to come into contact with food EC 1935/2004
  • Reaction to fire tests – ignitability of products subjected to direct impingement of flame. UNE EN ISO 11925-2:2011
  • Reaction to fire tests for building products, exposed to the thermal attack by a single burning item UNE-EN 13823;2012
  • UV protection.
  • RoHs Compliant.

Applications

Protect both the manifold itself and the control instrumentation connected to it, specifically in dust and harsh environments, outdoor climate condition (i.e. tropical, freezing, marine areas etc.).

  • Pressure instruments isolation for HPPS systems
  • Safety instrumented System
  • Instruments Enclosures

Custom Made Solutions
We offer multiple solutions

Stainless Steel Instrument Enclosures · Delvalle Box
Do you need solutions?
2020 product catalogues
  • Cost reduction for the construction of a high-pressure installation.
  • Protection of the line from overpressure.
  • Reduction of pollutant emissions into the atmosphere due to high-pressure lines.
  • Until IP66. Protected from dust that may harm equipment. Protection against low pressure water jets.
  • 10 years anticorrosive guarantee and 5 years mechanical parts guarantee.
Stainless Steel Instrument Enclosures · Delvalle Box

Sketches

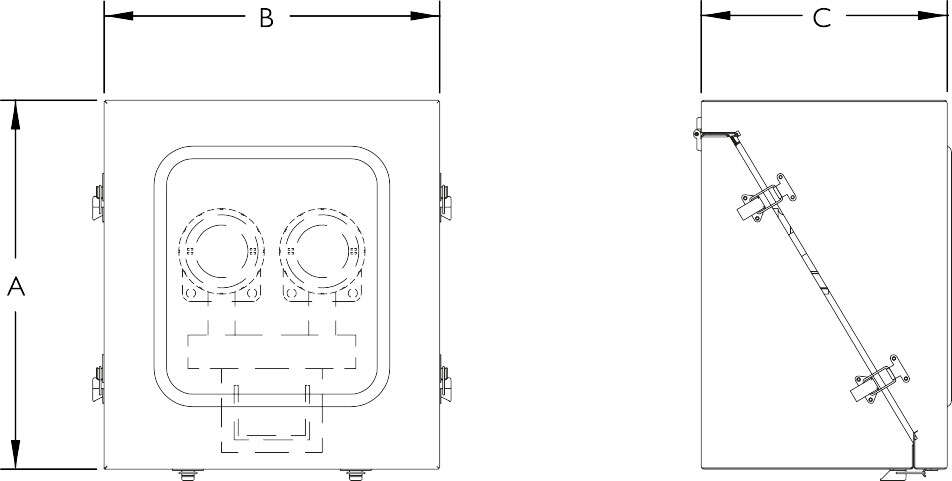

Drawing Valvebox · Delvalle Box
Valvebox References · Delvalle Box
