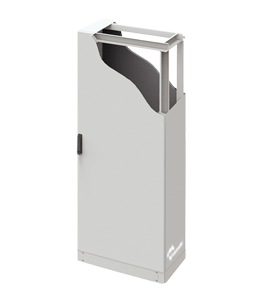

Stainless Steel Seismic Electrical Enclosure

Seismic enclosure, earthquake resistant, single or double door, manufactured in stainless steel, AISI 304L En 1.4306 or AISI 316L finely polished, to IP55 to IP66. Seismic rack enclosure option. The use of seismic rated enclosures delvalle is called for in areas where earthquake activity is possible. In addition, power plants, railroads, airports, and other critical installations...

Stainless Steel Seismic Electrical Enclosure · Delvalle BoxDelvalle Box
Stainless Steel Seismic Electrical Enclosure · Delvalle BoxDelvalle Box
Stainless Steel Seismic Electrical Enclosure · Delvalle BoxDelvalle Box

Description

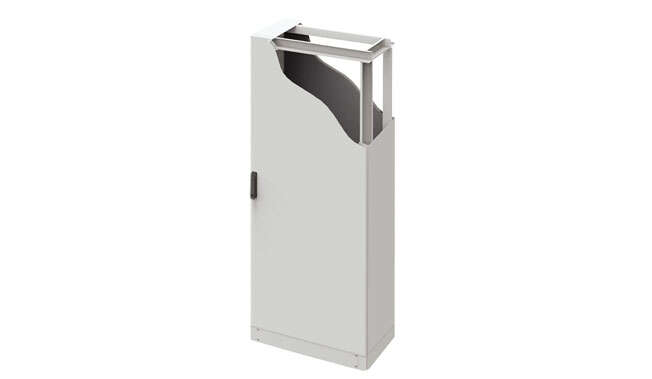

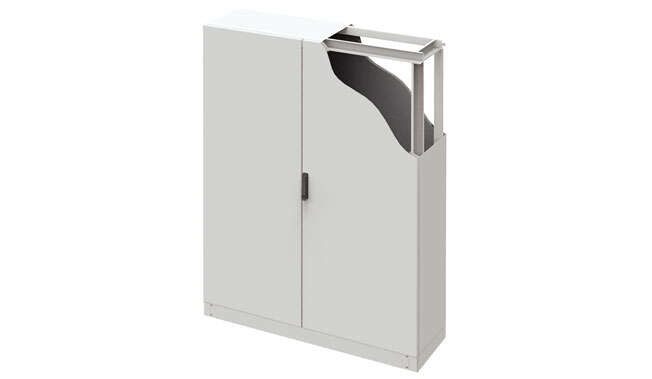

Seismic enclosure reinforced cabinet, single or double door, manufactured in stainless steel, AISI 304L - EN 1.4306, finely polished, to IP55 or IP66.
The design with structural reinforcements,  earthquake resistant, and special hinges on high resistance doors, allows our reinforced electrical cabinets to resist large weights both on the structure and on the doors, whilst also housing heavy elements inside.
The Seismic enclosures & cabinets have been vigorously tested and have withstood tests for the strongest seismic activity, offering the customer high level protection in areas where seismic activity is a possibility.
With vandal proof stainless steel lever lock. The seismic cabinet is provided with exterior plastic protection which prevents scratches when handling and positioning the automats inside the cabinet. This cover can be easily removed at the customer’s premises.

Seismic enclosure, earthquake resistant, single or double door, manufactured in stainless steel, AISI 304L En 1.4306, or AISI 316L finely polished, to IP55 to IP66.

Seismic rack enclosure option. The use of seismic rated enclosures delvalle is called for in areas where earthquake activity is possible.

In addition, power plants, railroads, airports, and other critical installations use rack mounted electrical and electronic equipment that is subjected to vibration and other motions that can over-stress equipment framework, components, and connections. Adequate frame strength and rigidity should be part of your plans when choosing seismic enclosures to be used in these conditions.

Achieve all the safety and security you need

  • Logo CE · Delvalle Box
    CE
  • Logo EMC · Delvalle Box
    EMC
  • Logo IK10 · Delvalle Box
    IK10
  • Logo IP55 · Delvalle Box
    IP55
  • Logo IP66 · Delvalle Box
    IP66
  • Logo ROHS · Delvalle Box
    ROHS
  • Logo UL NEMA 4X · Delvalle Box
    UL NEMA 4X
  • Logo 10 year anti-corrosion · Delvalle Box
    10 year anti-corrosion
  • Logo 5 year mechanical parts · Delvalle Box
    5 year mechanical parts
  • Logo Chemical resistant · Delvalle Box
    Chemical resistant
  • Logo Corrosion resistant · Delvalle Box
    Corrosion resistant
  • Logo Easy to clean · Delvalle Box
    Easy to clean
  • Logo Scrach resistant · Delvalle Box
    Scrach resistant
  • Logo Temperature resistant · Delvalle Box
    Temperature resistant
  • Logo Waterproof · Delvalle Box
    Waterproof

Discover the advantages

Broad assembly area with great accessibility.
Great strength as a whole.
Door opens to 120°.
Standard size with vandalproof duraluminium lock.
120º standard door opening to the left specify for a right side opening.
Perfect sealing thanks to gaskets used in the joints.
Great versatility, so it can be applied to almost any field.
Delvalle supplies any measurements required including custom built holes and cut outs both for the door and enclosure.
Distributed load 1000 kg.

Regulations

IP66 (W) Norm IEC EN 60529.
• Maximum IK10 resistance Norm IEC 62262.
• Our electrical panels are built to CE standards 2014/35/UE.
• Seismic qualification specification certificates 8484-CE-005-E.
• Norm UNE EN 60068-3-3 Environment at and seismic testing methods.
• Norm IEEE-344, Institute of American electrical and electronic Engineers.
• RoHs compliant.
UL approval Nema 4x, 12, 3r, 1. NºFile E342220.
• Maximum voltage 1000 V.
• Temperature resistant: -40°C +100°C (short time +160°C).
• Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Applications

Specially designed for areas subject to constant vibration or high seismic stress.

Custom Made Solutions
We offer multiple solutions

Stainless Steel Seismic Electrical Enclosure · Delvalle Box
Do you need solutions?
2020 product catalogues
  • Earthquake-resistant design, seismic testing under standar UNE EN 60068-3-3.
  • Up to IP69K -DIN 40050-9.
  • Special individual solutions.
  • More resistance tanks to structural
  • reinforcement for maximum durability.
  • Stainless steel AISI 316L.
  • Painted steel.
  • Broad assembly area with great accessibility.
  • Great strength as a whole.
  • Standard with toggle clasp made ​​of stainless steel.
Customize this product with the following components:
Stainless Steel Wall Enclosure Luxor IP66 · Delvalle BoxDelvalle Box
Electrical enclosures Luxor Series with improved design and materials used robust, easy to open,...
Stainless Steel Free-Standing Enclosure Tribeca IP66 · Delvalle BoxDelvalle Box
Tribeca compact enclosure Tribeca IP66 with improved design, robust, easy opening by rotating handle...
Modular Stainless Steel Enclosure Titan IP66 · Delvalle BoxDelvalle Box
Modular stainless steel enclosure Titan Series, stylish and corrosion resistant, completely...
Seismic Electrical Enclosure IP66 · Delvalle BoxDelvalle Box
Seismic enclosure, earthquake resistant, single or double door, manufactured in stainless steel,...
Stainless Steel Seismic Electrical Enclosure · Delvalle Box

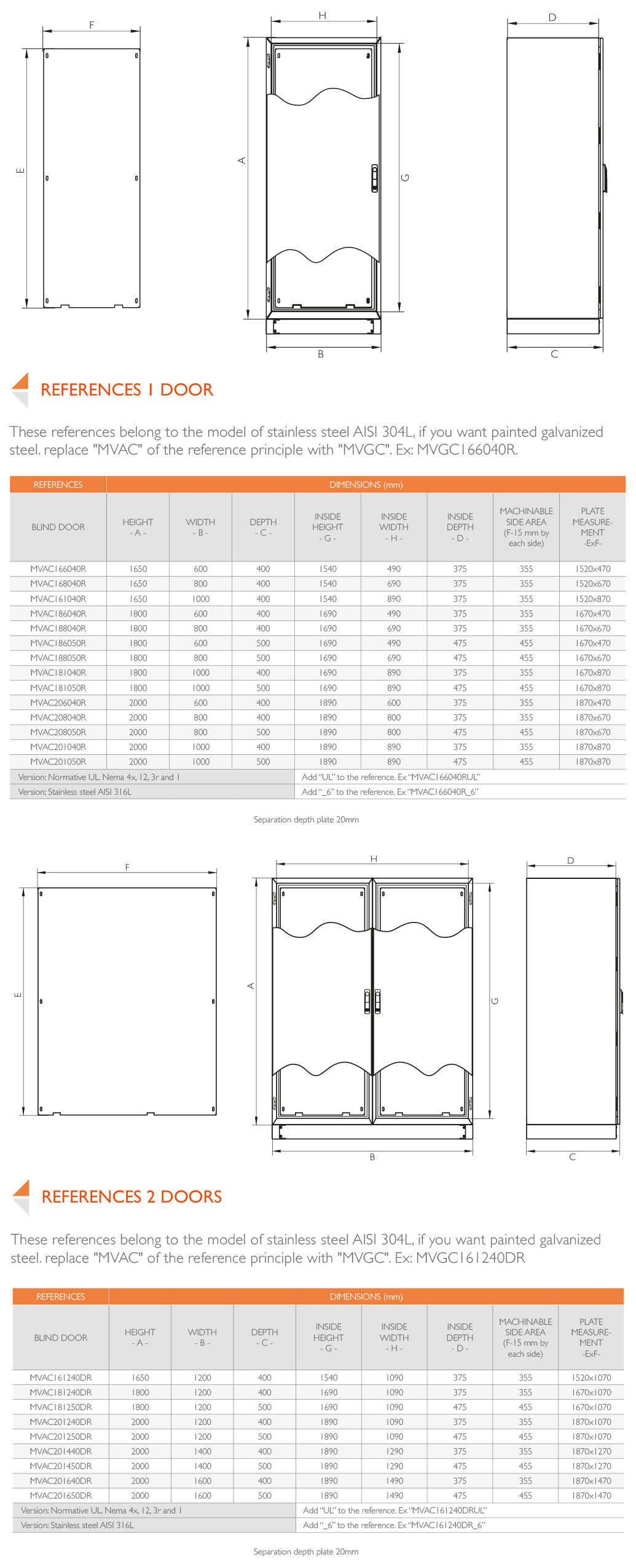

Sketches
