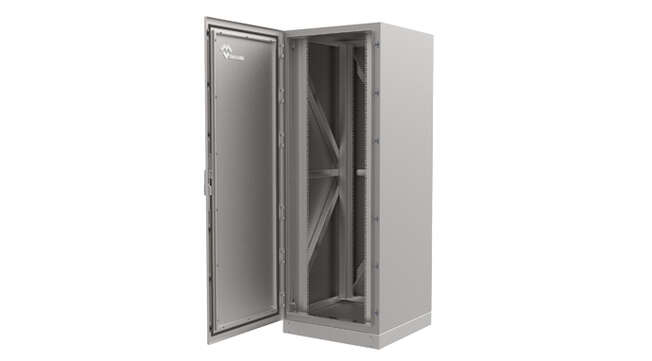

Stainless Steel Seismic Electrical Enclosure IP66

Seismic enclosure, earthquake resistant, single or double door, manufactured in stainless steel, AISI 304L En 1.4306, or AISI 316L finely polished, to IP55 to IP66.

Seismic rack enclosure option.

The use of seismic rated enclosures delvalle is called for in areas where earthquake activity is possible.
In addition, power plants, railroads, airports, and other critical installations...

Stainless Steel Seismic Electrical Enclosure IP66 · Delvalle Box
Stainless Steel Seismic Electrical Enclosure IP66 · Delvalle Box

Description

Seismic enclosure Reinforced Cabinet, single or double door, manufactured in stainless steel, AISI 304L En 1.4306, finely polished, to IP55 or IP66.

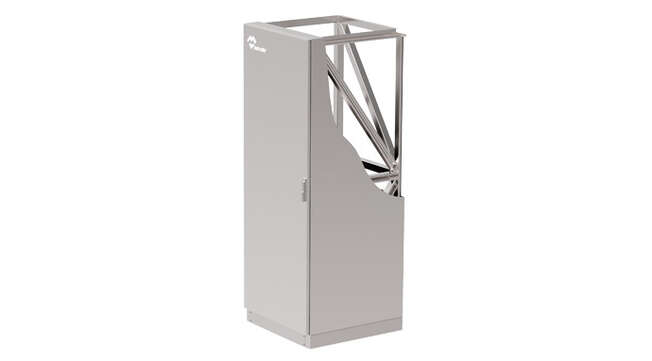

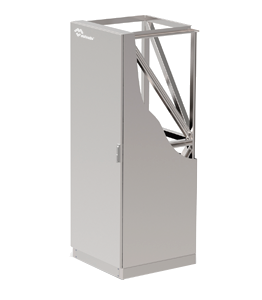

The design with structural reinforcements,  earthquake resistant, and special hinges on high resistance doors, allows our reinforced electrical cabinets to resist large weights both on the structure and on the doors, whilst also housing heavy elements inside.
The Seismic enclosures & cabinets have been vigorously tested and have withstood tests for the strongest seismic activity, offering the customer high level protection in areas where seismic activity is a possibility.
With vandal proof stainless steel lever lock. The seismic cabinet is provided with exterior plastic protection which prevents scratches when handling and positioning the automats inside the cabinet. This cover can be easily removed at the customer’s premises.

Seismic enclosure, earthquake resistant, single or double door, manufactured in stainless steel, AISI 304L En 1.4306, or AISI 316L finely polished, to IP55 to IP66.

Seismic rack enclosure option. The use of seismic rated enclosures delvalle is called for in areas where earthquake activity is possible.

In addition, power plants, railroads, airports, and other critical installations use rack mounted electrical and electronic equipment that is subjected to vibration and other motions that can over-stress equipment framework, components, and connections. Adequate frame strength and rigidity should be part of your plans when choosing seismic enclosures to be used in these conditions.

Achieve all the safety and security you need

  • Logo CE · Delvalle Box
    CE
  • Logo EMC · Delvalle Box
    EMC
  • Logo IK10 · Delvalle Box
    IK10
  • Logo IP55 · Delvalle Box
    IP55
  • Logo IP66 · Delvalle Box
    IP66
  • Logo ROHS · Delvalle Box
    ROHS
  • Logo UL NEMA 4X · Delvalle Box
    UL NEMA 4X
  • Logo 10 year anti-corrosion · Delvalle Box
    10 year anti-corrosion
  • Logo 5 year mechanical parts · Delvalle Box
    5 year mechanical parts
  • Logo Chemical resistant · Delvalle Box
    Chemical resistant
  • Logo Corrosion resistant · Delvalle Box
    Corrosion resistant
  • Logo Easy to clean · Delvalle Box
    Easy to clean
  • Logo Scrach resistant · Delvalle Box
    Scrach resistant
  • Logo Temperature resistant · Delvalle Box
    Temperature resistant
  • Logo Waterproof · Delvalle Box
    Waterproof

Discover the advantages

Broad assembly area with great accessibility.
Great strength as a whole.
Door opens to 120°.
Standard size with vandalproof duraluminium lock.
120º standard door opening to the left specify for a right side opening.
Perfect sealing thanks to gaskets used in the joints.
Great versatility, so it can be applied to almost any field.
Delvalle supplies any measurements required including custom built holes and cut outs both for the door and enclosure.
Distributed load 1000 kg.

Regulations

IP55 Norm IEC EN 60529.
• Maximum IK10 resistance Norm IEC 62262.
• Our electrical panels are built to CE standards 2006/95/CE.
• Seismic qualification specification certificates 8484-CE-005-E.
• Norm UNE EN 60068-3-3 Environment at and seismic testing methods.
• Norm IEEE-344, Institute of American electrical and electronic Engineers.
• RoHs compliant.
UL approval Nema 4x, 12, 3r, 1. NºFile E342220.
• Maximum voltage 1000 V.
Temperature resistant: -40°C +100°C (short time +160°C).
Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Applications

Specially designed for areas subject to constant vibration or high seismic stress.

Custom Made Solutions
We offer multiple solutions

Stainless Steel Seismic Electrical Enclosure IP66 · Delvalle Box
Do you need solutions?
2017 product catalogues



• Custom made based on your needs.
• Plinths at base.
• All types of ventilation and climate control.
Cable entry cover at base.
• Metal legs or wheels.
• Transparent polycarbonate or tempered glass door.
• Manufactured in stainless steel AISI 316L. EN 14404.
• Mounting plate insulator (Bakelite) or stainless steel.
EMC version according to EEC 89/336 of electromagnetic compatibility.

Customize this product with the following components:
Lighting for Electrical Enclosures · Delvalle BoxDelvalle Box
Delvalle compact luminaires are specially designed for use in electrical cabinets. We have low...
Security lock · Delvalle BoxDelvalle Box
Security lock for placement it in electrical cabinets.
Locks · Delvalle BoxDelvalle Box
Depending on the enclosure and its use, we look for the best closure suited to the customer’s...
Assembly Frame · Delvalle BoxDelvalle Box
Chassis modular cabinets. Used to divide the front of the cabinets into several sections for quick...
Thermal Insulation Enclosures TermoTisa · Delvalle BoxDelvalle Box
The thermal insulation Termotisa is ideal when it is necessary thermal insulate in...
Cable Entry Cover · Delvalle BoxDelvalle Box
Ideal accessory supplement, removable to make holes comfortably to suit your needs, and fitted so...
Clear Glass Door · Delvalle BoxDelvalle Box
All our cabinets are available with transparent exterior and interior doors for perfect vision of...
Roofs for Outdoor · Delvalle BoxDelvalle Box
In Delvalle we offer the possibility to ask for self-ventilated roofs....
Mounting Plates · Delvalle BoxDelvalle Box
Different mounting plates for multiple uses in electrical cabinets Delvalle.
Levelling Feet and Wheels · Delvalle BoxDelvalle Box
For enclosures that need to be leveled or have to be moved regularly.
Support Rails · Delvalle BoxDelvalle Box
Support rails used to incorporate cabinets with scroll ball.
Data Pocket · Delvalle BoxDelvalle Box
Useful to keep electrical drawings, maintenance records, etc.....
Sockets · Delvalle BoxDelvalle Box
Stainless steel plinthbase 100 and 200 mm high. Allows cabinet to be raised and get extra ...
Transportation Angle · Delvalle BoxDelvalle Box
The transportation angles add strength in handling loading and unloading of the cabinets.
Switchboard Graffiti-Proof Paint · Delvalle BoxDelvalle Box
In Delvalle all cabinets may suminstrarse with a protective transparent anti-graffiti paint and...
Anti-Insect System · Delvalle BoxDelvalle Box
We know the problem for the placement of cooling systems posed by the entry of insects inside the...
Perforated Mounting Plate · Delvalle BoxDelvalle Box
Perforated plates for quick installation of electrical components.
Ventilation Plugs IP68 · Delvalle BoxDelvalle Box
Ventilation plugs (polyamide, nickel plated and stainless steel) reduce the adverse effects of...
Shock Absorbers for Electrical Enclosures · Delvalle BoxDelvalle Box
With the shock absorbers we get a better grip on the doors, and we define the opening angle of the...
Separating Plate · Delvalle BoxDelvalle Box
Fixed directly to the cabinet structure, to get separation as well as being a shelf for objects.
Pivot Frame · Delvalle BoxDelvalle Box
The ideal solution for the placement of all instrumentation, with easy and comfortable access from...
Ventilation Brackets · Delvalle BoxDelvalle Box
Placed both in the front enclosure and on the side, allowing a perfect flow of air inside.
Eyebolt · Delvalle BoxDelvalle Box
Galvanized in sizes M12 to M20....
DIN tray · Delvalle BoxDelvalle Box
Directly fixed to the structure. Galvanized 1.5 mm thick steel. Dimensions: 35mm by 7.5 or 5mm.
Safety Lock · Delvalle BoxDelvalle Box
Typically used in enclosures with temporary changes of user. You can also use the padlock seal,...
Set With Inner Door · Delvalle BoxDelvalle Box
Interior door designed for direct placement in the enclosure.
Open Door Security Device · Delvalle BoxDelvalle Box
This device prevents accidents, alerts the operator that the electrical system is functioning...
Designs / Doors · Delvalle BoxDelvalle Box
The possibility of placing a double door in the cabinet is given to meet the customer’s need to...
Limit Switches for Electrical Enclousure · Delvalle BoxDelvalle Box
Limit switches provided with support and fixings for direct fixing....
Reinforcing Frame · Delvalle BoxDelvalle Box
Using a reinforced frame in our enclosure gives us more confidence and consistency, especially in...
Sliding Cable Covers · Delvalle BoxDelvalle Box
These caps allow cable entry between them.
Plate Support · Delvalle BoxDelvalle Box
The plate support helps in the weight distribution, as well as being a good anchor and can be...
Cross Cable Guide · Delvalle BoxDelvalle Box
With this guide inside the door we get a perfectly ordered wiring. Ideal for the passage of...
Protection Frame Window · Delvalle BoxDelvalle Box
It is used to provide maximum viewing capacity of the indication elements and protection of the...
Outdoor air conditioner Electrical Enclosures · Delvalle Box
The largest range of IP54 air conditioners electrical enclosures refrigerators in the market,...
Roof fan · Delvalle BoxDelvalle Box
Roof Fan, specially designed for extracting heat from the top of the cabinet, for achieving...
Thermostats and Thermo-Hygrostats · Delvalle BoxDelvalle Box
Thermostats and Hygrostats for small siza racks and cabinets, dual function, heat, cold, etc... All...
Waterproof Seal · Delvalle BoxDelvalle Box
Injected waterproof seal UL, TÜV, CE certified. ...
Stainless Steel Seismic Electrical Enclosure IP66 · Delvalle Box

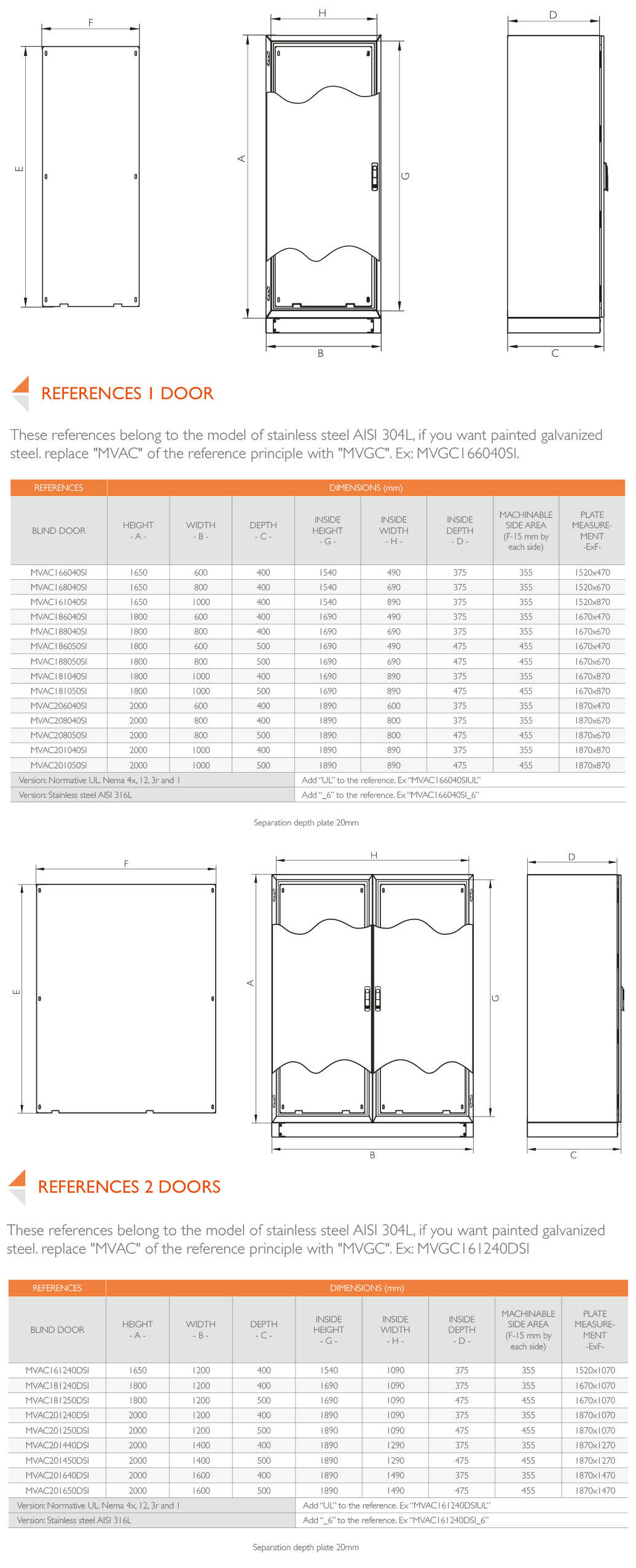

Sketches

Stainless Steel Seismic Electrical Enclosure IP66 · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
MVAC166040RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO1650600400MVAC166040R
MVAC168040RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO1650800400MVAC168040R
MVAC161040RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO16501000400MVAC161040R
MVAC161240RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO16501200400MVAC161240R
MVAC186040RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO1800600400MVAC186040R
MVAC188040RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO1800800400MVAC188040R
MVAC188050RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO1800800500MVAC188050R
MVAC181040RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO18001000400MVAC181040R
MVAC181050RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO18001000500MVAC181050R
MVAC181240RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO18001200400MVAC181240R
MVAC181250RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO18001200500MVAC181250R
MVAC206040RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO2000600400MVAC206040R
MVAC208040RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO2000800400MVAC208040R
MVAC208050RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO2000800500MVAC208050R
MVAC201040RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO20001000400MVAC201040R
MVAC201050RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO20001000500MVAC201050R
MVAC201240RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO20001200400MVAC201240R
MVAC201250RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO20001200500MVAC201250R
MVAC201440RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO20001400400MVAC201440R
MVAC201450RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO20001400500MVAC201450R
MVAC201640RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO20001600400MVAC201640R
MVAC201650RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO20001600500MVAC201650R
MVACT166040RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO1650600400MVACT166040R
MVACT168040RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO1650800400MVACT168040R
MVACT161040RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO16501000400MVACT161040R
MVACT161240RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO16501200400MVACT161240R
MVACT186040RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO1800600400MVACT186040R
MVACT188040RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO1800800400MVACT188040R
MVACT188050RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO1800800500MVACT188050R
MVACT181040RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO18001000400MVACT181040R
MVACT181050RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO18001000500MVACT181050R
MVACT181240RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO18001200400MVACT181240R
MVACT181250RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO18001200500MVACT181250R
MVACT206040RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO2000600400MVACT206040R
MVACT208040RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO2000800400MVACT208040R
MVACT208050RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO2000800500MVACT208050R
MVACT201040RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO20001000400MVACT201040R
MVACT201050RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO20001000500MVACT201050R
MVACT201240RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO20001200400MVACT201240R
MVACT201250RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO20001200500MVACT201250R
MVACT201440RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO20001400400MVACT201440R
MVACT201450RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO20001400500MVACT201450R
MVACT201640RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO20001600400MVACT201640R
MVACT201650RARMARIO ELECTRICO INOXIDABLE COMPACTO IP65 SERIE TRIBECA REFORZADO PUERTA POLICARBONATO20001600500MVACT201650R
New Metro Line in Guadalajara (Mexico) · Delvalle Box
The construction of line 3 of Guadalajara subway (Mexico) has began. This is one of the most...
New port of Doha · Delvalle Box
Delvalle are suppliers to the firms making this new port on Doha, capital of Qatar....
Autopista C-16 · Delvalle Box
At Delvalle we are suppliers of outdoor electrical cabinets for protecting the C-16 data...
AVE MONFORTE DEL CID – MURCIA · Delvalle Box
We are the supplier of the electrical cabinets for the high speed rail line between Monforte and...
DANONE YOGURT FACTORY IN EEUU OHIO · Delvalle Box
We supply stainless steel enclosures hygienic design series this factory, one of the highest north...
Wikinger, The largest Deep sea offshore windfarm · Delvalle Box
At Delvalle we have customized a solution to guarantee the sealing and maximum resistance in such a...
Nuclear Power Stations · Delvalle Box
Delvalle is very conscious to any possible risks that may have nuclear power.
ENLARGEMENT OF THE PORT OF BARCELONA · Delvalle Box
A special and different port. Commercial, citizen, energy and logistical use.
Oran Tamway (Algeria) · Delvalle Box
We supplied cabinets meeting the demanding French specifications.
Ferrovial tunnel under the Marmara Sea · Delvalle Box
Delvalle built custom cabinets that passed an electromagnetic tests.
AVE Madrid-Valencia · Delvalle Box
Electrical cabinets for transmission of a multitude of data to the main data centre.
The Panama Channel Expansion Project · Delvalle Box
Manufacture and installation of watertight and hurricanes resistant IP67 nema 4x enclosures....
Kuwait desalination plant · Delvalle Box
Special cabinets to support the special characteristics of this harsh desert area.
