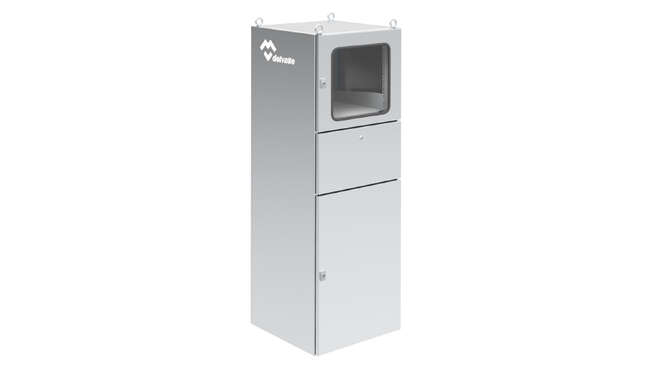

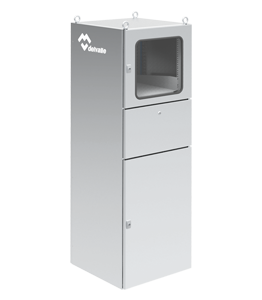

Workstation HMI´s Stainless Steel Computer Enclosure IP65

Workstation HMI´s Stainless Steel Computer Enclosure IP65, designed for industrial environments subject to dust, dirt and moisture, manufactured made in stainless steel AISI 304L. Gives protection and storage for equipment used in manufacturing, computers and peripherals, without skimping on design and functionality.

Workstation HMI´s Stainless Steel Computer Enclosure IP65 · Delvalle BoxDelvalle Box
Workstation HMI´s Stainless Steel Computer Enclosure IP65 · Delvalle BoxDelvalle Box

This product has the following certificates

  • Logo CE · Delvalle Box
  • Logo IK10 · Delvalle Box
  • Logo IP55 · Delvalle Box
  • Logo ROHS · Delvalle Box
  • Logo 10 year anti-corrosion · Delvalle Box
  • Logo 5 year mechanical parts · Delvalle Box
  • Logo Anti grafiti option · Delvalle Box
  • Logo Chemical resistant · Delvalle Box
  • Logo Corrosion resistant · Delvalle Box
  • Logo Easy to clean · Delvalle Box
  • Logo Scrach resistant · Delvalle Box
  • Logo Temperature resistant · Delvalle Box
  • Logo Waterproof · Delvalle Box

Description

Workstation HMI´s Stainless Steel Computer Enclosure IP65, designed for industrial environments subject to dust, dirt and moisture, manufactured made in stainless steel AISI 304L. Gives protection and storage for equipment used in manufacturing, computers and peripherals, without skimping on design and functionality.

Standard industrial operator workstations use industrial-grade components. Our standard product is for indoor or outdoor environments with Type 4X IP66 rating for washdown environments.

General-purpose workstations can include options for mounting, I/O, enclosure material, and computing power. The workstations HMI´s are mounted in a 316 stainless steel NEMA 4X Division 2 enclosure with either a pedestal-mounted or wall-mounted configuration.

The enclosure dimensions are smaller than the older explosion-proof units so they take up less valuable space in the facility. With the hardened resistive touchscreens and industrial-grade electronics, the displays on the hazardous factory floor were able to reproduce the same high-quality picture as the monitors in the control room without reprogramming the configuration. Now operators had the same functionality in the plant as they had in the control room. Plant personnel were no longer required to make several trips from the plant floor to the control room each day. It is easier for operators to make changes and adjustments, and they have more meaningful information at their fingertips. This helps avoid unnecessary downtime. There is also an unexpected bonus: The flat-panel displays consume less power and generate less heat than the predecessors.

Additionally, it can be linked to our modular cabinets or 19” racks, and added accessories, such as adjustable trays at the bottom for placing all types of components.



Discover the advantages

With transparent door for the control panel.

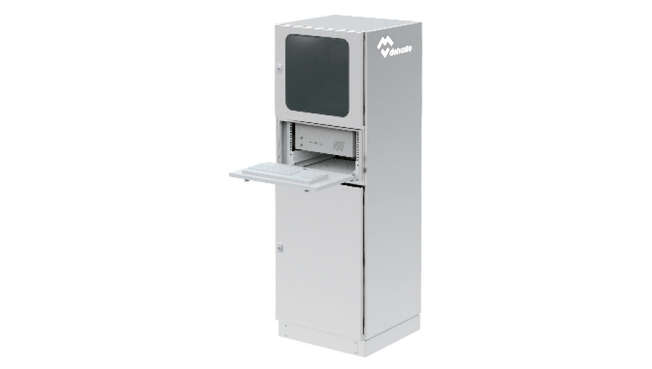

Sliding tray table for keyboard.
High mechanical properties and resistant to twisting.
Protects against dust, dirt and moisture.
Automatic condensation elimination due to its exclusive design.
Injected waterproof seal preventing moisture build up.

Regulations

• IP65 Norm EN 60529. UL Type 1,3r,4x,12
• Maximum IK10 resistance Norm IEC 62262.
• Compliant for materials intended to come into contact with food EC 1935/2004.
RoHs compliant.
• Built to CE standards 2014/35/UE.

Applications

Our computer enclosures given their design, finishing and sealing are especially designed for industrial, manufacturing and processing plants, and more specifically jobs for industrial equipment, workshops, warehouses, production lines, as well as machine tools.

Standard industrial operator workstations use industrial-grade components. Our standard product is for indoor or outdoor environments with Type 4X IP66 rating for washdown environments.

General-purpose workstations can include options for mounting, I/O, enclosure material, and computing power.

The workstations HMI´s are mounted in a 316 stainless steel NEMA 4X Division 2 enclosure with either a pedestal-mounted or wall-mounted configuration. The enclosure dimensions are smaller than the older explosion-proof units so they take up less valuable space in the facility. With the hardened resistive touchscreens and industrial-grade electronics, the displays on the hazardous factory floor were able to reproduce the same high-quality picture as the monitors in the control room without reprogramming the configuration. Now operators had the same functionality in the plant as they had in the control room. Plant personnel were no longer required to make several trips from the plant floor to the control room each day. It is easier for operators to make changes and adjustments, and they have more meaningful information at their fingertips. This helps avoid unnecessary downtime, and Anderson cites lower maintenance costs. There is also an unexpected bonus: The flat-panel displays consume less power and generate less heat than the CRT predecessors.

Custom Made Solutions
We offer multiple solutions

Workstation HMI´s Stainless Steel Computer Enclosure IP65 · Delvalle Box
Do you need solutions?
2020 product catalogues

Possibility to place in the lower door a rack or mounting plate.
• Additional trays for a printer, paper, etc.
• Mounting standard PC or 19” rack.
• Other designs and painting available on request.
• Plinth at base for any enclosure size to lift it above the ground giving extra cable space heights available100 and 200 mm.
Stainless Steel AISI 316L, EN 1.4404.
• Fasteners and anchors included to secure it to the floor.
• Fan.
Delvalle make to order any pre-cut units to suit your needs, including holes, channels, both in the door and in the enclosure itself.

Customers also bought:
Lighting for Electrical Enclosures · Delvalle BoxDelvalle Box
Delvalle compact luminaires are specially designed for use in electrical cabinets. We have low...
Security lock · Delvalle BoxDelvalle Box
Security lock for placement it in electrical cabinets.
Locks · Delvalle BoxDelvalle Box
Depending on the enclosure and its use, we look for the best closure suited to the customer’s...
Assembly Frame · Delvalle BoxDelvalle Box
Chassis modular cabinets. Used to divide the front of the cabinets into several sections for quick...
Thermal Insulation for Electrical Panels TermoTisa · Delvalle Box
Delvalle I+D deparment has specially designed the insulating TermoTisa X100, in 15mm polyurethane...
Cable Entry Cover · Delvalle BoxDelvalle Box
Ideal accessory supplement, removable to make holes comfortably to suit your needs, and fitted so...
Clear Glass Door · Delvalle BoxDelvalle Box
All our cabinets are available with transparent exterior and interior doors for perfect vision of...
Roofs for Outdoor · Delvalle BoxDelvalle Box
In Delvalle we offer the possibility to ask for self-ventilated roofs....
Mounting Plates · Delvalle BoxDelvalle Box
Different mounting plates for multiple uses in electrical cabinets Delvalle.
Levelling Feet and Wheels · Delvalle BoxDelvalle Box
For enclosures that need to be leveled or have to be moved regularly.
Data Pocket · Delvalle BoxDelvalle Box
Useful to keep electrical drawings, maintenance records, etc.....
Sockets · Delvalle BoxDelvalle Box
Stainless steel plinthbase 100 and 200 mm high. Allows cabinet to be raised and get extra ...
Transportation Angle · Delvalle BoxDelvalle Box
The transportation angles add strength in handling loading and unloading of the cabinets.
Switchboard Graffiti-Proof Paint · Delvalle BoxDelvalle Box
In Delvalle all cabinets may suminstrarse with a protective transparent anti-graffiti paint and...
Anti-Insect System · Delvalle BoxDelvalle Box
We know the problem for the placement of cooling systems posed by the entry of insects inside the...
Anti-Vandal Keyboard · Delvalle BoxDelvalle Box
The anti-vandal PC keyboard is made of stainless steel and meets IP65.
Perforated Mounting Plate · Delvalle BoxDelvalle Box
Perforated plates for quick installation of electrical components.
Separating Plate · Delvalle BoxDelvalle Box
Fixed directly to the cabinet structure, to get separation as well as being a shelf for objects.
Tray · Delvalle BoxDelvalle Box
This solution allows easy removal of any material housed inside the cabinet on the inside trays...
Ventilation Brackets · Delvalle BoxDelvalle Box
Placed both in the front enclosure and on the side, allowing a perfect flow of air inside.
Safety Lock · Delvalle BoxDelvalle Box
Typically used in enclosures with temporary changes of user. You can also use the padlock seal,...
Open Door Security Device · Delvalle BoxDelvalle Box
This device prevents accidents, alerts the operator that the electrical system is functioning...
Limit Switches for Electrical Enclousure · Delvalle BoxDelvalle Box
Limit switches provided with support and fixings for direct fixing....
Sliding Cable Covers · Delvalle BoxDelvalle Box
These caps allow cable entry between them.
Cross Cable Guide · Delvalle BoxDelvalle Box
With this guide inside the door we get a perfectly ordered wiring. Ideal for the passage of...
Protection Frame Window · Delvalle BoxDelvalle Box
It is used to provide maximum viewing capacity of the indication elements and protection of the...
Waterproof Seal · Delvalle BoxDelvalle Box
Injected waterproof seal UL, TÜV, CE certified. ...
Workstation HMI´s Stainless Steel Computer Enclosure IP65 · Delvalle Box

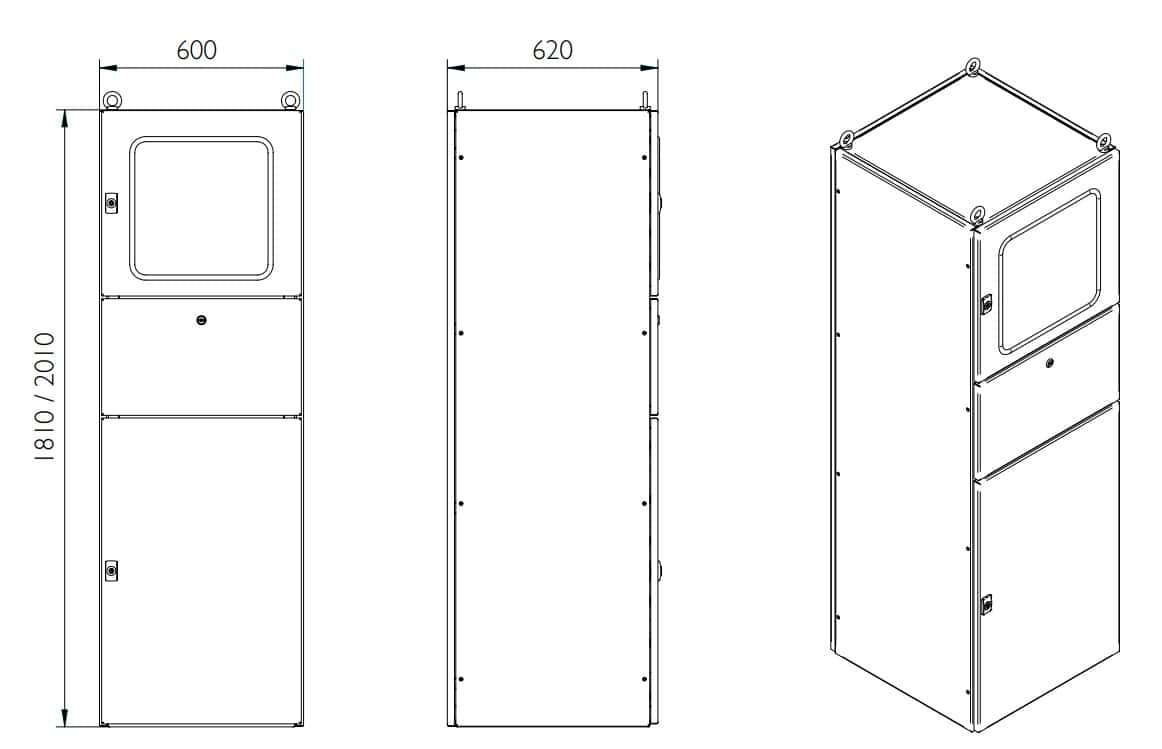

Sketches

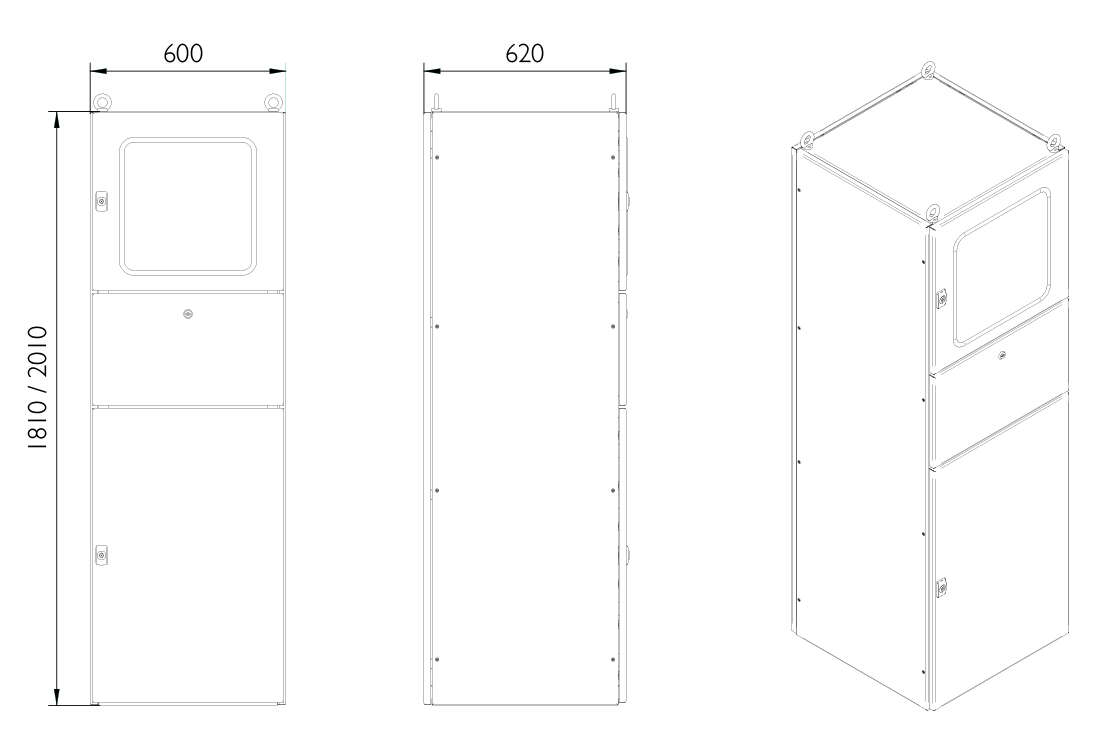

Dimensions · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
MVAG186060STAINLESS STEEL COMPUTER ENCLOSURE IP551810600620MVAG186060
MVAG206060STAINLESS STEEL COMPUTER ENCLOSURE IP552010600620MVAG206060
