Aluminium Push-Button Geo IP66

GEO SERIES

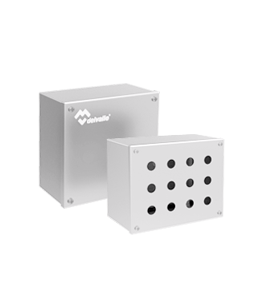

Waterproof IP66 resistant, elegant and functional junction boxes GEO series, manufactured in aluminum and finished in RAL 7035. And especially designed for placing push-buttons.

Aluminium Push-Button Geo IP66 · Delvalle Box
Aluminium Push-Button Geo IP66 · Delvalle Box
Aluminium Push-Button Geo IP66 · Delvalle Box

This product has the following certificates

  • Logo EMC · Delvalle Box
  • Logo IK7 · Delvalle Box
  • Logo IP66 · Delvalle Box
  • Logo ROHS · Delvalle Box
  • Logo UL NEMA 1 · Delvalle Box
  • Logo UL NEMA 12 · Delvalle Box
  • Logo UL NEMA 3R · Delvalle Box
  • Logo UL NEMA 4 · Delvalle Box
  • Logo 10 year anti-corrosion · Delvalle Box
  • Logo Chemical resistant · Delvalle Box
  • Logo Corrosion resistant · Delvalle Box
  • Logo Waterproof · Delvalle Box

Description

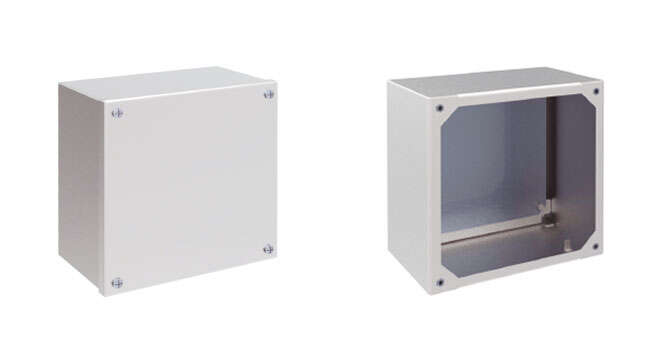

Waterproof, elegant and functional junction boxes GEO series, manufactured in aluminum and finished in RAL 7035.

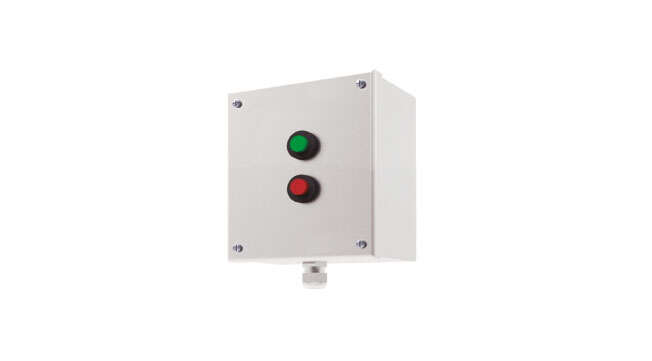

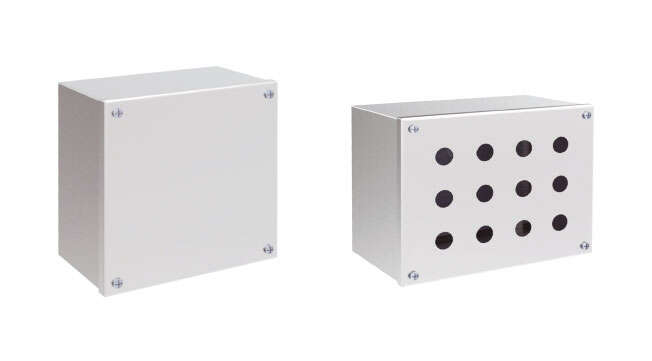

Available in plain or bored cover (Ø 22.5). And especially designed for placing push-buttons. The cover has embedded screw closure so as not to protrude from the front of the cover.

Discover the advantages

Unlimited options.
Light enclosure with a weight three times lower than a normal one.
The monobloc manufacture gives perfect sealing and maximum resistance.
Perfect sealing thanks to gaskets used in the joints.
Delvalle serves to order any measurements required, including custom built holes and cut outs both for doors and box itself.

Regulations

IP66 Norm IEC EN 62208 and EN 60529.
• Maximum IK7 hit resistance Norm IEC 62208 and EN 50102.
• 2014/95/CE low voltage norms.
UL approval Nema 4, 12, 3r, 1. Nº File E342220.
• Compliant RoHS Directive 2011/65/UE.
• Maximum voltage 1000 V.
• Temperature resistant: -40°C +100°C (short time +160°C).
• Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Applications

Especially designed for placing push-buttons and cable entry. Approved for wind and solar plants, telecommunications and transformer industries and any outdoor use because of its high durability and resistance to external agents.

Custom Made Solutions
We offer multiple solutions

Aluminium Push-Button Geo IP66 · Delvalle Box
Do you need solutions?
2020 product catalogues

• Custom made based on your needs.
Metal legs.
• Fixed screws.
Transparent polycarbonate or tempered glass door.
• Finished in textured paint different RAL colours on request.
• Mounting plate insulator (bakelite) or stainless steel.
EMC version according to 2014/30/UE of electromagnetic compatibility.

Customers also bought:
Locks · Delvalle BoxDelvalle Box
Depending on the enclosure and its use, we look for the best closure suited to the customer’s...
Thermal Insulation for Electrical Panels TermoTisa · Delvalle Box
Delvalle I+D deparment has specially designed the insulating TermoTisa X100, in 15mm polyurethane...
Mounting Plates · Delvalle BoxDelvalle Box
Different mounting plates for multiple uses in electrical cabinets Delvalle.
Pedestal Stands · Delvalle BoxDelvalle Box
Steel foot bracket to fix the cabinets to the floor.
Switchboard Graffiti-Proof Paint · Delvalle BoxDelvalle Box
In Delvalle all cabinets may suminstrarse with a protective transparent anti-graffiti paint and...
Perforated Mounting Plate · Delvalle BoxDelvalle Box
Perforated plates for quick installation of electrical components.
Safety Lock · Delvalle BoxDelvalle Box
Typically used in enclosures with temporary changes of user. You can also use the padlock seal,...
Pole Mount · Delvalle BoxDelvalle Box
Delvalle offers the solution for post mounting, providing a perfect fixing of the enclosure.
Cross Cable Guide · Delvalle BoxDelvalle Box
With this guide inside the door we get a perfectly ordered wiring. Ideal for the passage of...
Waterproof Seal · Delvalle BoxDelvalle Box
Injected waterproof seal UL, TÜV, CE certified. ...
Aluminium Push-Button Geo IP66 · Delvalle Box

Sketches

Aluminium Push-Button Geo IP66 · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
MVCBA909080CAJA DE BORNES O PULSADORES ALUMINIO IP66 SERIE GEO909080MVCBA909080
MVCBA149080CAJA DE BORNES O PULSADORES ALUMINIO IP66 SERIE GEO1409080MVCBA149080
MVCBA209080CAJA DE BORNES O PULSADORES ALUMINIO IP66 SERIE GEO2009080MVCBA209080
MVCBA269012CAJA DE BORNES O PULSADORES ALUMINIO IP66 SERIE GEO26090120MVCBA269012
MVCBA101612CAJA DE BORNES O PULSADORES ALUMINIO IP66 SERIE GEO100160120MVCBA101612
MVCBA161612CAJA DE BORNES O PULSADORES ALUMINIO IP66 SERIE GEO160160120MVCBA161612
MVCBA202012CAJA DE BORNES O PULSADORES ALUMINIO IP66 SERIE GEO200200120MVCBA202012
MVCBA202515CAJA DE BORNES O PULSADORES ALUMINIO IP66 SERIE GEO200250150MVCBA202515
MVCBA252515CAJA DE BORNES O PULSADORES ALUMINIO IP66 SERIE GEO250250150MVCBA252515
MVCBA203015CAJA DE BORNES O PULSADORES ALUMINIO IP66 SERIE GEO200300150MVCBA203015
MVCBA303015CAJA DE BORNES O PULSADORES ALUMINIO IP66 SERIE GEO300300150MVCBA303015
MVCBA304015CAJA DE BORNES O PULSADORES ALUMINIO IP66 SERIE GEO300400150MVCBA304015
MVCBA404015CAJA DE BORNES O PULSADORES ALUMINIO IP66 SERIE GEO400400150MVCBA404015
MVCBA909080PCAJA DE BORNES ALUMINIO SERIE GEO + PTA. POLICARBONATO909080MVCBA909080P
MVCBA149080PCAJA DE BORNES ALUMINIO SERIE GEO + PTA. POLICARBONATO1409080MVCBA149080P
MVCBA209080PCAJA DE BORNES ALUMINIO SERIE GEO + PTA. POLICARBONATO2009080MVCBA209080P
MVCBA269012PCAJA DE BORNES ALUMINIO SERIE GEO + PTA. POLICARBONATO26090120MVCBA269012P
MVCBA101612PCAJA DE BORNES ALUMINIO SERIE GEO + PTA. POLICARBONATO100160120MVCBA101612P
MVCBA161612PCAJA DE BORNES ALUMINIO SERIE GEO + PTA. POLICARBONATO160160120MVCBA161612P
MVCBA202012PCAJA DE BORNES ALUMINIO SERIE GEO + PTA. POLICARBONATO200200120MVCBA202012P
MVCBA202515PCAJA DE BORNES ALUMINIO SERIE GEO + PTA. POLICARBONATO200250150MVCBA202515P
MVCBA252515PCAJA DE BORNES ALUMINIO SERIE GEO + PTA. POLICARBONATO250250150MVCBA252515P
MVCBA203015PCAJA DE BORNES ALUMINIO SERIE GEO + PTA. POLICARBONATO200300150MVCBA203015P
MVCBA303015PCAJA DE BORNES ALUMINIO SERIE GEO + PTA. POLICARBONATO300300150MVCBA303015P
MVCBA304015PCAJA DE BORNES ALUMINIO SERIE GEO + PTA. POLICARBONATO300400150MVCBA304015P
MVCBA404015PCAJA DE BORNES ALUMINIO SERIE GEO + PTA. POLICARBONATO400400150MVCBA404015P
