EMC Wall Mount Enclosure

LUXOR SERIES

EMC enclosures Luxor with an EPDM conductive gasket between frame and contact surface, ensure a perfect electrical connection and superior shielding. It meets all standards required to ensure total safety in electrical installations.

This product has the following certificates

Description

EMC enclosures Luxor with an EPDM conductive gasket between frame and contact surface, ensure a perfect electrical connection and superior shielding.

It meets all standards required to ensure total safety in electrical installations. Furthermore each component has passed tests carried out under extreme conditions.

Features improved design and materials, robustness, easy opening, smooth-turning lock, flexibility, maximum door opening (up to 120°), maximum working width for your assemblies, easily dismountable, unique features for great performance and highly polished surface.

Download all documents and certificates

Do you need extra info?
In DELVALLE, WE make IT EASY for you

Discover the advantages

• EMC joint EPDM conductive coated with Cu and Sn and 60 shore hardness.
• Excellent levels of attenuation.
• Delivery with protective film that prevents scratches and abrasions during handling.
• Compact design offering complete protection and resistance to impact.
• With a drainage channels which prevents liquid contact with the EPDM gasket and with concealed hinges.
• Delvalle can make any size to suit to your needs.
• Meets EMC, RFI and EMI standards.

Regulations

• Complies with EEC 89/336 and EMC Directive 2004/108/EC.
• To IP66 (IP55 two doors) Norm IEC EN 62208 EN 60529.
• Manufactured following EU low voltage ruling 2006/95/CE.
• RoHs, EMC, RFI y EMI compliant.
• UL Nema certificate 4x, 12, 3r and 1 by request. Nº File E342220.

Applications

Especially designed for telecommunications, railway signals, air traffic signals, medical and military industries or where extra protection against electromagnetic interference is needed.

Custom Made Solutions
We offer multiple solutions

Do you need solutions?

Delvalle Box has the solution

2021 product catalogues

Download Zone

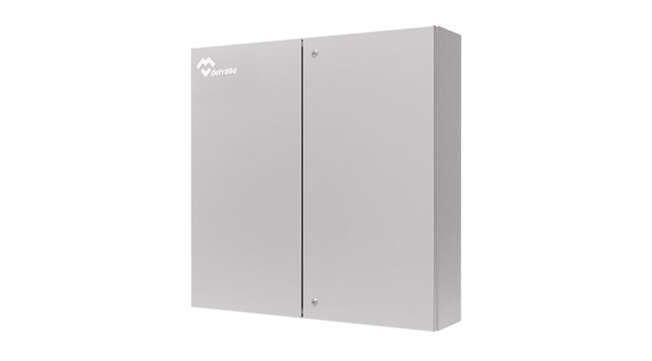

• With a choice of two doors (from 1200mm width).
• Plinths at base, metal legs, wall support, cable entry cover. Castors and metal legs.
• Transparent polycarbonate door.
• Manufactured in stainless steel AISI 316L EN 14404.
• Mounting plate insulation (bakelite) or stainless steel.

Lighting for Electrical Enclosures

Delvalle compact luminaires are specially designed for use in electrical cabinets. We have low...

Security lock

Security lock for placement it in electrical cabinets.

Locks

Depending on the enclosure and its use, we look for the best closure suited to the customer’s...

Assembly Frame

Chassis modular cabinets. Used to divide the front of the cabinets into several sections for quick...

Thermal Insulation for Electrical Panels TermoTisa

Delvalle I+D deparment has specially designed the insulating TermoTisa X100, in 15mm polyurethane...

Cable Entry Cover

Ideal accessory supplement, removable to make holes comfortably to suit your needs, and fitted so...

Clear Glass Door

All our cabinets are available with transparent exterior and interior doors for perfect vision of...

Roofs for Outdoor

In Delvalle we offer the possibility to ask for self-ventilated roofs....

Mounting Plates

Different mounting plates for multiple uses in electrical cabinets Delvalle.

Support Rails

Support rails used to incorporate cabinets with scroll ball.

Data Pocket

Useful to keep electrical drawings, maintenance records, etc.....

Pedestal Stands

Steel foot bracket to fix the cabinets to the floor.

Switchboard Graffiti-Proof Paint

In Delvalle all cabinets may suminstrarse with a protective transparent anti-graffiti paint and...

Anti-Insect System

We know the problem for the placement of cooling systems posed by the entry of insects inside the...

Perforated Mounting Plate

Perforated plates for quick installation of electrical components.

Stainless Steel Ventilation Plugs IP68

Stainless steel ventilation plugs IP68 reduce the adverse effects of humidity in the environment...

Shock Absorbers for Electrical Enclosures

With the shock absorbers we get a better grip on the doors, and we define the opening angle of the...

Separating Plate

Fixed directly to the cabinet structure, to get separation as well as being a shelf for objects.

Pivot Frame

The ideal solution for the placement of all instrumentation, with easy and comfortable access from...

Ventilation Brackets

Placed both in the front enclosure and on the side, allowing a perfect flow of air inside.

DIN tray

Directly fixed to the structure. Galvanized 1.5 mm thick steel. Dimensions: 35mm by 7.5 or 5mm.

Safety Lock

Typically used in enclosures with temporary changes of user. You can also use the padlock seal,...

Set With Inner Door

Interior door designed for direct placement in the enclosure.

Open Door Security Device

This device prevents accidents, alerts the operator that the electrical system is functioning...

Designs / Doors

The possibility of placing a double door in the cabinet is given to meet the customer’s need to...

Limit Switches for Electrical Enclousure

Limit switches provided with support and fixings for direct fixing....

Reinforcing Frame

Using a reinforced frame in our enclosure gives us more confidence and consistency, especially in...

Sliding Cable Covers

These caps allow cable entry between them.

Pole Mount

Delvalle offers the solution for post mounting, providing a perfect fixing of the enclosure.

Cross Cable Guide

With this guide inside the door we get a perfectly ordered wiring. Ideal for the passage of...

Outdoor Air Conditioner Electrical Enclosures Tropic

The largest range of IP54 air conditioners electrical enclosures refrigerators in the market, air...

Roof fan

Roof Fan, specially designed for extracting heat from the top of the cabinet, for achieving...

Waterproof Seal

Injected waterproof seal UL, TÜV, CE certified. ...

Wall Mounting Brackets

They are fixed from the outside and can be positioned either vertically or horizontally.

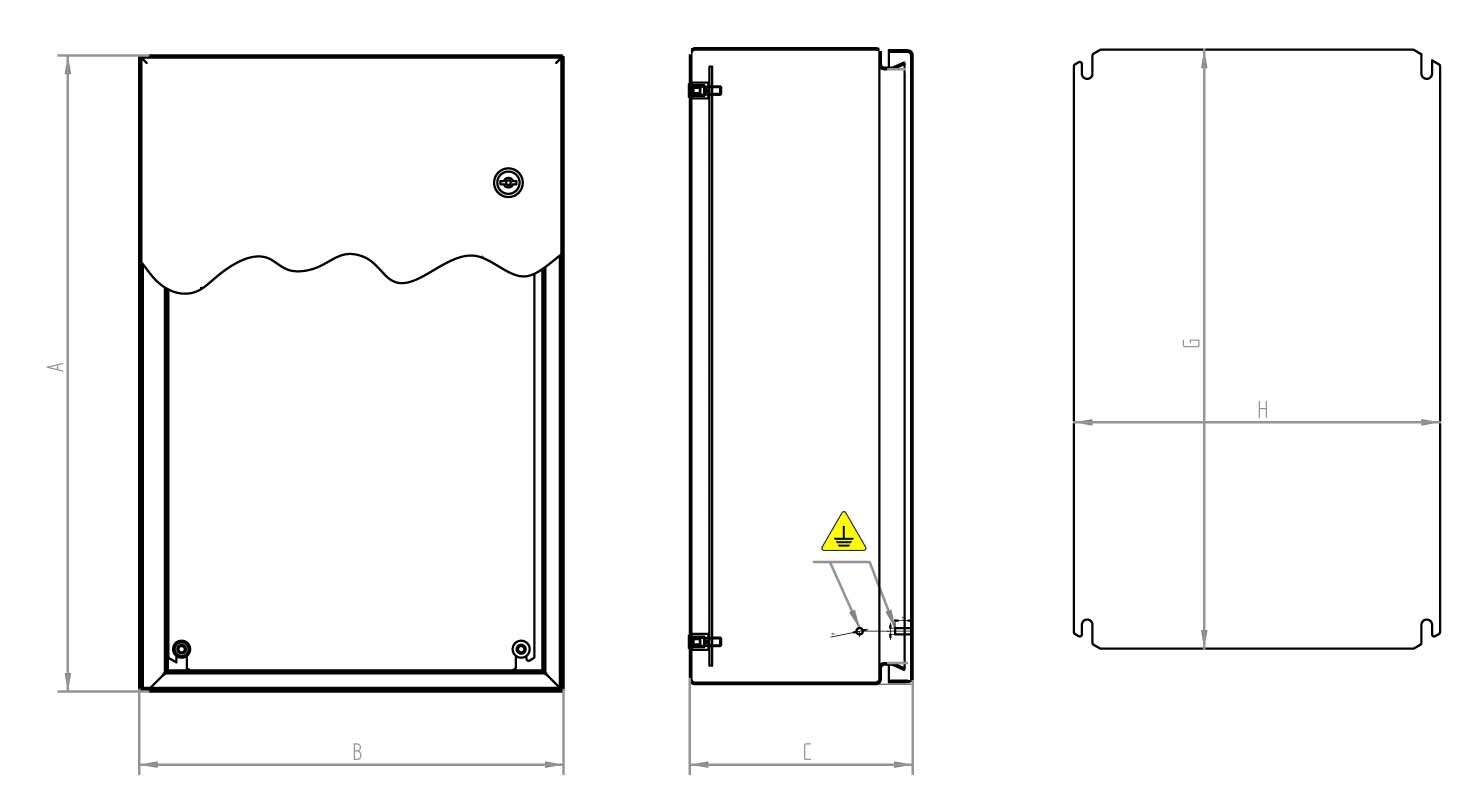

Sketches

References

Show References

Reference	Description	High	Width	Background
MVAB302015M	ARMARIO ELÉCTRICO INOXIDABLE MURAL EMC SERIE LUXOR	300	200	155	MVAB302015M
MVHB302015M	ARMARIO ELÉCTRICO GALVANIZADO MURAL EMC SERIE LUXOR	300	200	155	MVHB302015M
MVALB302015M	ARMARIO ELÉCTRICO ALUMINIO MURAL EMC SERIE LUXOR	300	200	155	MVALB302015M
MVAB383015M	ARMARIO ELÉCTRICO INOXIDABLE MURAL EMC SERIE LUXOR	500	300	155	MVAB383015M
MVAB383021M	ARMARIO ELÉCTRICO INOXIDABLE MURAL EMC SERIE LUXOR	380	300	210	MVAB383021M
MVAB603815M	ARMARIO ELÉCTRICO INOXIDABLE MURAL EMC SERIE LUXOR	600	380	155	MVAB603815M
MVAB603821M	ARMARIO ELÉCTRICO INOXIDABLE MURAL EMC SERIE LUXOR	600	380	210	MVAB603821M
MVAB404021M	ARMARIO ELÉCTRICO INOXIDABLE MURAL EMC SERIE LUXOR	400	400	210	MVAB404021M
MVAB504021M	ARMARIO ELÉCTRICO INOXIDABLE MURAL EMC SERIE LUXOR	500	400	210	MVAB504021M
MVAB505021M	ARMARIO ELÉCTRICO INOXIDABLE MURAL EMC SERIE LUXOR	500	500	210	MVAB505021M
MVAB605021M	ARMARIO ELÉCTRICO INOXIDABLE MURAL EMC SERIE LUXOR	600	500	210	MVAB605021M
MVAB705021M	ARMARIO ELÉCTRICO INOXIDABLE MURAL EMC SERIE LUXOR	700	500	210	MVAB705021M
MVAB606021M	ARMARIO ELÉCTRICO INOXIDABLE MURAL EMC SERIE LUXOR	600	600	210	MVAB606021M
MVAB806030M	ARMARIO ELÉCTRICO INOXIDABLE MURAL EMC SERIE LUXOR	800	600	300	MVAB806030M
MVAB808030M	ARMARIO ELÉCTRICO INOXIDABLE MURAL EMC SERIE LUXOR	800	800	300	MVAB808030M
MVAB108030M	ARMARIO ELÉCTRICO INOXIDABLE MURAL EMC SERIE LUXOR	1000	800	300	MVAB108030M
MVAB128030M	ARMARIO ELÉCTRICO INOXIDABLE MURAL EMC SERIE LUXOR	1200	800	300	MVAB128030M
MVAB101030M	ARMARIO ELÉCTRICO INOXIDABLE MURAL EMC SERIE LUXOR	1000	1000	300	MVAB101030M
MVAB121030M	ARMARIO ELÉCTRICO INOXIDABLE MURAL EMC SERIE LUXOR	1200	1000	300	MVAB121030M
MVAB101230M	ARMARIO ELÉCTRICO INOXIDABLE MURAL EMC SERIE LUXOR	1000	1200	300	MVAB101230M
MVAB121230M	ARMARIO ELÉCTRICO INOXIDABLE MURAL EMC SERIE LUXOR	1200	1200	300	MVAB121230M
MVHB383015M	ARMARIO ELÉCTRICO GALVANIZADO MURAL EMC SERIE LUXOR	380	300	155	MVHB383015M
MVHB383021M	ARMARIO ELÉCTRICO GALVANIZADO MURAL EMC SERIE LUXOR	380	300	210	MVHB383021M
MVHB603815M	ARMARIO ELÉCTRICO GALVANIZADO MURAL EMC SERIE LUXOR	600	380	155	MVHB603815M
MVHB603821M	ARMARIO ELÉCTRICO GALVANIZADO MURAL EMC SERIE LUXOR	600	380	210	MVHB603821M
MVHB404021M	ARMARIO ELÉCTRICO GALVANIZADO MURAL EMC SERIE LUXOR	400	400	210	MVHB404021M
MVHB504021M	ARMARIO ELÉCTRICO GALVANIZADO MURAL EMC SERIE LUXOR	500	400	210	MVHB504021M
MVHB505021M	ARMARIO ELÉCTRICO GALVANIZADO MURAL EMC SERIE LUXOR	500	500	210	MVHB505021M
MVHB605021M	ARMARIO ELÉCTRICO GALVANIZADO MURAL EMC SERIE LUXOR	600	500	210	MVHB605021M
MVHB705021M	ARMARIO ELÉCTRICO GALVANIZADO MURAL EMC SERIE LUXOR	700	500	210	MVHB705021M
MVHB606021M	ARMARIO ELÉCTRICO GALVANIZADO MURAL EMC SERIE LUXOR	600	600	210	MVHB606021M
MVHB806030M	ARMARIO ELÉCTRICO GALVANIZADO MURAL EMC SERIE LUXOR	800	600	300	MVHB806030M
MVHB808030M	ARMARIO ELÉCTRICO GALVANIZADO MURAL EMC SERIE LUXOR	800	800	300	MVHB808030M
MVHB108030M	ARMARIO ELÉCTRICO GALVANIZADO MURAL EMC SERIE LUXOR	1000	800	300	MVHB108030M
MVHB128030M	ARMARIO ELÉCTRICO GALVANIZADO MURAL EMC SERIE LUXOR	1200	800	300	MVHB128030M
MVHB101030M	ARMARIO ELÉCTRICO GALVANIZADO MURAL EMC SERIE LUXOR	1000	1000	300	MVHB101030M
MVHB121030M	ARMARIO ELÉCTRICO GALVANIZADO MURAL EMC SERIE LUXOR	1200	1000	300	MVHB121030M
MVHB101230M	ARMARIO ELÉCTRICO GALVANIZADO MURAL EMC SERIE LUXOR	1000	1200	300	MVHB101230M
MVHB121230M	ARMARIO ELÉCTRICO GALVANIZADO MURAL EMC SERIE LUXOR	1200	1200	300	MVHB121230M
MVALB383015M	ARMARIO ELÉCTRICO ALUMINIO MURAL EMC SERIE LUXOR	380	300	155	MVALB383015M
MVALB383021M	ARMARIO ELÉCTRICO ALUMINIO MURAL EMC SERIE LUXOR	380	300	210	MVALB383021M
MVALB603815M	ARMARIO ELÉCTRICO ALUMINIO MURAL EMC SERIE LUXOR	600	380	155	MVALB603815M
MVALB603821M	ARMARIO ELÉCTRICO ALUMINIO MURAL EMC SERIE LUXOR	600	380	210	MVALB603821M
MVALB404021M	ARMARIO ELÉCTRICO ALUMINIO MURAL EMC SERIE LUXOR	400	400	210	MVALB404021M
MVALB504021M	ARMARIO ELÉCTRICO ALUMINIO MURAL EMC SERIE LUXOR	500	400	210	MVALB504021M
MVALB505021M	ARMARIO ELÉCTRICO ALUMINIO MURAL EMC SERIE LUXOR	500	500	210	MVALB505021M
MVALB705021M	ARMARIO ELÉCTRICO ALUMINIO MURAL EMC SERIE LUXOR	700	500	210	MVALB705021M
MVALB605021M	ARMARIO ELÉCTRICO ALUMINIO MURAL EMC SERIE LUXOR	600	500	210	MVALB605021M
MVALB606021M	ARMARIO ELÉCTRICO ALUMINIO MURAL EMC SERIE LUXOR	600	600	210	MVALB606021M
MVALB806030M	ARMARIO ELÉCTRICO ALUMINIO MURAL EMC SERIE LUXOR	800	600	300	MVALB806030M
MVALB808030M	ARMARIO ELÉCTRICO ALUMINIO MURAL EMC SERIE LUXOR	800	800	300	MVALB808030M
MVALB108030M	ARMARIO ELÉCTRICO ALUMINIO MURAL EMC SERIE LUXOR	1000	800	300	MVALB108030M
MVALB128030M	ARMARIO ELÉCTRICO ALUMINIO MURAL EMC SERIE LUXOR	1200	800	300	MVALB128030M
MVALB101030M	ARMARIO ELÉCTRICO ALUMINIO MURAL EMC SERIE LUXOR	1000	1000	300	MVALB101030M
MVALB121030M	ARMARIO ELÉCTRICO ALUMINIO MURAL EMC SERIE LUXOR	1200	1000	300	MVALB121030M
MVALB101230M	ARMARIO ELÉCTRICO ALUMINIO MURAL EMC SERIE LUXOR	1000	1200	300	MVALB101230M
MVALB121230M	ARMARIO ELÉCTRICO ALUMINIO MURAL EMC SERIE LUXOR	1200	1200	300	MVALB121230M
