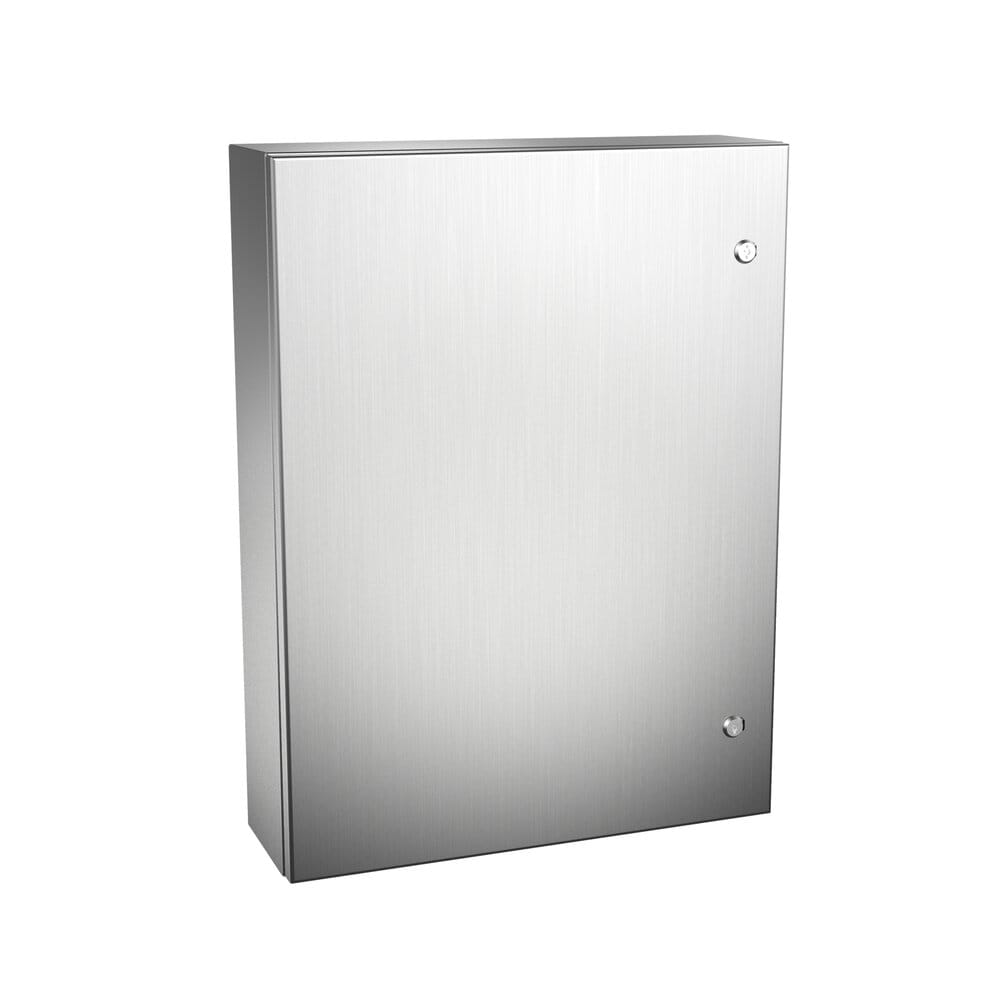

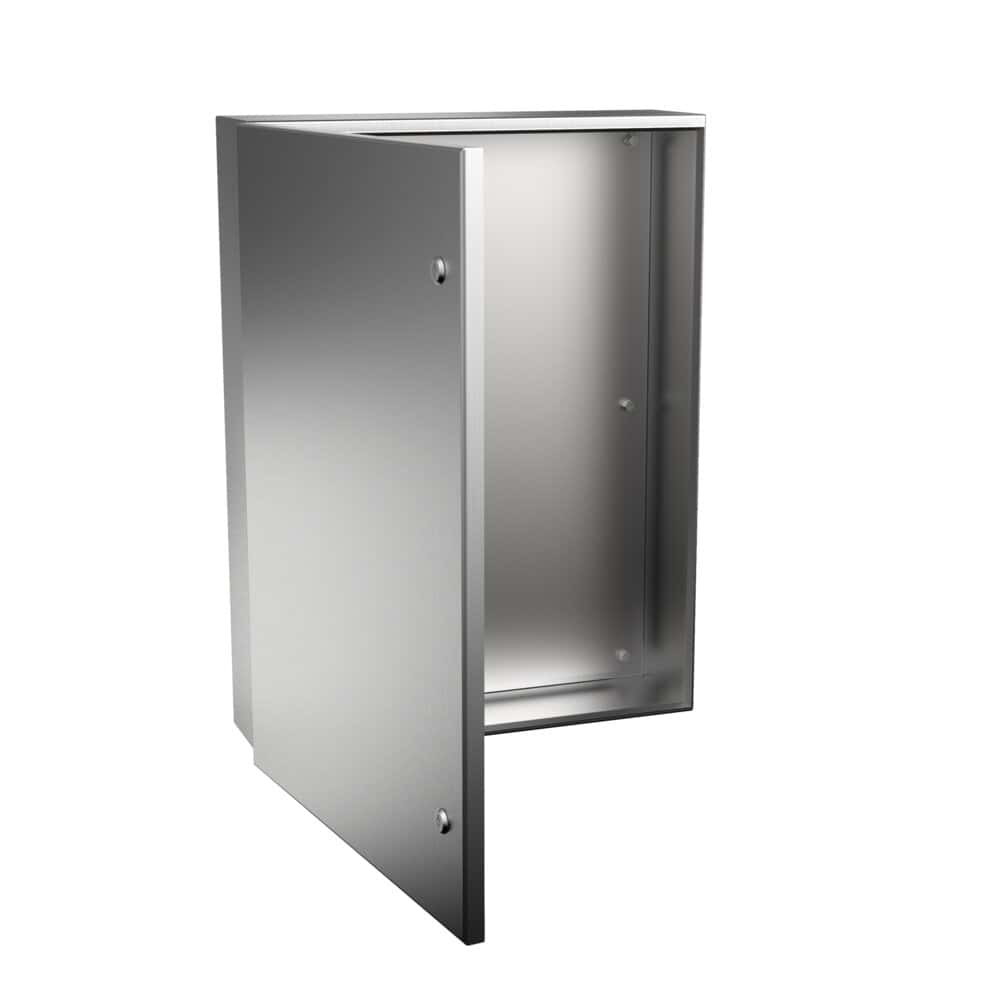

Luxor EMC enclosures with an EPDM conductive gasket between frame and contact surface, ensure a perfect electrical connection and superior shielding. It meets all standards required to ensure total safety in electrical installations.
2014/30/UE Certified
| Minimum Measurements | A=300-1200mm B=200-1200mm P=155-300mm |
|---|---|
| Minimum Plate Measurements | A=240-1140mm |
| Minimum Plate Measurements | B=130-1140mm |
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Opening | 120 ° |
| Door Type | Blind door |
| Opening Type | Swivel with concealed hinges |
| Closing System | Double-bit quarter-turn locks |
| Useful Depth | 270 mm |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Plate Material | Galvanized |
| Sealing Gasket | EMC |
| Working Temperature | -40°C a +100°C (reducida exposición +160ºC) |
| Maximum Voltage | 1000 V |
| Alternative Materials | AISI 316L, Aluminum, Galvanized |
|---|---|
| Alternative Finishes | Painted RAL 7035 |
| Interior Plate Material | Insulating mounting plate (Bakelite), Stainless steel mounting plate |
| Alternative Gaskets | silicone (-60°C to +180°C), Polyurethane |
|
REFERENCES 1 DOOR |
DIMENSIONS (mm) |
|||||||||
|
SOLID DOOR (x) |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
ACCESS OPENING -GxH- |
USEFUL DEPTH -D- |
MACHINABLE AREA |
PLATE DIMENSIONS -ExF- |
WEIGHT (Kg) |
VOLUME (m³) |
|
|
DOOR |
SIDE |
|||||||||
|
MVHB302015EMC |
300 |
200 |
155 |
260×153 |
125 |
220×76 |
270×125 |
265×145 |
4,65 |
0,01 |
|
MVHB383015EMC |
380 |
300 |
155 |
340×253 |
125 |
300×176 |
350×125 |
345×245 |
7,68 |
0,02 |
|
MVHB404021EMC |
400 |
400 |
210 |
360×353 |
180 |
320×276 |
370×180 |
365×345 |
11,12 |
0,04 |
|
MVHB504021EMC |
500 |
400 |
210 |
460×353 |
180 |
420×276 |
470×180 |
465×345 |
13,51 |
0,05 |
|
MVHB604021EMC |
600 |
400 |
210 |
560×353 |
180 |
520×276 |
570×180 |
565×345 |
15,74 |
0,06 |
|
MVHB606021EMC |
600 |
600 |
210 |
560×553 |
180 |
520×476 |
570×180 |
565×545 |
22,0 |
0,08 |
|
MVHB705021EMC |
700 |
500 |
210 |
660×453 |
180 |
620×376 |
670×180 |
665×445 |
21,55 |
0,08 |
|
MVHB806030EMC |
800 |
600 |
300 |
760×553 |
270 |
720×476 |
770×270 |
765×545 |
31,35 |
0,16 |
|
MVHB108030EMC |
1000 |
800 |
300 |
960×753 |
270 |
920×676 |
970×270 |
965×745 |
50,69 |
0,26 |
|
MVHB121030EMC |
1200 |
1000 |
300 |
1090×890 |
275 |
1000×800 |
1190×265 |
1070×870 |
78,82 |
0,46 |
* Luxor wall-mounted EMC electrical cabinet design Backplate separation 20mm
|
