Galvanized Steel Wall Enclosure Luxor IP66

LUXOR SERIES

The painted galvanized steel enclosures Luxor Series, are characterized by its robust design and surface finish in RAL 7035. Easy opening with chrome closures, smoothly turning, maximum flexibility and opening doors (up to 120 °) with stainless steel hinges. Maximum operating amplitude for the mounting and easily removable. It has all the necessary measures to ensure their safety in electrical installations in outdoor facilities approvals.

Galvanized Steel Wall Enclosure Luxor IP66 · Delvalle Box

This product has the following certificates

  • Logo CE · Delvalle Box
  • Logo IP55 · Delvalle Box
  • Logo IP66 · Delvalle Box
  • Logo UL NEMA 1 · Delvalle Box
  • Logo UL NEMA 12 · Delvalle Box
  • Logo UL NEMA 3R · Delvalle Box
  • Logo UL NEMA 4 · Delvalle Box
  • Logo 5 year mechanical parts · Delvalle Box

Description

The painted galvanized steel enclosures Luxor Series, are characterized by its robust design and surface finish in RAL 7035. Easy opening with chrome closures, smoothly turning, maximum flexibility and opening doors (up to 120 °) with stainless steel hinges. Maximum operating amplitude for the mounting and easily removable. It has all the necessary measures to ensure their safety in electrical installations in outdoor facilities approvals.

Discover the advantages

• The manufacture of the stainless steel monobloc gives 100% sealing and maximum resistance.
• With flushing channel that avoids any contact with liquids, polyurethane joints and hidden hinges.
• The standard control panel comes with stainless steel double-bit locking handles.
Delvalle supplies any measurements required including custom built holes and cut outs both for the door and enclosure.

Regulations

• IP66 (IP55 two doors) degree.
UL approval Nema 1, 3r, 4 and 12. NºFile E342220.
• IEC 62262 norm. Maximum IK10 resistance.
• 2014/35/UE Directive. Low voltage ruling.
• IEC 62208 norm.
• Maximum voltage 1000 V.

Applications

Specially designed for outdoor environments where weather conditions are bad, such as the maritime sector, or for street lighting applications or services on railway lines, given its advantages of durability and strength.

Custom Made Solutions
We offer multiple solutions

Galvanized Steel Wall Enclosure Luxor IP66 · Delvalle Box
Do you need solutions?
2021 product catalogues

Custom made based on your needs. Possibility of two doors.
• 170° hinge that allows maximum opening for easy access to the cabinet without removing the door.
• Socles.
• Metal legs.
• Wall support (not included in the standard model).
• Transparent polycarbonate door.
• Transparent safety glass door.
• Mounting plate insulation (bakelite) or stainless steel.
• EMC version according to 2014/30/UE of electromagnetic compatibility.
• Switchboard graffiti-proof paint.

Galvanized Steel Wall Enclosure Luxor IP66 · Delvalle Box

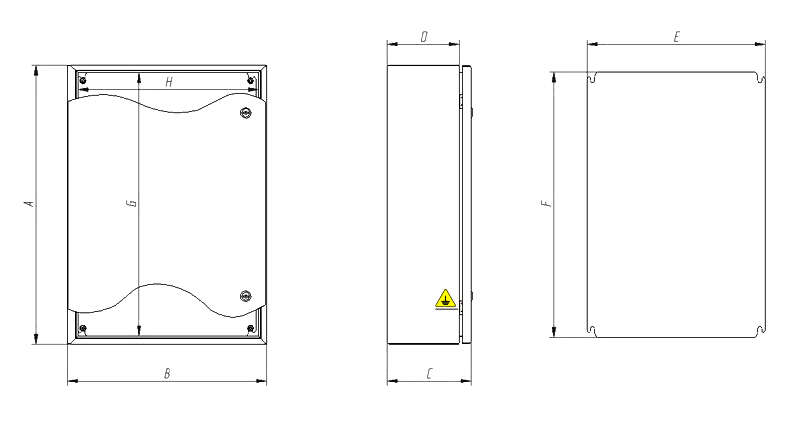

Sketches

Galvanized Steel Wall Enclosure Luxor IP66 · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
MVGB501025DARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR DOBLE PUERTA5001000250MVGB501025D
MVGB501035DARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR DOBLE PUERTA5001000350MVGB501035D
MVGB606030DARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR DOBLE PUERTA600600300MVGB606030D
MVGB608020DARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR DOBLE PUERTA600800200MVGB608020D
MVGB701030DARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR DOBLE PUERTA7001000300MVGB701030D
MVGB806030DARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR DOBLE PUERTA800600300MVGB806030D
MVGB808030DARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR DOBLE PUERTA800800300MVGB808030D
MVGB168040DARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR DOBLE PUERTA8001600400MVGB168040D
MVGB108030DARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR DOBLE PUERTA1000800300MVGB108030D
MVGB101030DARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR DOBLE PUERTA10001000300MVGB101030D
MVGB101230DARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR DOBLE PUERTA10001200300MVGB101230D
MVGB128030DARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR DOBLE PUERTA1200800300MVGB128030D
MVGB121030DARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR DOBLE PUERTA12001000300MVGB121030D
MVGB121040DARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR DOBLE PUERTA12001000400MVGB121040D
MVGB121230DARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR DOBLE PUERTA12001200300MVGB121230D
MVGB121240DARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR DOBLE PUERTA12001200400MVGB121240D
MVGB161240DARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR DOBLE PUERTA16001200400MVGB161240D
MVGB302015ARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA CIEGA3002001500MVGB302015
MVGB383015ARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA CIEGA380300155MVGB383015
MVGB383021ARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA CIEGA380300210MVGB383021
MVGB404021ARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA CIEGA400400210MVGB404021
MVGB504021ARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA CIEGA500400210MVGB504021
MVGB505021ARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA CIEGA500500210MVGB505021
MVGB604021ARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA CIEGA600400210MVGB604021
MVGB605021ARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA CIEGA600500210MVGB605021
MVGB606021ARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA CIEGA600600210MVGB606021
MVGB606030ARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA CIEGA600600300MVGB606030
MVGB705021ARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA CIEGA700500210MVGB705021
MVGB806030ARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA CIEGA800600300MVGB806030
MVGB808030ARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA CIEGA800800300MVGB808030
MVGB108030ARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA CIEGA1000800300MVGB108030
MVGB101030ARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA CIEGA10001000300MVGB101030
MVGB128030ARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA CIEGA1200800300MVGB128030
MVGB121030ARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA CIEGA12001000300MVGB121030
MVGB121230ARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA CIEGA12001200300MVGB121230
MVGB302015TARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO300200155MVGB302015T
MVGB383015TARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO380300155MVGB383015T
MVGB383021TARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO380300210MVGB383021T
MVGB404021TARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO400400210MVGB404021T
MVGB504021TARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO500400210MVGB504021T
MVGB505021TARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO500500210MVGB505021T
MVGB604021TARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO600400210MVGB604021T
MVGB605021TARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO600500210MVGB605021T
MVGB606021TARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO600600210MVGB606021T
MVGB606030TARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO600600300MVGB606030T
MVGB705021TARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO700500210MVGB705021T
MVGB806030TARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO800600300MVGB806030T
MVGB808030TARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO800800300MVGB808030T
MVGB108030TARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO1000800300MVGB108030T
MVGB101030TARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO10001000300MVGB101030T
MVGB128030TARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO1200800300MVGB128030T
MVGB121030TARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO12001000300MVGB121030T
MVGB121230TARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO12001200300MVGB121230T
MVGB302015TCARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO + CONTRAPUERTA300200155MVGB302015TC
MVGB383015TCARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO + CONTRAPUERTA380300155MVGB383015TC
MVGB383021TCARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO + CONTRAPUERTA380300210MVGB383021TC
MVGB404021TCARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO + CONTRAPUERTA400400210MVGB404021TC
MVGB504021TCARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO + CONTRAPUERTA500400210MVGB504021TC
MVGB505021TCARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO + CONTRAPUERTA500500210MVGB505021TC
MVGB604021TCARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO + CONTRAPUERTA600400210MVGB604021TC
MVGB605021TCARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO + CONTRAPUERTA600500210MVGB605021TC
MVGB606021TCARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO + CONTRAPUERTA600600210MVGB606021TC
MVGB606030TCARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO + CONTRAPUERTA600600300MVGB606030TC
MVGB705021TCARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO + CONTRAPUERTA700500210MVGB705021TC
MVGB806030TCARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO + CONTRAPUERTA800600300MVGB806030TC
MVGB808030TCARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO + CONTRAPUERTA800800300MVGB808030TC
MVGB108030TCARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO + CONTRAPUERTA1000800300MVGB108030TC
MVGB101030TCARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO + CONTRAPUERTA10001000300MVGB101030TC
MVGB128030TCARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO + CONTRAPUERTA1200800300MVGB128030TC
MVGB121030TCARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO + CONTRAPUERTA12001000300MVGB121030TC
MVGB121230TCARMARIO ELÉCTRICO GALVANIZADO PINTADO MURAL IP66 LUXOR PUERTA POLICARBONATO + CONTRAPUERTA12001200300MVGB121230TC
