Public Lighting Switchboards Tropico

Tropico Series

Public lighting switchboards made of stainless steel AISI 304L, optional painted. Robust, developed and designer for placement in urban environments, with embedded door, closed rotary triple action anti vandal and waterproof seal approved CE, UL. Also get a seal from IP54 to IP65, and the maximum possible resistance IK10. Self ventilated roof and plinth optional.

Public Lighting Switchboards Tropico · Delvalle Box
Public Lighting Switchboards Tropico · Delvalle Box

Description

Public lighting switchboards made of stainless steel AISI 304L, optional painted. Robust, developed and designer for placement in urban environments, with embedded door, closed rotary triple action anti vandal and waterproof seal approved CE, UL. Also get a seal from IP54 to IP65, and the maximum possible resistance IK10. Self ventilated roof and plinth optional.

Achieve all the safety and security you need

  • Logo IK10 · Delvalle Box
    IK10
  • Logo IP54 · Delvalle Box
    IP54
  • Logo IP65 · Delvalle Box
    IP65
  • Logo 5 year anti-corrosion · Delvalle Box
    5 year anti-corrosion
  • Logo Chemical resistant · Delvalle Box
    Chemical resistant
  • Logo Corrosion resistant · Delvalle Box
    Corrosion resistant
  • Logo Scrach resistant · Delvalle Box
    Scrach resistant
  • Logo Waterproof · Delvalle Box
    Waterproof

Discover the advantages

Very good mechanical properties and high resistance to torsion.
With water repellent injected seal
Automatic condensate evacuation.
The enclosure includes locks and handles anti-vandalism
Maintenance free for life.
Delvalle made by order any pre-cut holes that suits your needs, including holes, channels, however, both the door and in the envelope.

Regulations

 • From IP54 to IP65 Norm EN 62208 and EN 60529.
Maximum IK10 resistance Norm IEC 62208 and EN 50102.
• IEC 60068-2-30 y IEC 60068-2-11.
• 2006/95/CE.
• Shock resistance with Sharp objects EN 60439-5.
Maximum voltage 1000 V.
• Temperature resistant: -40°C +100°C (short time +160°C).
• Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Applications

Our public lighting switchboards , design, finishing and sealing are specially designed for environment, festivals, Christmas lights, advertising panels, traffic lights control, rush and measurement modules, control and protection modules.

Custom Made Solutions
We offer multiple solutions

Public Lighting Switchboards Tropico · Delvalle Box
Do you need solutions?
2018 product catalogues

• Designs and pictures available on request.
Base for any enclosure size. 100 and 200 mm.
• Stainless steel AISI 316L, EN 1.4404.
• Fasteners and anchors for the floor.
Graffiti-proof protective paint.
• Mounting plate insulator (Bakelite) or stainless steel.
• EMC electromagnetic protection seal between the frame and the contact surfaces, ensuring a perfect electrical connection. EEC standard 89/336.
• Ventilation KIT (Fan, resistance heating and dual thermostat).

Customize this product with the following components:
Lighting for Electrical Enclosures · Delvalle BoxDelvalle Box
Delvalle compact luminaires are specially designed for use in electrical cabinets. We have low...
Security lock · Delvalle BoxDelvalle Box
Security lock for placement it in electrical cabinets.
Locks · Delvalle BoxDelvalle Box
Depending on the enclosure and its use, we look for the best closure suited to the customer’s...
Assembly Frame · Delvalle BoxDelvalle Box
Chassis modular cabinets. Used to divide the front of the cabinets into several sections for quick...
Thermal Insulation Enclosures TermoTisa · Delvalle BoxDelvalle Box
The thermal insulation Termotisa is ideal when it is necessary thermal insulate in...
Cable Entry Cover · Delvalle BoxDelvalle Box
Ideal accessory supplement, removable to make holes comfortably to suit your needs, and fitted so...
Clear Glass Door · Delvalle BoxDelvalle Box
All our cabinets are available with transparent exterior and interior doors for perfect vision of...
Roofs for Outdoor · Delvalle BoxDelvalle Box
In Delvalle we offer the possibility to ask for self-ventilated roofs....
Mounting Plates · Delvalle BoxDelvalle Box
Different mounting plates for multiple uses in electrical cabinets Delvalle.
Data Pocket · Delvalle BoxDelvalle Box
Useful to keep electrical drawings, maintenance records, etc.....
Sockets · Delvalle BoxDelvalle Box
Stainless steel plinthbase 100 and 200 mm high. Allows cabinet to be raised and get extra ...
Transportation Angle · Delvalle BoxDelvalle Box
The transportation angles add strength in handling loading and unloading of the cabinets.
Switchboard Graffiti-Proof Paint · Delvalle BoxDelvalle Box
In Delvalle all cabinets may suminstrarse with a protective transparent anti-graffiti paint and...
Anti-Insect System · Delvalle BoxDelvalle Box
We know the problem for the placement of cooling systems posed by the entry of insects inside the...
Perforated Mounting Plate · Delvalle BoxDelvalle Box
Perforated plates for quick installation of electrical components.
Stainless Steel Ventilation Plugs IP68 · Delvalle BoxDelvalle Box
Stainless steel ventilation plugs IP68 reduce the adverse effects of humidity in the environment...
Separating Plate · Delvalle BoxDelvalle Box
Fixed directly to the cabinet structure, to get separation as well as being a shelf for objects.
Pivot Frame · Delvalle BoxDelvalle Box
The ideal solution for the placement of all instrumentation, with easy and comfortable access from...
Ventilation Brackets · Delvalle BoxDelvalle Box
Placed both in the front enclosure and on the side, allowing a perfect flow of air inside.
Eyebolt · Delvalle BoxDelvalle Box
Galvanized in sizes M12 to M20....
DIN tray · Delvalle BoxDelvalle Box
Directly fixed to the structure. Galvanized 1.5 mm thick steel. Dimensions: 35mm by 7.5 or 5mm.
Safety Lock · Delvalle BoxDelvalle Box
Typically used in enclosures with temporary changes of user. You can also use the padlock seal,...
Set With Inner Door · Delvalle BoxDelvalle Box
Interior door designed for direct placement in the enclosure.
Open Door Security Device · Delvalle BoxDelvalle Box
This device prevents accidents, alerts the operator that the electrical system is functioning...
Designs / Doors · Delvalle BoxDelvalle Box
The possibility of placing a double door in the cabinet is given to meet the customer’s need to...
Limit Switches for Electrical Enclousure · Delvalle BoxDelvalle Box
Limit switches provided with support and fixings for direct fixing....
Reinforcing Frame · Delvalle BoxDelvalle Box
Using a reinforced frame in our enclosure gives us more confidence and consistency, especially in...
Sliding Cable Covers · Delvalle BoxDelvalle Box
These caps allow cable entry between them.
Cross Cable Guide · Delvalle BoxDelvalle Box
With this guide inside the door we get a perfectly ordered wiring. Ideal for the passage of...
Protection Frame Window · Delvalle BoxDelvalle Box
It is used to provide maximum viewing capacity of the indication elements and protection of the...
Outdoor Air Conditioner Electrical Enclosures Tropic · Delvalle BoxDelvalle Box
The largest range of IP54 air conditioners electrical enclosures refrigerators in the market, air...
Roof fan · Delvalle BoxDelvalle Box
Roof Fan, specially designed for extracting heat from the top of the cabinet, for achieving...
Waterproof Seal · Delvalle BoxDelvalle Box
Injected waterproof seal UL, TÜV, CE certified. ...
Public Lighting Switchboards Tropico · Delvalle Box

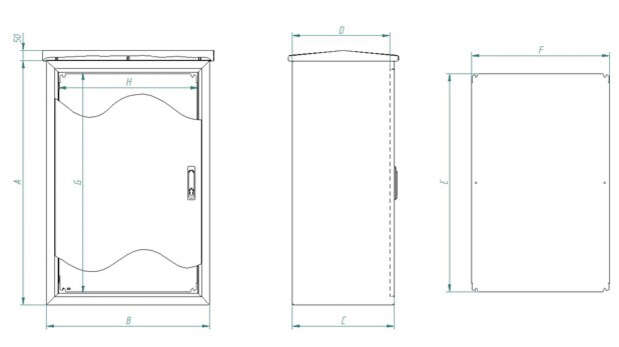

Sketches

Public Lighting Switchboards Tropico · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
MVAD106032CUADRO ALUMBRADO PUBLICO TROPICO1000600320MVAD106032
MVAD106040CUADRO ALUMBRADO PUBLICO TROPICO1000600400MVAD106040
MVAD106050CUADRO ALUMBRADO PUBLICO TROPICO1000600500MVAD106050
MVAD126032CUADRO ALUMBRADO PUBLICO TROPICO1200600320MVAD126032
MVAD126040CUADRO ALUMBRADO PUBLICO TROPICO1200600400MVAD126040
MVAD126050CUADRO ALUMBRADO PUBLICO TROPICO1200600500MVAD126050
MVAD108032CUADRO ALUMBRADO PUBLICO TROPICO1000800320MVAD108032
MVAD108040CUADRO ALUMBRADO PUBLICO TROPICO1000800400MVAD108040
MVAD108050CUADRO ALUMBRADO PUBLICO TROPICO1000800500MVAD108050
MVAD128032CUADRO ALUMBRADO PUBLICO TROPICO1200800320MVAD128032
MVAD128040CUADRO ALUMBRADO PUBLICO TROPICO1200800320MVAD128040
MVAD128050CUADRO ALUMBRADO PUBLICO TROPICO1200800500MVAD128050
MVAD121032CUADRO ALUMBRADO PUBLICO TROPICO12001000320MVAD121032
MVAD121040CUADRO ALUMBRADO PUBLICO TROPICO12001000400MVAD121040
MVAD121050CUADRO ALUMBRADO PUBLICO TROPICO12001000500MVAD121050
MVAD101232CUADRO ALUMBRADO PUBLICO TROPICO10001200320MVAD101232
MVAD101240CUADRO ALUMBRADO PUBLICO TROPICO10001200400MVAD101240
MVAD101250CUADRO ALUMBRADO PUBLICO TROPICO1001200500MVAD101250
MVAD801432CUADRO ALUMBRADO PUBLICO TROPICO8001400320MVAD801432
MVAD101432CUADRO ALUMBRADO PUBLICO TROPICO10001400320MVAD101432
MVAD101440CUADRO ALUMBRADO PUBLICO TROPICO10001400400MVAD101440
MVAD101450CUADRO ALUMBRADO PUBLICO TROPICO10001400500MVAD101450
MVAD121432CUADRO ALUMBRADO PUBLICO TROPICO12001400320MVAD121432
MVAD121440CUADRO ALUMBRADO PUBLICO TROPICO12001400400MVAD121440
MVAD121450CUADRO ALUMBRADO PUBLICO TROPICO12001400500MVAD121450
MVAD141432CUADRO ALUMBRADO PUBLICO TROPICO14001400320MVAD141432
MVAD141440CUADRO ALUMBRADO PUBLICO TROPICO14001400400MVAD141440
MVAD141450CUADRO ALUMBRADO PUBLICO TROPICO14001400500MVAD141450
MVAD121632CUADRO ALUMBRADO PUBLICO TROPICO12001600320MVAD121632
MVAD121640CUADRO ALUMBRADO PUBLICO TROPICO12001600400MVAD121640
MVAD121650CUADRO ALUMBRADO PUBLICO TROPICO12001600500MVAD121650
MVAD161832CUADRO ALUMBRADO PUBLICO TROPICO16001800320MVAD161832
MVAD161840CUADRO ALUMBRADO PUBLICO TROPICO16001800400MVAD161840
MVAD161850CUADRO ALUMBRADO PUBLICO TROPICO16001800500MVAD161850
MVAD162050CUADRO ALUMBRADO PUBLICO TROPICO16002000500MVAD162050
MVAD182050CUADRO ALUMBRADO PUBLICO TROPICO18002000500MVAD182050
MVAD222050CUADRO ALUMBRADO PUBLICO TROPICO22002000500MVAD222050
MVAD122232CUADRO ALUMBRADO PUBLICO TROPICO12002200320MVAD122232
MVAD122240CUADRO ALUMBRADO PUBLICO TROPICO12002200400MVAD122240
MVAD122250CUADRO ALUMBRADO PUBLICO TROPICO12002200500MVAD122250
MVAD182450CUADRO ALUMBRADO PUBLICO TROPICO18002400500MVAD182450
MVAD202450CUADRO ALUMBRADO PUBLICO TROPICO20002400500MVAD202450
MVAD222450CUADRO ALUMBRADO PUBLICO TROPICO22002400500MVAD222450
