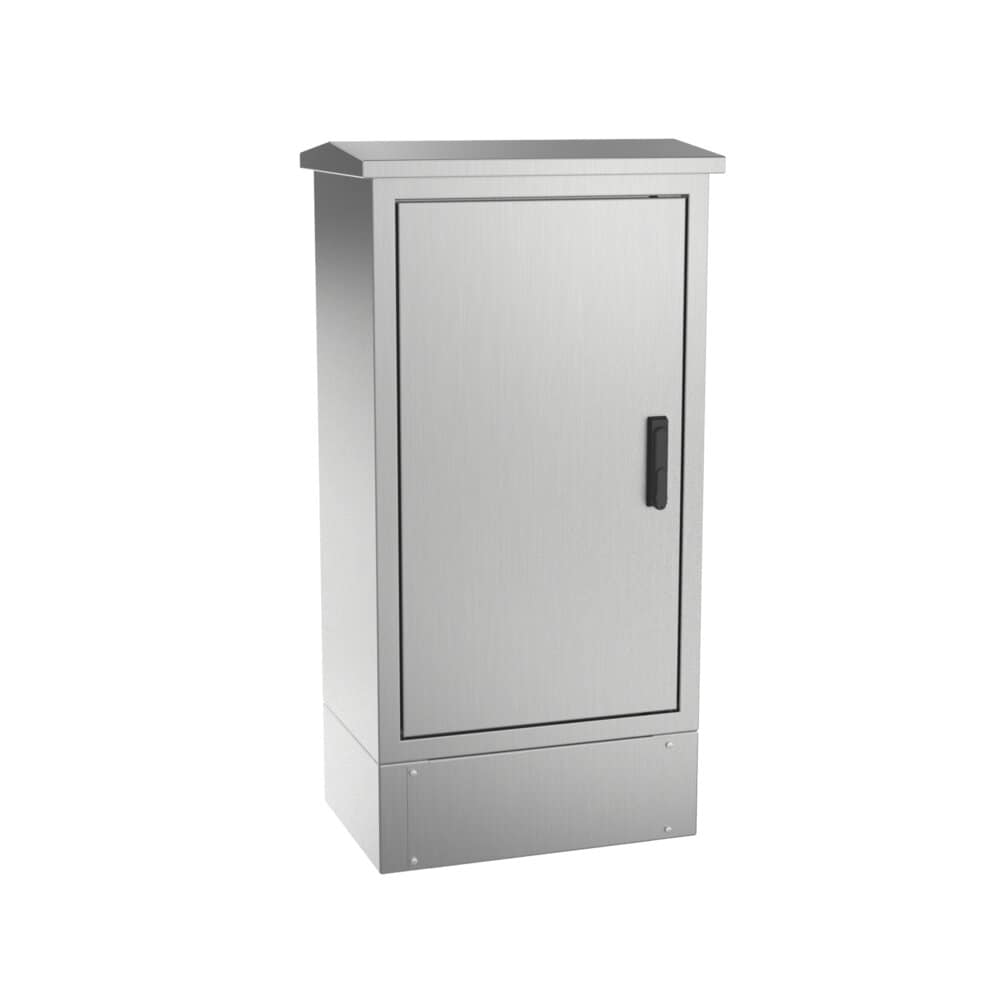

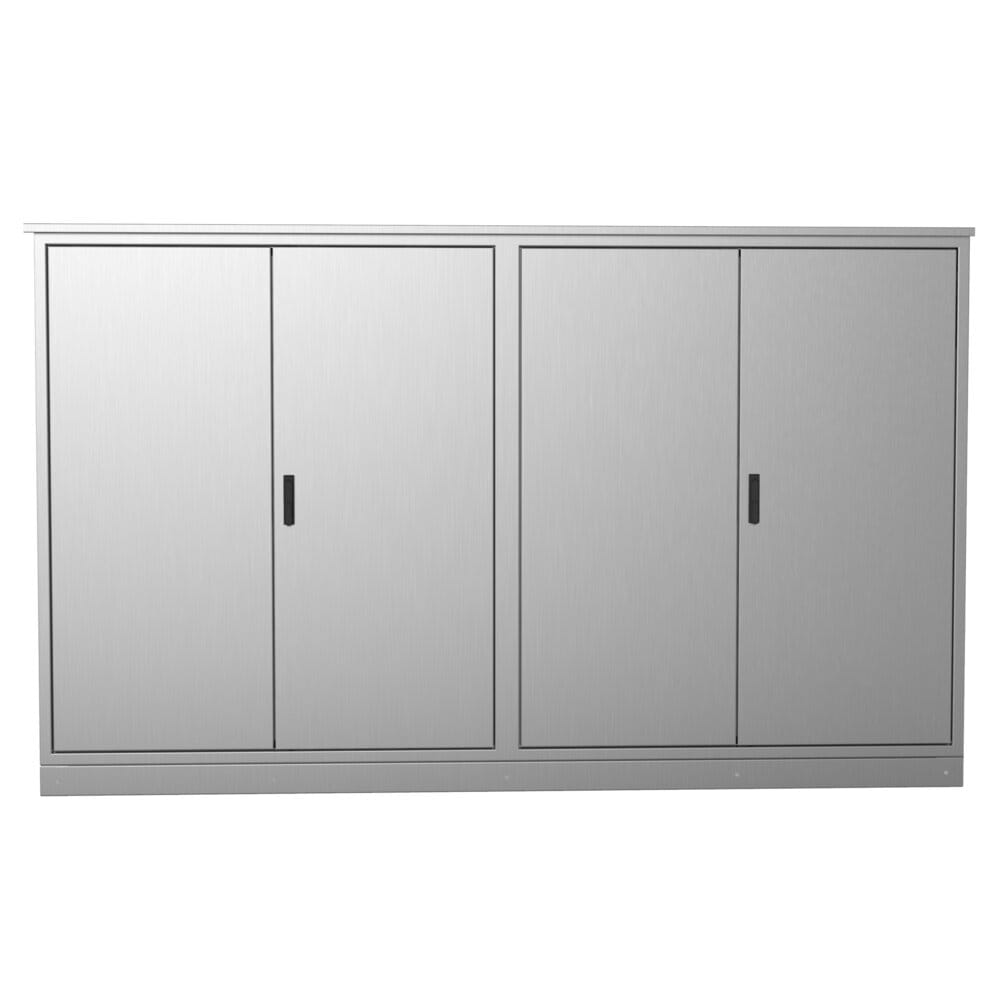

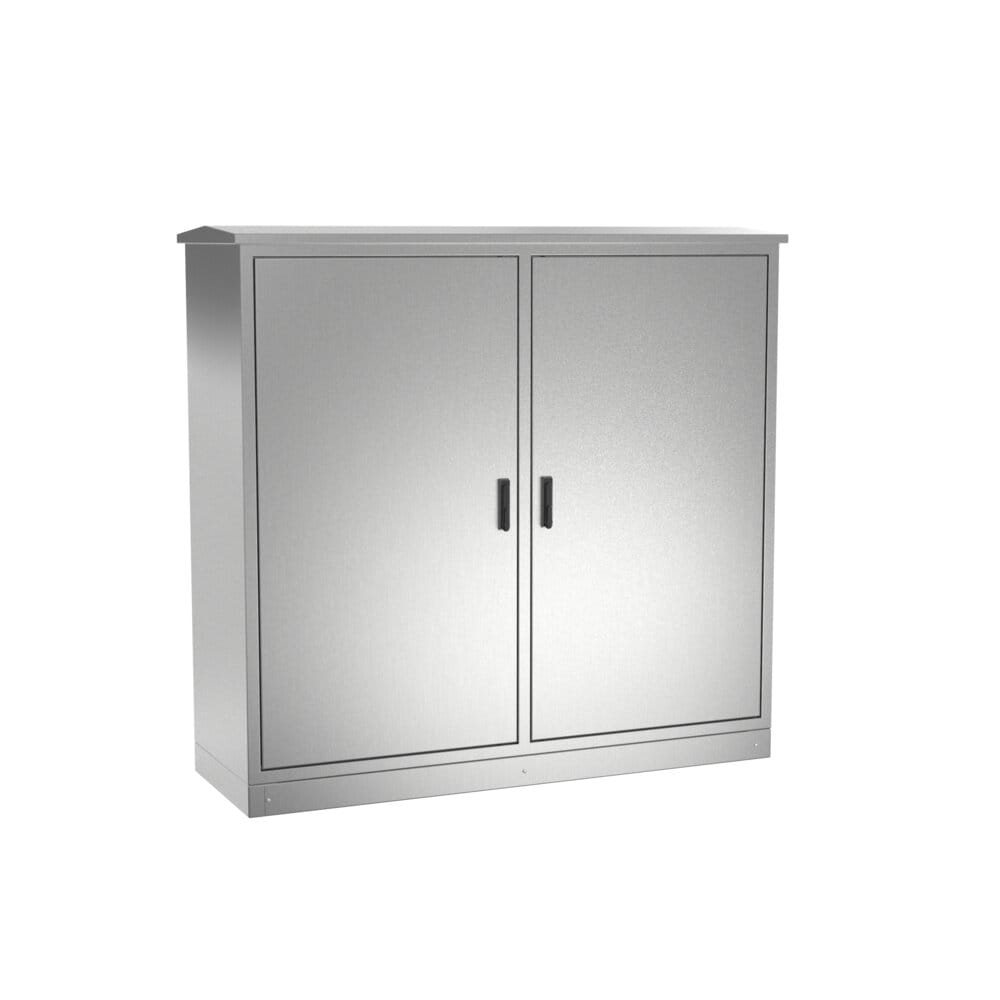

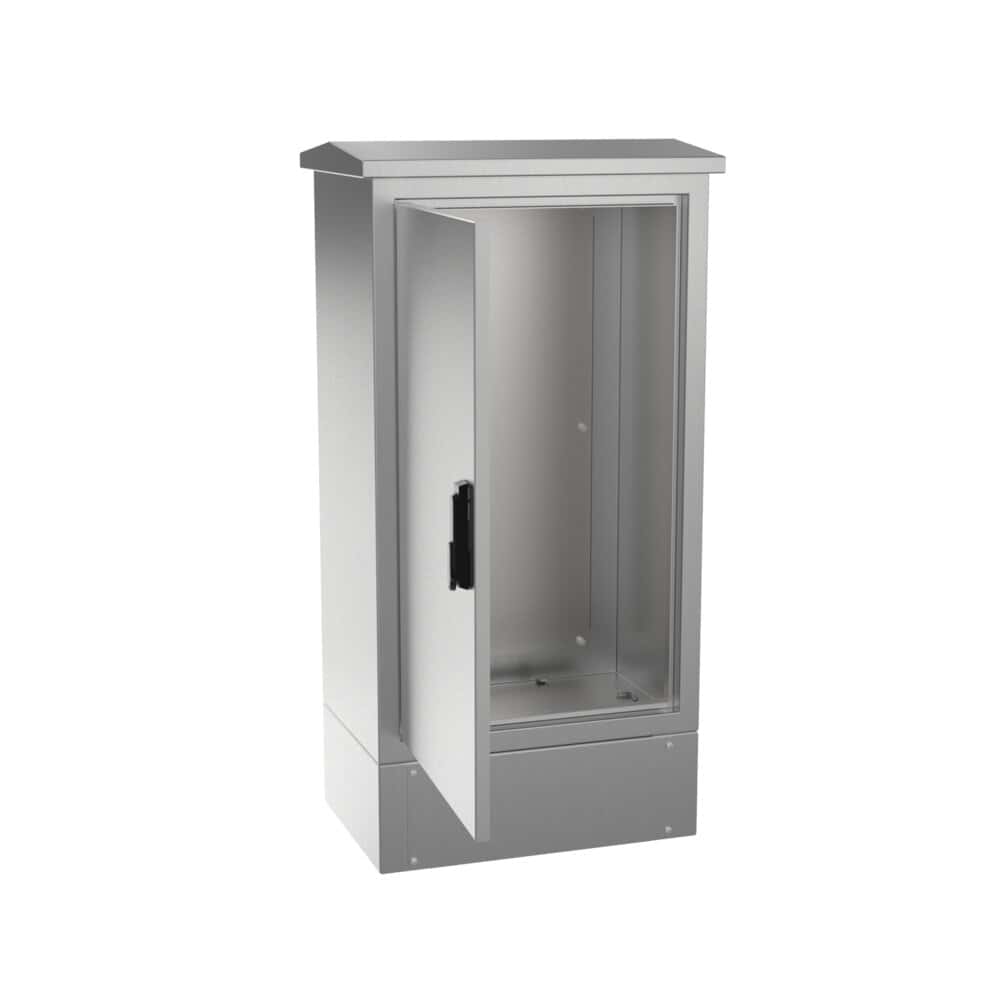

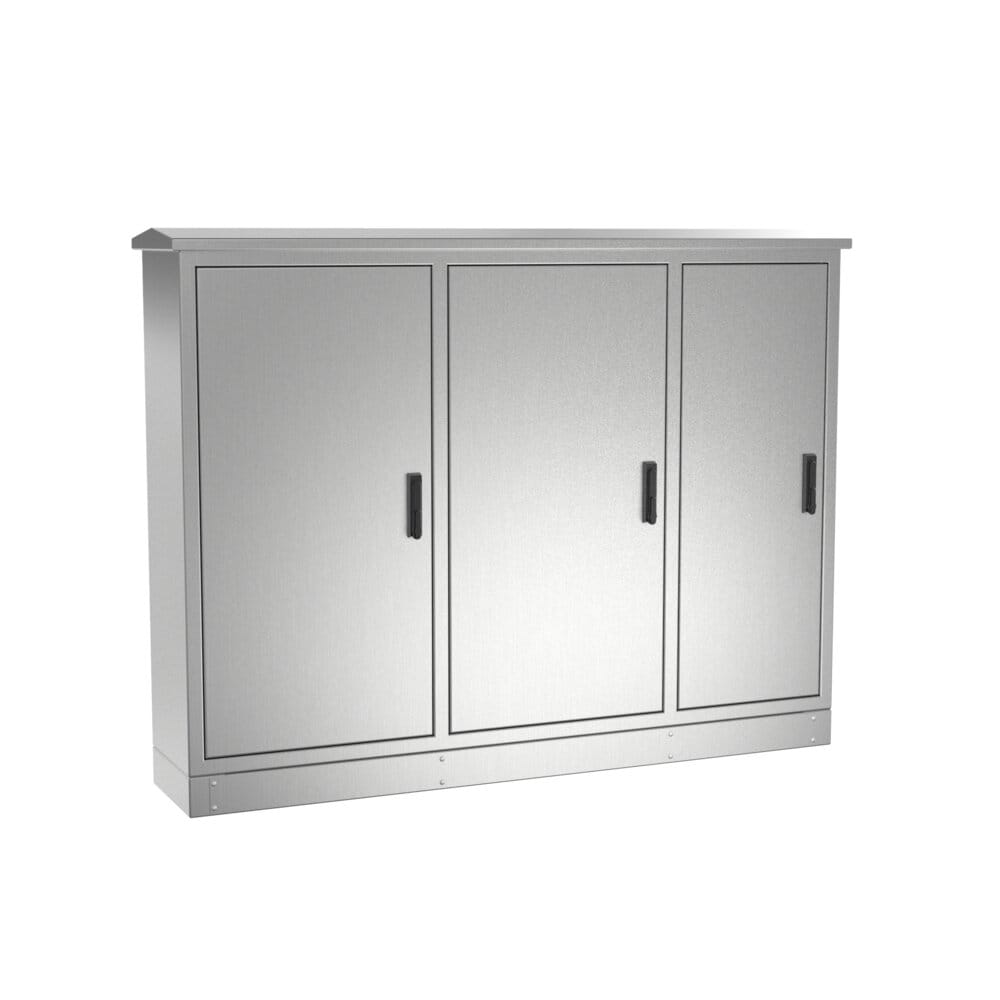

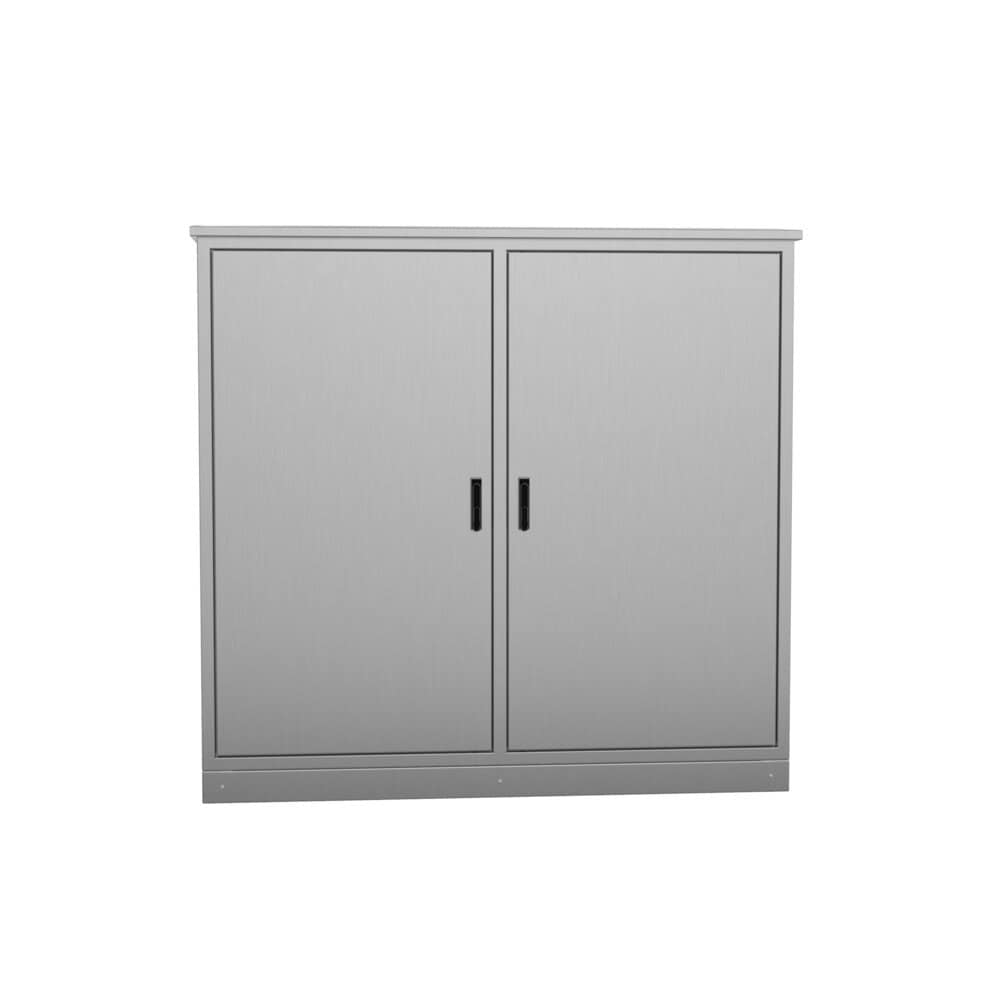

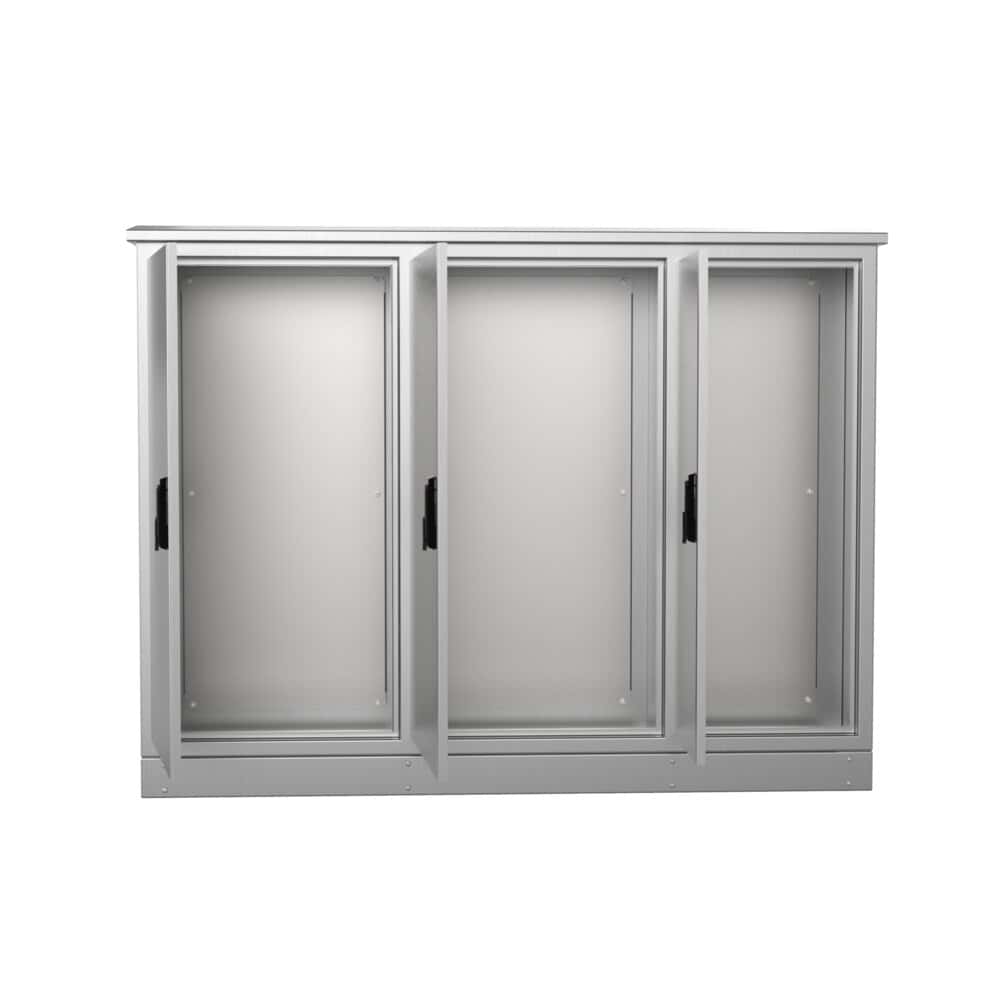

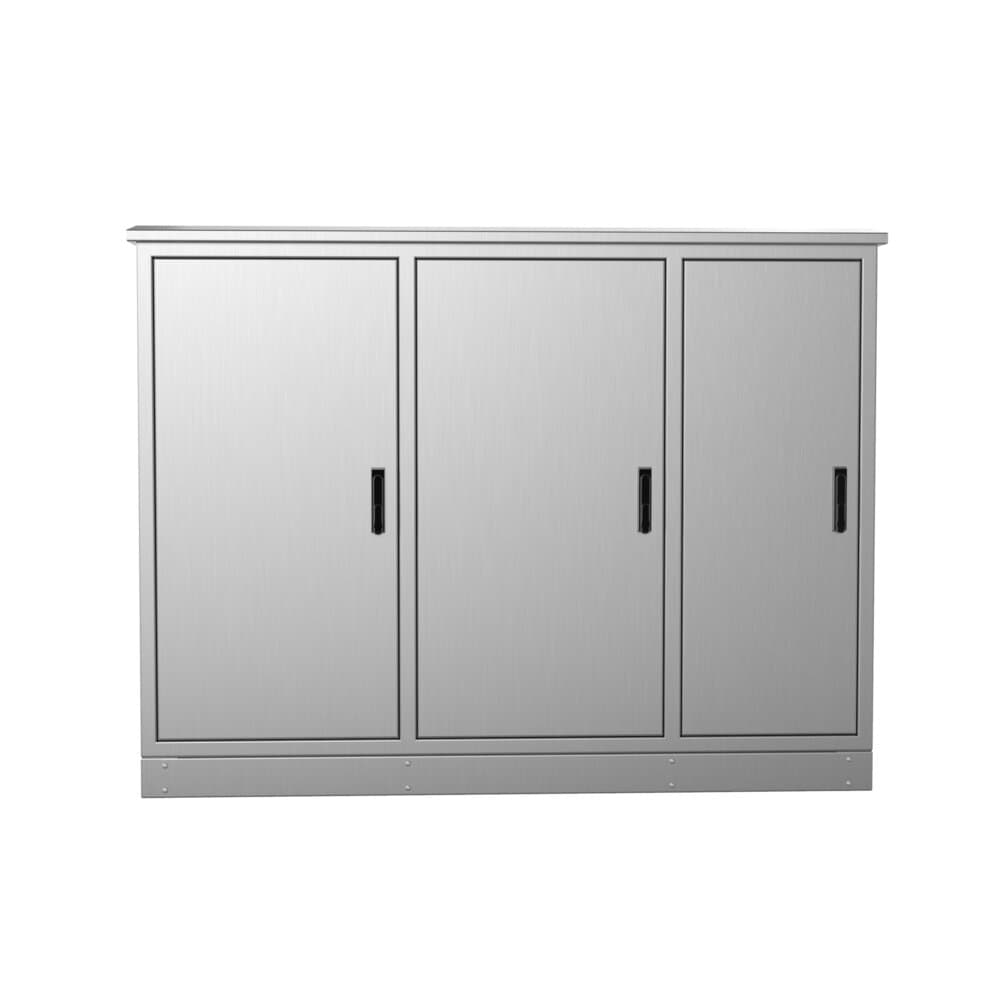

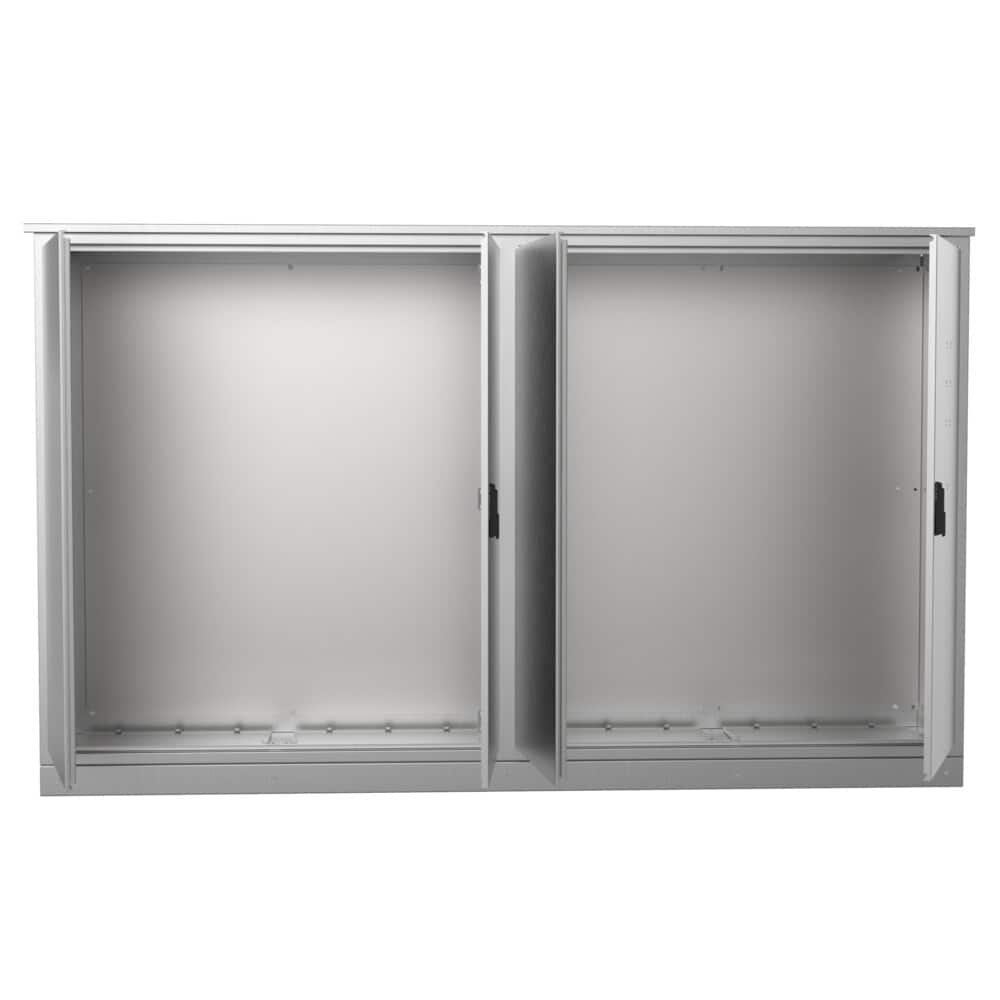

Public lighting switchboards made of stainless steel AISI 304L, optional painted. Robust, developed and designer for placement in urban environments, with embedded door, closed rotary triple action anti vandal and waterproof seal approved CE, UL. Also get a seal from IP54 to IP65, and the maximum possible resistance IK10. Self ventilated roof and plinth optional.
| Minimum Measurements | A=1000-1200mm B=600-800mm P=320-500mm |
|---|---|
| Maximum Double Door Measurements | A=2200mm B=2400mm P=500mm |
| Minimum Plate Measurements | A=870-2070mm |
| Minimum Plate Measurements | B=475-2270mm |
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Opening | 120 ° |
| Door Type | Blind door |
| Opening Type | Swivel with concealed hinges |
| Closing System | Rotary handle |
| Useful Depth | 297.5-477.5 mm |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Plate Material | Galvanized |
| Sealing Gasket | Polyurethane |
| Working Temperature | -40°C a +100°C (reducida exposición +160ºC) |
| Maximum Voltage | 1000 V |
| Alternative Materials | AISI 316L, Galvanized, Aluminum |
|---|---|
| Interior Plate Material | Insulating mounting plate (Bakelite), Stainless steel mounting plate |
| Alternative Gaskets | silicone (-60°C to +180°C), EMC |
| Machinable Area | Puerta: 858.5x412.8-2000x555.3, Lateral: 990x310-2190x490 |
|
REFERENCE |
DIMENSIONS (mm) |
||||||||
|
REFERENCE |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
ACCESS OPENING -GxH- |
USABLE DEPTH -D- |
MACHINABLE AREA |
PLATE DIMENSIONS -ExF- |
NO. OF DOORS |
|
|
DOOR |
SIDE |
||||||||
|
MVAD106032 |
1000 |
600 |
320 |
883×483 |
297,5 |
858.5×412.8 |
990 x 310 |
870 x 475 |
1 |
|
MVAD106040 |
400 |
377,5 |
990 x 390 |
||||||
|
MVAD106050 |
500 |
477,5 |
990 x 490 |
||||||
|
MVAD126032 |
1200 |
320 |
1083×483 |
297,5 |
1058.8×412.8 |
1190 x 310 |
1070 x 475 |
||
|
MVAD126040 |
400 |
377,5 |
1190 x 390 |
||||||
|
MVAD126050 |
500 |
477,5 |
1190 x 490 |
||||||
|
MVAD108032 |
1000 |
800 |
320 |
883×683 |
297,5 |
800×530 |
990 x 310 |
870 x 675 |
|
|
MVAD108040 |
400 |
377,5 |
990 x 390 |
||||||
|
MVAD108050 |
500 |
477,5 |
990 x 490 |
||||||
|
MVAD128032 |
1200 |
320 |
1083×683 |
297,5 |
1000×530 |
1190 x 310 |
1070 x 675 |
||
|
MVAD128040 |
400 |
377,5 |
1190 x 390 |
||||||
|
MVAD128050 |
500 |
477,5 |
1190 x 490 |
||||||
|
MVAD121032 |
1200 |
1000 |
320 |
1083×683 |
297,5 |
1058.5 x 322.3 and 1058.5 x 255.8 |
1190 x 310 |
1070 x 870 |
|
|
MVAD121040 |
400 |
377,5 |
1190 x 390 |
||||||
|
MVAD121050 |
500 |
477,5 |
1190 x 490 |
||||||
|
MVAD101232 |
1000 |
1200 |
320 |
883×1083 |
297,5 |
858.5 x 522.3 and 858.5 x 455.8 |
990 x 310 |
870 x 1070 |
|
|
MVAD101240 |
400 |
377,5 |
990 x 390 |
||||||
|
MVAD101250 |
500 |
477,5 |
990 x 490 |
||||||
|
MVAD801432 |
800 |
1400 |
320 |
683×1283 |
297,5 |
658.5 x 722.3 and 658.5 x 655.8 |
790 x 310 |
670 x 1270 |
2 |
|
MVAD101432 |
1000 |
883×1283 |
858.5 x 722.3 and 858.5 x 655.8 |
990 x 310 |
870 x 1270 |
||||
|
MVAD101440 |
400 |
377,5 |
990 x 390 |
||||||
|
MVAD101450 |
500 |
477,5 |
990 x 490 |
||||||
|
MVAD121432 |
1200 |
320 |
1083×1283 |
297,5 |
1058.5 x 722.3 and 1058.5 x 655.8 |
1190 x 310 |
1070 x 1270 |
||
|
MVAD121440 |
400 |
377,5 |
1190 x 390 |
||||||
|
MVAD121450 |
500 |
477,5 |
1190 x 490 |
||||||
|
MVAD141432 |
1400 |
320 |
1283×1283 |
297,5 |
1258.5 x 722.3 and 1258.5 x 655.8 |
1390 x 310 |
1270 x 1270 |
||
|
MVAD141440 |
400 |
377,5 |
1390 x 390 |
||||||
|
MVAD141450 |
500 |
477,5 |
1390 x 490 |
||||||
|
MVAD121632 |
1200 |
1600 |
320 |
1083×1483 |
297,5 |
1000 x 570 and 1000 x 570 |
1190 x 310 |
1070 x 1470 |
|
|
MVAD121640 |
400 |
377,5 |
1190 x 390 |
||||||
|
MVAD121650 |
500 |
477,5 |
1190 x 490 |
||||||
|
MVAD161832 |
1600 |
1800 |
320 |
1483×1883 |
297,5 |
1458.5 x 438.1 |
1590 x 310 |
1470 x 1670 |
3 |
|
MVAD161840 |
400 |
377,5 |
1590 x 390 |
||||||
|
MVAD161850 |
2000 |
500 |
477,5 |
1590 x 490 |
|||||
|
MVAD162050 |
1483×1883 |
1458.5 x 504.8 |
1590 x 490 |
1470 x 1870 |
|||||
|
MVAD182050 |
1800 |
1683×1883 |
1658.5 x 504.8 |
1790 x 490 |
1670 x 1870 |
||||
|
MVAD222050 |
2200 |
2083×1883 |
2058.5 x 504.8 |
2190 x 490 |
2070 x 1870 |
||||
|
MVAD122232 |
1200 |
2200 |
320 |
1083×2083 |
297,5 |
1058.5 x 571.4 |
1190 x 310 |
1070 x 2070 |
|
|
MVAD122240 |
400 |
377,5 |
1190 x 390 |
||||||
|
MVAD122250 |
500 |
477,5 |
1190 x 490 |
||||||
|
MVAD182450 |
1800 |
2400 |
1683×2283 |
1600 x 555.3 |
1790 x 490 |
1670 x 2270 |
|||
|
MVAD202450 |
2000 |
1883×2283 |
1800 x 555.3 |
1990 x 490 |
1870 x 2270 |
||||
|
MVAD222450 |
2200 |
2083×2283 |
2000 x 555.3 |
2190 x 490 |
2070 x 2270 |
||||
Backplate separation 30mm
