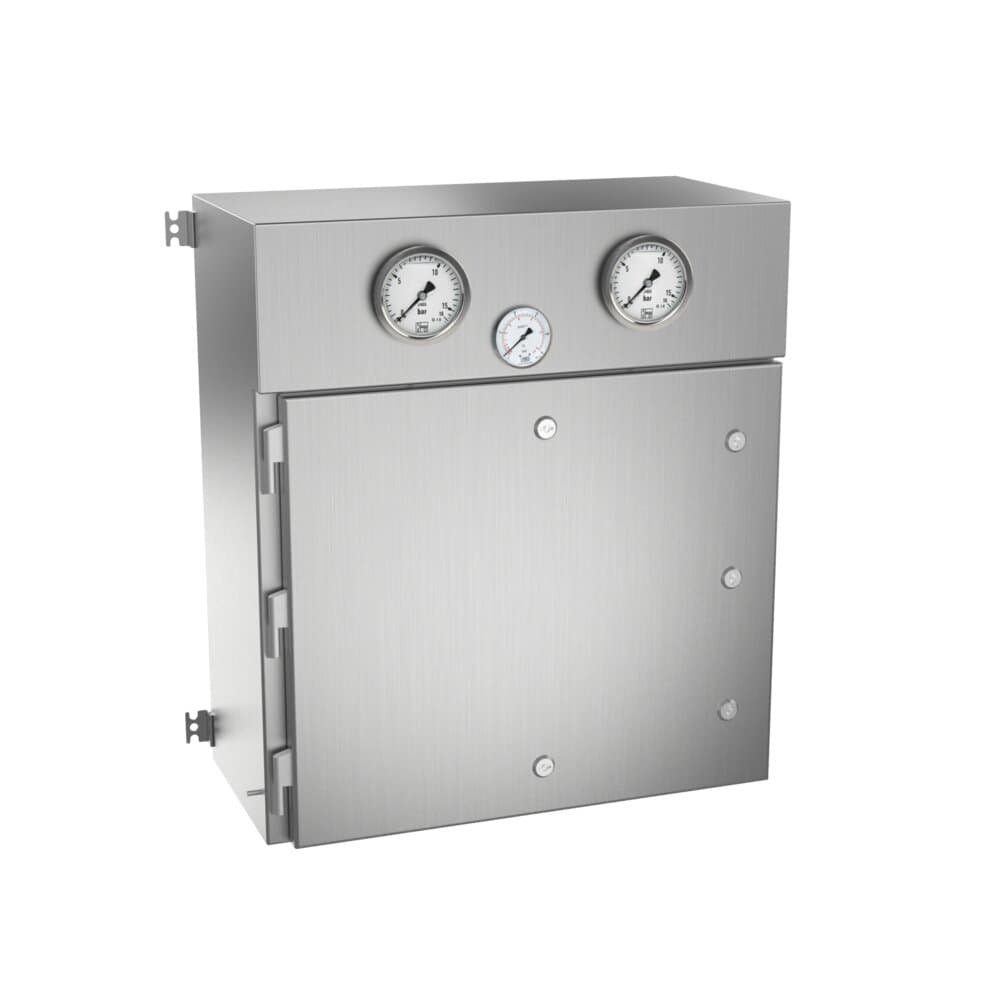

We design and manufacture customized boxes and cabinets for pneumatic control (empty) in stainless steel or galvanize according to specifications required by the electro-pneumatic assembler.
Its design is practical and elegant at the same time, in other words it gives an image of quality and safety
| Minimum Measurements | A=500-2000mm B=800-600mm P=210-425mm |
|---|---|
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Opening | 120 ° |
| Door Type | Blind door |
| Opening Type | Swivel with concealed hinges |
| Closing System | Double-bit quarter-turn locks |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Plate Material | Galvanized |
| Sealing Gasket | Polyurethane |
| Working Temperature | -40°C a +100°C (reducida exposición +160ºC) |
| Maximum Voltage | 1000 V |
| Alternative Materials | AISI 316L, Galvanized, Aluminum |
|---|---|
| Alternative Finishes | Painted RAL 7035 |
| Alternative Door | Door with safety glass, Door with polycarbonate panel |
| Interior Plate Material | Insulating mounting plate (Bakelite), Stainless steel mounting plate |
| Alternative Gaskets | silicone (-60°C to +180°C) |
