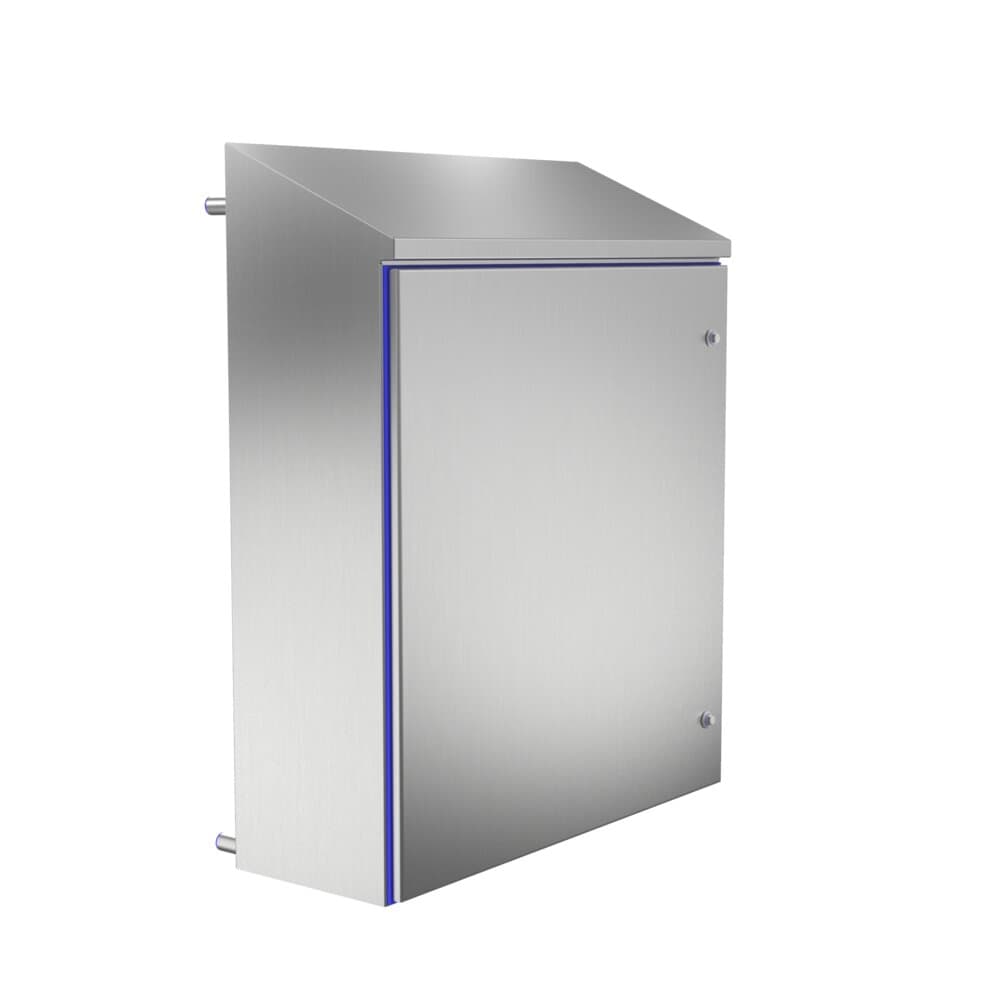

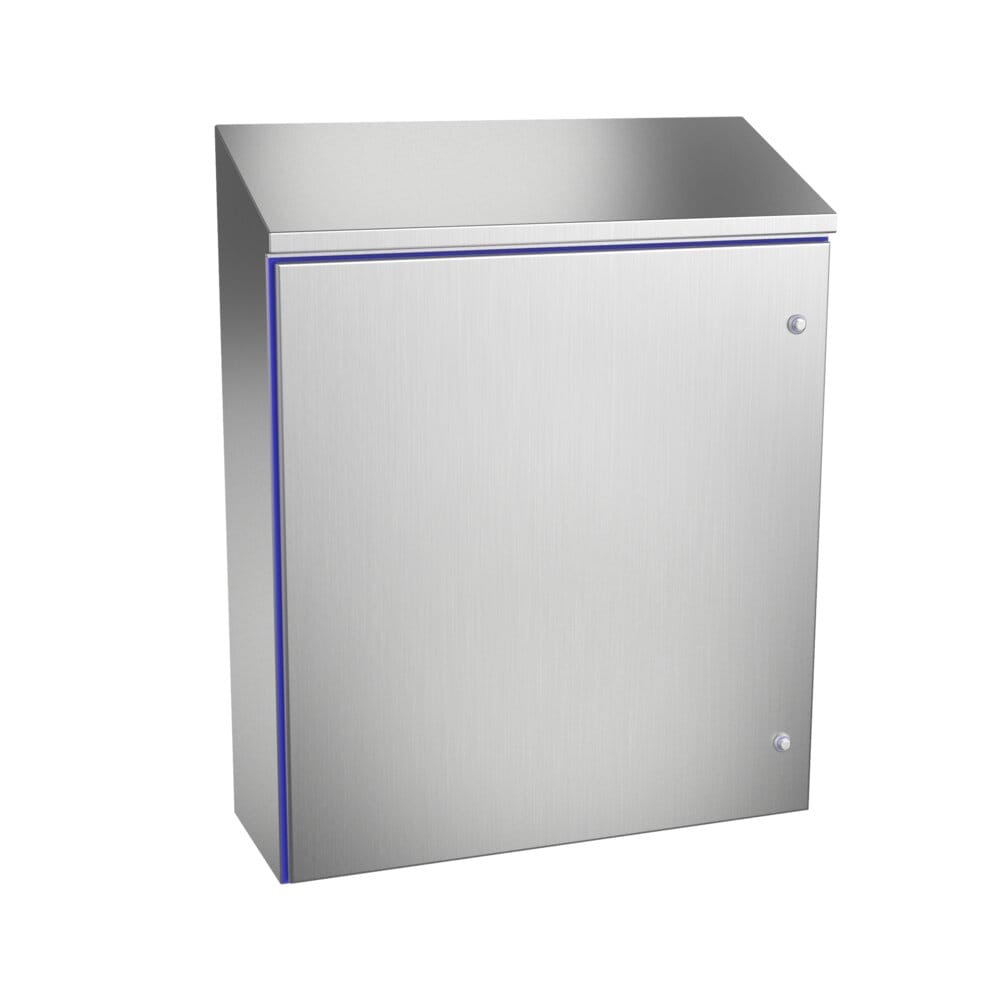

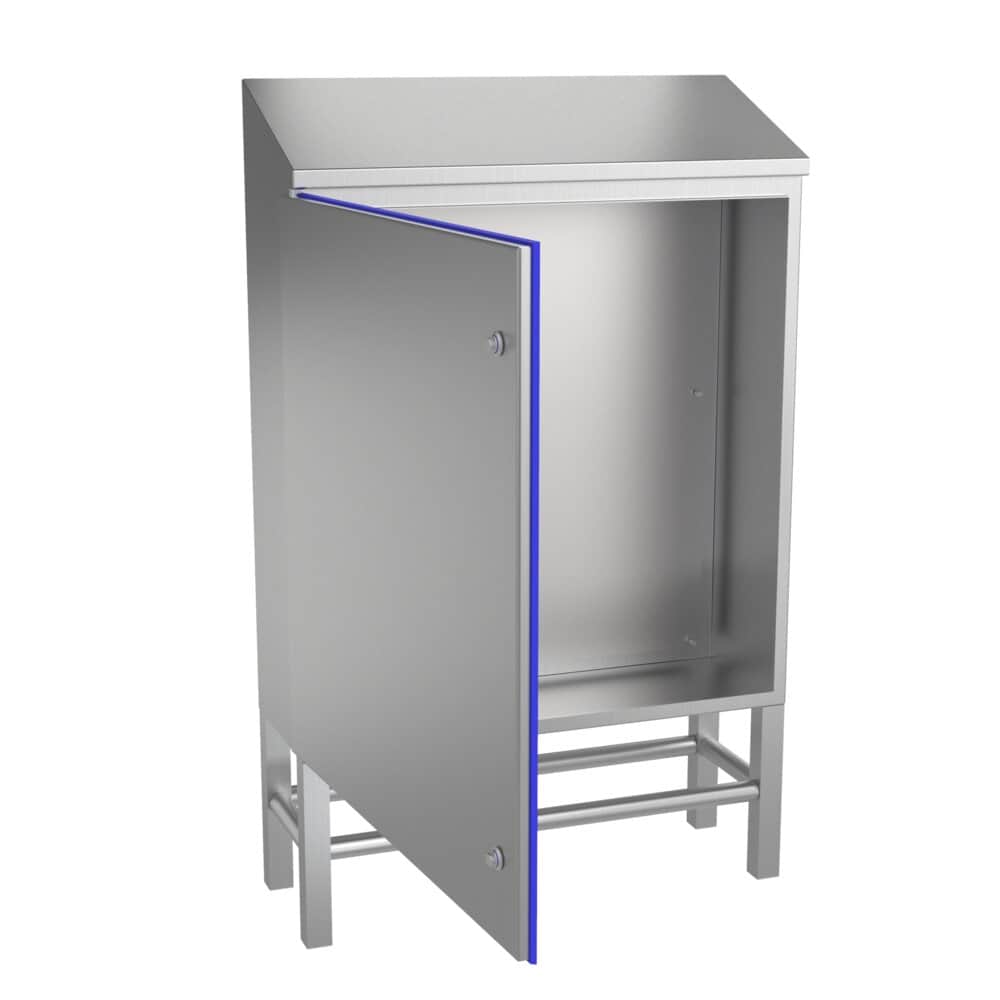

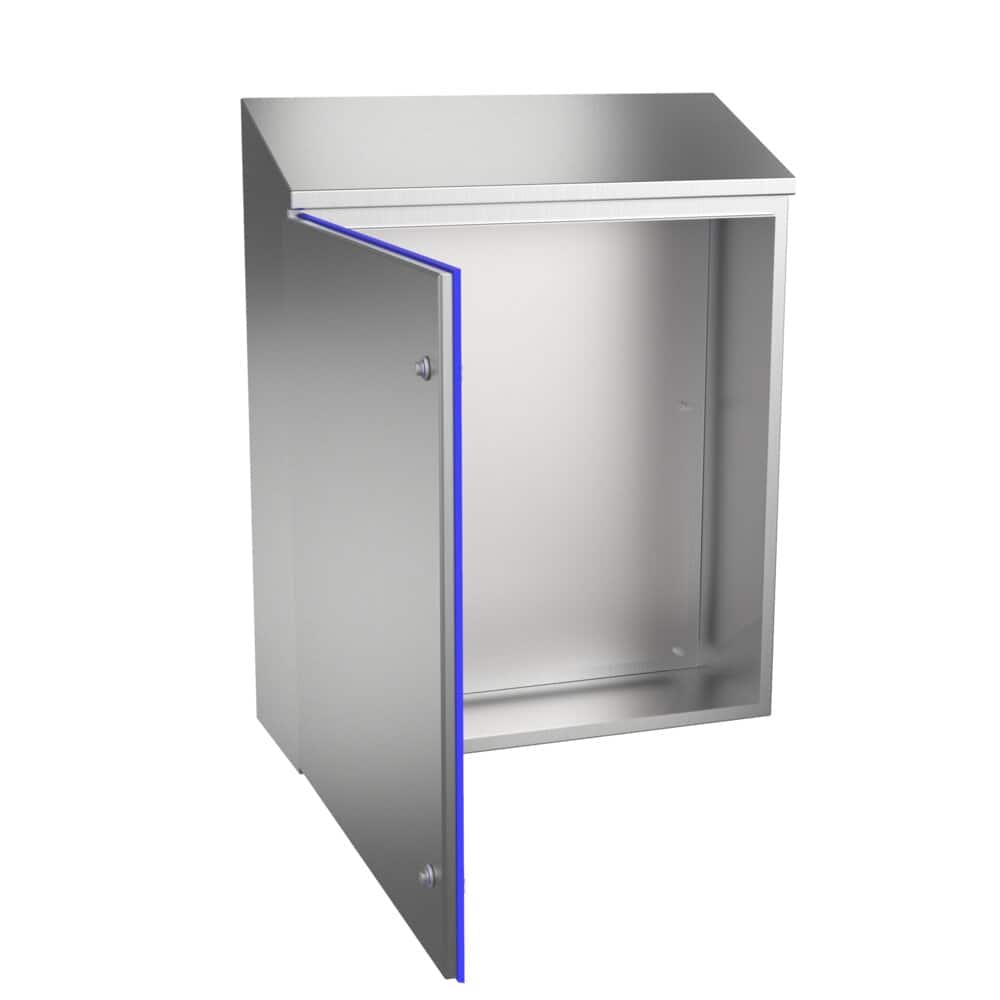

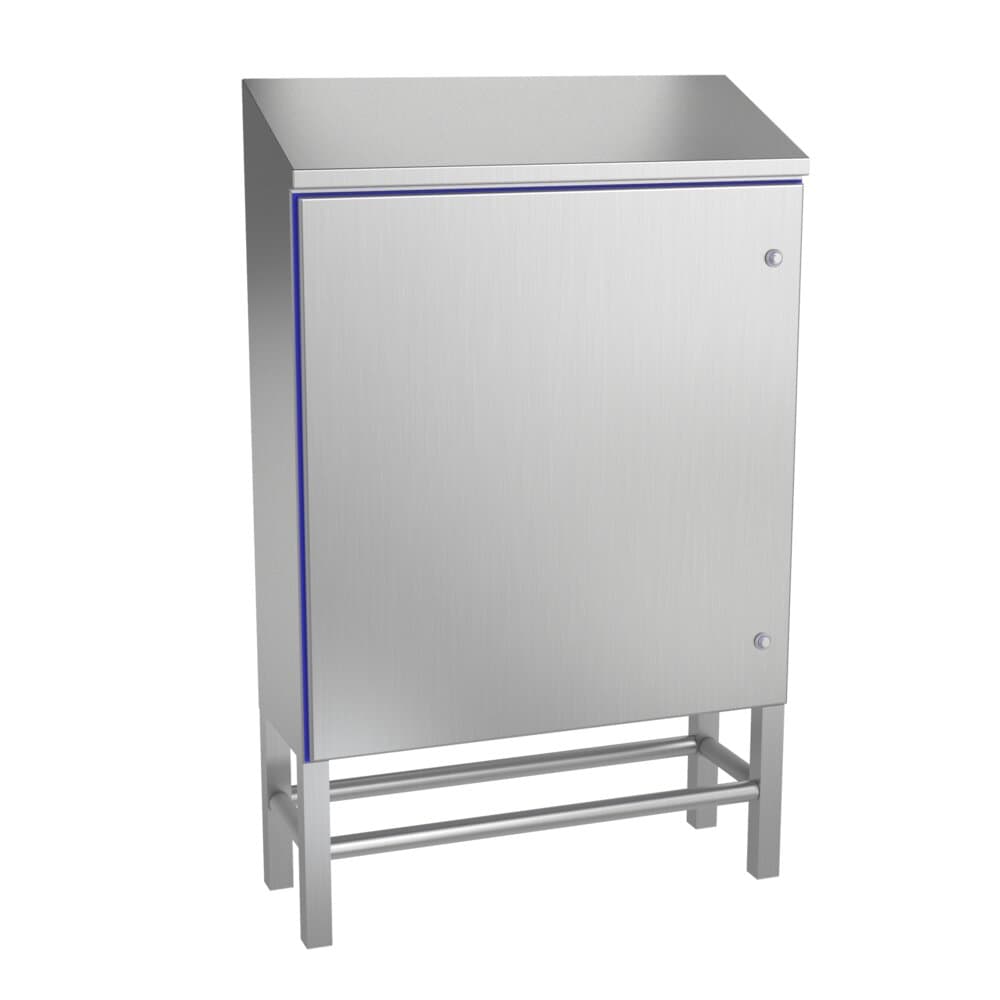

Hygienic Design wall Enclosure Luxor series IP6K9K wall made of stainless steel AISI 304L or AISI 316L. Specially designed for the food industry.
No openings, hinges, where bacteria could lie but robust and easy lock opening with a big space inside to allow easy working.
Moreover the inclination of the roof prevents objects being placed on the surface and our vertical electro polished finish helps repel liquids and prevent virus and bacteria building up on the surface.
| Minimum Measurements | A=370-1450mm B=300-810mm P=155-400mm |
|---|---|

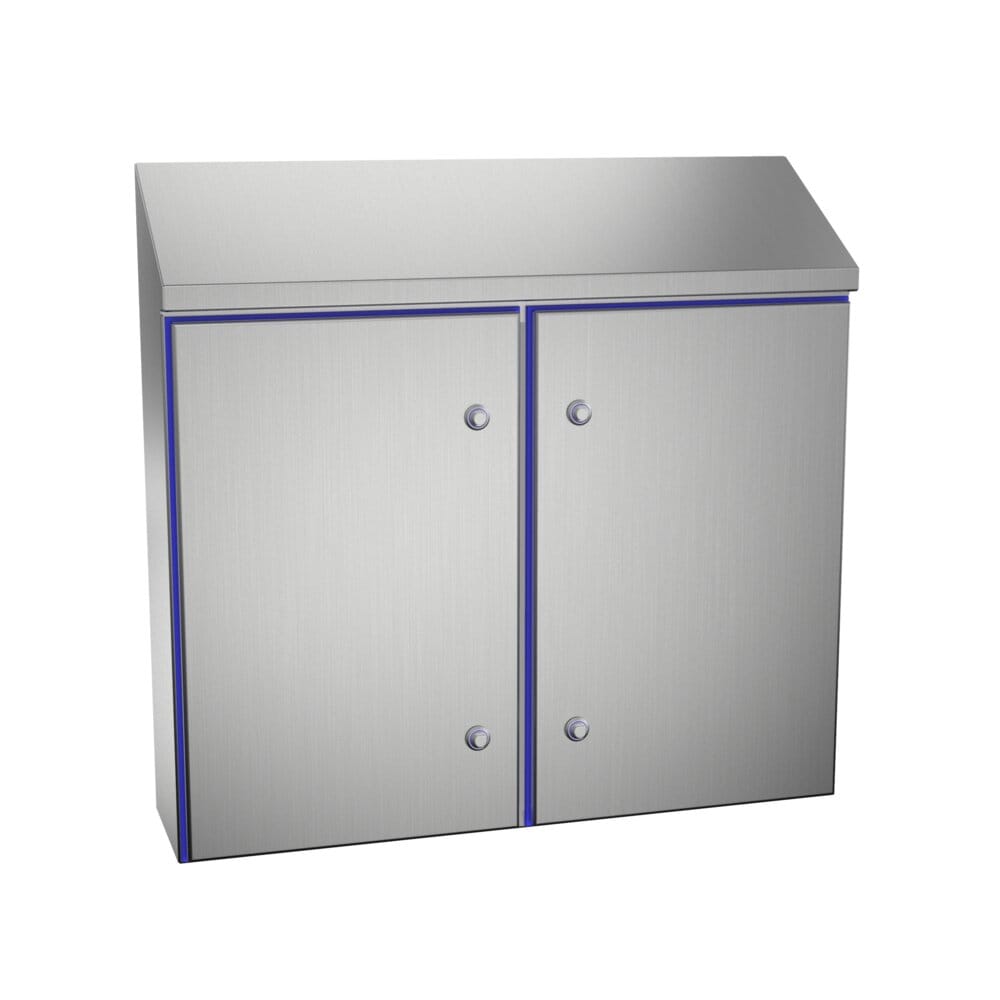

| Maximum Double Door Measurements | A=1450mm B=1620mm P=400mm |
| Minimum Plate Measurements | A=265-1340mm |
| Minimum Plate Measurements | B=240-750mm |
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Opening | 90 ° |
| Door Type | Blind door |
| Opening Type | Swivel with concealed hinges |
| Closing System | Cierres Hygienic |
| Useful Depth | 133,5-378,5 mm |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Plate Material | Galvanized |
| Sealing Gasket | Silicone |
| Working Temperature | -60°C a +180°C (reducida exposición hasta +350°C) |
| Maximum Voltage | 1000 V |
| Alternative Materials | AISI 316L, Galvanized, Aluminum |
|---|---|
| Alternative Finishes | Painted RAL 7035 |
| Alternative Door | Door with polycarbonate panel, Door with safety glass |
| Interior Plate Material | Insulating mounting plate (Bakelite), Stainless steel mounting plate |
| Machinable Area | Puerta: 155,2x191-1230,2x701, Lateral: 329,4x101-1404,4x346 |
|
REFERENCES |
DIMENSIONS (mm) |
||||
|
STAINLESS STEEL AISI 304L |
STAINLESS STEEL AISI 316L |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
PLATE DIMENSIONS -ExF- |
|
MVHL302015 |
MVHL302015316 |
300 |
200 |
150 |
270×170 |
|
MVHL403020 |
MVHL403020316 |
400 |
300 |
200 |
370×270 |
|
MVHL504020 |
MVHL504020316 |
500 |
400 |
200 |
470×370 |
|
MVHL604021 |
MVHL604021316 |
600 |
400 |
210 |
570×370 |
|
MVHL606021 |
MVHL606021316 |
600 |
600 |
210 |
570×570 |
|
MVHL806030 |
MVHL806030316 |
800 |
600 |
300 |
770×570 |
|
MVHL108030 |
MVHL108030316 |
1000 |
800 |
300 |
970×770 |
|
MVHL128030 |
MVHL128030316 |
1200 |
800 |
300 |
1170×770 |

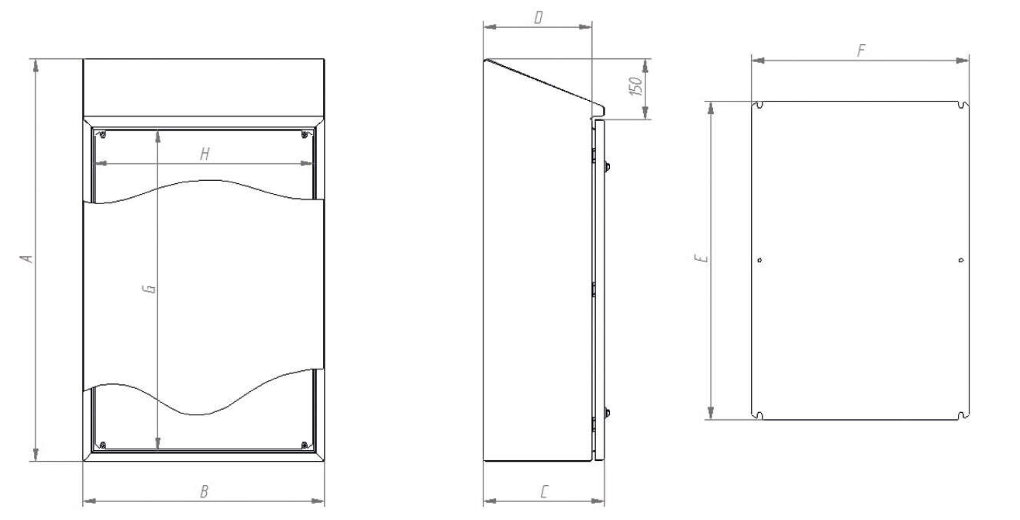

Croquis:
