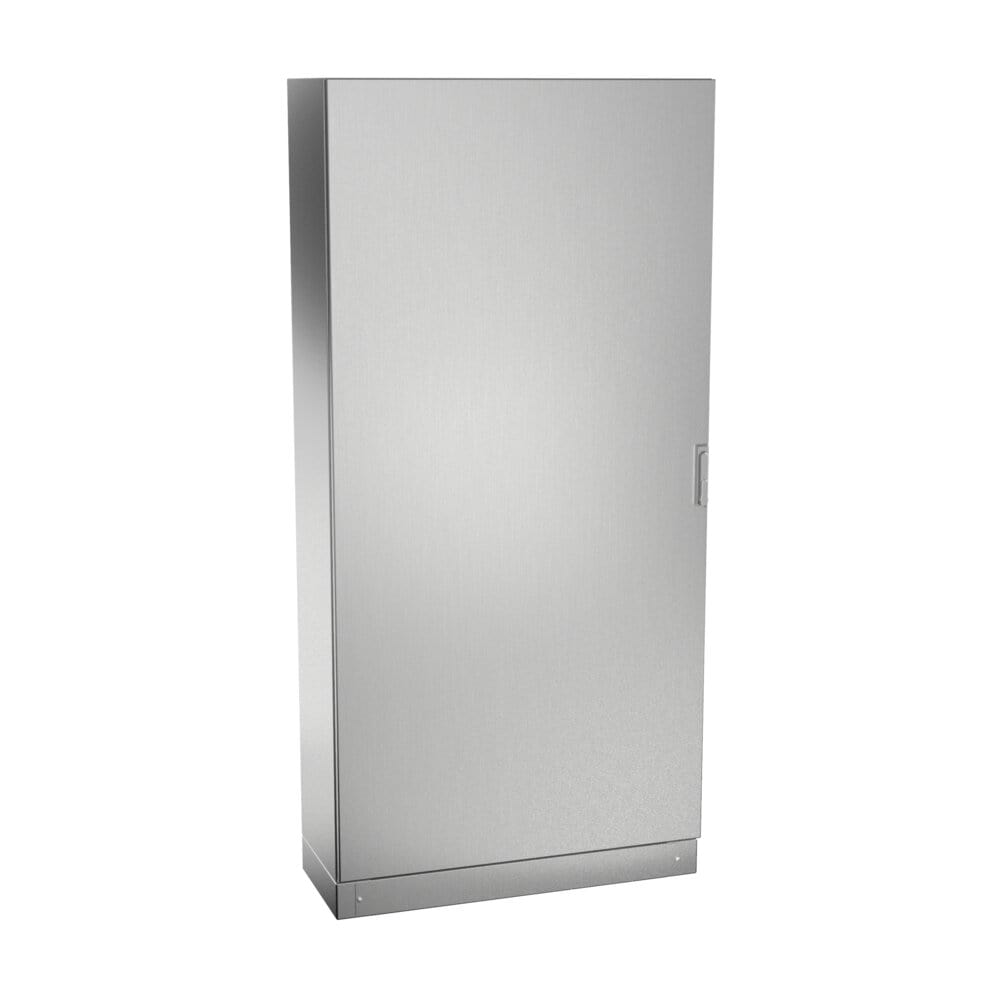

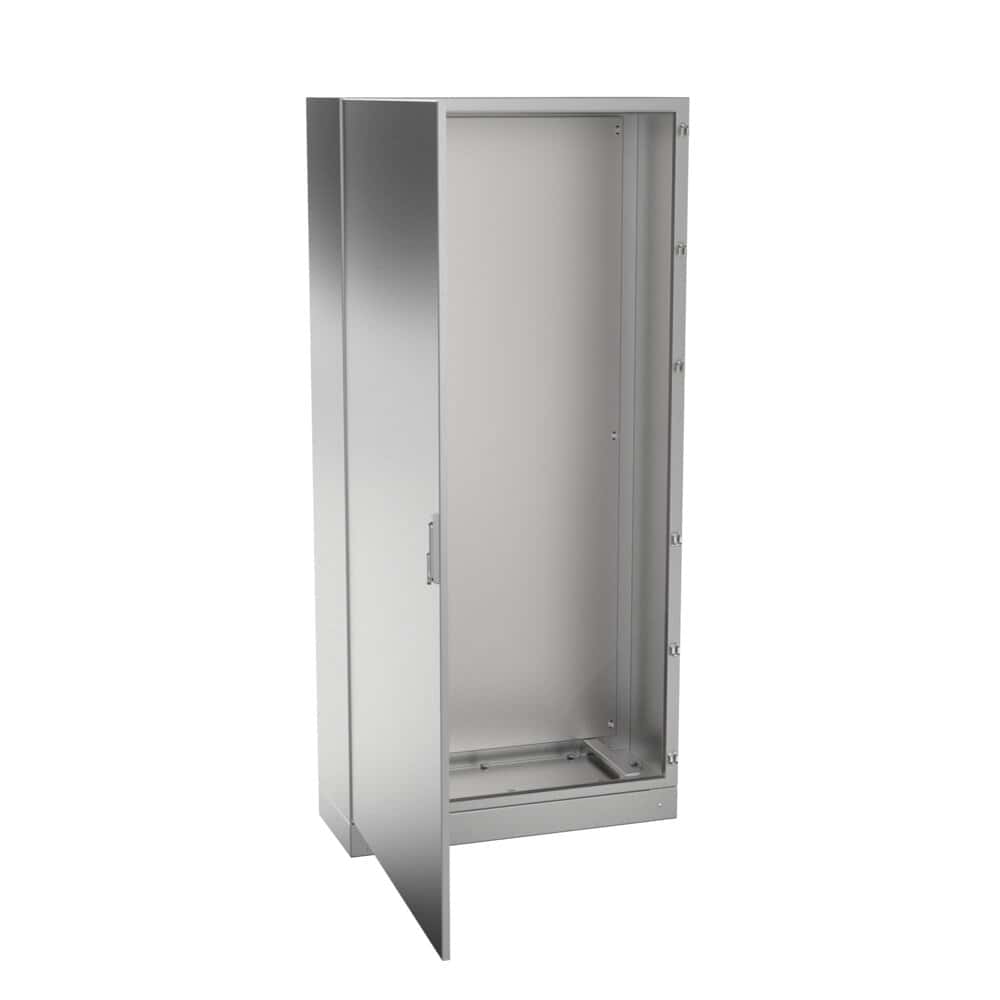

Tribeca EMC enclosures with an EPDM conductive gasket between frame and contact surface, ensure a perfect electrical connection and superior shielding. It meets all standards required to ensure total safety in electrical installations.
EMC 2014/30/UE Certified
| Minimum Measurements | A=1650-2000mm B=600-1600mm P=400-500mm |
|---|---|
| Minimum Plate Measurements | A=1520-1870mm |
| Minimum Plate Measurements | B=470-1420mm |
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Opening | 120 ° |
| Door Type | Blind door |
| Opening Type | Swivel with concealed hinges |
| Closing System | Rotary handle |
| Useful Depth | 375-475 mm |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Plate Material | Galvanized |
| Sealing Gasket | EMC |
| Working Temperature | -40°C +100°C (reducida exposición +160ºC) |
| Maximum Voltage | 1000 V |
| Alternative Materials | AISI 316L, Galvanized, Aluminum |
|---|---|
| Alternative Finishes | Painted RAL 7035 |
| Interior Plate Material | Insulating mounting plate (Bakelite), Stainless steel mounting plate |
| Alternative Gaskets | silicone (-60°C to +180°C), Polyurethane |
|
REFERENCES 1 DOOR |
DIMENSIONS (mm) |
|||||||||
|
SOLID DOOR (x) |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
ACCESS OPENING -GxH- |
USEFUL DEPTH -D- |
MACHINABLE AREA |
PLATE DIMENSIONS -ExF- |
WEIGHT (Kg) |
VOLUME (m³) |
|
|
DOOR |
SIDE |
|||||||||
|
MVHC166040EMC |
1600 |
600 |
400 |
1560×490 |
375 |
1524,5×474,8 |
1640×365 |
1540×490 |
70,9 |
0,42 |
|
MVHC168040EMC |
1600 |
800 |
400 |
1560×690 |
375 |
1524,8×674,8 |
1640×365 |
1540×690 |
93,25 |
0,56 |
|
MVHC186040EMC |
1800 |
600 |
400 |
1710×490 |
375 |
1674,8×474,8 |
1790×365 |
1690×490 |
76,61 |
0,46 |
|
MVHC188040EMC |
1800 |
800 |
400 |
1710×690 |
375 |
1674,8×674,8 |
1790×365 |
1690×690 |
100,76 |
0,61 |
|
MVHC188050EMC |
1800 |
800 |
500 |
1710×690 |
475 |
1674,8×674,8 |
1790×465 |
1690×690 |
116 |
0,76 |
|
MVHC206040EMC |
2000 |
600 |
400 |
1910×490 |
375 |
1874,8×474,8 |
1990×365 |
1890×490 |
84,68 |
0,51 |
|
MVHC208040EMC |
2000 |
800 |
400 |
1910×690 |
375 |
1874,8×674,8 |
1990×365 |
1890×690 |
111,19 |
0,68 |
|
MVHC201050EMC |
2000 |
1000 |
500 |
1910×890 |
475 |
1874,8×874,8 |
1990×465 |
1890×890 |
140 |
1,05 |
|
REFERENCES 2 DOORS |
DIMENSIONS (mm) |
|||||||||
|
SOLID DOOR (x) |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
ACCESS OPENING -GxH- |
USEFUL DEPTH -D- |
MACHINABLE AREA |
PLATE DIMENSIONS -ExF- |
WEIGHT (Kg) |
VOLUME (m³) |
|
|
DOOR |
SIDE |
|||||||||
|
MVHC161240EMC |
1600 |
1200 |
400 |
1560×1090 |
375 |
1524,8×464,2 |
1640×365 |
1540×1090 |
129,33 |
0,84 |
|
MVHC181240EMC |
1800 |
1200 |
400 |
1710×1090 |
375 |
1674,8×464,2 |
1790×365 |
1690×1090 |
139,7 |
0,91 |
|
MVHC201250EMC |
2000 |
1200 |
500 |
1910×1090 |
475 |
1874,8×497,2 |
1990×465 |
1890×1090 |
157,51 |
1,26 |
|
MVHC201450EMC |
2000 |
1400 |
500 |
1910×1290 |
475 |
1874,8×697,2 |
1990×465 |
1890×1290 |
177,76 |
1,47 |
|
MVHC201650EMC |
2000 |
1600 |
500 |
1910×1490 |
475 |
1810×605 |
1990×465 |
1890×1490 |
197,99 |
1,68 |
Croquis:
