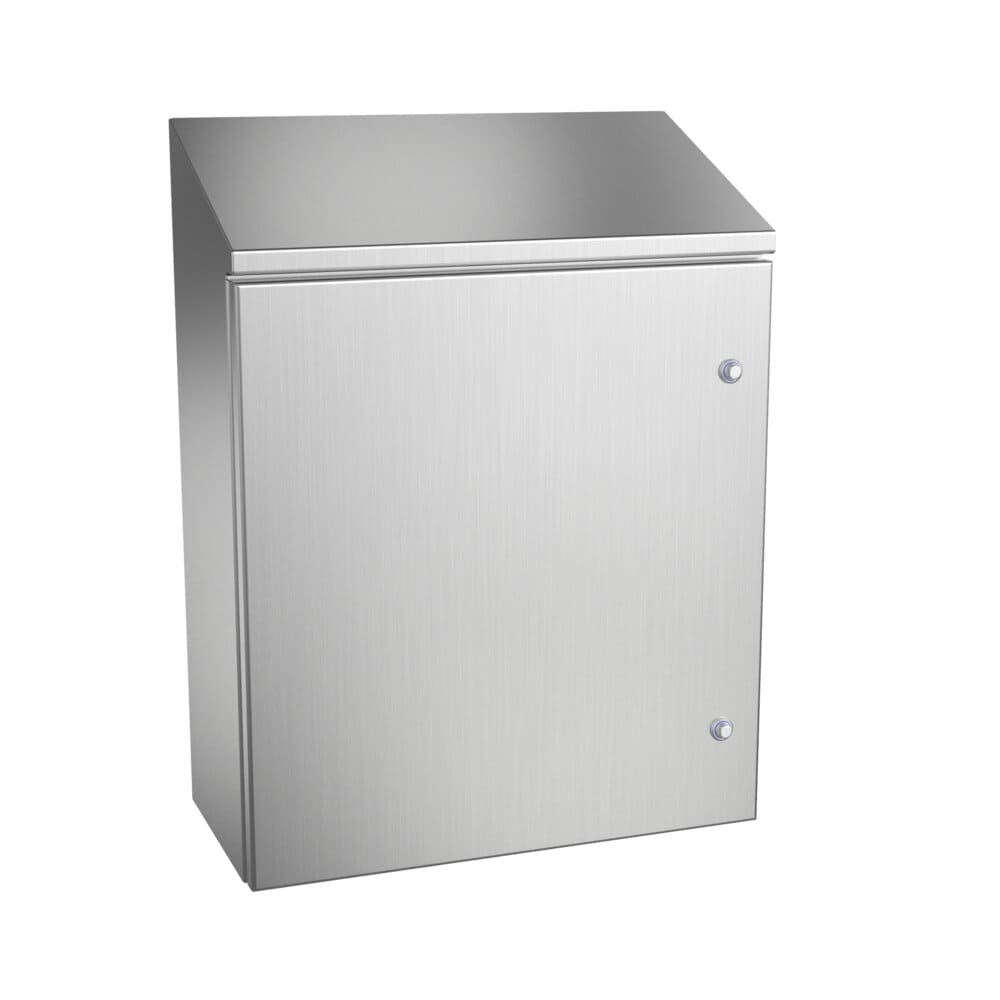

Electrical enclosure fresh luxor IP6K9K

Electrical hygienic enclosure Fresh Series IP6K9K, specially designed for the food industry.
No openings, hinges, where bacteria could lie but robust and easy lock opening with a big space inside to allow easy working.
Moreover the inclination of the roof prevents objects being placed on the surface and our vertical electro polished finish helps repel liquids and prevent virus and bacteria building up on the surface.

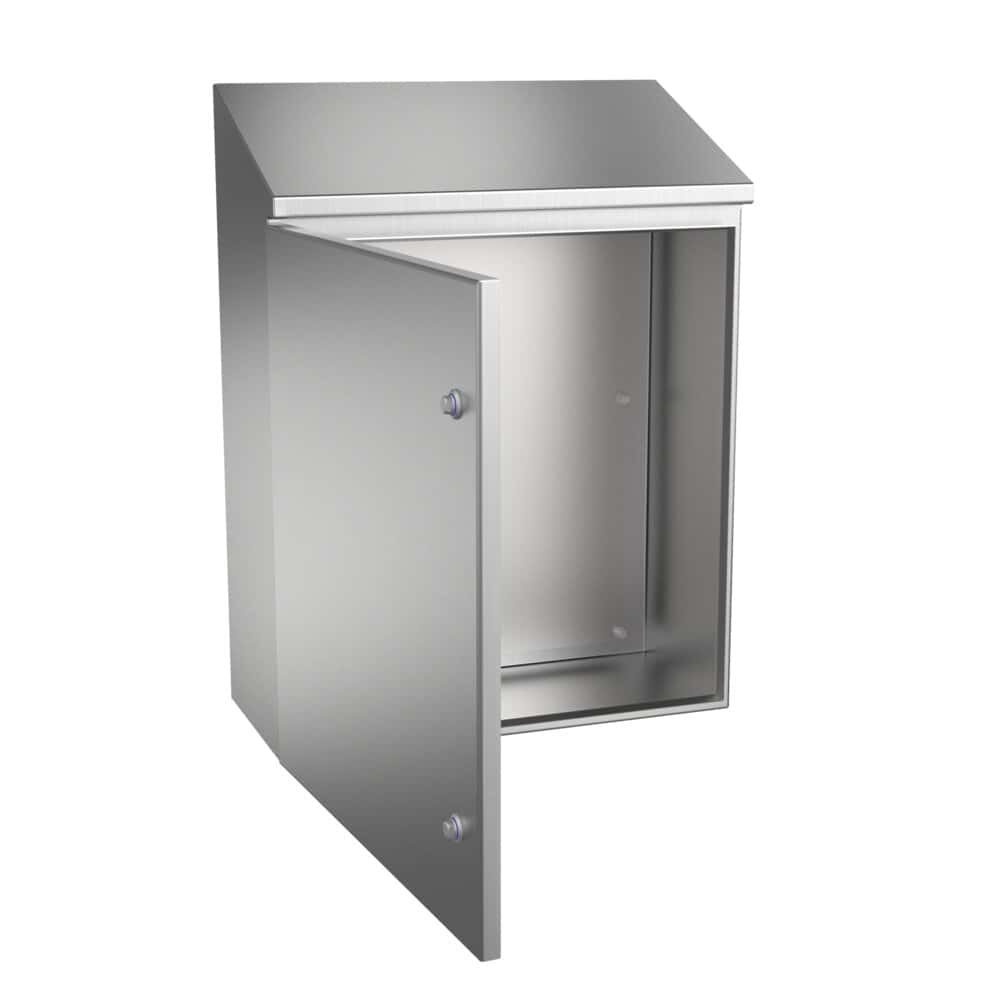

Electrical enclosure fresh luxor IP6K9K: detail view of the product

TECHNICAL DATA

Minimum Measurements	A=500-1200mm B=300-1000mm P=155-300mm
Minimum Plate Measurements	A=290-990mm
Minimum Plate Measurements	B=240-940mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Opening	120 °
Door Type	Blind door
Opening Type	Swivel with concealed hinges
Closing System	Cierres Hygienic
Useful Depth	125-270 mm
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	Polyurethane
Working Temperature	-40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Alternative Closing Systems	Double-bit quarter-turn locks
Alternative Door	Door with polycarbonate panel, Door with safety glass
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets	silicone (-60°C to +180°C)
Machinable Area	Puerta: 280,2x195,2-928x835, Lateral: 459,2x95-1159,2x240

With the option of two doors (from 800x600)

Metal Bases and Legs

In stainless steel AISI 316L EN 14404

Possibility of manufacture in galvanized steel sheet painted in RAL 7035 or another color on demand

Delivered with protective film that prevents scratches and abrasions during handling.

monobloc realization

No openings where bacteria can lodge

Door opening at 120°. Standard opening to the left, specify if desired to the right

Electro-polished finish helps liquids to slide off and a water-repellent seal prevents dirt and bacteria deposits

Delvalle manufactures any size on request that suits your needs, including holes, channels, and shapes, both on the door and the enclosure

Specially designed for the food industry and clean rooms, precooked products, dairy companies, wineries, or any other place where a clean environment is essential

IP66(W) Protection Rating

ISO 20653

DIN EN ISO 14159

European Directive 2006/42/EC

DIN EN 1672-2:2005

IK10 Protection Rating

European regulation CE 1935/2004

Directive 2014/35/EU

RoHS directive compliance

UL NEMA 4X, 12, 3R, and 1 standards

Voltage withstand capacity of cabinets

Delvalle cabinets silicone gaskets temperature resistance

1-DOOR REFERENCES		DIMENSIONS (mm)
STAINLESS STEEL AISI 304L	STAINLESS STEEL AISI 316L	HEIGHT -A-	WIDTH -B-	DEPTH -C-	PLATE DIMENSIONS -ExF-
MVAB302015	MVAB302015316	300	200	150	270×150
MVAB353015	MVAB353015316	350	300	150	320×250
MVAB353020	MVAB353020316	350	300	200	320×250
MVAB403020	MVAB403020316	400	300	200	370×250
MVAB404020	MVAB404020316	400	400	200	370×350
MVAB504020	MVAB504020316	500	400	200	470×350
MVAB505020	MVAB505020316	500	500	200	470×450
MVAB604020	MVAB604020316	600	400	200	570×350
MVAB604025	MVAB604025316	600	400	250	570×350
MVAB605020	MVAB605020316	600	500	200	570×450
MVAB605025	MVAB605025316	600	500	250	570×450
MVAB606020	MVAB606020316	600	600	200	570×550
MVAB606030	MVAB606030316	600	600	300	570×550
MVAB705020	MVAB705020316	700	500	200	670×450
MVAB705025	MVAB705025316	700	500	250	670×450
MVAB806020	MVAB806020316	800	600	200	770×550
MVAB806025	MVAB806025316	800	600	250	770×550
MVAB806030	MVAB806030316	800	600	300	770×550
MVAB808020	MVAB808020316	800	800	200	770×750
MVAB808030	MVAB808030316	800	800	300	770×750
MVAB106025	MVAB106025316	1000	600	250	970×550
MVAB106030	MVAB106030316	1000	600	300	970×550
MVAB108025	MVAB108025316	1000	800	250	970×750
MVAB108030	MVAB108030316	1000	800	300	970×750
MVAB126030	MVAB126030316	1200	600	300	1170×550
MVAB128030	MVAB128030316	1200	800	300	1170×750

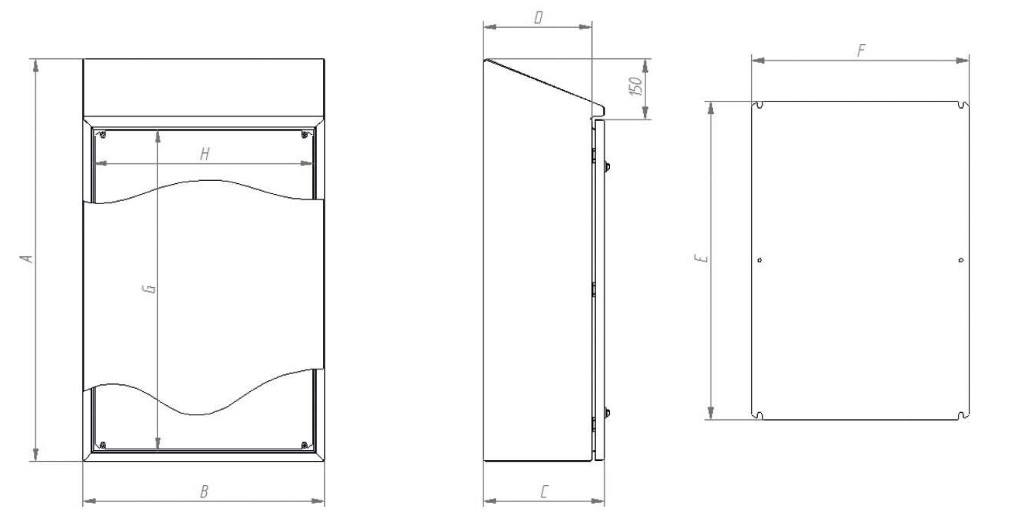

Croquis:

Accessories:

Metric polyamide cable glands IP68

PG polyamide cable glands IP68

Metric stainless steel cable glands AISI316L

Metric stainless steel cable glands IP68

Metric nickel plated cable glands IP68

Metric cable glands hygienic IP69K

Metric cable glands IP69K
