Wall mounted enclosure luxor IP6K9K

Electrical enclosures Luxor Series IP6K9K with improved design and materials used of locks, easy to open, smoothly turning and opening, flexibility, maximum opening of the doors (up to 120 °), maximum working width for your assemblies, easily removable, unique performance with cutting-edge polished surface finish.
All tests necessary to ensure safety in their electrical installations. Furthermore, each component has exceeded several tests under extreme conditions guaranteeing a long life in electrical assembly.

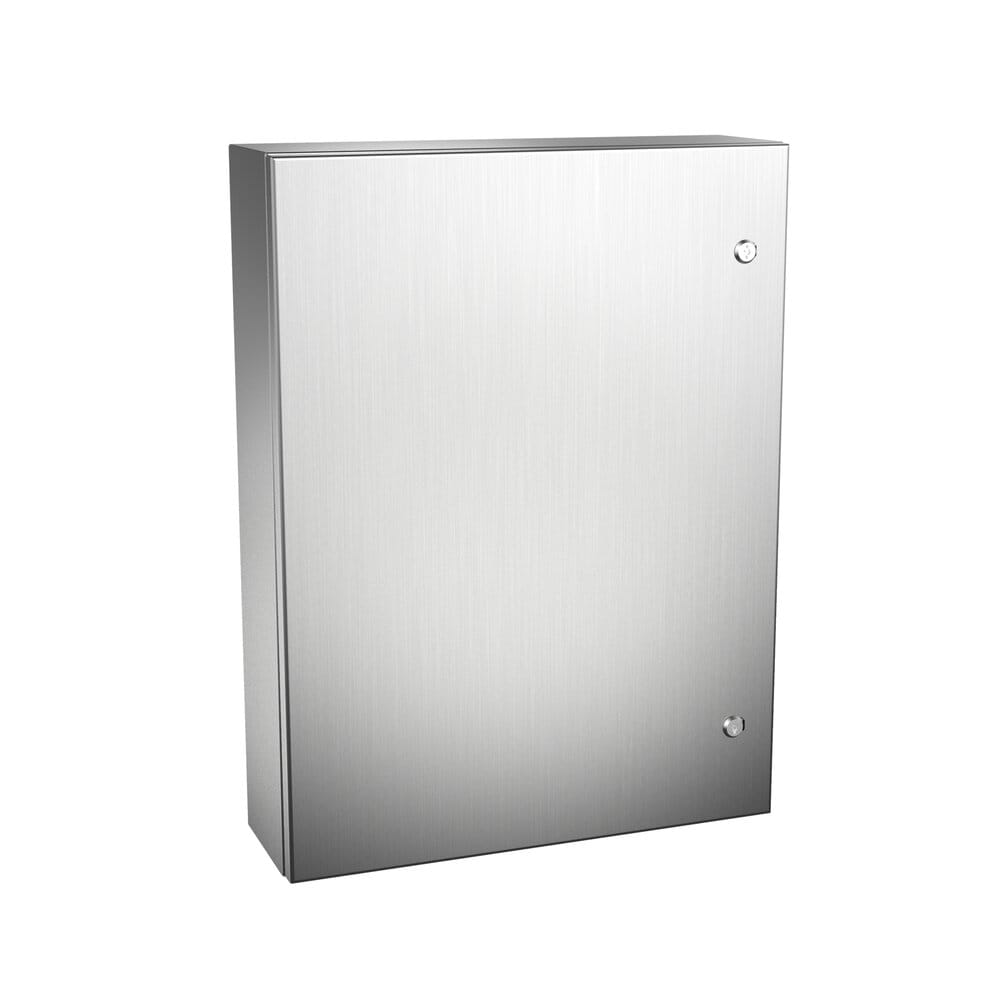

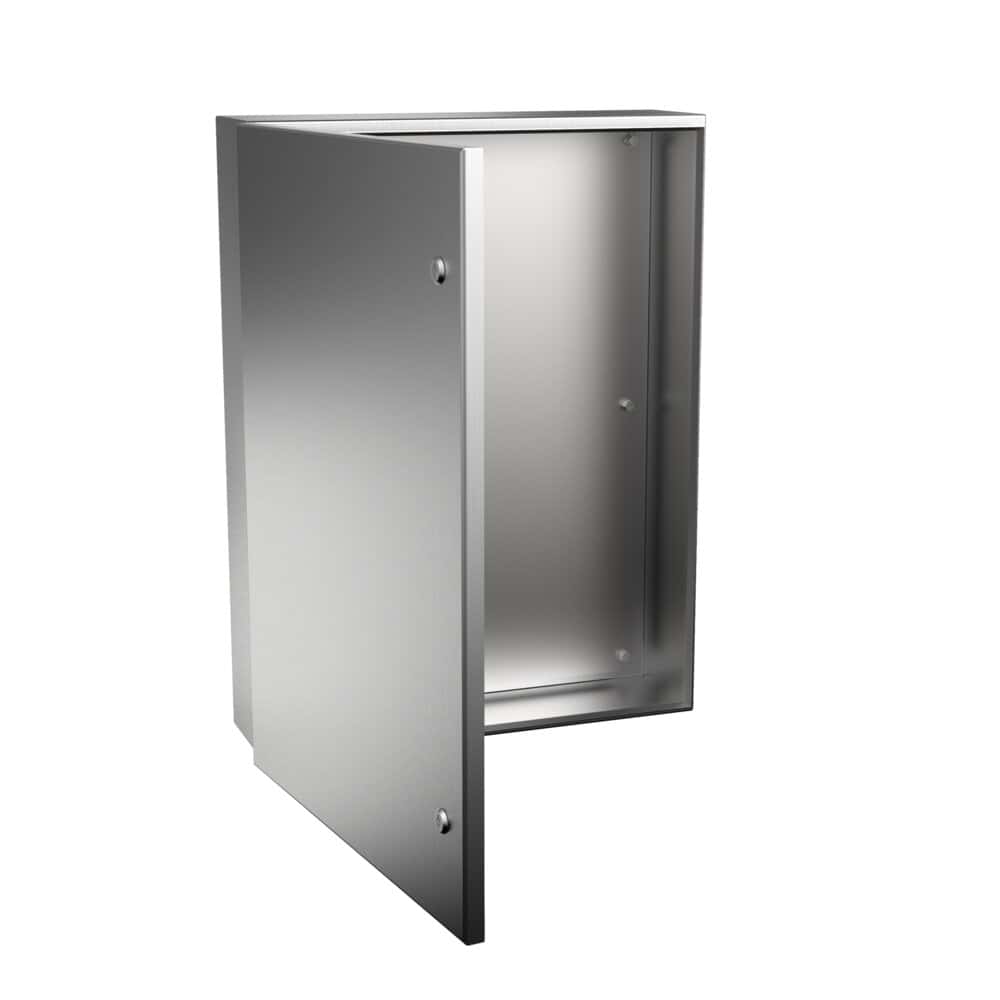

Wall mounted enclosure luxor IP6K9K: detail view of the product

TECHNICAL DATA

Minimum Measurements	A=300-1200mm B=200-1200mm P=155-300mm
Maximum Double Door Measurements	A=1200mm B=1200mm P=300mm
Minimum Plate Measurements	A=265-1140mm
Minimum Plate Measurements	B=145-1140mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Opening	120 °
Door Type	Blind door
Opening Type	Swivel with concealed hinges
Closing System	Double-bit quarter-turn locks
Useful Depth	125-275 mm
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	Polyurethane
Working Temperature	-40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Alternative Closing Systems	Rotary handle
Alternative Door	Door with polycarbonate panel, Door with safety glass
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets	silicone (-60°C to +180°C), EMC
Machinable Area	Puerta: 220x76-1120x717,5, Lateral: 270x125-1170x240

Made to Measure According to Your Needs

With the option of two doors (from 800x600)

170° Hinge Allowing Maximum Opening for Easy Access to the Cabinet Without the Need to Remove the Door

Metal Bases and Legs

Optional wall mounts

In stainless steel AISI 316L EN 14404

EMC Version according to EEC 2014/30/EU Electromagnetic Compatibility Standard

Opening option with handle with 3 locking points

Possibility of manufacture in galvanized steel sheet painted in RAL 7035 or another color on demand

Delivered with protective film that prevents scratches and abrasions during handling.

Monobloc construction that achieves perfect sealing and impact resistance

With drip edge channel that prevents liquids from contacting the polyurethane seal and hidden hinges

The electrical panel comes standard with double-bit quarter-turn locks made of stainless steel

Delvalle makes to order any size to suit your needs, including holes, shaped channels, both in the door and in the enclosure.

Specially designed for the installation of automation systems, machine controls, in outdoor, corrosive zones, food industries, and wherever presence, quality...

Certified electrical panel for the food, chemical, pharmaceutical industries, transformation centers, telecommunications, and outdoor use due to its durability and resistance advantages

Protection and Compliance of Cabinets

ISO 20653

Luxor

Voltage withstand capacity of cabinets

IK10 protection rating for cabinets

UL NEMA 4X, 12, 3R, and 1 standards

CE regulation 1935/2004 and RoHS directive compliance

1-DOOR REFERENCES	DIMENSIONS (mm)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USABLE DEPTH -D-	MACHINING AREA		PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USABLE DEPTH -D-	DOOR	SIDE	PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
HDT166040	1650	600	400	1447×500	375.5	1424×487.8	1614.8×344	1520×490	70.9	0.42
HDT167040	1650	700	400	1447×600	375.5	1424×587.8	1614.8×344	1520×590	82.7	0.49
HDT168040	1650	800	400	1447×700	375.5	1424×687.8	1614.8×344	1520×690	94.5	0.56
HDT161040	1650	1000	400	1447×900	375.5	1424×887.8	1614.8×344	1520×890	111.41	0.66
HDT161050	1650	1000	500	1447×900	475.5	1424×887.8	1766×444	1520×890	–	–
HDT186040	1800	600	400	1597×500	375.5	1574×487.8	1764.8×344	1670×490	77.65	0.46
HDT187040	1800	700	400	1597×600	375.5	1574×587.8	1764.8×344	1670×590	91.12	–
HDT188040	1800	800	400	1597×700	375.5	1574×687.8	1764.8×344	1670×690	102.97	0.81
HDT181040	1800	1000	400	1597×900	375.5	1574×887.8	1764.8×344	1670×890	126.6	0.75
HDT181050	1800	1000	500	1597×900	475.5	1574×887.8	1966×444	1870×890	130.68	0.93
HDT206040	2000	600	400	1797×500	375.5	1774×487.8	1964.8×344	1870×490	86.09	0.51
HDT207040	2000	700	400	1797×600	375.5	1774×587.8	1964.8×344	1870×590	94.13	0.59
HDT208040	2000	800	400	1797×700	375.5	1774×687.8	1964.8×344	1870×690	103.10	0.67
HDT201040	2000	1000	400	1797×900	375.5	1774×887.8	1964.8×344	1870×890	117.58	0.83
HDT201050	2000	1000	500	1797×900	475.5	1774×887.8	1966×444	1870×890	140	1.03

2-DOOR REFERENCES	DIMENSIONS (mm)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USABLE DEPTH -D-	MACHINING AREA		PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USABLE DEPTH -D-	DOOR	SIDE	PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
HDT161240/2	1650	1200	400	1447×500	375.5	1424×487.8	1614.8×344	1520×490	123.1	0.84
HDT161440/2	1650	1400	400	1447×600	375.5	1424×587.8	1614.8×344	1520×590	146.4	0.98
HDT161640/2	1650	1600	400	1447×700	375.5	1424×687.8	1614.8×344	1520×690	170.7	1.2
HDT162040/2	1650	2000	400	1447×900	375.5	1424×887.8	1614.8×344	1520×890	201.62	1.25
HDT162050/2	1650	2000	500	1447×900	475.5	1424×887.8	1616×444	1520×890	217.35	1.49
HDT181240/2	1800	1200	400	1597×500	375.5	1574×487.8	1764.8×344	1670×490	136.8	0.93
HDT181440/2	1800	1400	400	1597×600	375.5	1574×587.8	1764.8×344	1670×590	161.54	1.01
HDT181640/2	1800	1600	400	1597×700	375.5	1574×687.8	1764.8×344	1670×690	184.54	–
HDT182040/2	1800	2000	400	1597×900	375.5	1574×887.8	1764.8×344	1670×890	231.91	1.52
HDT182050/2	1800	2000	500	1597×900	475.5	1574×887.8	1966×444	1870×890	239.26	1.86
HDT201240/2	2000	1200	400	1797×500	375.5	1774×487.8	1964.8×344	1870×490	151.78	1.12
HDT201440/2	2000	1400	400	1797×600	375.5	1774×587.8	1964.8×344	1870×590	166.67	1.19
HDT201640/2	2000	1600	400	1797×700	375.5	1774×687.8	1964.8×344	1870×690	184.51	1.31
HDT202040/2	2000	2000	400	1797×900	375.5	1774×887.8	1964.8×344	1870×890	212.67	1.61
HDT202050/2	2000	2000	500	1797×900	475.5	1774×887.8	1966×444	1870×890	296.9	2.05
