Home > Products > Stainless Steel Electrical Enclosures > Pre-installed junction box

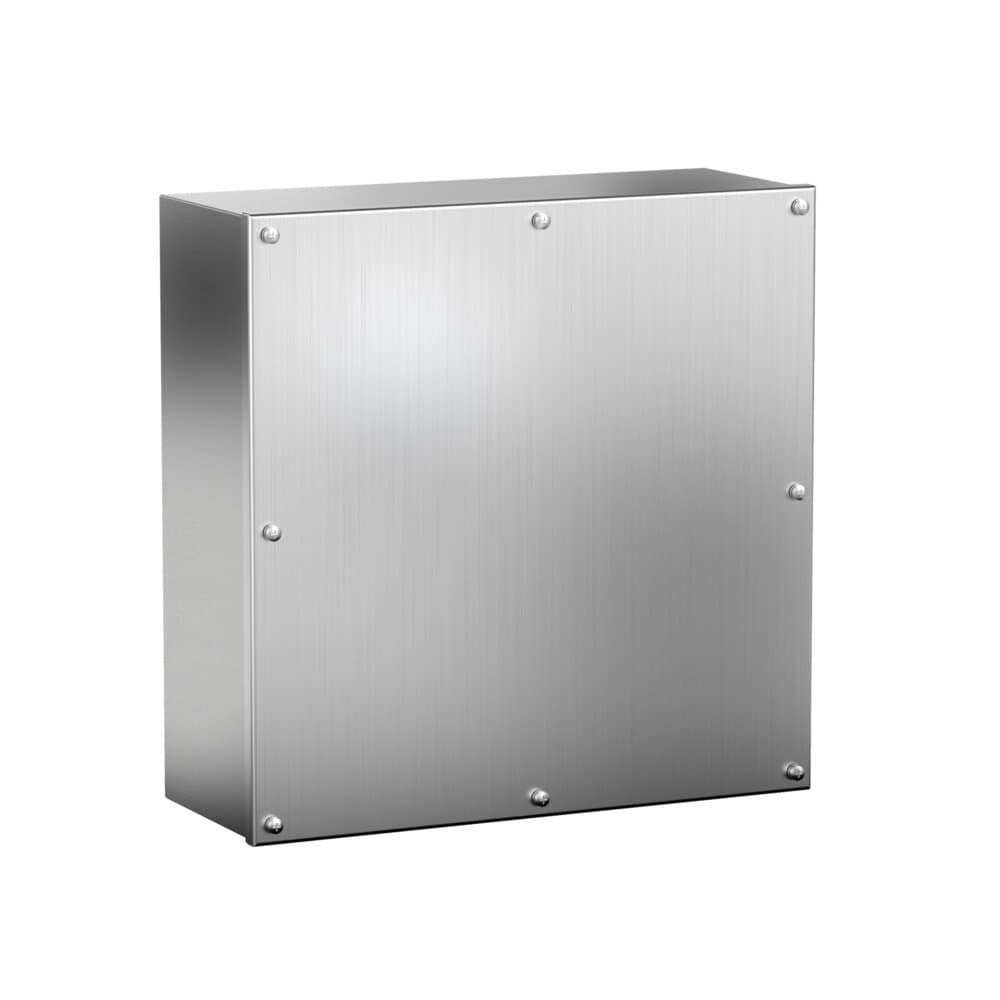

Pre-installed junction box

The junction boxes terminals are pre-assembled with terminals and cable glands; standardized, certified and ready for installation.

Its characteristic design makes it, a sturdy, anti-corrosion, IP66 waterproof with preassembled terminals and four stopping plug M20. We deliver the terminal box with terminals installed on numbered DIN rail, with their glands mounted (material to be chosen) and final certified, ready for placement and in stock for delivery so you do not have to worry about anything.

📄 Technical specificationspre-installed junction box

TECHNICAL DATA

Minimum Measurements	A=90-1000mm B=90-100mm P=80-1000mm
Minimum Plate Measurements	A=60-370mm
Minimum Plate Measurements	B=70-380mm
Body Thickness	1.2 mm \| 12/10 mm 0.0472 " \| 18 Gauge
Door Type	Blind door
Opening Type	Screwed
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	Polyurethane
Working Temperature	-40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Alternative Door	Door with polycarbonate panel, Door with safety glass
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets	silicone (-60°C to +180°C), EMC
Machinable Area	48x48-358x358

Next Day Deliveries to Your Business

significant cost and time savings

Access to the interior is facilitated by securing the lid with easy-to-install screws

Strength and durability

Monobloc Design

Very Robust Design

Corrosion and Impact Resistance

IP66 and IP67 Protection Ratings for Cabinets

IK10 protection rating according to IEC 62262 standard

European Directive 2014/35/EU

UL NEMA 4X, 12, 3R, and 1 standards

RoHS Directive 2011/65/EU

Voltage withstand capacity of cabinets

Delvalle cabinets silicone gaskets temperature resistance

REFERENCE

DIMENSIONS (mm)

NO. OF TERMINALS

ENTRIES / PLUGS

HEIGHT

-A-

WIDTH

-B-

DEPTH

-C-

TERMINALS

GROUND

TERMINALS

QUANTITY

METRIC

MVCB121290002

125

M20

Croquis:
