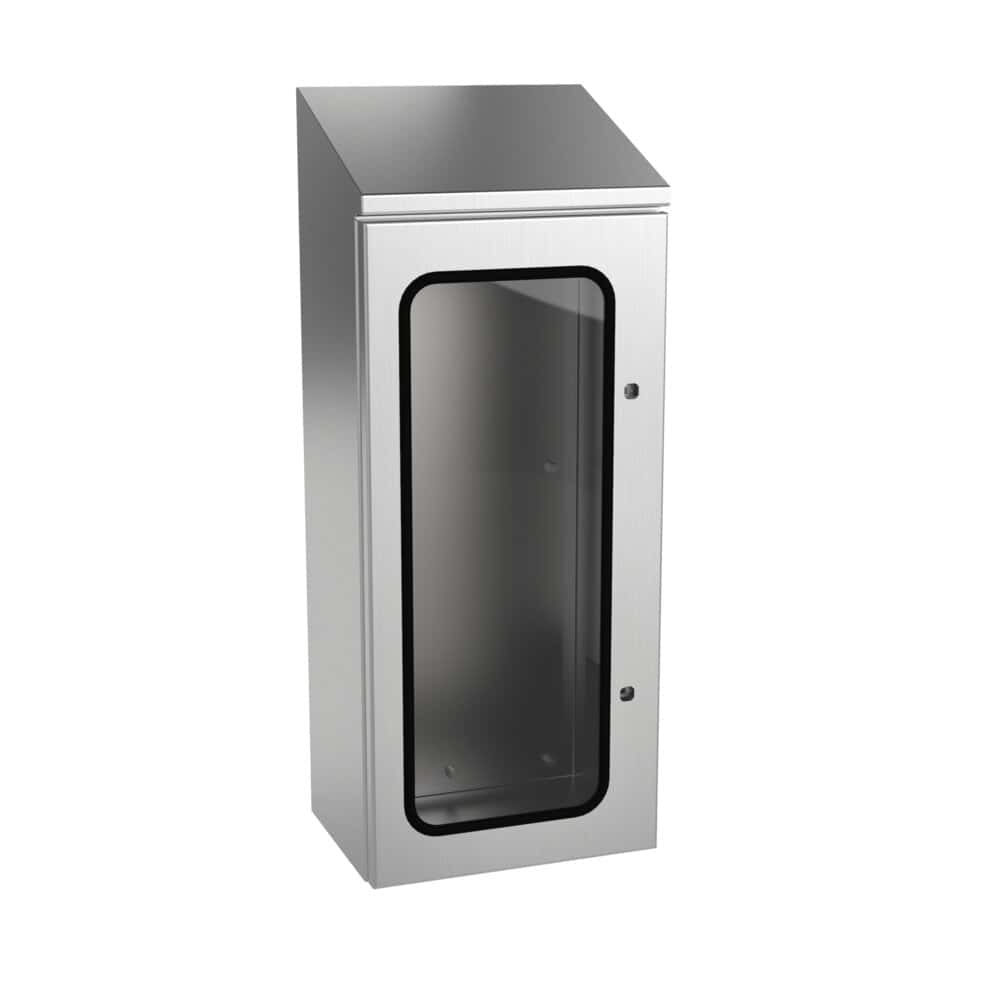

Stainless steel fire extinguisher cabinet IP66

The IP66 (W) watertight fire extinguisher cabinet is made of corrosion-resistant AISI 304L stainless steel. Its sloped roof prevents objects and liquids from accumulating on top.

Our enclosure is a safety device designed to house a fire extinguisher, intended for placement anywhere the user may need to operate an extinguisher during an emergency (such as in food processing companies, the food industry, tunnels, etc.) and where the extinguisher must be sealed from the outside to avoid contamination.

TECHNICAL DATA
Minimum Measurements
Body Thickness 1.5 mm | 15/10 mm
0.059 " | 16 Gauge
Door Opening 120 °
Door Type Door with polycarbonate panel
Opening Type Swivel with concealed hinges
Closing System Double-bit quarter-turn locks
Material AISI 304L/AISI 316L
FinishSatin finish
Plate Material Galvanized
Sealing Gasket Polyurethane
Working Temperature -40 ºC a +100 ºC (reducida exposición +160 ºC)
Maximum Voltage 1000 V
ALTERNATIVE OPTIONS
Alternative Materials AISI 316L
Alternative Closing Systems Rotary handle
Alternative Door Door with safety glass
Interior Plate Material Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets silicone (-60°C to +180°C)
Made to Measure According to Your Needs
AISI 316 Stainless Steel
Wider Construction Option for Two Fire Extinguishers
Up to IP69K - DIN 40050-9

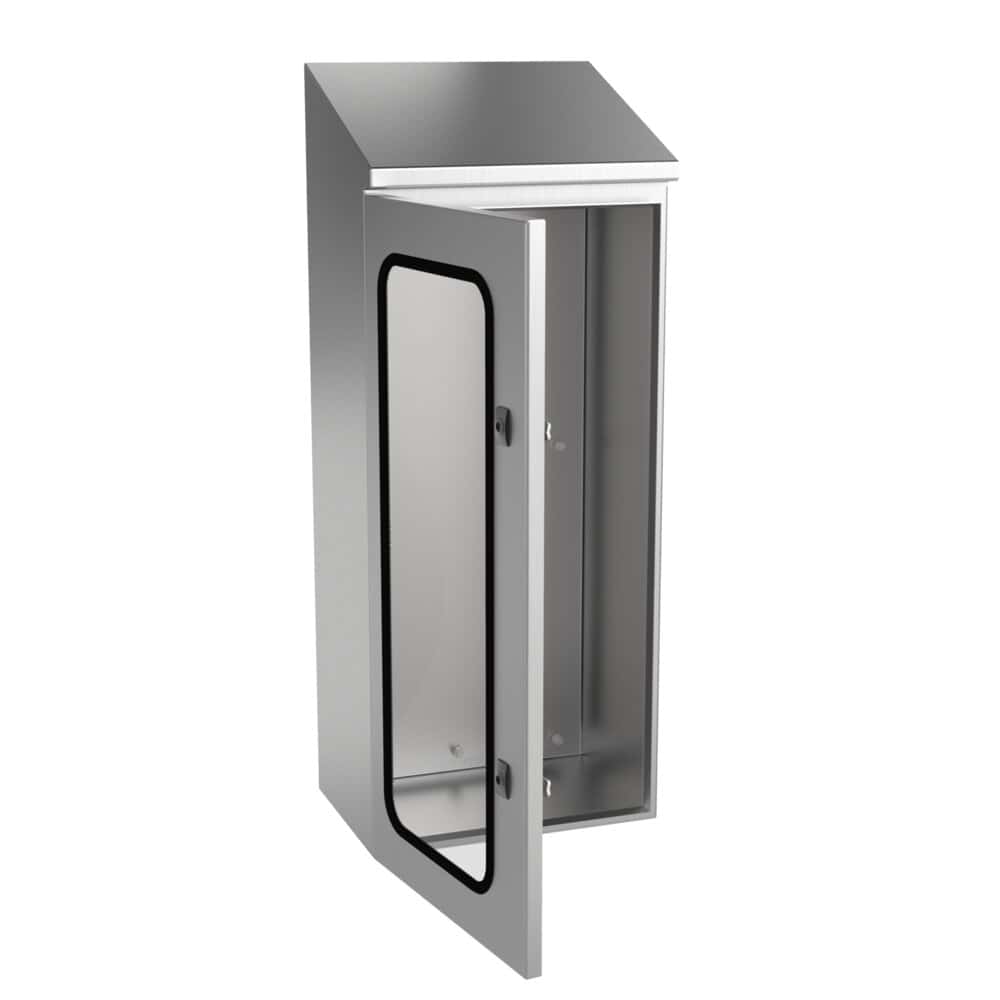

Door opening at 120°. Standard left opening
Manufacture in AISI 304L stainless steel.
The extinguisher enclosure is a safety device that consists of an extinguisher holder anchored to the plate. It allows for quick handling of the extinguisher
The slope of the canopy prevents objects from being placed on its surface and has an electro-polished surface finish in the vertical direction.
Fast opening and perfect view of the indicators housed in the interior
Food Processing Industry
Tunnels
Electrical Cabinets for Clean Rooms
Oil & Gas Industry
Petrochemical
Industry in general
Food Industry
IP66(W) protection rating
DIN EN ISO 14159
European Directive 2006/42/EC
DIN EN 1672-2:2005
IK10 Protection Rating
RoHS directive compliance
UL NEMA 4X, 12, 3R, and 1 standards
Voltage withstand capacity of cabinets
Delvalle cabinets silicone gaskets temperature resistance

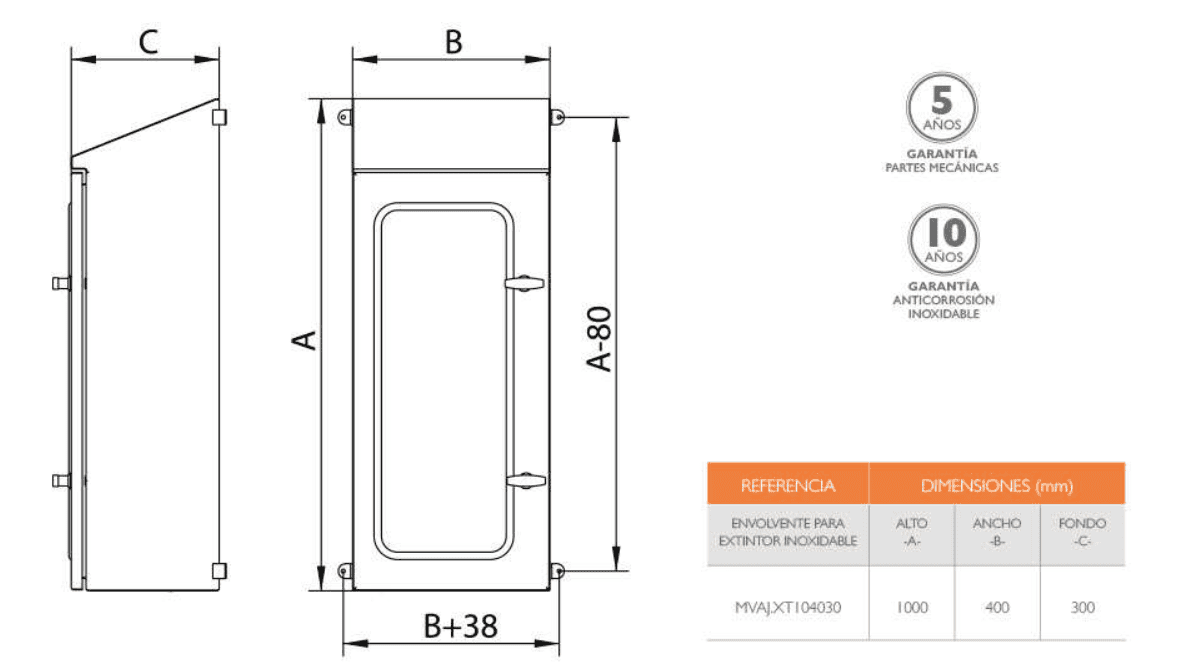

Croquis:

croquis del producto
