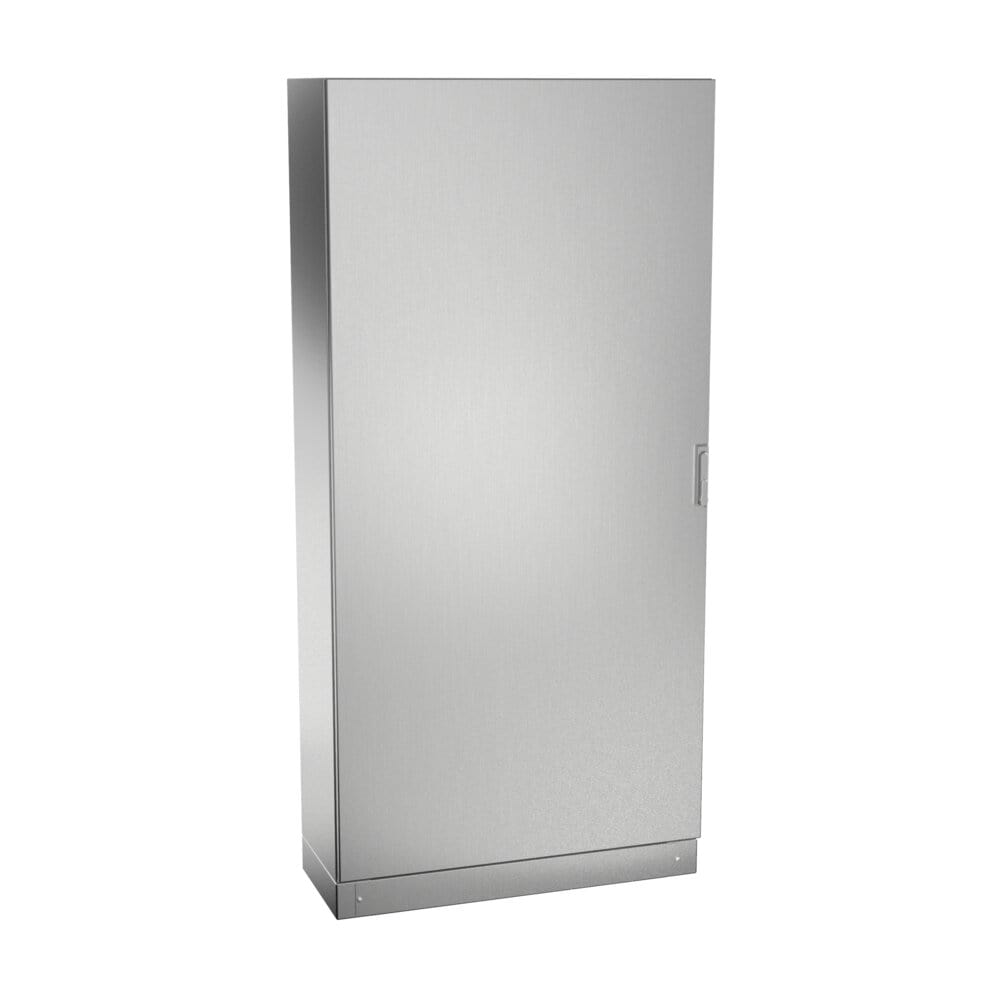

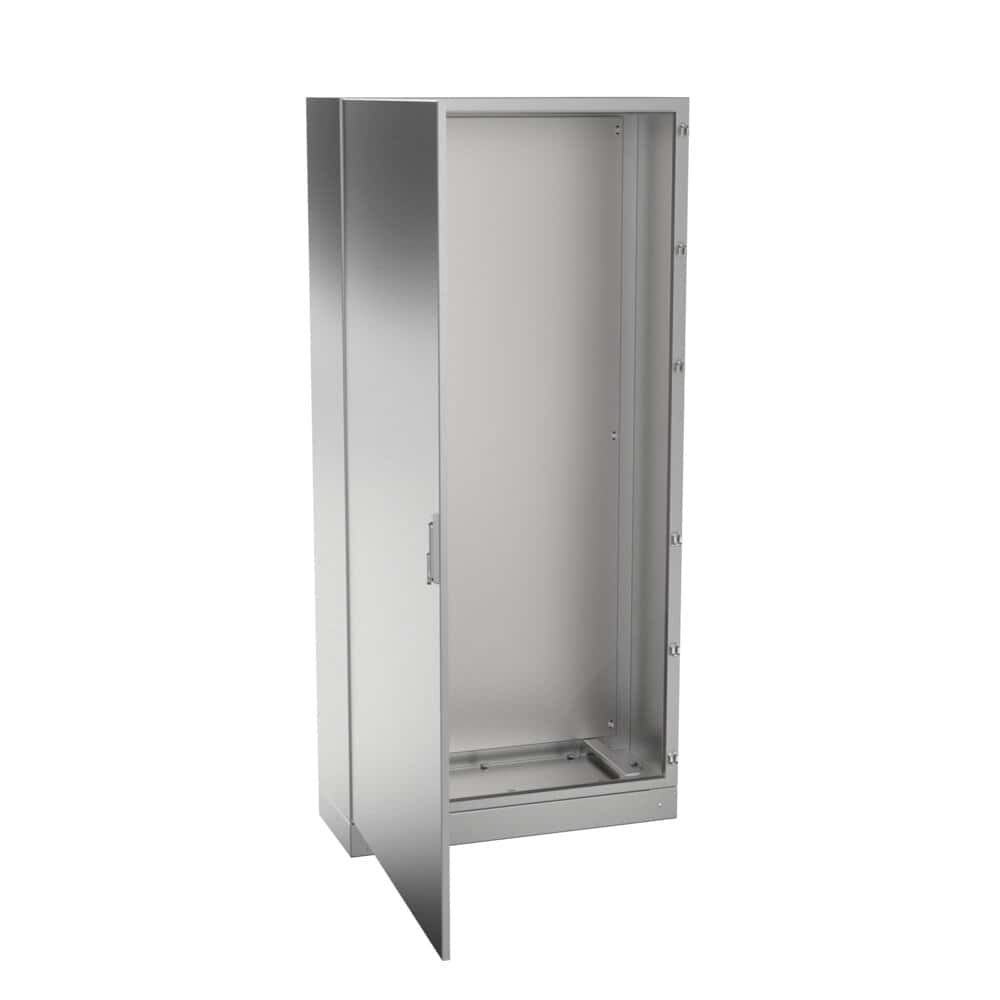

Stainless steel Free standing enclosures and cabinets Tribeca IP66 series with improved design, robust, easy opening by rotating handle and four point lock, easy placement on the floor, flexible, maximum working width and a unique design in stainless steel AISI 304L & AISI 316L
| Minimum Measurements | A=1650-2000mm B=600-1000mm P=400-500mm |
|---|---|
| Maximum Double Door Measurements | A=2000mm B=1600mm P=500mm |
| Minimum Plate Measurements | A=1540-1890mm |
| Minimum Plate Measurements | B=490-1490mm |
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Opening | 120 ° |
| Door Type | Blind door |
| Opening Type | Swivel with concealed hinges |
| Closing System | Rotary handle with 4 locking points |
| Useful Depth | 375-475 mm |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Plate Material | Galvanized |
| Sealing Gasket | Polyurethane |
| Working Temperature | -40°C a +100°C (reducida exposición +160ºC). |
| Maximum Voltage | 1000 V |
| Alternative Materials | AISI 316L, Galvanized, Aluminum |
|---|---|
| Alternative Finishes | Painted RAL 7035 |
| Alternative Closing Systems | Double-bit quarter-turn locks |
| Alternative Door | Door with polycarbonate panel, Door with safety glass |
| Interior Plate Material | Insulating mounting plate (Bakelite), Stainless steel mounting plate |
| Alternative Gaskets | EMC, silicone (-60°C to +180°C) |
| Machinable Area | Puerta: 1524,8x474,8 - 1800x800 Lateral: 1640x365 - 1990x465 |
|
REFERENCES 1 DOOR |
DIMENSIONS (mm) |
||||||||||
|
SOLID DOOR (x) |
POLYCARBONATE DOOR (x) |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
ACCESS OPENING -GxH- |
USEFUL DEPTH -D- |
MACHINABLE AREA |
PLATE DIMENSIONS -ExF- |
WEIGHT (Kg) |
VOLUME (m³) |
|
|
DOOR |
SIDE |
||||||||||
|
MVAC146040 |
MVACT146040 |
1400 |
600 |
400 |
1290×490 |
375 |
1324×474 |
1340×355 |
1270×470 |
64,00 |
0,42 |
|
MVAC148040 |
MVACT148040 |
1400 |
800 |
400 |
1290×690 |
375 |
1324×674 |
1340×355 |
1270×670 |
72,00 |
0,56 |
|
MVAC166040 |
MVACT166040 |
1600 |
600 |
400 |
1490×490 |
375 |
1524×474 |
1540×355 |
1470×470 |
75,00 |
0,48 |
|
MVAC168040 |
MVACT168040 |
1600 |
800 |
400 |
1490×690 |
375 |
1524×674 |
1540×355 |
1470×670 |
85,00 |
0,64 |
|
MVAC186040 |
MVACT186040 |
1800 |
600 |
400 |
1690×490 |
375 |
1724×474 |
1740×355 |
1670×470 |
86,00 |
0,54 |
|
MVAC188040 |
MVACT188040 |
1800 |
800 |
400 |
1690×690 |
375 |
1724×674 |
1740×355 |
1670×670 |
97,00 |
0,72 |
|
MVAC181040 |
MVACT181040 |
1800 |
1000 |
400 |
1690×890 |
375 |
1724×874 |
1740×355 |
1670×870 |
110,00 |
0,90 |
|
MVAC206040 |
MVACT206040 |
2000 |
600 |
400 |
1890×490 |
375 |
1924×474 |
1940×355 |
1870×470 |
95,00 |
0,60 |
|
MVAC208040 |
MVACT208040 |
2000 |
800 |
400 |
1890×690 |
375 |
1924×674 |
1940×355 |
1870×670 |
108,00 |
0,80 |
|
MVAC201040 |
MVACT201040 |
2000 |
1000 |
400 |
1890×890 |
375 |
1924×874 |
1940×355 |
1870×870 |
122,00 |
1,00 |
|
MVAC208050 |
MVACT208050 |
2000 |
800 |
500 |
1890×690 |
475 |
1924×674 |
1940×455 |
1870×670 |
115,00 |
1,00 |
|
MVAC201050 |
MVACT201050 |
2000 |
1000 |
500 |
1890×890 |
475 |
1924×874 |
1940×455 |
1870×870 |
130,00 |
1,25 |
* Compact Tribeca Design IP66 Backplate separation 20mm
|

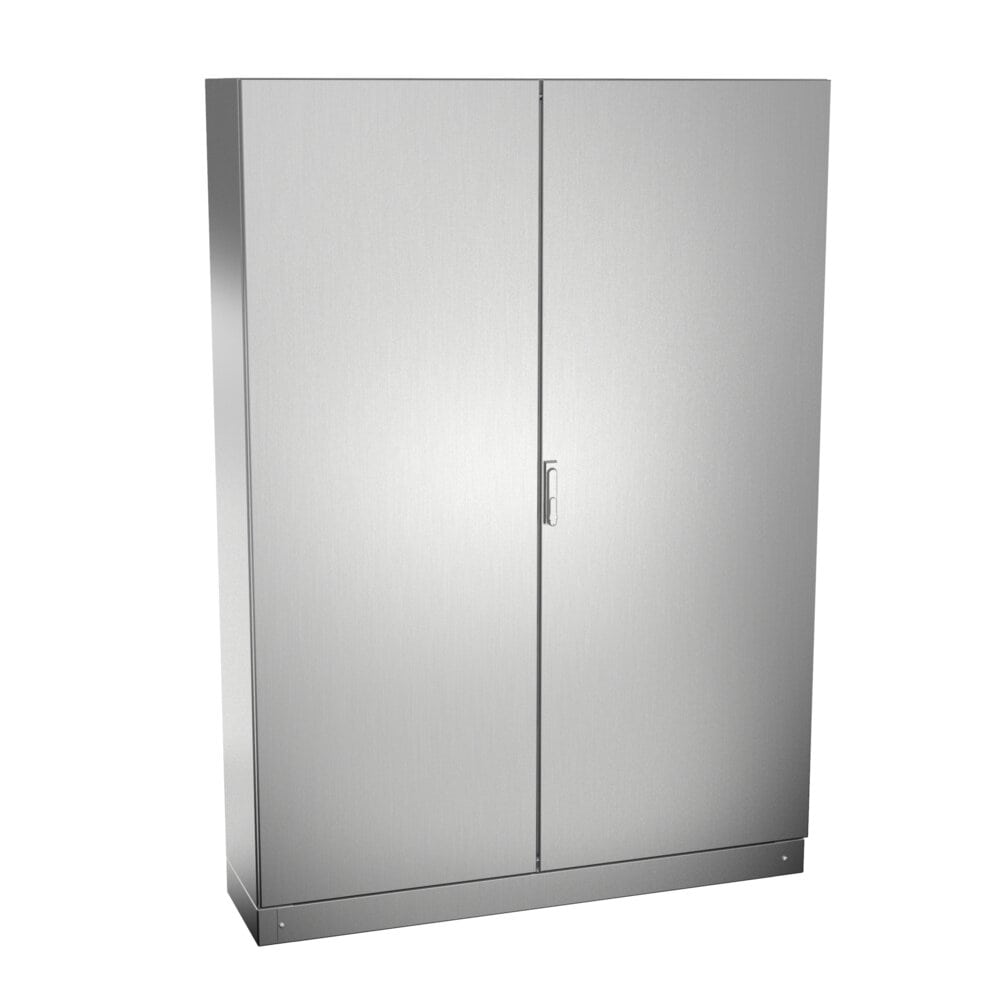

REFERENCES 2 DOORS |
DIMENSIONS (mm) |
||||||||||
|
SOLID DOOR (x) |
POLYCARBONATE DOOR (x) |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
ACCESS OPENING -GxH- |
USEFUL DEPTH -D- |
MACHINABLE AREA |
PLATE DIMENSIONS -ExF- |
WEIGHT (Kg) |
VOLUME (m³) |
|
|
DOOR |
SIDE |
||||||||||
|
MVAC161240 |
MVACT161240 |
1600 |
1200 |
400 |
1490×1090 |
375 |
1524×1074 |
1540×355 |
1470×1070 |
129,33 |
0,84 |
|
MVAC181240 |
MVACT181240 |
1800 |
1200 |
400 |
1690×1090 |
375 |
1724×1074 |
1740×355 |
1670×1070 |
147,12 |
0,94 |
|
MVAC201240 |
MVACT201240 |
2000 |
1200 |
400 |
1890×1090 |
375 |
1924×1074 |
1940×355 |
1870×1070 |
165,25 |
1,05 |
|
MVAC201440 |
MVACT201440 |
2000 |
1400 |
400 |
1890×1290 |
375 |
1924×1274 |
1940×355 |
1870×1270 |
185,50 |
1,22 |
|
MVAC201640 |
MVACT201640 |
2000 |
1600 |
400 |
1890×1490 |
375 |
1924×1474 |
1940×355 |
1870×1470 |
205,80 |
1,40 |
|
MVAC201250 |
MVACT201250 |
2000 |
1200 |
500 |
1890×1090 |
475 |
1924×1074 |
1940×455 |
1870×1070 |
175,50 |
1,31 |
|
MVAC201450 |
MVACT201450 |
2000 |
1400 |
500 |
1890×1290 |
475 |
1924×1274 |
1940×455 |
1870×1270 |
197,20 |
1,53 |
|
MVAC201650 |
MVACT201650 |
2000 |
1600 |
500 |
1890×1490 |
475 |
1924×1474 |
1940×455 |
1870×1470 |
218,40 |
1,75 |
* Compact Tribeca Design IP66 Backplate separation 20mm

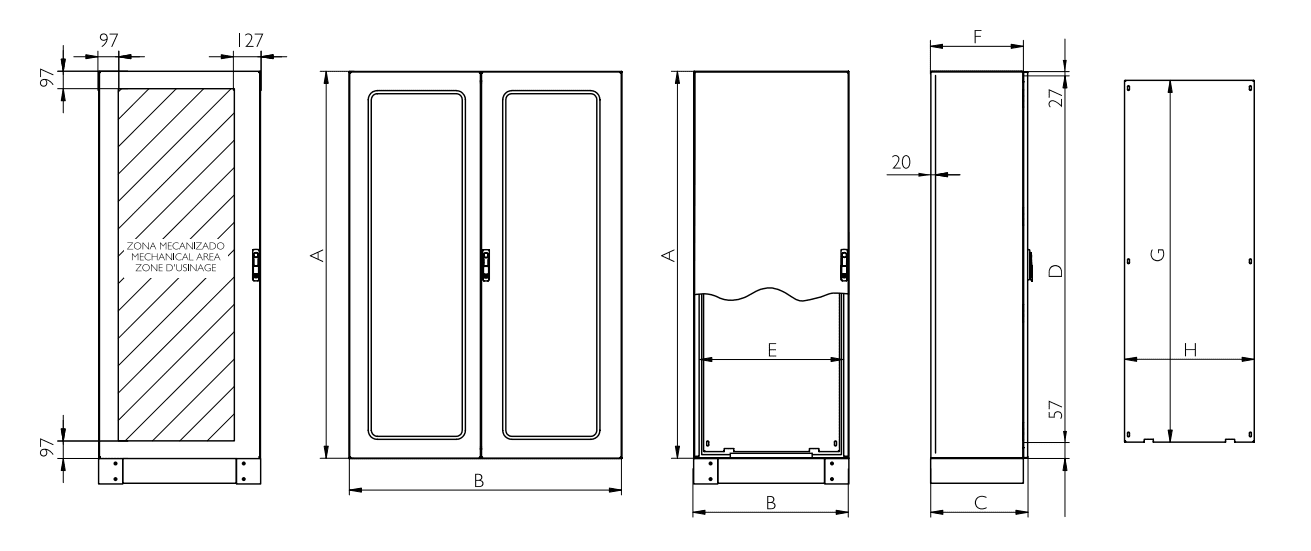

Croquis:
