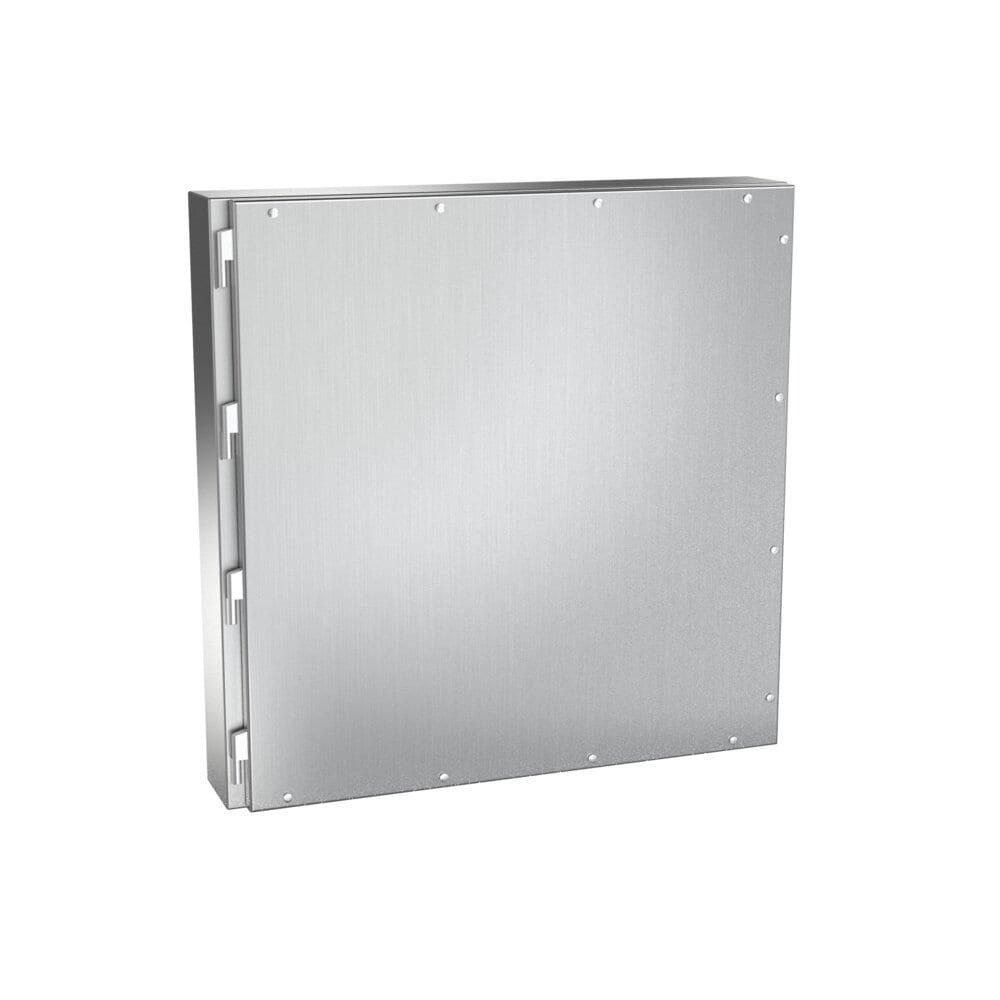

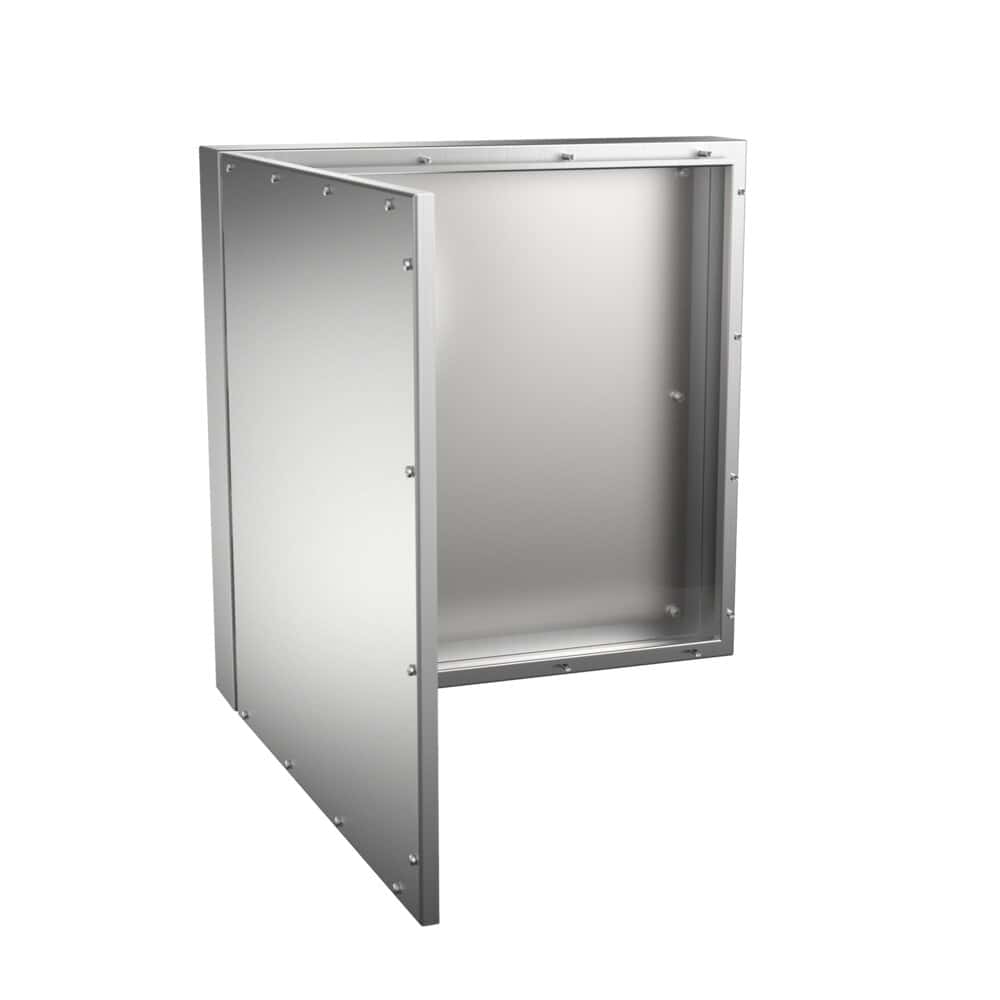

Stainless steel electrical enclosures wall mounted Luxor Amphibox© Series IP67, combine ideal characteristics for electrical and electronic applications where safety and perfect seal against dust and water are essential.
Submersible 1 meter during 30 minutes.
IP67 rated electronics, industrial enclosures have a durable waterproof and dustproof design for various indoor or outdoor electronics and electrical applications.
| Minimum Measurements | A=300-1200mm B=200-1200mm P=155-300mm |
|---|---|
| Minimum Plate Measurements | A=220-1120mm |
| Minimum Plate Measurements | B=120-1120mm |
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Opening | 180 ° |
| Door Type | Blind door |
| Opening Type | Screwed, Giratoria |
| Useful Depth | 129-274 mm |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Plate Material | Galvanized |
| Sealing Gasket | Polyurethane |
| Working Temperature | -40°C a +100°C (reducida exposición +160ºC) |
| Maximum Voltage | 1000 V |
| Alternative Materials | AISI 316L, Galvanized, Aluminum |
|---|---|
| Alternative Finishes | Painted RAL 7035 |
| Interior Plate Material | Insulating mounting plate (Bakelite), Stainless steel mounting plate |
| Alternative Gaskets | EMC, silicone (-60°C to +180°C) |
| Machinable Area | Puerta: 215,5x110,5-1020x1020, Lateral: 270x99-1170x244, Inferior: 99x170-244x1170 |
|
REFERENCES |
DIMENSIONS (mm) |
||||||||||
|
SOLID DOOR |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
ACCESS OPENING -GxH- |
USEFUL DEPTH -D- |
MACHINABLE AREA |
PLATE DIMENSIONS -ExF- |
WEIGHT (Kg) |
VOLUME (m³) |
||
|
DOOR |
SIDE |
BOTTOM |
|||||||||
|
MVAB302015/67 |
300 |
200 |
155 |
226×121 |
129 |
215.5×110.5 |
270×99 |
99×170 |
220×120 |
4.602 |
0.01 |
|
MVAB383015/67 |
380 |
300 |
155 |
306×221 |
129 |
295.5×210.5 |
350×99 |
99×270 |
300×220 |
7.624 |
0.02 |
|
MVAB383021/67 |
380 |
300 |
210 |
306×221 |
184 |
295.5×210.5 |
350×154 |
154×270 |
300×220 |
8.517 |
0.03 |
|
MVAB404021/67 |
400 |
400 |
210 |
326×321 |
184 |
315.5×310.5 |
370×154 |
154×370 |
320×320 |
11.148 |
0.04 |
|
MVAB504021/67 |
500 |
400 |
210 |
426×321 |
184 |
415.5×310.5 |
470×154 |
154×370 |
420×320 |
13.49 |
0.05 |
|
MVAB505021/67 |
500 |
500 |
210 |
426×421 |
184 |
415.5×410.5 |
470×154 |
154×470 |
420×420 |
16.201 |
0.06 |
|
MVAB705021/67 |
700 |
500 |
210 |
626×421 |
184 |
615.5×410.5 |
670×154 |
154×470 |
620×420 |
21.504 |
0.08 |
|
MVAB603815/67 |
600 |
380 |
155 |
526×301 |
129 |
515.5×290.5 |
570×99 |
99×350 |
520×300 |
13.792 |
0.06 |
|
MVAB603821/67 |
600 |
380 |
210 |
526×301 |
184 |
515.5×290.5 |
570×154 |
154×350 |
520×300 |
15.082 |
0.06 |
|
MVAB605021/67 |
600 |
500 |
210 |
526×421 |
184 |
515.5×410.5 |
570×154 |
154×470 |
520×420 |
18.853 |
0.07 |
|
MVAB606021/67 |
600 |
600 |
210 |
526×521 |
184 |
515.5×510.5 |
570×154 |
154×570 |
520×520 |
21.962 |
0.08 |
|
MVAB806030/67 |
800 |
600 |
300 |
726×521 |
274 |
715.5×510.5 |
770×244 |
244×570 |
720×520 |
31.342 |
0.16 |
|
MVAB808030/67 |
800 |
800 |
300 |
726×721 |
274 |
620×620 |
770×244 |
244×770 |
720×720 |
39.78 |
0.21 |
|
MVAB108030/67 |
1000 |
800 |
300 |
960×721 |
274 |
820×620 |
970×244 |
244×720 |
920×720 |
50.418 |
0.26 |
|
MVAB128030/67 |
1200 |
800 |
300 |
1126×721 |
274 |
1020×620 |
1170×244 |
244×770 |
1120×720 |
59.247 |
0.31 |
|
MVAB101030/67 |
1000 |
1000 |
300 |
926×921 |
274 |
820×820 |
970×244 |
244×970 |
920×920 |
60.85 |
0.32 |
|
MVAC121230/67 |
1200 |
1200 |
300 |
1126×1121 |
274 |
1020×1020 |
1170×244 |
244×1170 |
1120×1120 |
83.58 |
0.39 |

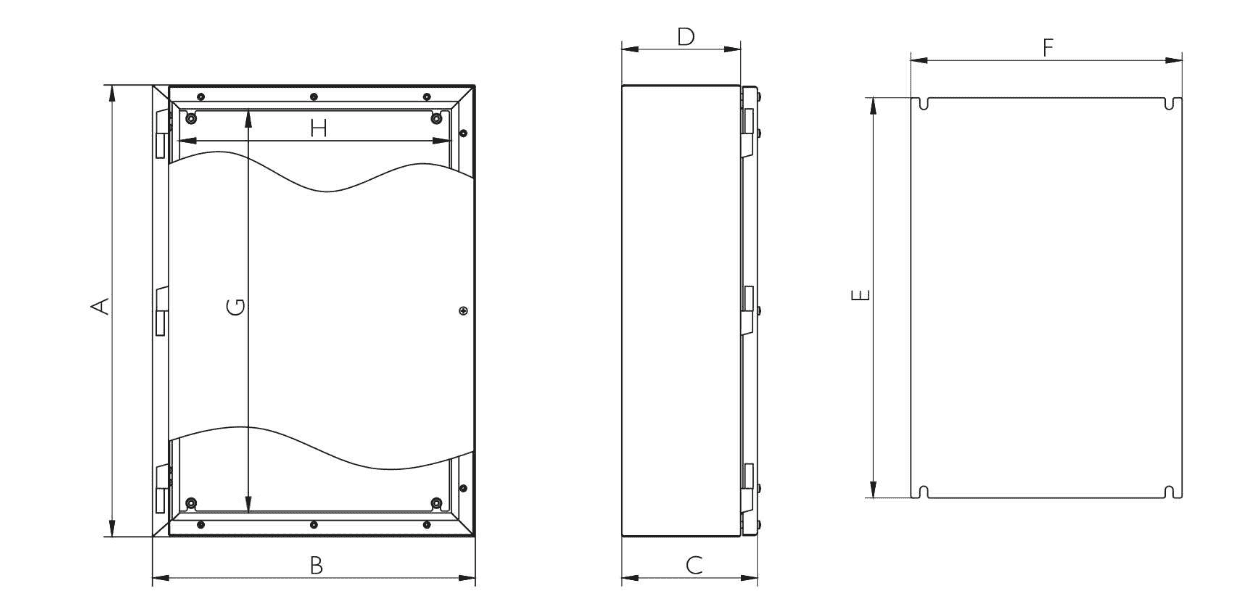

Croquis:
