Outdoor telecom 19 storm IP66

Outdoor telecom 19" rack cabinet Storm Series IP66 enclosure, designed to be placed in outdoor areas, protecting the rack electronic equipment needed for lighting, signage, video surveillance, etc.

The aluminum in combination with the double walls, is the ideal solution for optimum heat management, ensuring performance of electronic equipments.

Durable stainless steel or aluminum enclosure, especially suitable for wireline applications with active equipment, e.g. FTTC.
Robust outdoor solution for radio and transmission equipment.

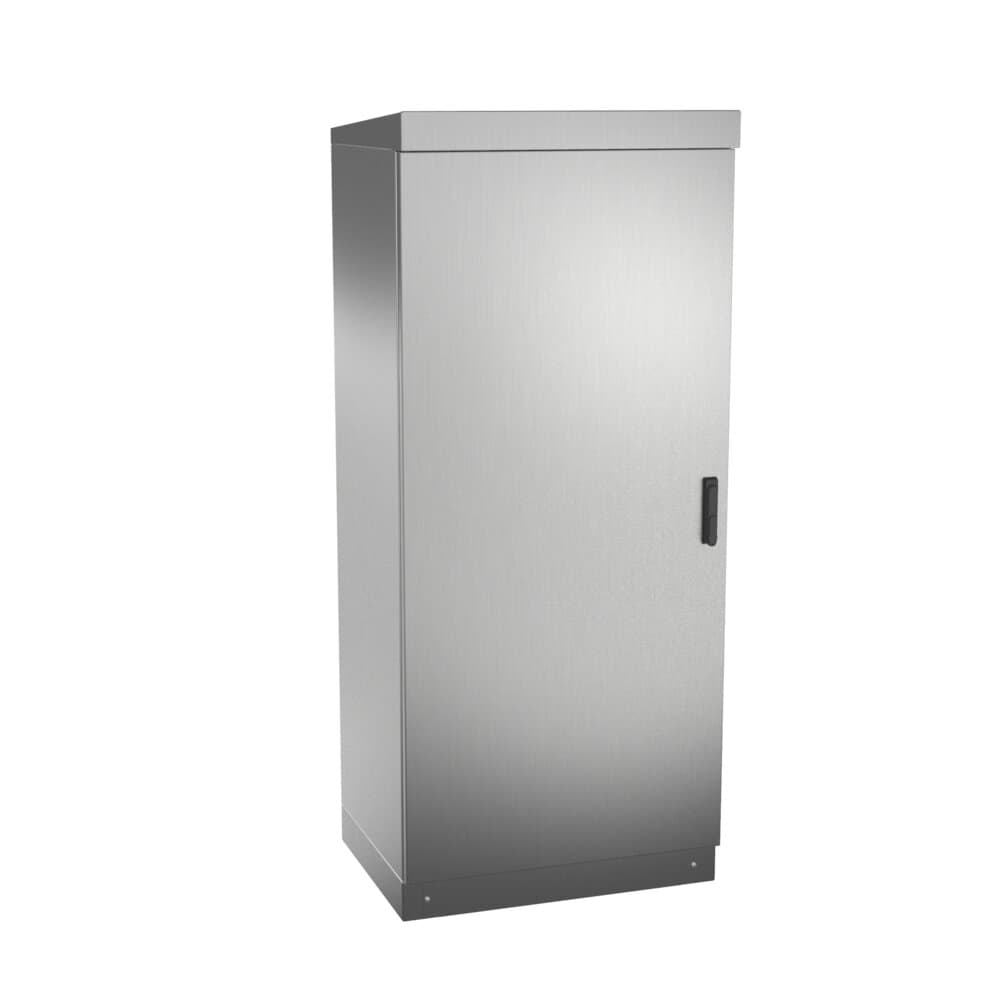

Outdoor telecom 19 storm: main view of the product

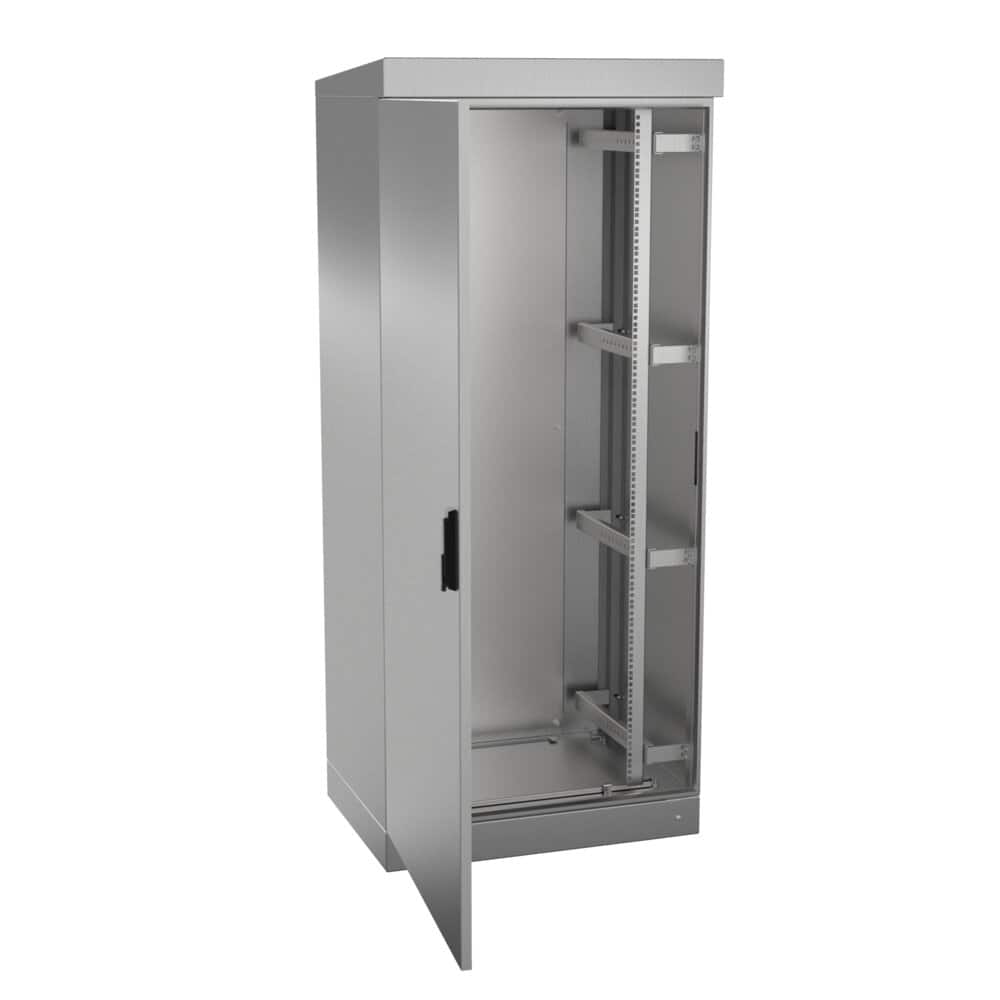

Outdoor telecom 19 storm: detail view of the product

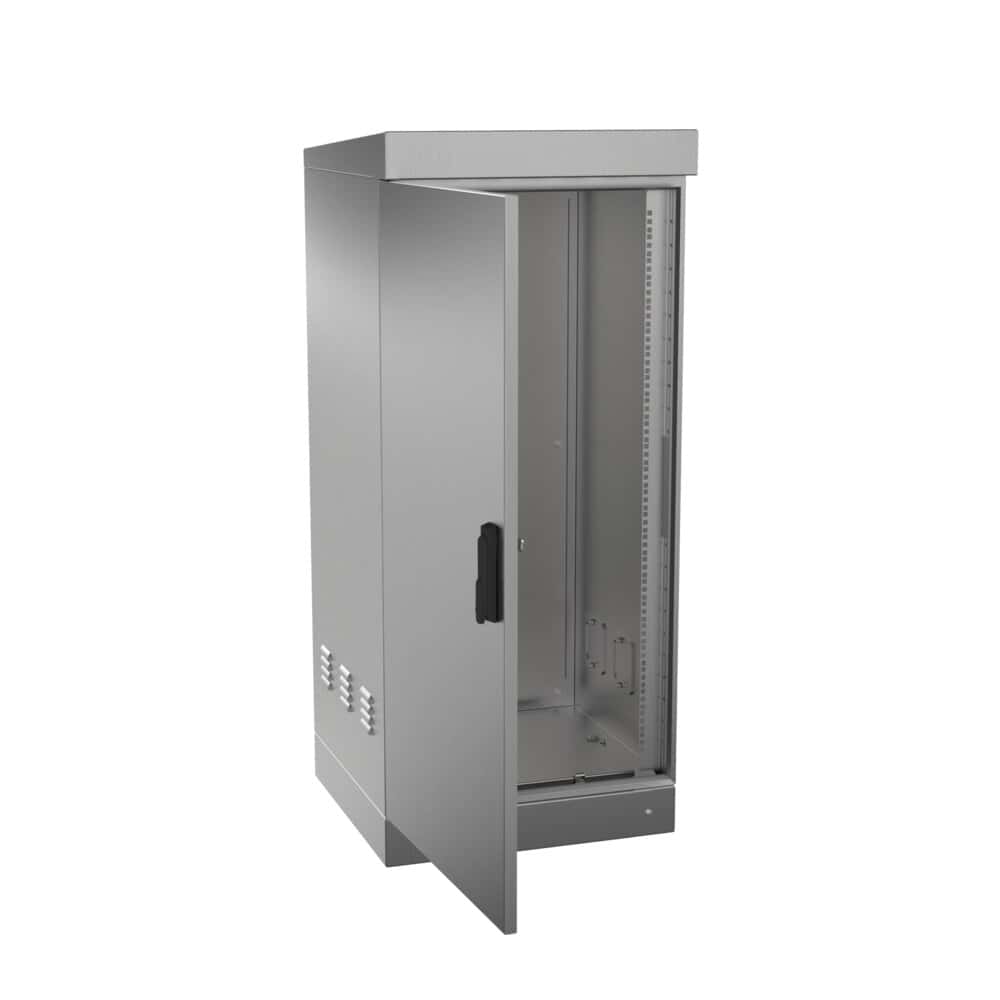

Outdoor telecom 19 storm: additional view of the product

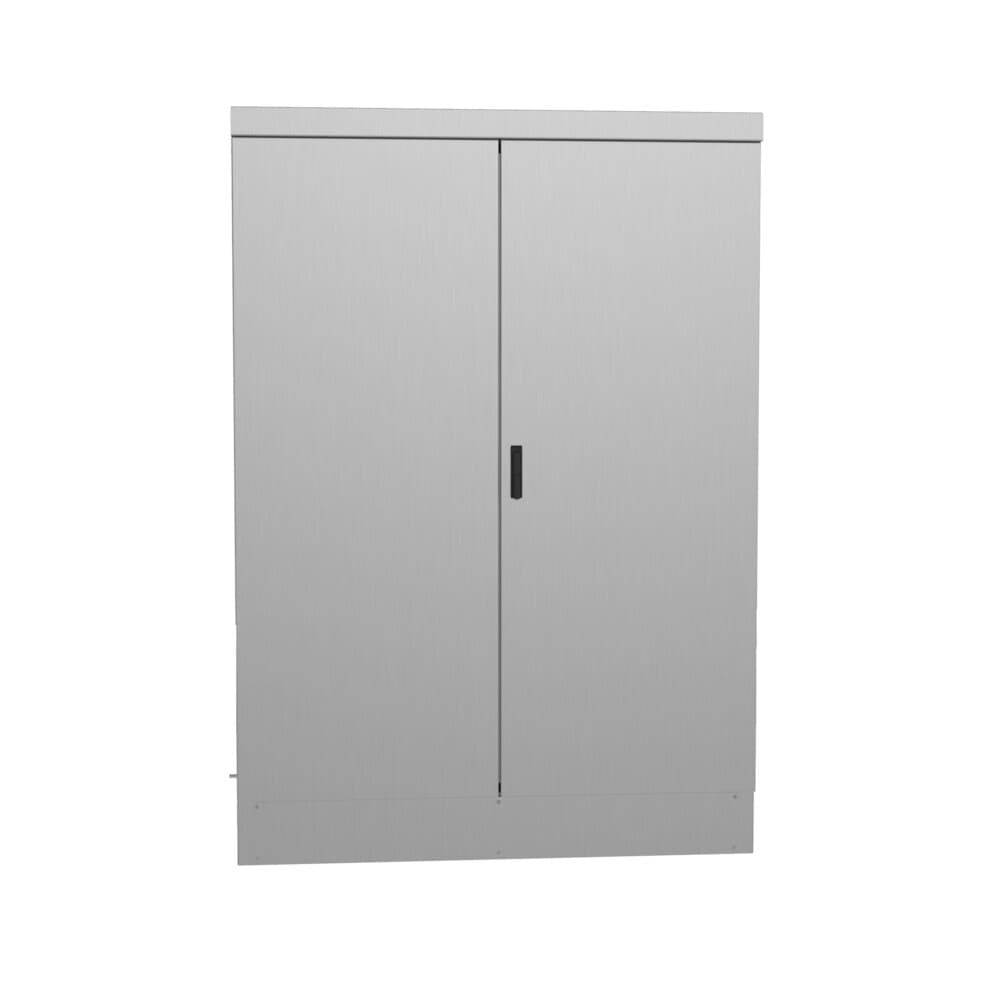

Outdoor telecom 19 storm: side view of the product

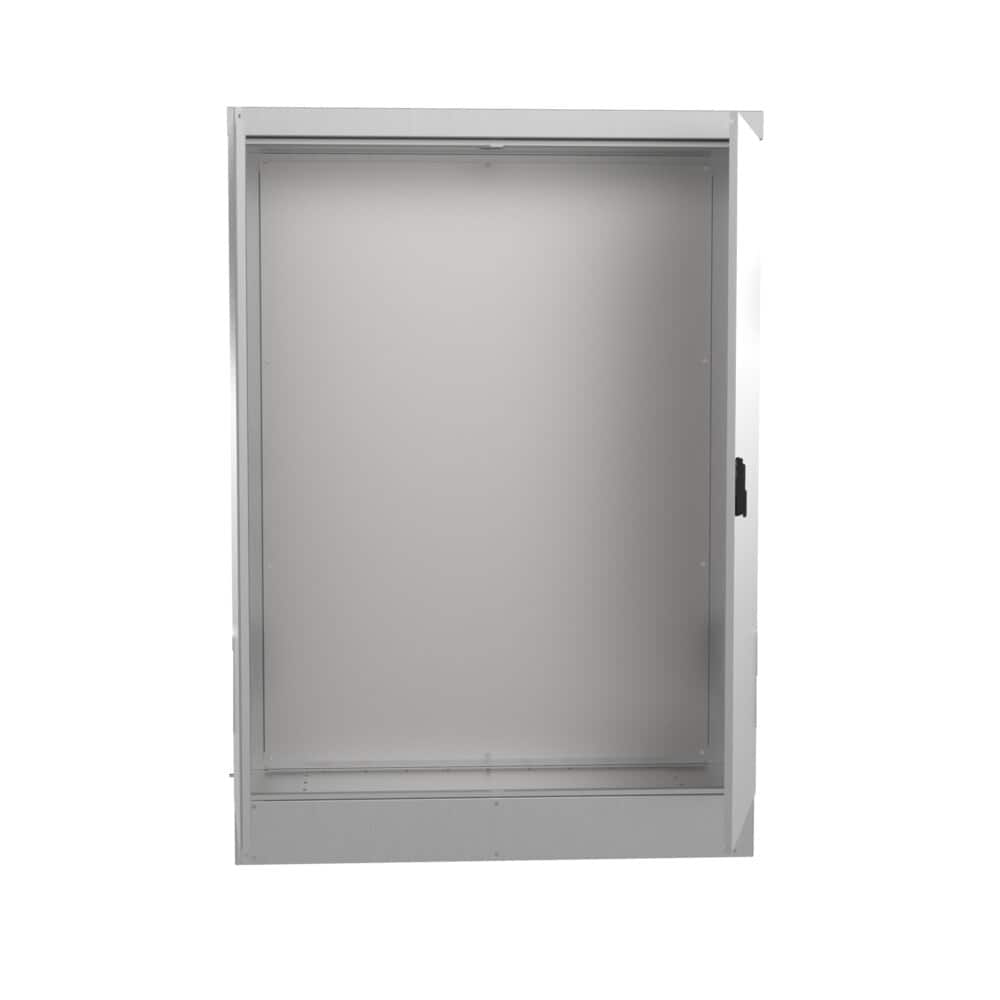

Outdoor telecom 19 storm: rear view of the product

TECHNICAL DATA

Minimum Measurements	A=600-1900mm B=600-800mm P=400-800mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Opening	120 °
Door Type	Blind door
Opening Type	Swivel with concealed hinges
Closing System	Rotary handle
Material	AISI 304L/AISI 316L
Finish	Satin finish
Sealing Gasket	Polyurethane
Working Temperature	-40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Alternative Gaskets	silicone (-60°C to +180°C), EMC

Manufacture of Outdoor Aluminum Rack

Special designs and custom paint finishes on demand

Base para cualquier tamaño

In stainless steel AISI 316L EN 14404

Ventilation kit (fan, resistor, and thermostat)

Anti-Graffiti Treatment

EMC Version According to EEC Standard 89/336 on Electromagnetic Compatibility

Personalización Acabados

Ventilated or sealed flat roof option

High mechanical properties and high torsional strength

With injected waterproof gasket, so that moisture cannot accumulate

Spacious Usable Area and Interior

Door Stop Retainer Device

anti-vandal handle

Maintenance-free throughout its entire lifespan. Service life over 30 years

Customizable Design Adaptation

Our 19" outdoor rack cabinets Storm Series, given its design, finish and watertightness are specially designed for outdoor use. As its name says

Delvalle cabinets certified to EN 62208 and EN 60529 standards

IK10 protection rating according to IEC 62262 standard

EN 61969-3

Compliance with IEC 60068-2-30 and IEC 60068-2-11 Standards

UL certification of cabinets

EN 60439-5

Voltage withstand capacity of cabinets

Delvalle cabinets silicone gaskets temperature resistance

Standard Installation of 19” Equipment

IEC 917 regulations

Delvalle cabinets protection against electromagnetic and radio frequency interference

IEC TS 61587-3 standard

REFERENCES		DIMENSIONS (mm)			RACKS
STAINLESS STEEL CABINET	STAINLESS STEEL CABINET FRONT AND REAR DOOR	HEIGHT -A-	WIDTH -B-	DEPTH -C-	RACKS
RD606040	RD606040P	600	600	400	12 U
RD606050	RD606050P			500
RD606060	RD606060P			600
RD606080	RD606080P			800
RD126040	RD126040P	1200		400	24 U
RD126050	RD126050P			500
RD126060	RD126060P			600
RD126080	RD126080P			800
RD146040	RD146040P	1450		400	30 U
RD146050	RD146050P			500
RD146060	RD146060P			600
RD146080	RD146080P			800
RD148040	RD148040P		800	400
RD148050	RD148050P			500
RD148060	RD148060P			600
RD148080	RD148080P			800
RD196040	RD196040P	1900	600	400	40 U
RD196050	RD196050P			500
RD196060	RD196060P			600
RD196080	RD196080P			800
RD198040	RD198040P		800	400
RD198050	RD198050P			500
RD198060	RD198060P			600
RD198080	RD198080P			800

Croquis:

Accessories:

Lighting for electrical enclosures

Security lock

Locks

Assembly frame

Insulated enclosures

Cable entry cover

Clear glass door

Roof for electrical enclosures

Mounting plates

Data pocket

Sockets

Transportation Angle

Switchboard graffiti-proof paint

Anti-insect system

Perforated mounting plate

Separating plate

Pivot frame

Eyebolt

DIN tray

Safety lock

Set with inner door

Open door security device

Designs / Doors

Limit switches for electrical enclosure

Reinforcing frame

Sliding cable covers

Cross cable guide

Waterproof seal
