Stainless steel wall enclosure IP67 Luxor
LUXOR Series IP67

Electrical boxes IP67 made of stainless steel AISI 304L, combine ideal characteristics for electrical and electronic applications where safety and perfect seal against dust and water are essential.

Stainless steel wall enclosure IP67 Luxor · Delvalle BoxDelvalle Box
Stainless steel wall enclosure IP67 Luxor · Delvalle BoxDelvalle Box
Stainless steel wall enclosure IP67 Luxor · Delvalle BoxDelvalle Box
Stainless steel wall enclosure IP67 Luxor · Delvalle BoxDelvalle Box

Description

New range IP67 wall electrical boxes made of stainless steel AISI 304L & AISI 316L, combine a number of features ideal for electrical and electronic applications where security and perfect sealing against dust and water are essential.
The most popular characteristic is the ease of dismantling by screws, with a revolving left door which allows the performance inside the frame without removal or loss of the door.

Achieve all the safety and security you need

  • Logo CE · Delvalle Box
    CE
  • Logo IK10 · Delvalle Box
    IK10
  • Logo IP67 · Delvalle Box
    IP67
  • Logo ROHS · Delvalle Box
    ROHS
  • Logo UL NEMA 1 · Delvalle Box
    UL NEMA 1
  • Logo UL NEMA 12 · Delvalle Box
    UL NEMA 12
  • Logo UL NEMA 3R · Delvalle Box
    UL NEMA 3R
  • Logo UL NEMA 4X · Delvalle Box
    UL NEMA 4X
  • Logo 10 year anti-corrosion · Delvalle Box
    10 year anti-corrosion
  • Logo 5 year mechanical parts · Delvalle Box
    5 year mechanical parts
  • Logo Chemical resistant · Delvalle Box
    Chemical resistant
  • Logo Corrosion resistant · Delvalle Box
    Corrosion resistant
  • Logo Easy to clean · Delvalle Box
    Easy to clean
  • Logo Scrach resistant · Delvalle Box
    Scrach resistant
  • Logo Temperature resistant · Delvalle Box
    Temperature resistant
  • Logo Waterproof · Delvalle Box
    Waterproof

Discover the advantages

Sealing allows total protection against dust and water in the short term of 1 meter deep.
This type of boxes combine corrosion resistance and the highest market impact IK10.
The manufacture of the stainless steel monobloc allows sealing and the maximum resistance.
Supplied with protective film prevents scratches and abrasions during handling.
With flashing channel that avoids contact with the liquid polyurethane gasket.

Regulations

IP67 Norm IEC EN 62208 and EN 60529. Submersible  1m for 30 minutes.
• Maximum IK10 resistance Norm IEC 62208 and EN 50102
• CE standards Low Voltage Directive 2006/95/CE.
UL Nema 4x.
• Maximum voltage 1000 V.
RoHs compliant.
• Temperature resistant: -40°C +100°C (short time +160°C).
• Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Applications

This combination of strength and sealing characteristics make it ideal for electronic and electrical inner housing equipment in adverse environments outdoors.

Custom Made Solutions
We offer multiple solutions

Stainless steel wall enclosure IP67 Luxor · Delvalle Box
Do you need solutions?
2017 product catalogues

• Order by measure based on your needs.
With a choice of two doors (from 800x600).
• We recommended using our stainless steel IP68 cable gland for cable entry.
• Manufactured in stainless steel AISI 316L EN 14404.
• Finished in textured paint other RAL colours on request.
• Mounting plate insulator (Bakelite) or stainless steel.
EMC electromagnetic protection seal between the frame and the contact surfaces, ensuring a perfect electrical connection. EEC standard 89/336.

Customize this product with the following components:
Lighting for Electrical Enclosures · Delvalle BoxDelvalle Box
Delvalle compact luminaires are specially designed for use in electrical cabinets. We have low...
Security lock · Delvalle BoxDelvalle Box
Security lock for placement it in electrical cabinets.
Locks · Delvalle BoxDelvalle Box
Depending on the enclosure and its use, we look for the best closure suited to the customer’s...
Assembly Frame · Delvalle BoxDelvalle Box
Chassis modular cabinets. Used to divide the front of the cabinets into several sections for quick...
Thermal Insulation Enclosures TermoTisa · Delvalle BoxDelvalle Box
The thermal insulation Termotisa is ideal when it is necessary thermal insulate in...
Cable Entry Cover · Delvalle BoxDelvalle Box
Ideal accessory supplement, removable to make holes comfortably to suit your needs, and fitted so...
Clear Glass Door · Delvalle BoxDelvalle Box
All our cabinets are available with transparent exterior and interior doors for perfect vision of...
Roofs for Outdoor · Delvalle BoxDelvalle Box
In Delvalle we offer the possibility to ask for self-ventilated roofs....
Mounting Plates · Delvalle BoxDelvalle Box
Different mounting plates for multiple uses in electrical cabinets Delvalle.
Data Pocket · Delvalle BoxDelvalle Box
Useful to keep electrical drawings, maintenance records, etc.....
Pedestal Stands · Delvalle BoxDelvalle Box
Steel foot bracket to fix the cabinets to the floor.
Transportation Angle · Delvalle BoxDelvalle Box
The transportation angles add strength in handling loading and unloading of the cabinets.
Switchboard Graffiti-Proof Paint · Delvalle BoxDelvalle Box
In Delvalle all cabinets may suminstrarse with a protective transparent anti-graffiti paint and...
Anti-Insect System · Delvalle BoxDelvalle Box
We know the problem for the placement of cooling systems posed by the entry of insects inside the...
Perforated Mounting Plate · Delvalle BoxDelvalle Box
Perforated plates for quick installation of electrical components.
Ventilation Plugs IP68 · Delvalle BoxDelvalle Box
Ventilation plugs (polyamide, nickel plated and stainless steel) reduce the adverse effects of...
Shock Absorbers for Electrical Enclosures · Delvalle BoxDelvalle Box
With the shock absorbers we get a better grip on the doors, and we define the opening angle of the...
Separating Plate · Delvalle BoxDelvalle Box
Fixed directly to the cabinet structure, to get separation as well as being a shelf for objects.
Pivot Frame · Delvalle BoxDelvalle Box
The ideal solution for the placement of all instrumentation, with easy and comfortable access from...
Ventilation Brackets · Delvalle BoxDelvalle Box
Placed both in the front enclosure and on the side, allowing a perfect flow of air inside.
DIN tray · Delvalle BoxDelvalle Box
Directly fixed to the structure. Galvanized 1.5 mm thick steel. Dimensions: 35mm by 7.5 or 5mm.
Safety Lock · Delvalle BoxDelvalle Box
Typically used in enclosures with temporary changes of user. You can also use the padlock seal,...
Set With Inner Door · Delvalle BoxDelvalle Box
Interior door designed for direct placement in the enclosure.
Open Door Security Device · Delvalle BoxDelvalle Box
This device prevents accidents, alerts the operator that the electrical system is functioning...
Designs / Doors · Delvalle BoxDelvalle Box
The possibility of placing a double door in the cabinet is given to meet the customer’s need to...
Limit Switches for Electrical Enclousure · Delvalle BoxDelvalle Box
Limit switches provided with support and fixings for direct fixing....
Sliding Cable Covers · Delvalle BoxDelvalle Box
These caps allow cable entry between them.
Pole Mount · Delvalle BoxDelvalle Box
Delvalle offers the solution for post mounting, providing a perfect fixing of the enclosure.
Cross Cable Guide · Delvalle BoxDelvalle Box
With this guide inside the door we get a perfectly ordered wiring. Ideal for the passage of...
Outdoor air conditioner Electrical Enclosures · Delvalle Box
The largest range of IP54 air conditioners electrical enclosures refrigerators in the market,...
Roof fan · Delvalle BoxDelvalle Box
Roof Fan, specially designed for extracting heat from the top of the cabinet, for achieving...
Thermostats and Thermo-Hygrostats · Delvalle BoxDelvalle Box
Thermostats and Hygrostats for small siza racks and cabinets, dual function, heat, cold, etc... All...
Waterproof Seal · Delvalle BoxDelvalle Box
Injected waterproof seal UL, TÜV, CE certified. ...
Wall Mounting Brackets · Delvalle BoxDelvalle Box
They are fixed from the outside and can be positioned either vertically or horizontally.
Stainless steel wall enclosure IP67 Luxor · Delvalle Box

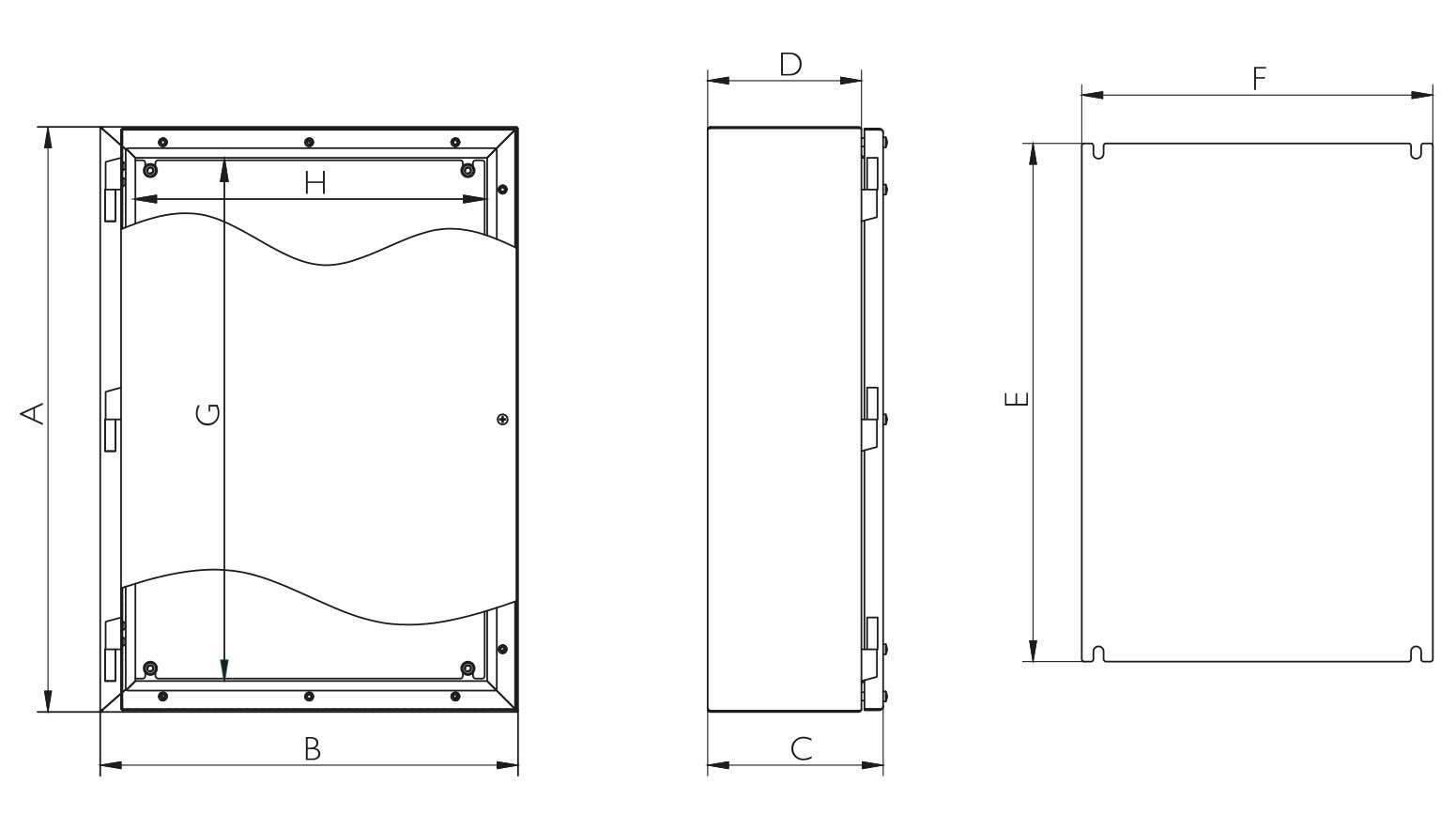

Sketches

Stainless steel wall enclosure IP67 Luxor · Delvalle Box

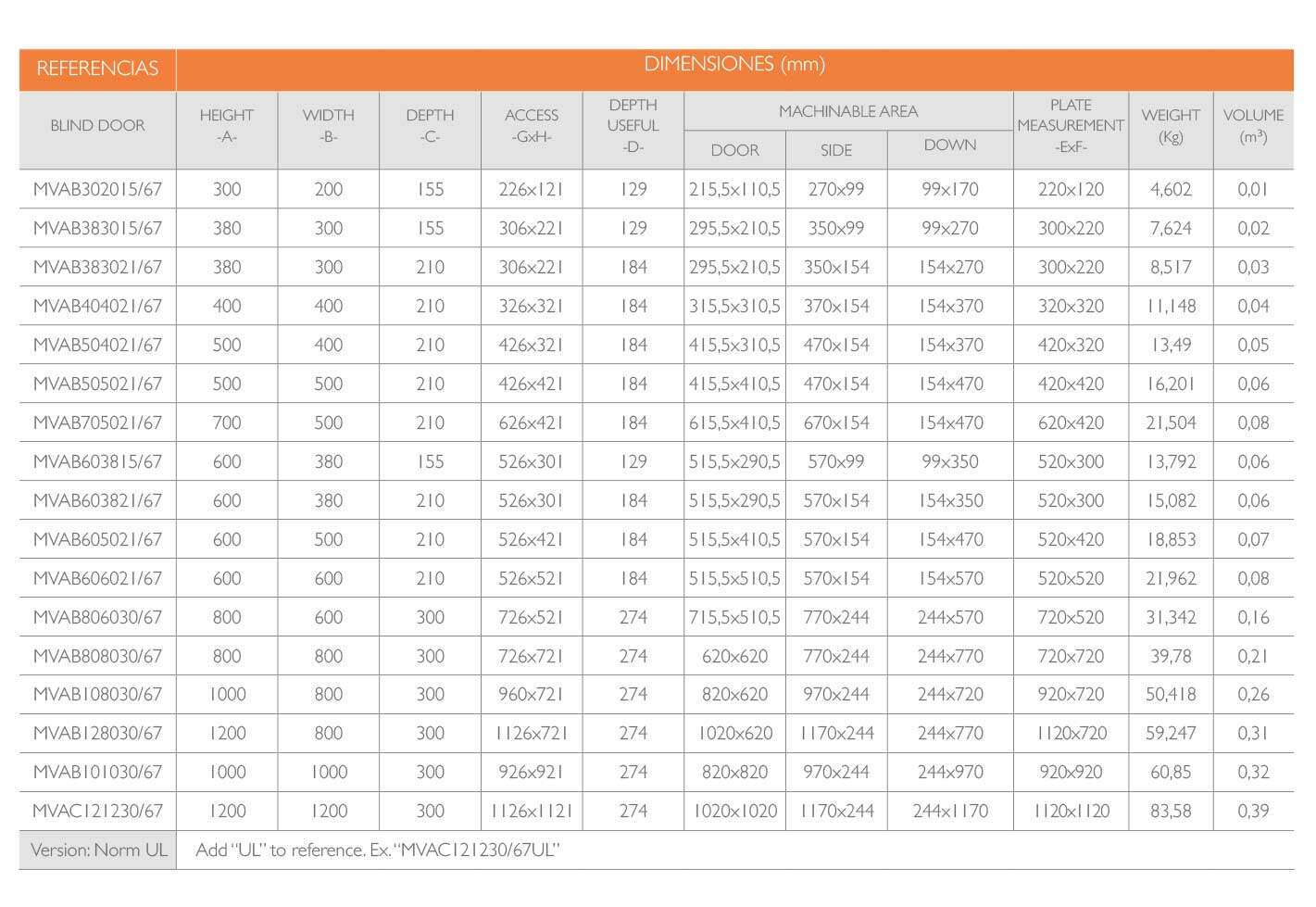

References

Show References
ReferenceDescriptionHighWidthBackground
MVAB302015/67Stainless steel wall enclosure IP67 LUXOR series300200155MVAB302015/67
MVAB383015/67Stainless steel wall enclosure IP67 LUXOR series380300155MVAB383015/67
MVAB383021/67Stainless steel wall enclosure IP67 LUXOR series380300210MVAB383021/67
MVAB404021/67Stainless steel wall enclosure IP67 LUXOR series400400210MVAB404021/67
MVAB504021/67Stainless steel wall enclosure IP67 LUXOR series500400210MVAB504021/67
MVAB505021/67Stainless steel wall enclosure IP67 LUXOR series500500210MVAB505021/67
MVAB705021/67Stainless steel wall enclosure IP67 LUXOR series700500210MVAB705021/67
MVAB604021/67Stainless steel wall enclosure IP67 LUXOR series600400210MVAB604021/67
MVAB605021/67Stainless steel wall enclosure IP67 LUXOR series600500210MVAB605021/67
MVAB606021/67Stainless steel wall enclosure IP67 LUXOR series600600210MVAB606021/67
MVAB806030/67Stainless steel wall enclosure IP67 LUXOR series800600300MVAB806030/67
MVAB808030/67Stainless steel wall enclosure IP67 LUXOR series800800300MVAB808030/67
MVAB108030/67Stainless steel wall enclosure IP67 LUXOR series1000800300MVAB108030/67
MVAB128030/67Stainless steel wall enclosure IP67 LUXOR series1200800300MVAB128030/67
MVAB101030/67Stainless steel wall enclosure IP67 LUXOR series10001000300MVAB101030/67
MVAB121230/67Stainless steel wall enclosure IP67 LUXOR series12001200300MVAB121230/67
