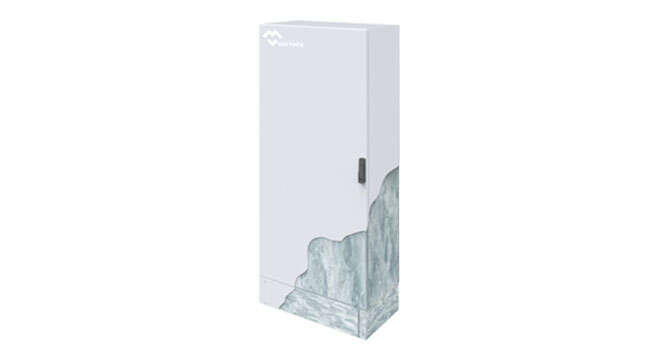

Galvanized Free-Standing Enclosure Tribeca IP66

TRIBECA SERIES

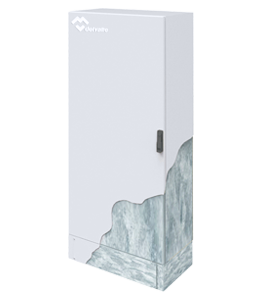

The painted Galvanized steel enclosures TRIBECA Series are rugged, easy opening by rotary and four locking points, smoothly opening by hinges in stainless steel, ease of placement on the floor itself, flexibility and range of maximum operating handle for your assembly, and a unique design painted galvanized steel RAL 7035.

Galvanized Free-Standing Enclosure Tribeca IP66 · Delvalle Box

This product has the following certificates

  • Logo CE · Delvalle Box
  • Logo IP55 · Delvalle Box
  • Logo IP65 · Delvalle Box
  • Logo IP66 · Delvalle Box
  • Logo UL NEMA 1 · Delvalle Box
  • Logo UL NEMA 12 · Delvalle Box
  • Logo UL NEMA 3R · Delvalle Box
  • Logo UL NEMA 4 · Delvalle Box

Description

The painted Galvanized steel enclosures TRIBECA Series are rugged, easy opening by rotary and four locking points, smoothly opening by hinges in stainless steel, ease of placement on the floor itself, flexibility and range of maximum operating handle for your assembly, and a unique design painted galvanized steel RAL 7035. Available in one or two 120 ° revolving doors easily removable. We recommend grommet socket. Chrome closures.



Discover the advantages

• The manufacture of the stainless steel monobloc allows sealing and maximum resistance.
• A drainage channel prevents liquid contact with the polyurethane gasket and with concealed hinges.
• 120º door opening. Standard opening to the left, specify whether you want to the right.
• Delvalle made to order in any size to suit your needs and all drilling holes, both for the door and the enclosure included.
• Distribuited load 600 kg.

Regulations

• IEC 60529 norm. IP66 (IP55 two doors up to IP66 by request).
• UL approval Nema 1, 3r, 4, 12. Nº File E342220.
• IEC 62262 norm. Maximum IK10 resistance.
• 2014/35/UE directive. Low voltage ruling directive.
CE 1935/2004 norm. Materials intended to come into contact with food.
• Maximum voltage 1000 V.
• Temperature resistant: -40°C +100°C (short time +160°C).
• Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Applications

Specially designed for outdoor installations where superior quality and durability needed. Approved for the food industry, electrical panel, chemical, pharmaceutical, maritime, telecommunications and outdoor general, given the advantages of durability and strength.

Custom Made Solutions
We offer multiple solutions

Galvanized Free-Standing Enclosure Tribeca IP66 · Delvalle Box
Do you need solutions?
2024 product catalogues

• Custom made based on your needs. With a choice of two doors.
• Switchboard graffiti-proof pain.
• Socles.
• Castors.
• Metal legs.
• Clear polycarbonate door.
• Transparent safety glass door.
• EMC version according to 2014/30/UE of electromagnetic compatibility.

Galvanized Free-Standing Enclosure Tribeca IP66 · Delvalle Box

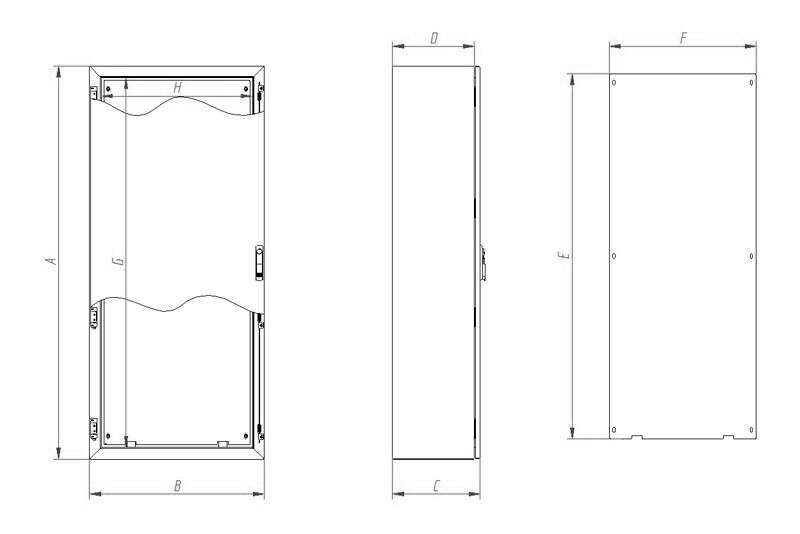

Sketches

Galvanized Free-Standing Enclosure Tribeca IP66 · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
MVGC166040ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA CIEGA1650600400MVGC166040
MVGC168040ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA CIEGA1650800400MVGC168040
MVGC161040ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA CIEGA16501000400MVGC161040
MVGC186040ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA CIEGA1800600400MVGC186040
MVGC188040ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA CIEGA1800800400MVGC188040
MVGC186050ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA CIEGA1800600500MVGC186050
MVGC188050ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA CIEGA1800800500MVGC188050
MVGC181040ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA CIEGA18001000400MVGC181040
MVGC181050ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA CIEGA18001000500MVGC181050
MVGC206040ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA CIEGA2000600400MVGC206040
MVGC208040ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA CIEGA2000800400MVGC208040
MVGC208050ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA CIEGA2000800500MVGC208050
MVGC201040ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA CIEGA20001000400MVGC201040
MVGC201050ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA CIEGA20001000500MVGC201050
MVGC166040TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO1650600400MVGC166040T
MVGC168040TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO1650800400MVGC168040T
MVGC161040TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO16501000400MVGC161040T
MVGC186040TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO1800600400MVGC186040T
MVGC188040TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO1800800400MVGC188040T
MVGC186050TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO1800600500MVGC186050T
MVGC188050TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO1800800500MVGC188050T
MVGC181040TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO18001000400MVGC181040T
MVGC181050TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO18001000500MVGC181050T
MVGC206040TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO2000600400MVGC206040T
MVGC208040TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO2000800400MVGC208040T
MVGC208050TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO2000800500MVGC208050T
MVGC201040TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO20001000400MVGC201040T
MVGC201050TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO20001000500MVGC201050T
MVGC166040TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO + CONTRAPUERTA1650600400MVGC166040TC
MVGC168040TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO + CONTRAPUERTA1650800400MVGC168040TC
MVGC161040TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO + CONTRAPUERTA16501000400MVGC161040TC
MVGC186040TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO + CONTRAPUERTA1800600400MVGC186040TC
MVGC188040TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO + CONTRAPUERTA1800800400MVGC188040TC
MVGC186050TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO + CONTRAPUERTA1800600500MVGC186050TC
MVGC188050TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO + CONTRAPUERTA1800800500MVGC188050TC
MVGC181040TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO + CONTRAPUERTA18001000400MVGC181040TC
MVGC181050TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO + CONTRAPUERTA18001000500MVGC181050TC
MVGC206040TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO + CONTRAPUERTA2000600400MVGC206040TC
MVGC208040TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO + CONTRAPUERTA2000800400MVGC208040TC
MVGC208050TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO + CONTRAPUERTA2000800500MVGC208050TC
MVGC201040TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO + CONTRAPUERTA20001000400MVGC201040TC
MVGC201050TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA PUERTA POLICARBONATO + CONTRAPUERTA20001000500MVGC201050TC
MVGC161240ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS16501200400MVGC161240
MVGC181240ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS18001200400MVGC181240
MVGC181250ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS18001200500MVGC181250
MVGC201240ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS20001200400MVGC201240
MVGC201250ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS20001200500MVGC201250
MVGC201440ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS20001400400MVGC201440
MVGC201450ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS20001400500MVGC201450
MVGC201640ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS20001600400MVGC201640
MVGC201650ARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS20001600500MVGC201650
MVGC161240TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS POLICARBONATO16501200400MVGC161240T
MVGC181240TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS POLICARBONATO18001200400MVGC181240T
MVGC181250TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS POLICARBONATO18001200500MVGC181250T
MVGC201240TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS POLICARBONATO20001200400MVGC201240T
MVGC201250TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS POLICARBONATO20001200500MVGC201250T
MVGC201440TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS POLICARBONATO20001400400MVGC201440T
MVGC201450TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS POLICARBONATO20001400500MVGC201450T
MVGC201640TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS POLICARBONATO20001600400MVGC201640T
MVGC201650TARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS POLICARBONATO20001600500MVGC201650T
MVGC161240TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS POLICARBONATO + CONTRAPUERTA16501200400MVGC161240TC
MVGC181240TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS POLICARBONATO + CONTRAPUERTA18001200400MVGC181240TC
MVGC181250TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS POLICARBONATO + CONTRAPUERTA18001200500MVGC181250TC
MVGC201240TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS POLICARBONATO + CONTRAPUERTA20001200400MVGC201240TC
MVGC201250TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS POLICARBONATO + CONTRAPUERTA20001200500MVGC201250TC
MVGC201440TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS POLICARBONATO + CONTRAPUERTA20001400400MVGC201440TC
MVGC201450TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS POLICARBONATO + CONTRAPUERTA20001400500MVGC201450TC
MVGC201640TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS POLICARBONATO + CONTRAPUERTA20001600400MVGC201640TC
MVGC201650TCARMARIO ELÉCTRICO GALVANIZADO PINTADO COMPACTO IP65-66 TRIBECA 2 PUERTAS POLICARBONATO + CONTRAPUERTA20001600500MVGC201650TC
