The painted Galvanized steel enclosures TRIBECA Series are rugged, easy opening by rotary and four locking points, smoothly opening by hinges in stainless steel, ease of placement on the floor itself, flexibility and range of maximum operating handle for your assembly, and a unique design painted galvanized steel RAL 7035.
| Minimum Measurements | A=1650-2000mm B=600-1000mm P=400-500mm |
|---|---|
| Maximum Double Door Measurements | A=2000mm B=1600mm P=500mm |
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Opening | 120 ° |
| Door Type | Blind door |
| Opening Type | Swivel with concealed hinges |
| Closing System | Rotary handle with 4 locking points |
| Material | Painted galvanized steel |
| Finish | Painted RAL 7035 |
| Plate Material | Galvanized |
| Sealing Gasket | Polyurethane |
| Working Temperature | -40°C a +100°C (reducida exposición +160ºC) |
| Maximum Voltage | 1000 V |
| Alternative Door | Door with polycarbonate panel, Door with safety glass |
|---|---|
| Interior Plate Material | Stainless steel mounting plate, Insulating mounting plate (Bakelite) |
| Alternative Gaskets | silicone (-60°C to +180°C), EMC |
|
REFERENCES 1 DOOR |
DIMENSIONS (mm) |
||||||
|
SOLID DOOR (x) |
POLYCARBONATE DOOR (not IP69K) |
POLYCARBONATE DOOR + INNER DOOR (not IP69K) |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
WEIGHT (Kg) |
VOLUME (m³) |
|
MVGC166040 |
MVGC166040T |
MVGC166040TC |
1650 |
600 |
400 |
70.9 |
0.42 |
|
MVGC168040 |
MVGC168040T |
MVGC168040TC |
1650 |
800 |
400 |
93.25 |
0.56 |
|
MVGC161040 |
MVGC161040T |
MVGC161040TC |
1650 |
1000 |
400 |
111.3 |
0.70 |
|
MVGC186040 |
MVGC186040T |
MVGC186040TC |
1800 |
600 |
400 |
76.61 |
0.46 |
|
MVGC188040 |
MVGC188040T |
MVGC188040TC |
1800 |
800 |
400 |
100.76 |
0.61 |
|
MVGC186050 |
MVGC186050T |
MVGC186050TC |
1800 |
600 |
500 |
84.69 |
0.57 |
|
MVGC188050 |
MVGC188050T |
MVGC188050TC |
1800 |
800 |
500 |
107.21 |
0.76 |
|
MVGC181040 |
MVGC181040T |
MVGC181040TC |
1800 |
1000 |
400 |
120.24 |
0.76 |
|
MVGC181050 |
MVGC181050T |
MVGC181050TC |
1800 |
1000 |
500 |
127.18 |
0.95 |
|
MVGC206040 |
MVGC206040T |
MVGC206040TC |
2000 |
600 |
400 |
84.68 |
0.51 |
|
MVGC208040 |
MVGC208040T |
MVGC208040TC |
2000 |
800 |
400 |
111.19 |
0.68 |
|
MVGC208050 |
MVGC208050T |
MVGC208050TC |
2000 |
800 |
500 |
118.13 |
0.85 |
|
MVGC201040 |
MVGC201040T |
MVGC201040TC |
2000 |
1000 |
400 |
132.58 |
0.85 |
|
MVGC201050 |
MVGC201050T |
MVGC201050TC |
2000 |
1000 |
500 |
140 |
1.05 |
|
REFERENCES 2 DOORS |
DIMENSIONS (mm) |
||||||
|
SOLID DOOR (x) |
POLYCARBONATE DOOR (not IP69K) |
POLYCARBONATE DOOR + INNER DOOR (not IP69K) |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
WEIGHT (Kg) |
VOLUME (m³) |
|
MVGC161240 |
MVGC161240T |
MVGC161240TC |
1650 |
1200 |
400 |
129,33 |
0,84 |
|
MVGC181240 |
MVGC181240T |
MVGC181240TC |
1800 |
1200 |
400 |
139,7 |
0,91 |
|
MVGC181250 |
MVGC181250T |
MVGC181250TC |
1800 |
1200 |
500 |
147,12 |
1,14 |
|
MVGC201240 |
MVGC201240T |
MVGC201240TC |
2000 |
1200 |
400 |
149,61 |
1,02 |
|
MVGC201250 |
MVGC201250T |
MVGC201250TC |
2000 |
1200 |
500 |
157,51 |
1,26 |
|
MVGC201440 |
MVGC201440T |
MVGC201440TC |
2000 |
1400 |
400 |
169,38 |
1,18 |
|
MVGC201450 |
MVGC201450T |
MVGC201450TC |
2000 |
1400 |
500 |
177,76 |
1,49 |
|
MVGC201640 |
MVGC201640T |
MVGC201640TC |
2000 |
1600 |
400 |
189,12 |
1,35 |
|
MVGC201650 |
MVGC201650T |
MVGC201650TC |
2000 |
1600 |
500 |
197,99 |
1,68 |

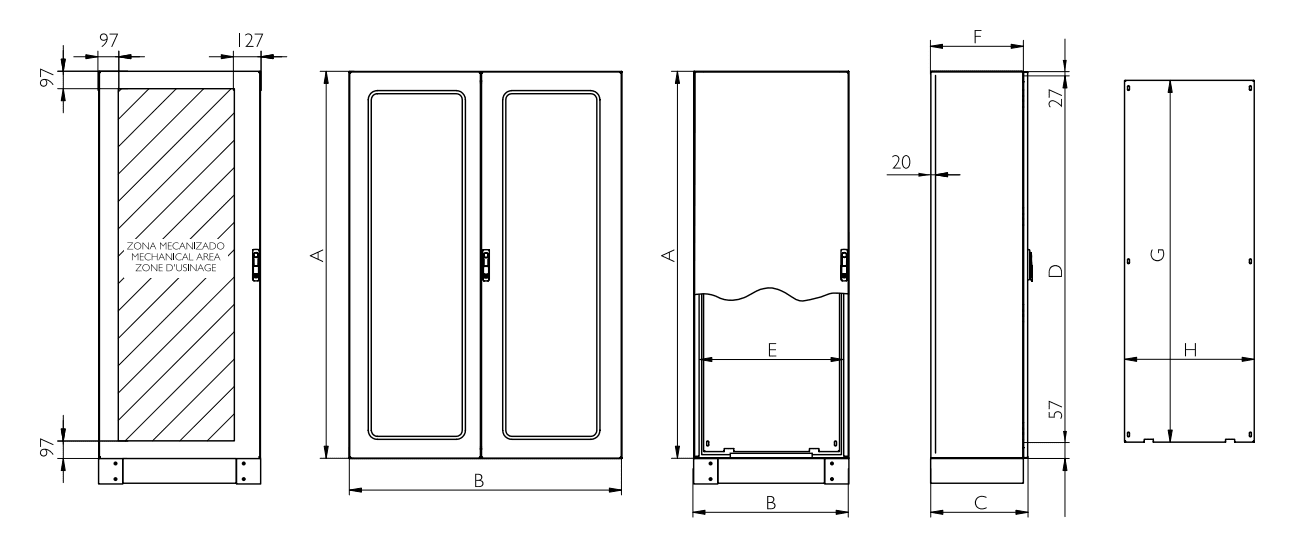

Croquis:
