Sun Shield Enclosures IP66

Sun Shield Enclosures IP66 provides protection for single or multiple instruments, preventing Electrical & electronics devices,due to temperature changes caused by solar radiation.

Desert Enclosure Series will solar shield instruments from the sun and provide partial protection from falling objects, rain, snow, and wind blown sand.

Waterproof and Auto-Refrigerated. Protect from the Solar Rays the Enclosure Inside without Increasing the Temperature, is good to use for harsh environments.

Sun Shield Enclosures IP66 · Delvalle Box

This product has the following certificates

Description

Sun Shield Enclosures IP66 provides protection for single or multiple instruments, preventing instrument calibration drift due to temperature changes caused by solar radiation.

Desert enclosure will shield instruments from the sun and provide partial protection from falling objects, rain, snow, and wind blown sand.

Sun shields (solar shields) are fitted to external surfaces to assist in controlling the internal temperature of the electrical enclosure or electrical cabinet. Generally, the temperature range of the electrical enclosure must maintain an internal temperature below the operating temperature range of internal components. Unless specified otherwise, it is desirable to maintain an internal temperature (TI) below 50°C.

Desert enclosure has been designed to outdoor in desert areas, and/or when we need a protection inside enclosure against solar rays of this way, we reduce the inside temperature of the cabinet up to 50%.
The Desert enclosure reduces by up to 90% of direct solar radiation, lengthening and protecting the lifetime of your electronics components.
Doesn’t require refrigeration, reducing the power consumption, reducing the maintenance of equipment and diminish considerably the operator’s repair and spare parts costs.
Besides, its innovative design enables obtained a natural airflow in all surfaces of enclosure without additional fans.

Robust enclosure manufactured in galvanized Steel painted in 7035 or AISI304L.
Manufactured in monobloc gives 100% sealing and maximum corrosive resistance. Suitable for harsh environments.
Designed with sunshades in all surfaces to avoid the direct solar radiation.

Download all documents and certificates

Do you need extra info?
In DELVALLE, WE make IT EASY for you

Discover the advantages

Suitable for desert areas or areas with high solar radiation.
Protected against dust, sand and inclement weather.
Doesn’t require refrigeration nor ventilation.
Reduces by up to 90% of direct solar radiation
Waterproof IP66, inside is protected of dust, rain, etc.
Free maintenance.

Regulations

IP66, Norm IEC 60529-2004
IK10, Norm IEC 62262-2002
En 61969-3 Mechanical Structures for Electronic Equipment – outdoor enclosure-
IEC 60068-2-30 y IEC 60068-2-11.
Built to CE Standards. 2014/35/UE.
UL approval. NºFile E342220.
Shock resistant against sharp objects EN 60439-5.
Maximum voltage 1000 V.
Temperatur resistant: -40°C +100°C (Short time +160ºC).
Fixing equipment DIN 41494 and IEC 297 to 19-inch rack.
Fixing equipment IEC 917 (to ETSI or Metric 515m/m).
Electromagnetic compatibility EMC and RFI. (IP55)
Electromagnetic protection IEC TS 61587-3. (IP55)

Applications

Specially designed for outdoor desert areas with high incidence of solar light.

Desert zones.
Railway lines.
Harbor areas
Agricultural areas.

Custom Made Solutions
We offer multiple solutions

Do you need solutions?

Delvalle Box has the solution

2021 product catalogues

Download Zone

Option sun reflective treatment coating “Sunterm” for outdoor electrical enclosures.
Possibility of two doors.
Three materials:

Galvanized Steel painted in RAL 7035.
In AISI3L04 or AISI316L for aggressive environments.
Aluminum in enclosures needs more internal cooling.

Wide range of accessories, plinth, Wall supports, roofs, etc.
Custom made based on your needs.
Door stopper.
Safety lock, with key, etc.
Thermal studies are carried out on request.

Sketches

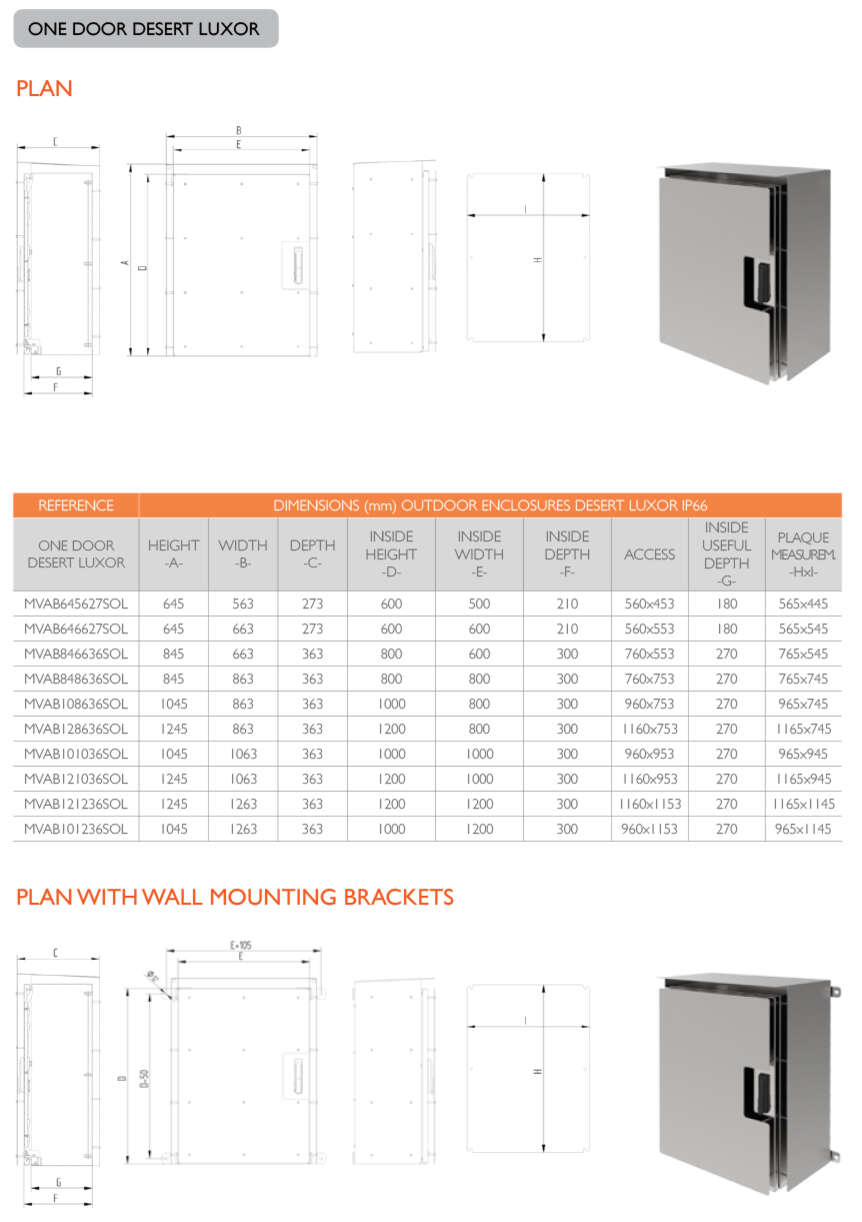

PLAN ONE DOOR DESERT LUXOR · Delvalle Box

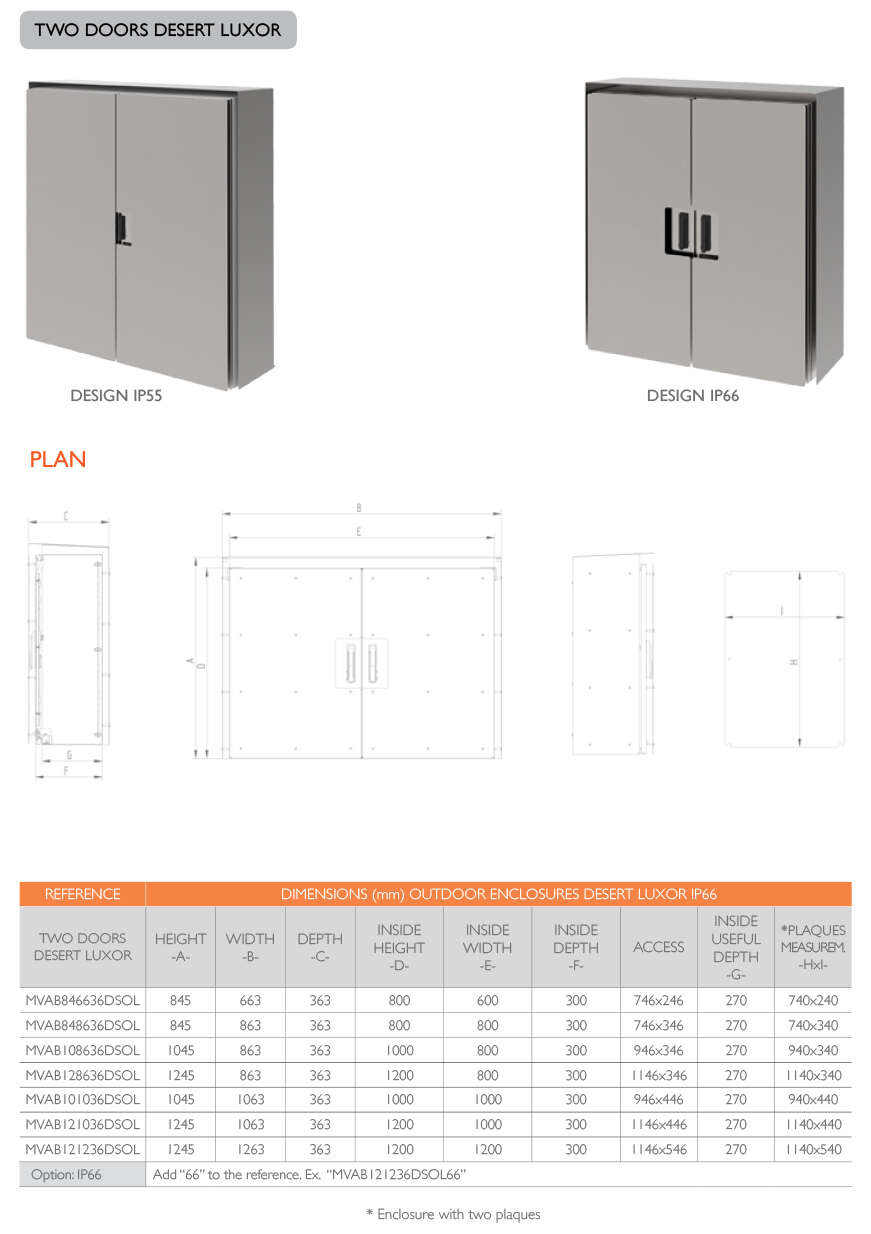

PLAN TWO DOORS DESERT LUXOR · Delvalle Box

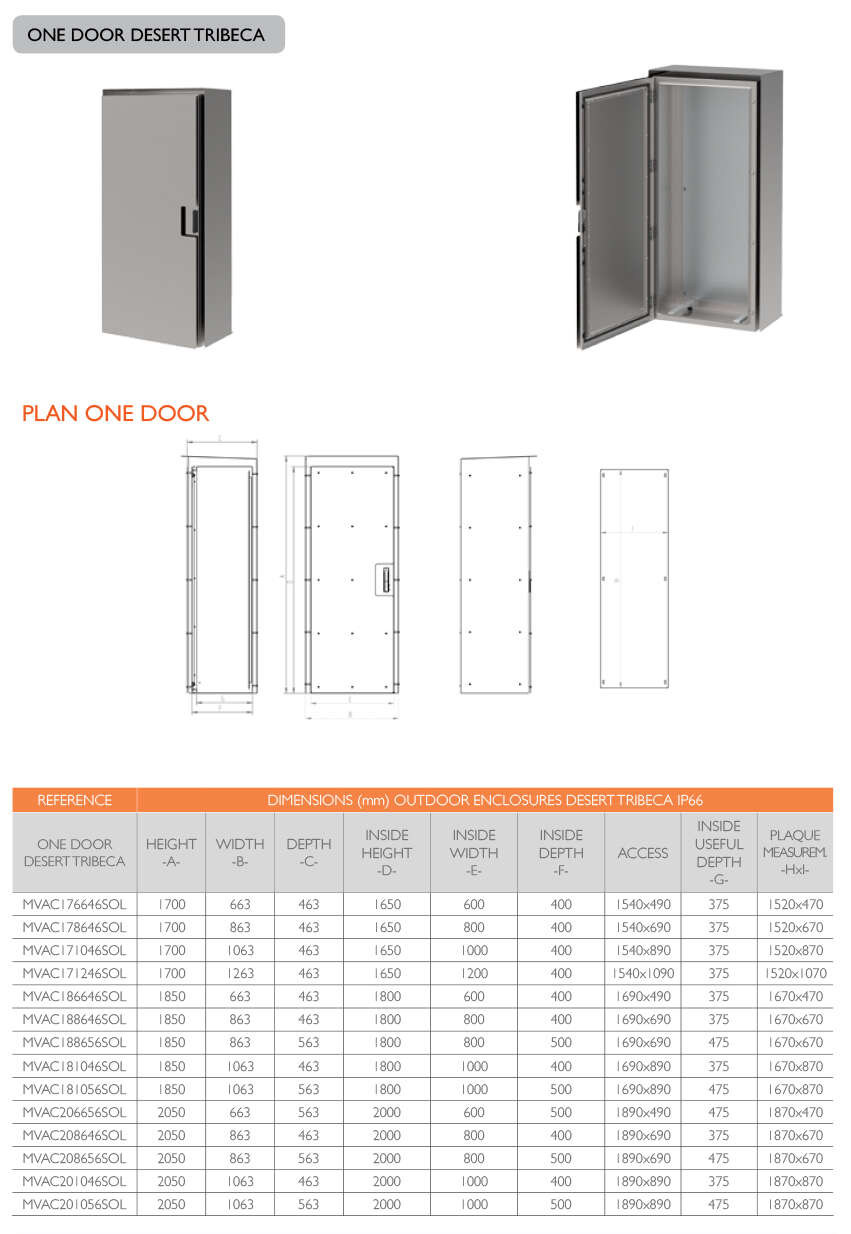

PLAN ONE DOOR DESERT TRIBECA · Delvalle Box
